wheel load per hub 500kg, wheel connection (G) 100x4, thread M12x1.5, offset (ET) 27-33mm, dimension A 258mm, dimension B 88mm, bearing type Compact, axle stub ø52mm. Read more...
Part no. 1225204
Wheel load per hub |
500kg |
Wheel connection |
100x4 |
Wheel connection, thread | M12x1.5 |
Offset | 27-33mm |

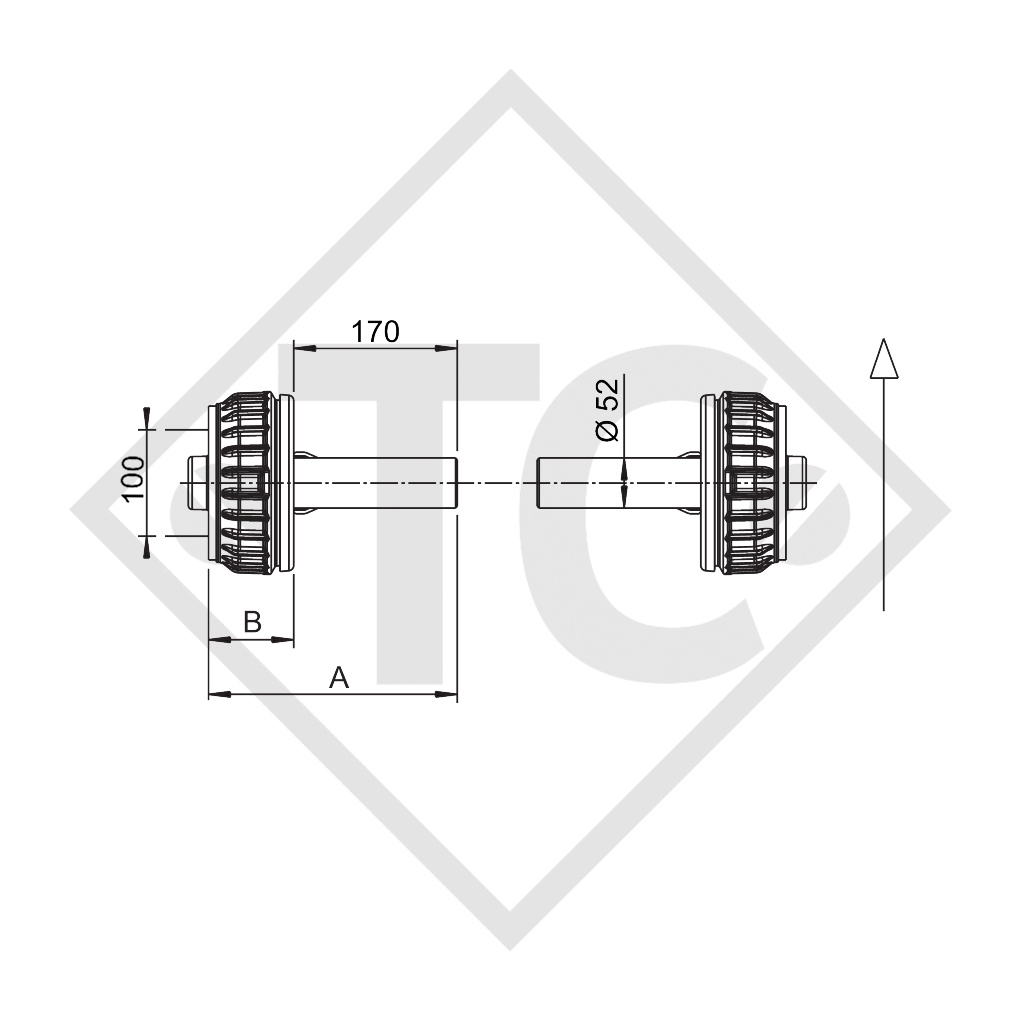

Dimension A | 258mm |
Dimension B | 88mm |
Bearing type | Compact |

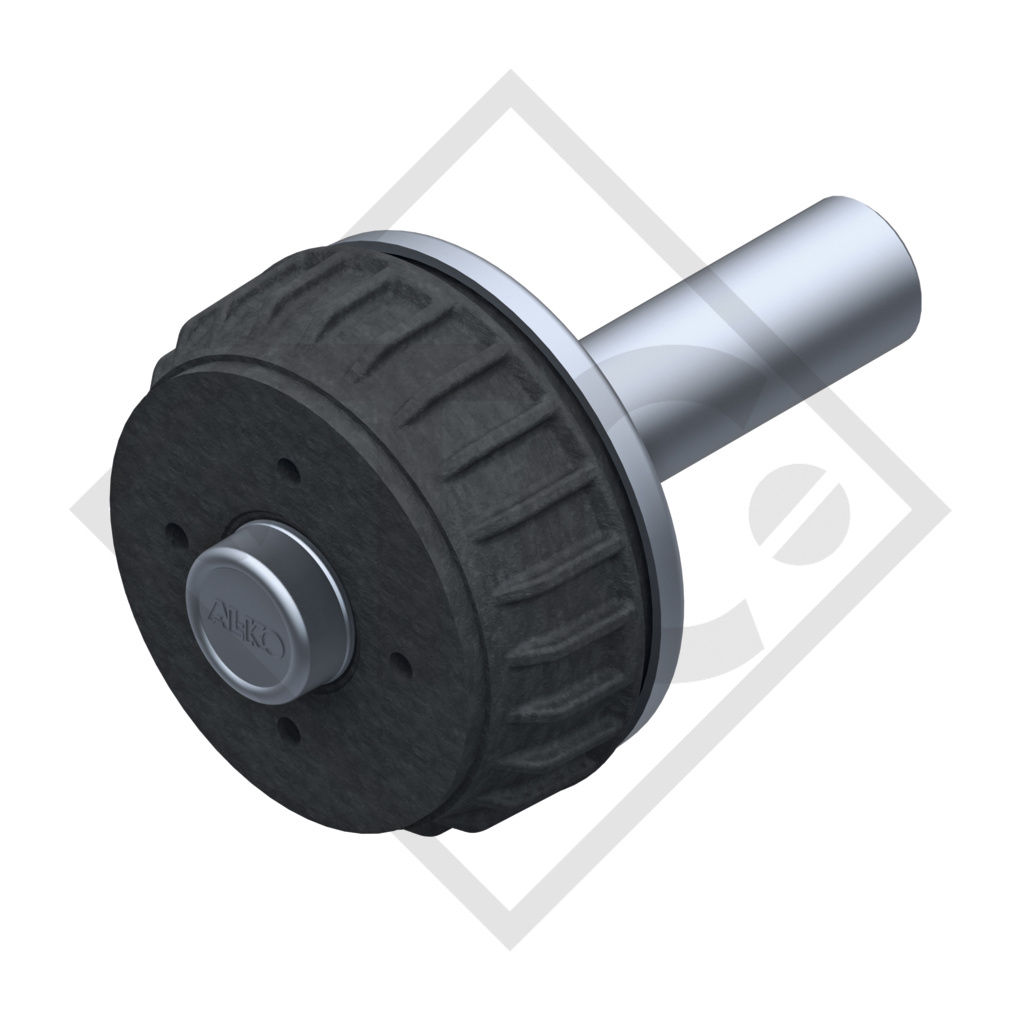

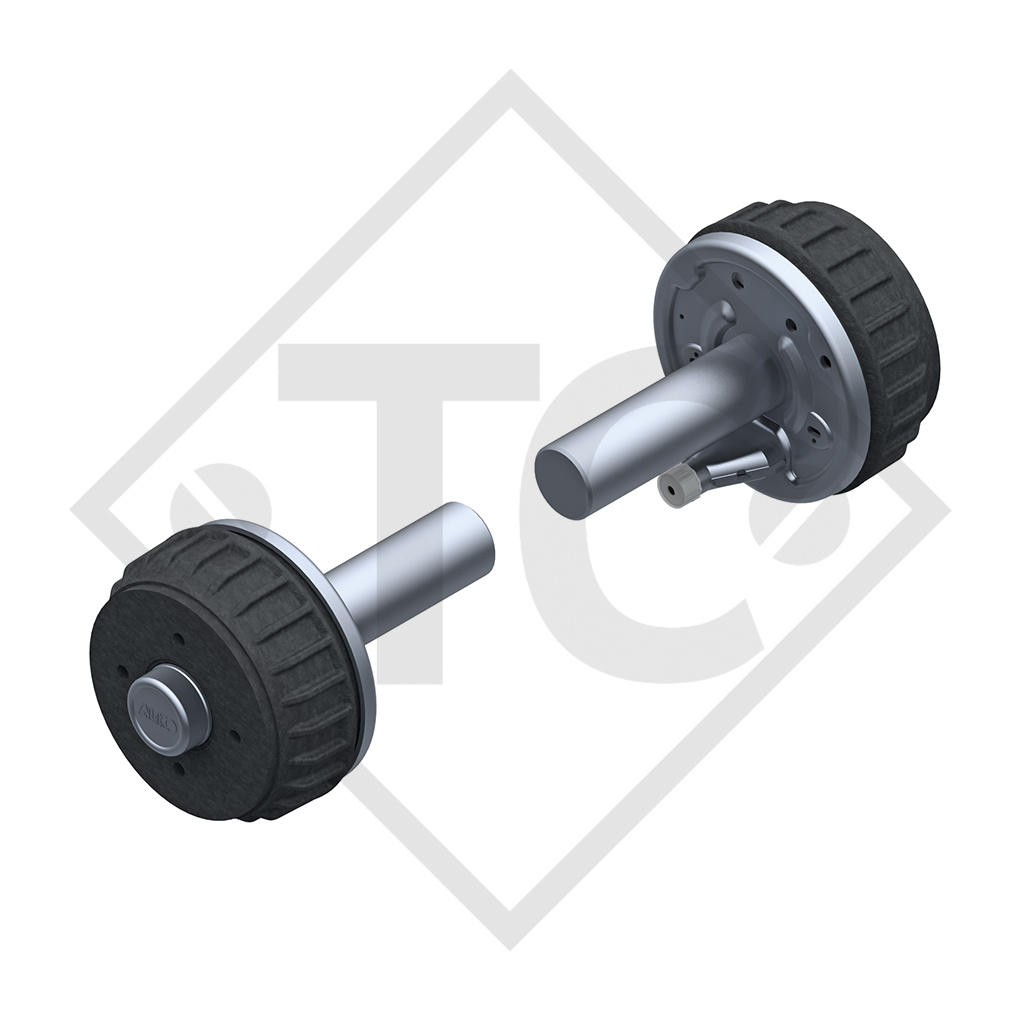

WHEEL BRAKE 1637
1,000 kg
TECHNOLOGY
All AL-KO wheel brakes are ECE-tested and can be connected to the corresponding AL-KO overrun devices (allocation calculation).
Install wheel brakes with the correct direction of rotation!
The brake pads used are free of asbestos!
Comply with installation guidelines!
SCOPE OF SUPPLY
Wheel bolts and axle Bowden cables not included in delivery!
Please order separately
SURFACE TREATMENT
Galvanised
