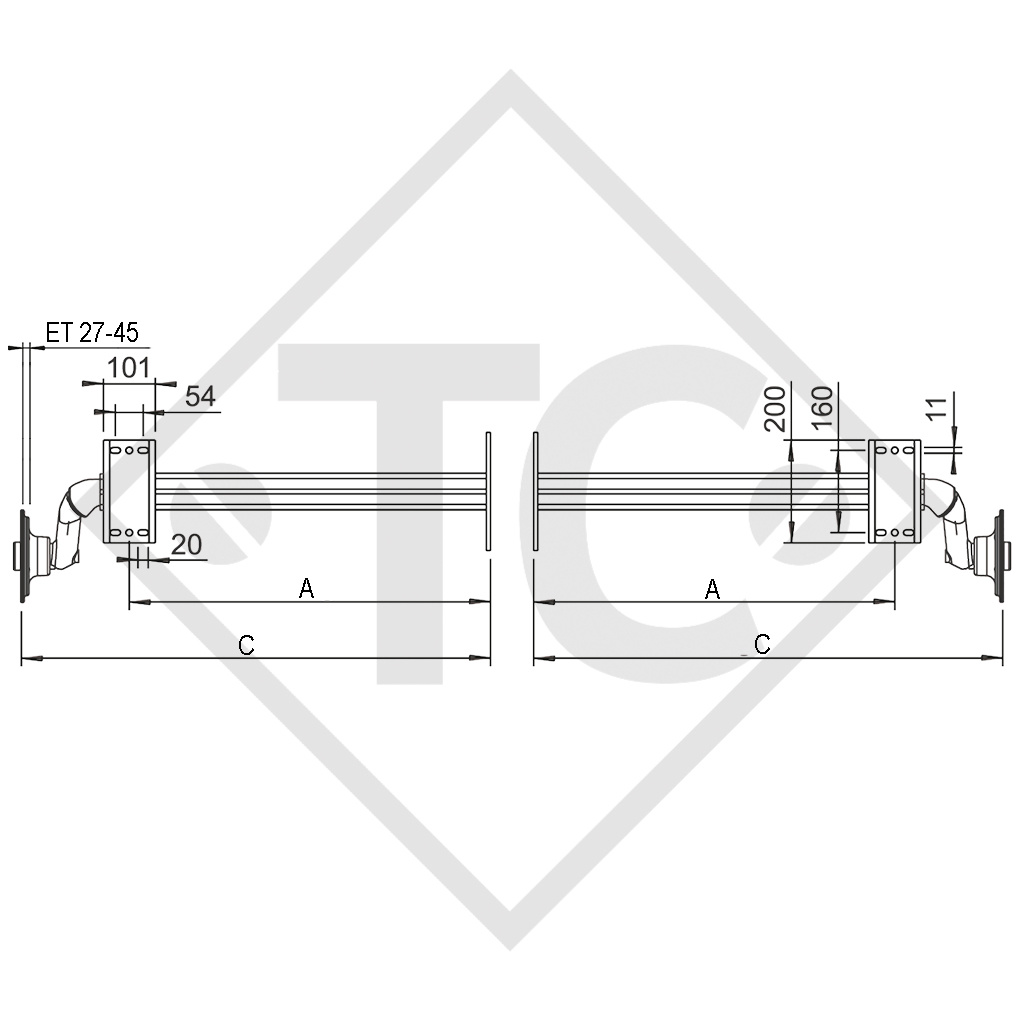

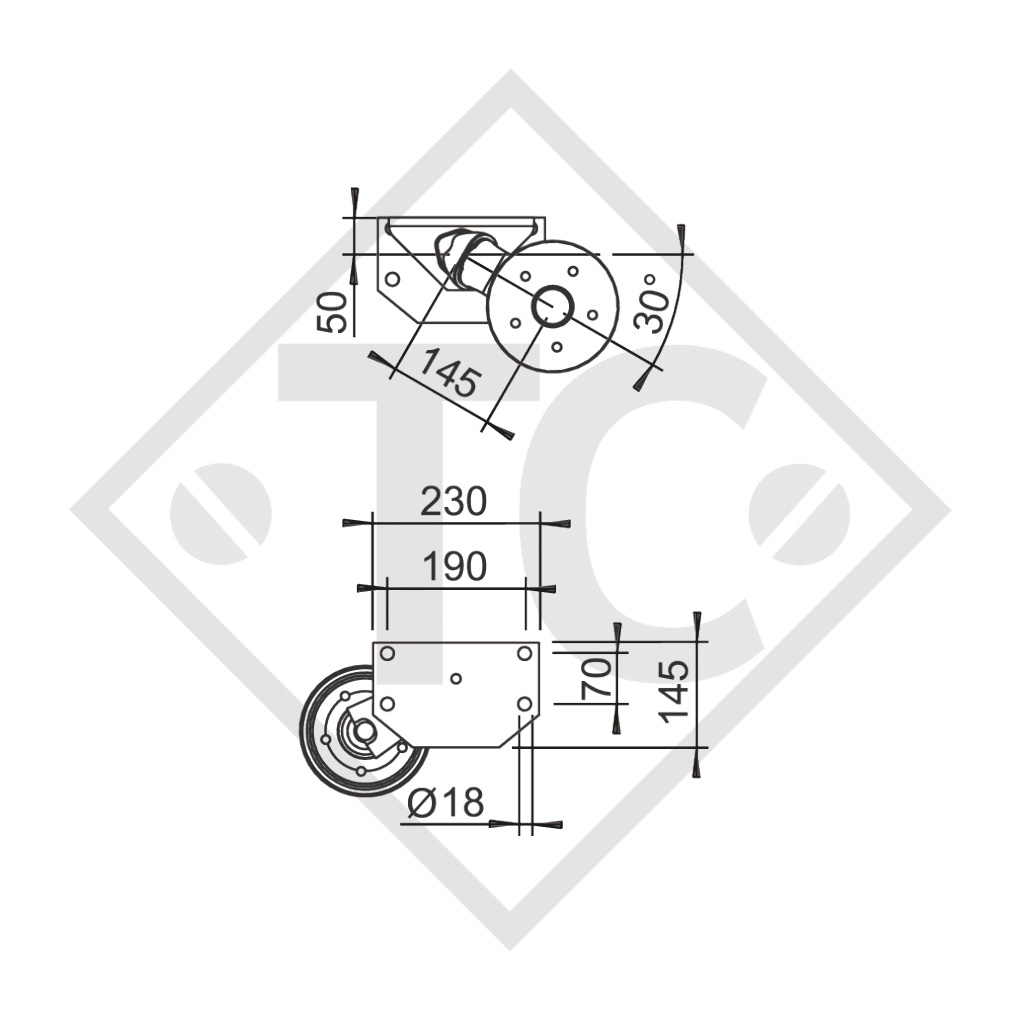

BC: dimension A 703mm, OHF: dimension C 913mm, wheel connection 112x5, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 1426205

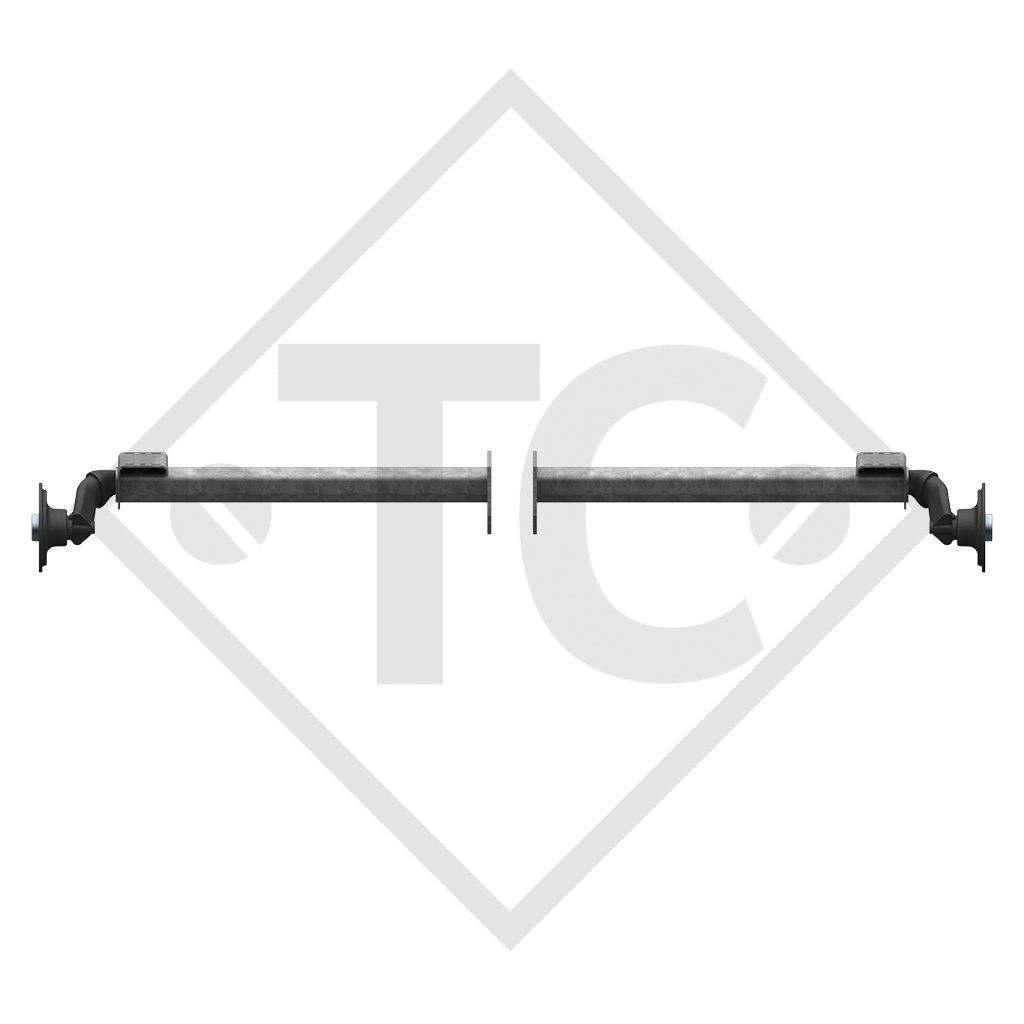

Unbraked half axles
Axle load per pair
750kg
Type 700-5
Waterproof
yes
Wheel connection
112x5
BC: dimension A 703mm
OHF: dimension C 913mm
Offset: ET
27-45mm



INSTRUCTION BOOK
SPARE PART LIST 811726

SCOPE OF DELIVERY
Half axles
Wheel bolts loose
Operating instructions

SURFACE TREATMENT
Hot-dip galvanised axle profile
