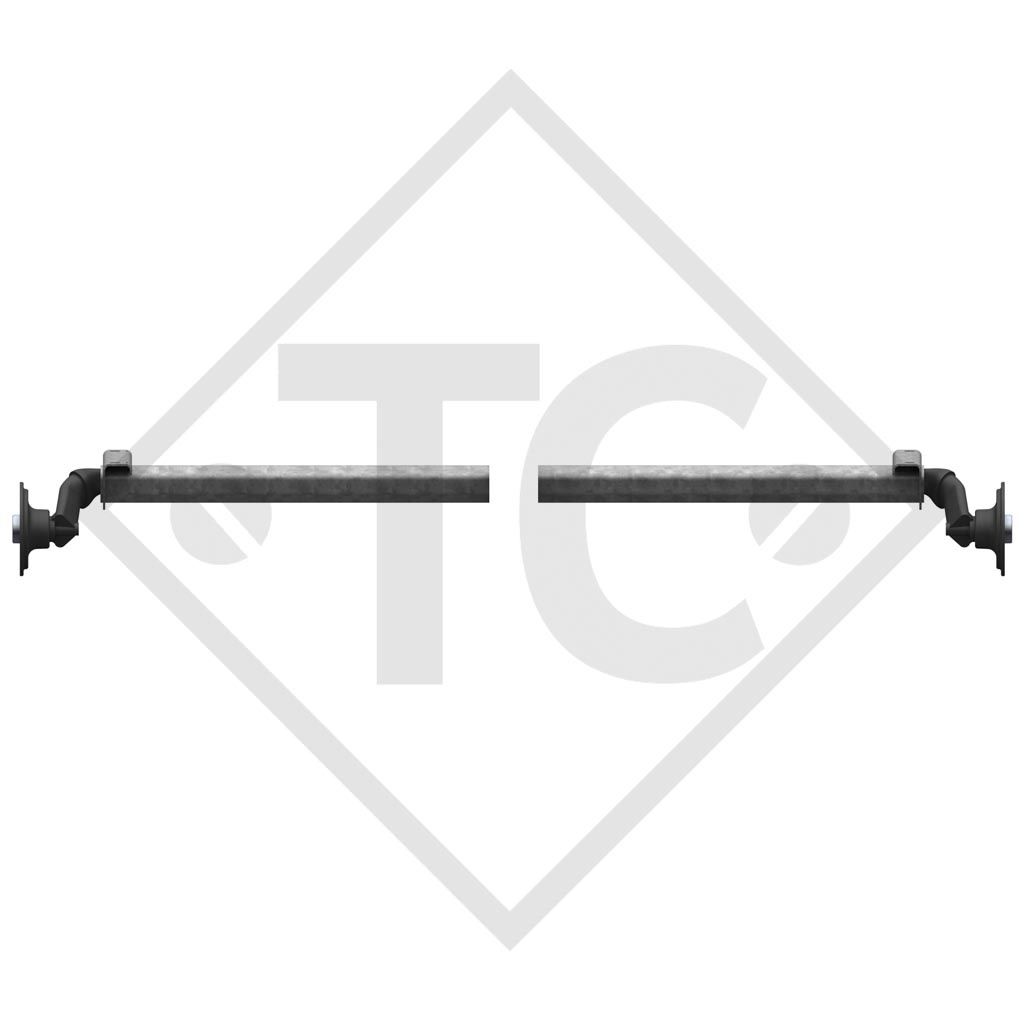

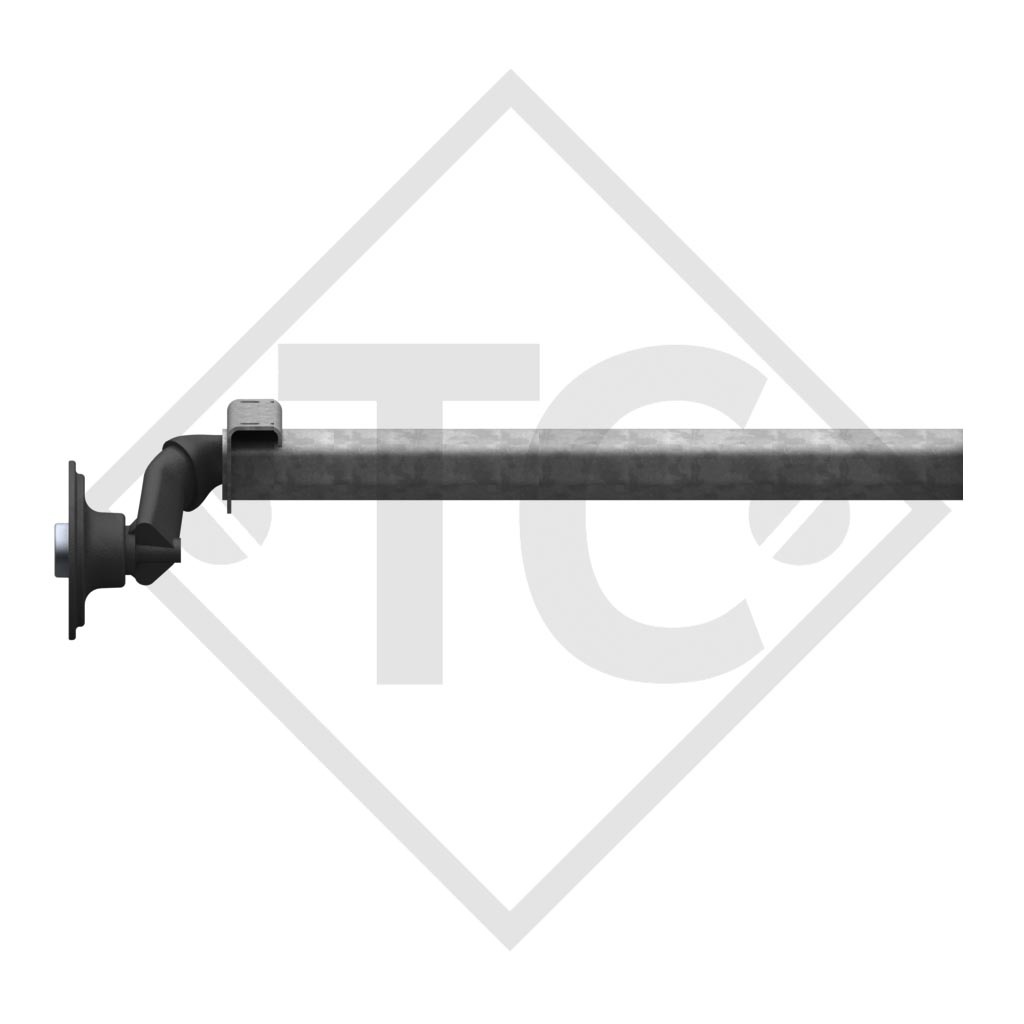

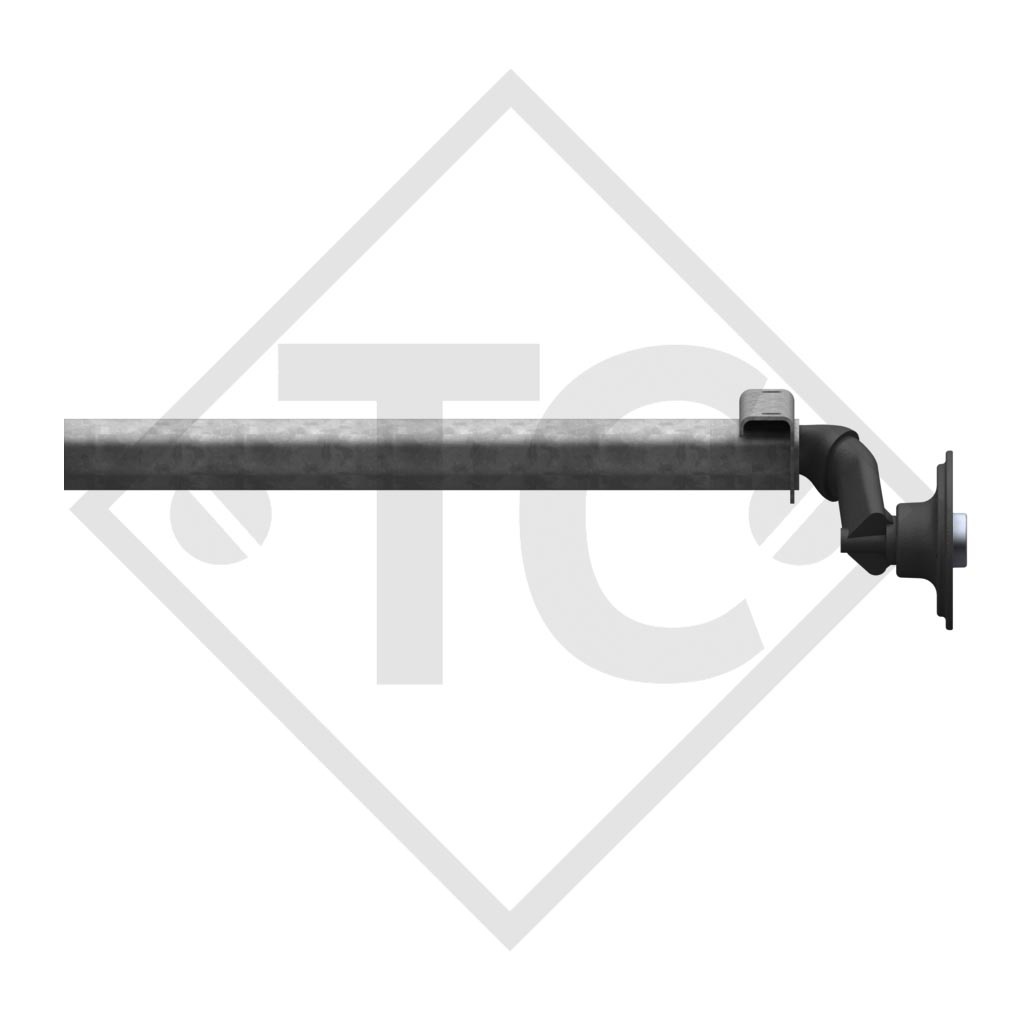

Unbraked half axles 750kg axle type 700-5 (pair) 811241

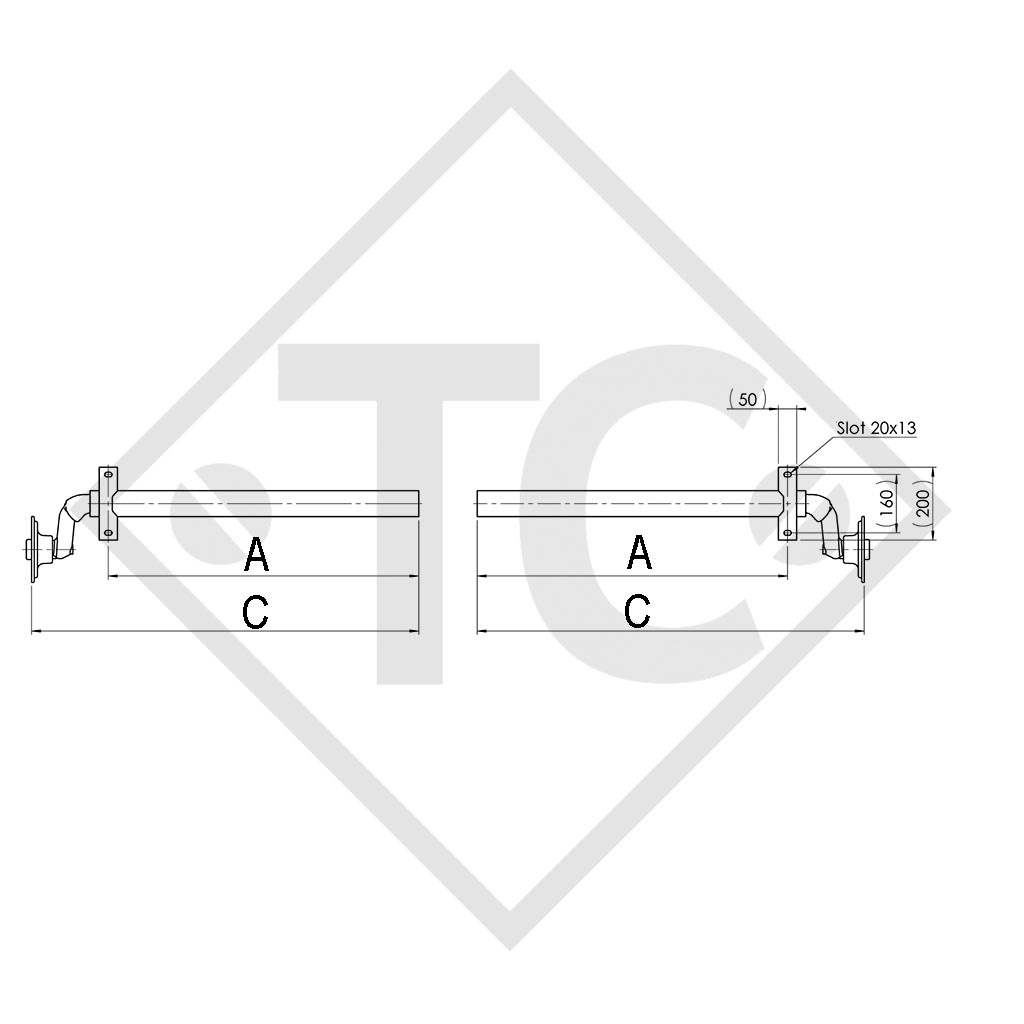

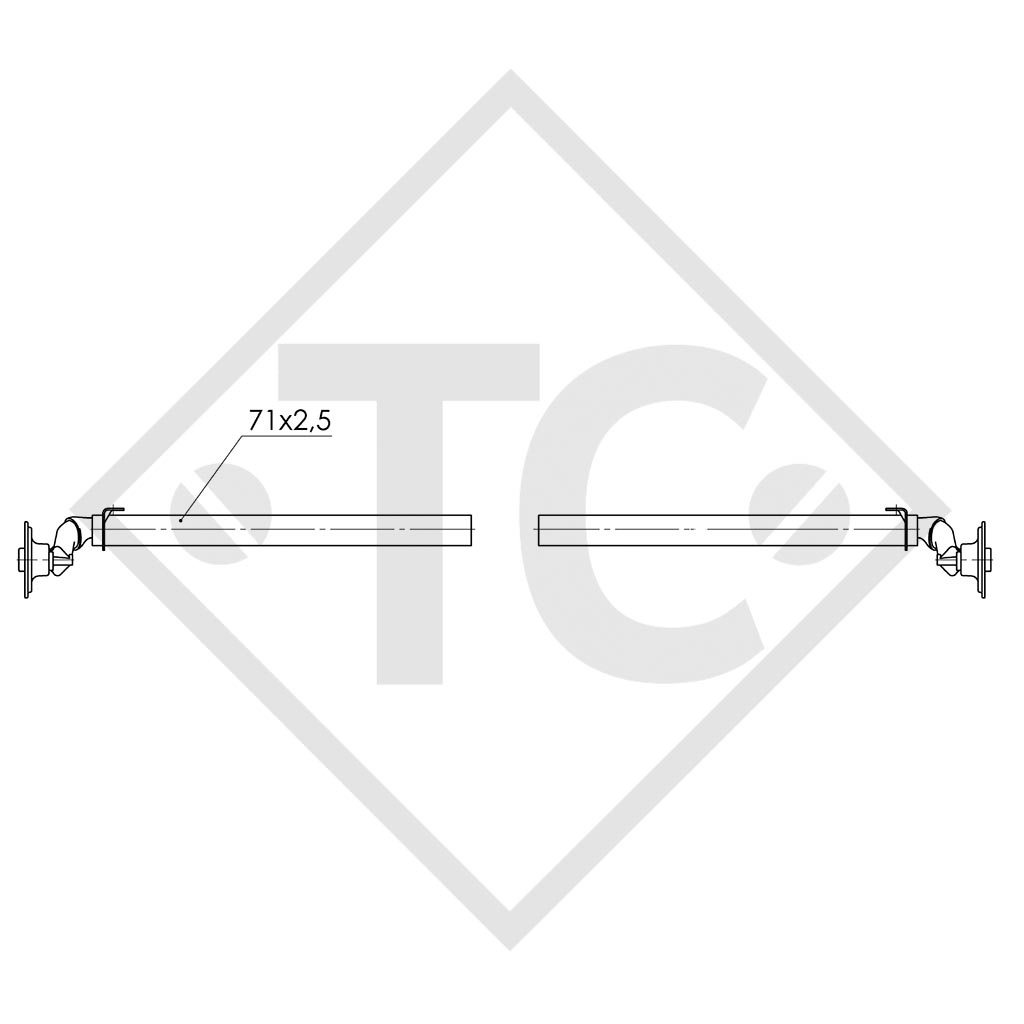

BC: dimension A 850mm, OHF: dimension C 1060mm, wheel connection 130x4, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, ball-head wheel bolts M14x1.5. Read more...

Wishlist: Add to comparison:

Price 337,80 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1702489

Unbraked half axles

Axle load per pair

750kg

Type

700-5

Waterproof

Wheel connection

130x4

BC: dimension A

850mm

OHF: dimension C

1060mm

Offset: ET

27-45mm

Original operating instructions
Replacement part identification number (ETI) 811241

SCOPE OF DELIVERY
Half axles
Wheel bolts loose
Operating instructions

SURFACE TREATMENT
Hot-dip galvanised axle profile

AL-KO Unbraked half axles 750kg axle type 700-5 (pair)

Product description
