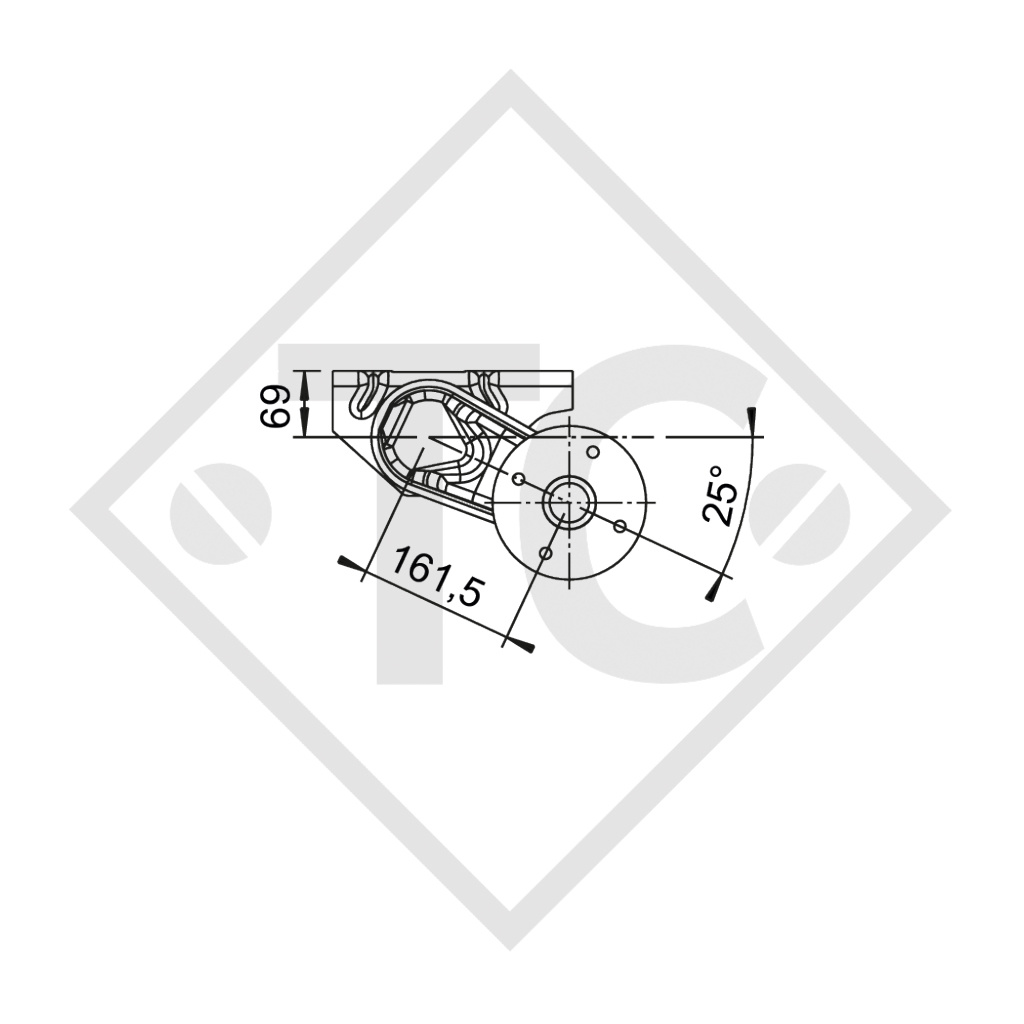

BC: dimension A 450mm, OHF: dimension C 673mm, wheel connection 100x4, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1421391

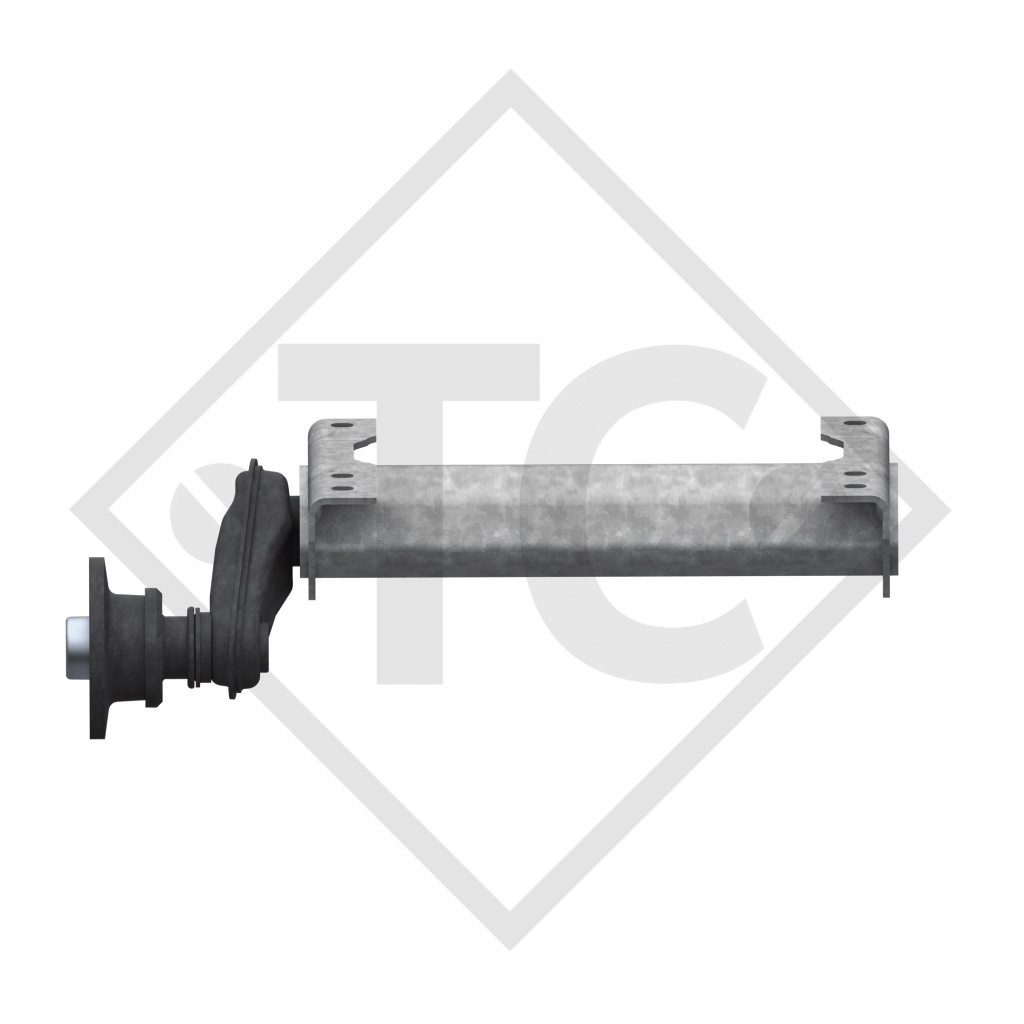

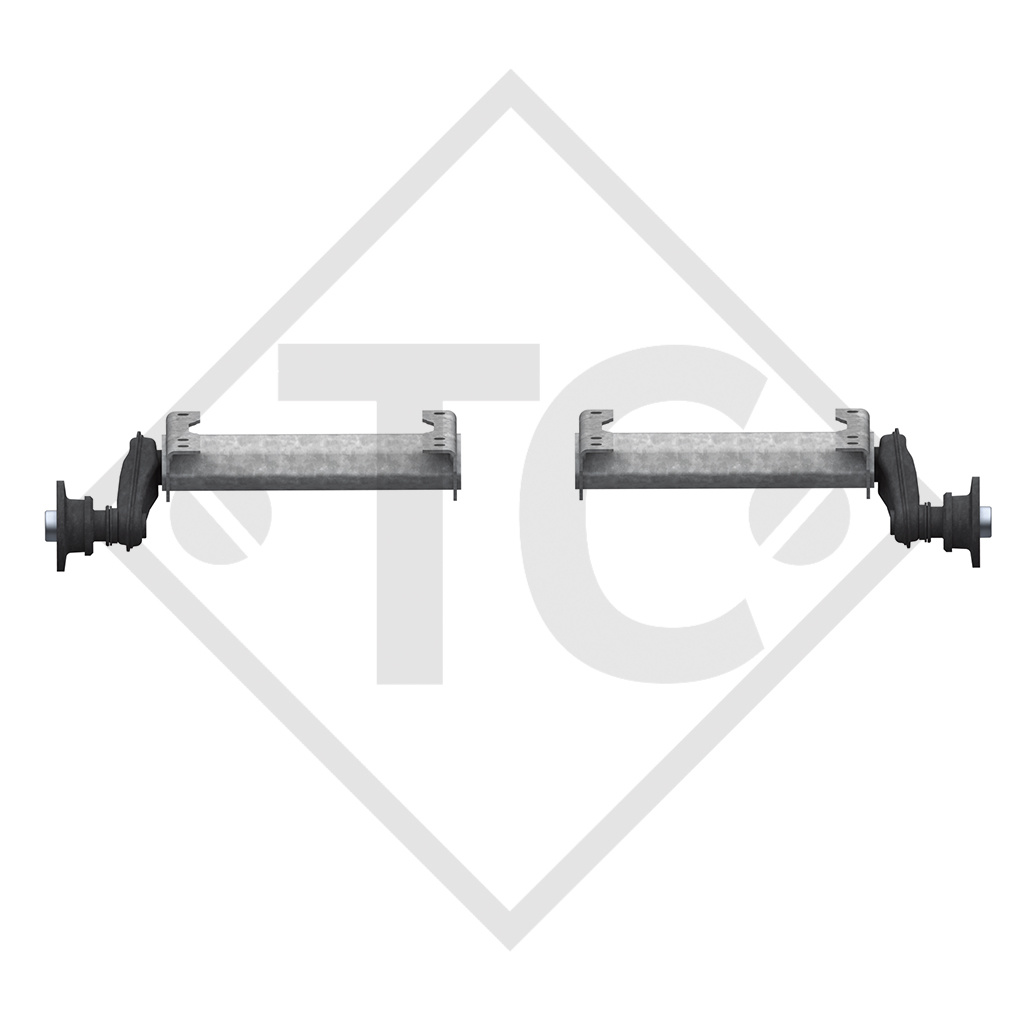

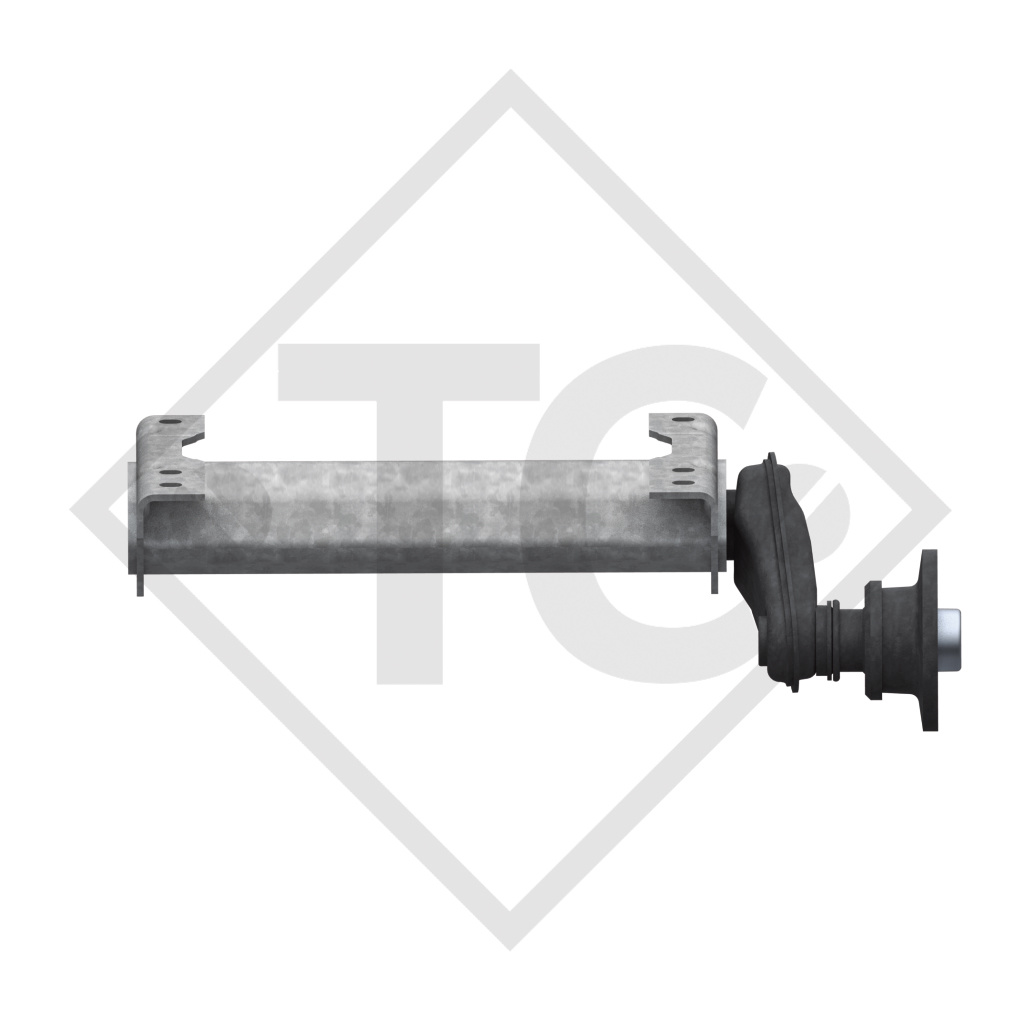

| Unbraked half axles |
| Axle load per pair |
1000kg |
| Type | 1000-3 |
| Waterproof |
no |
| Wheel connection |
100x4 |

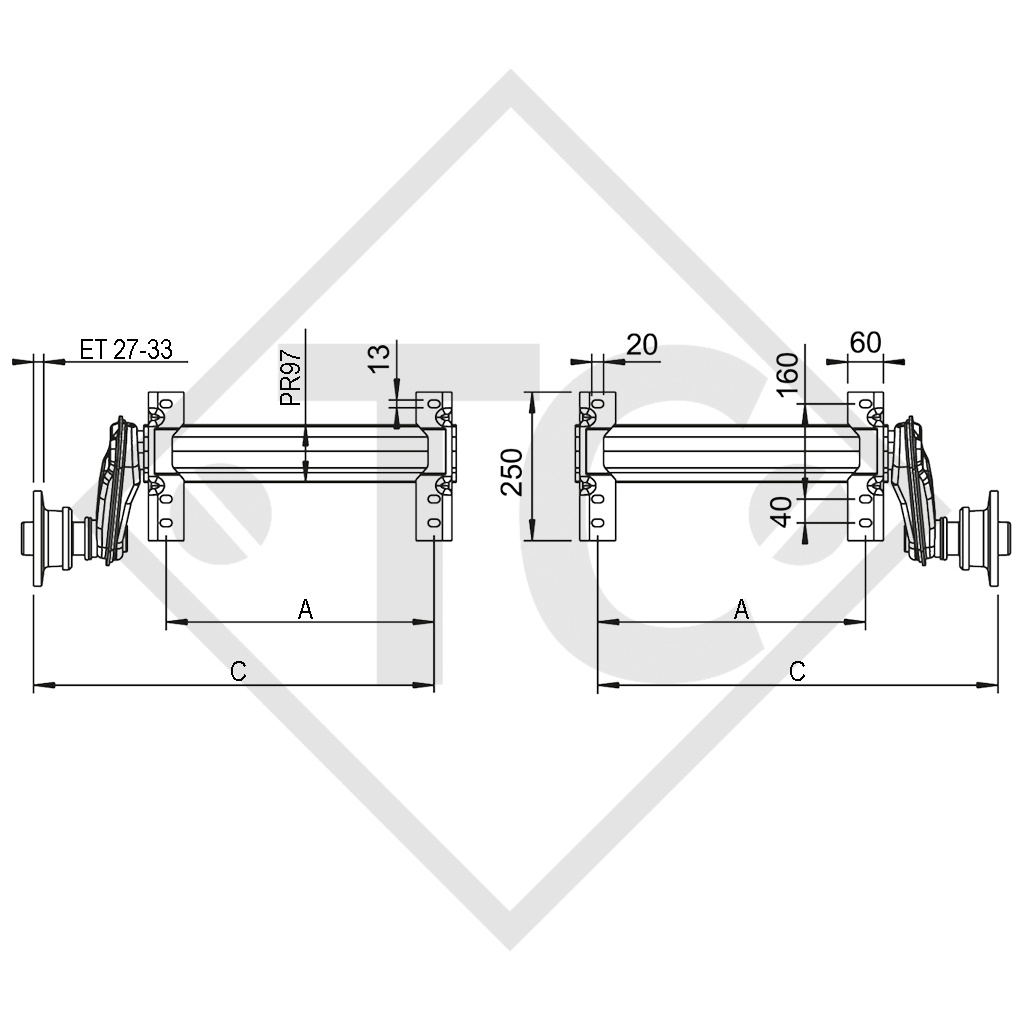

| BC: dimension A | 450mm |
| OHF: dimension C | 673mm |
| Offset: ET |
27-33mm |
INSTRUCTION BOOK
SPARE PART LIST 811980
SCOPE OF DELIVERY
Half axles
Wheel bolts loose
Operating instructions
SURFACE TREATMENT
Hot-dip galvanised axle profile
