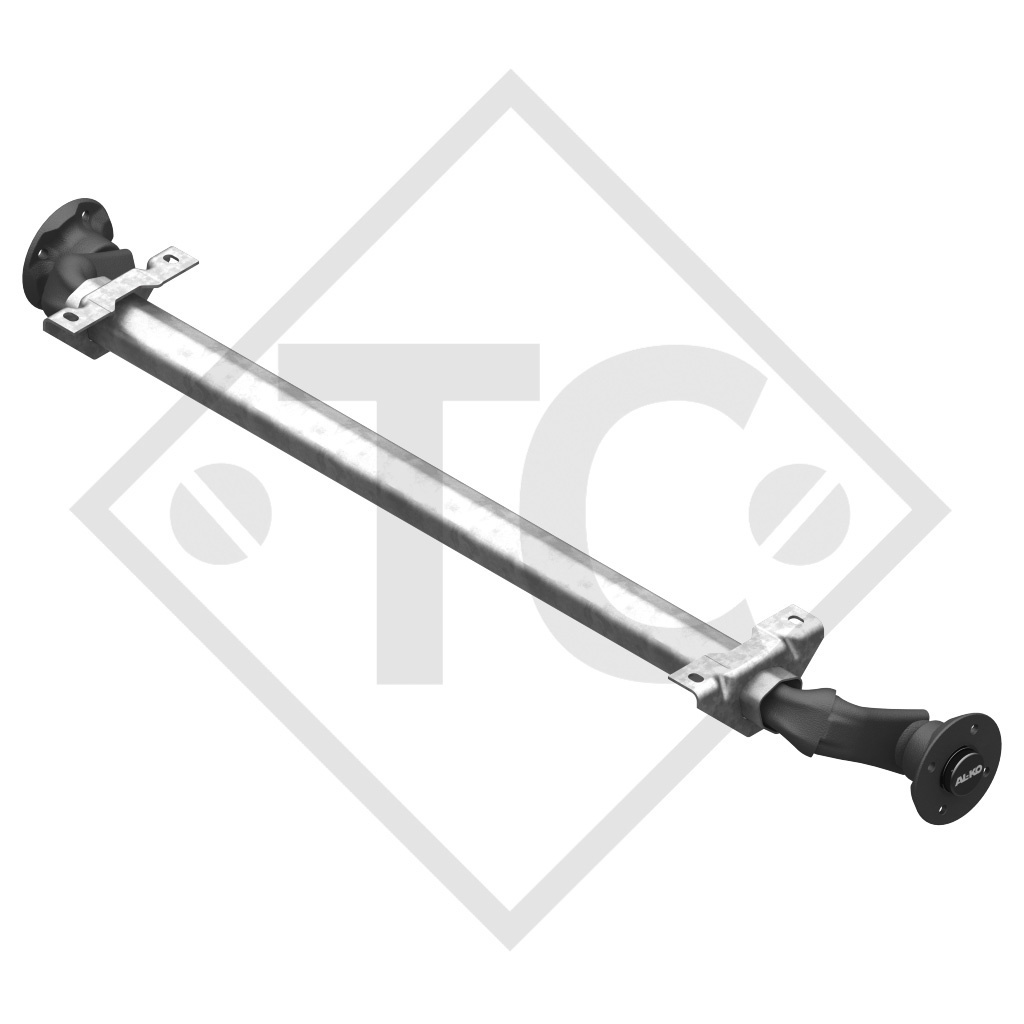

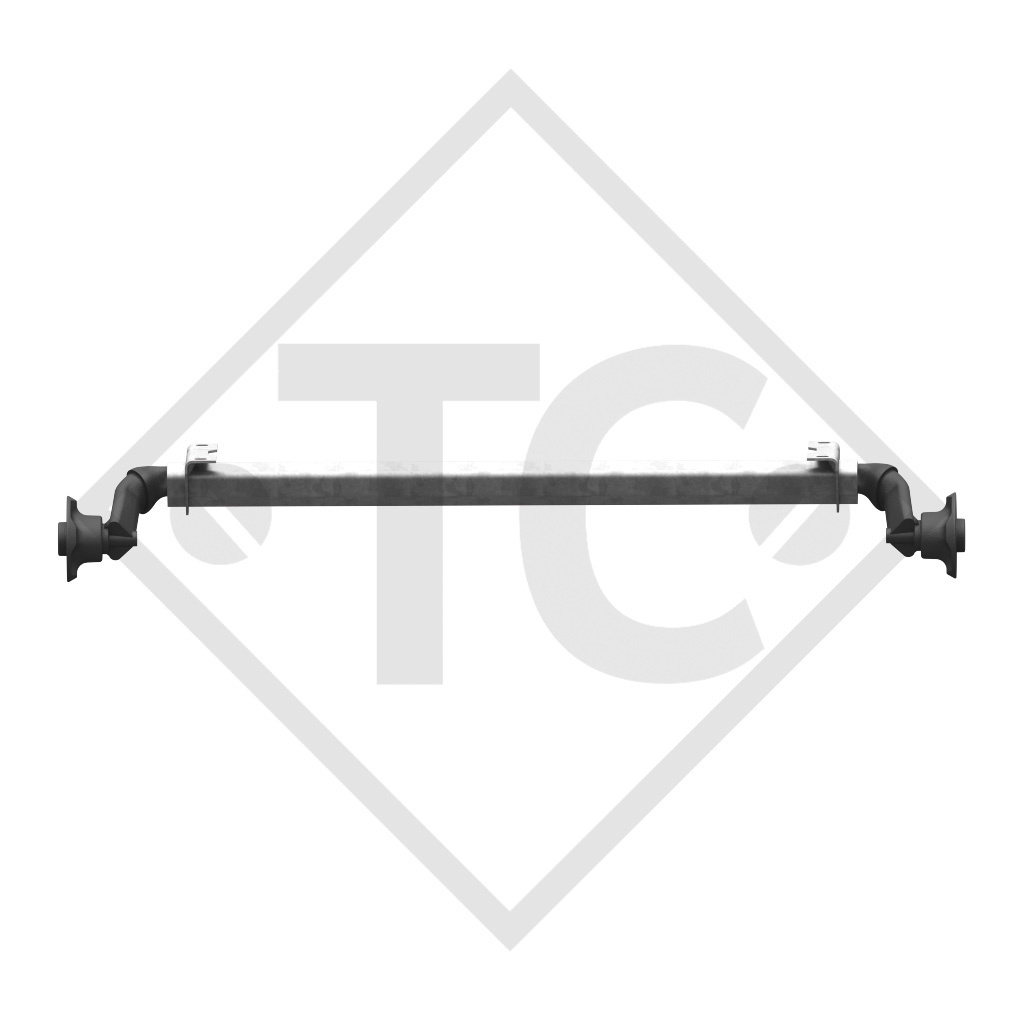

BC: dimension A 1010mm, OHF: dimension C 1450mm, wheel connection 100x4, offset (ET) 27-45mm. Read more...
Part no. 1904855_1010_1450

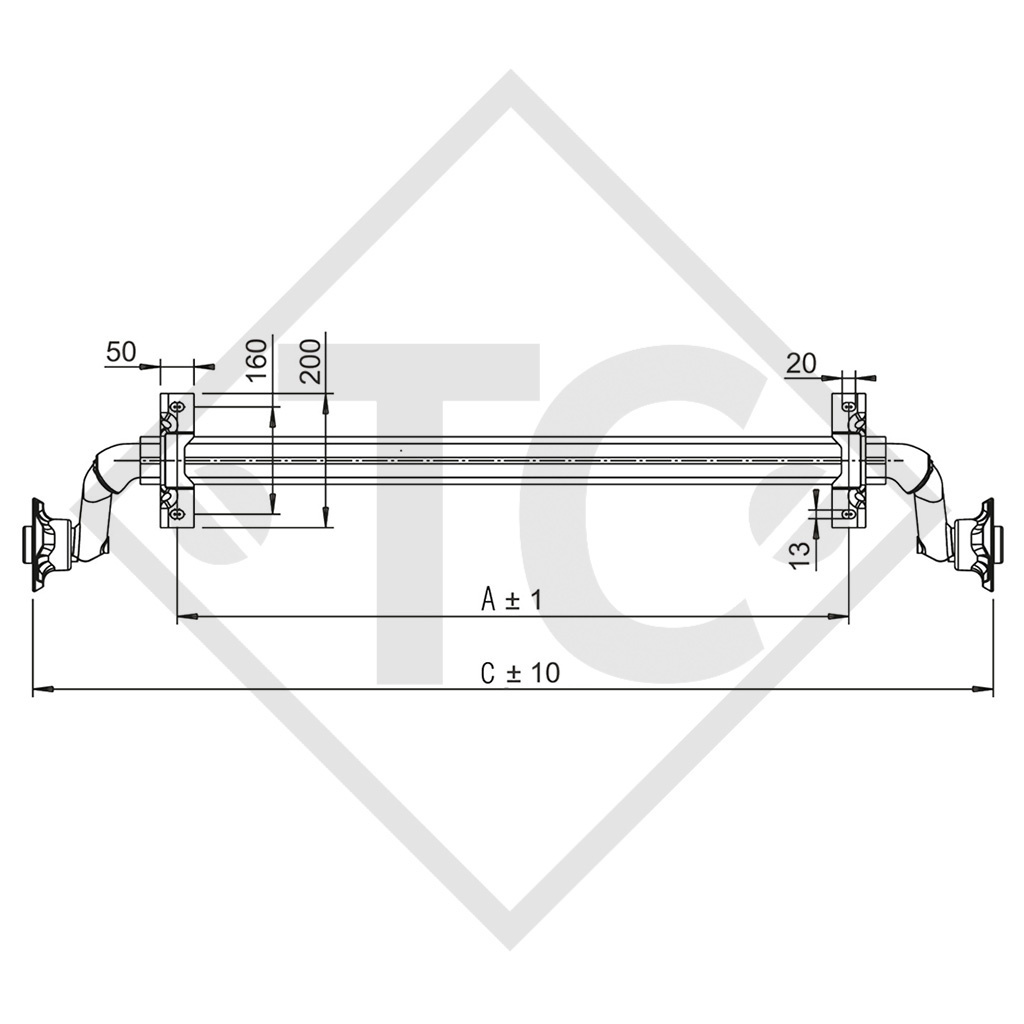

BC: dimension A 1010mm
OHF: dimension C 1450mm
Wheel connection 100x4

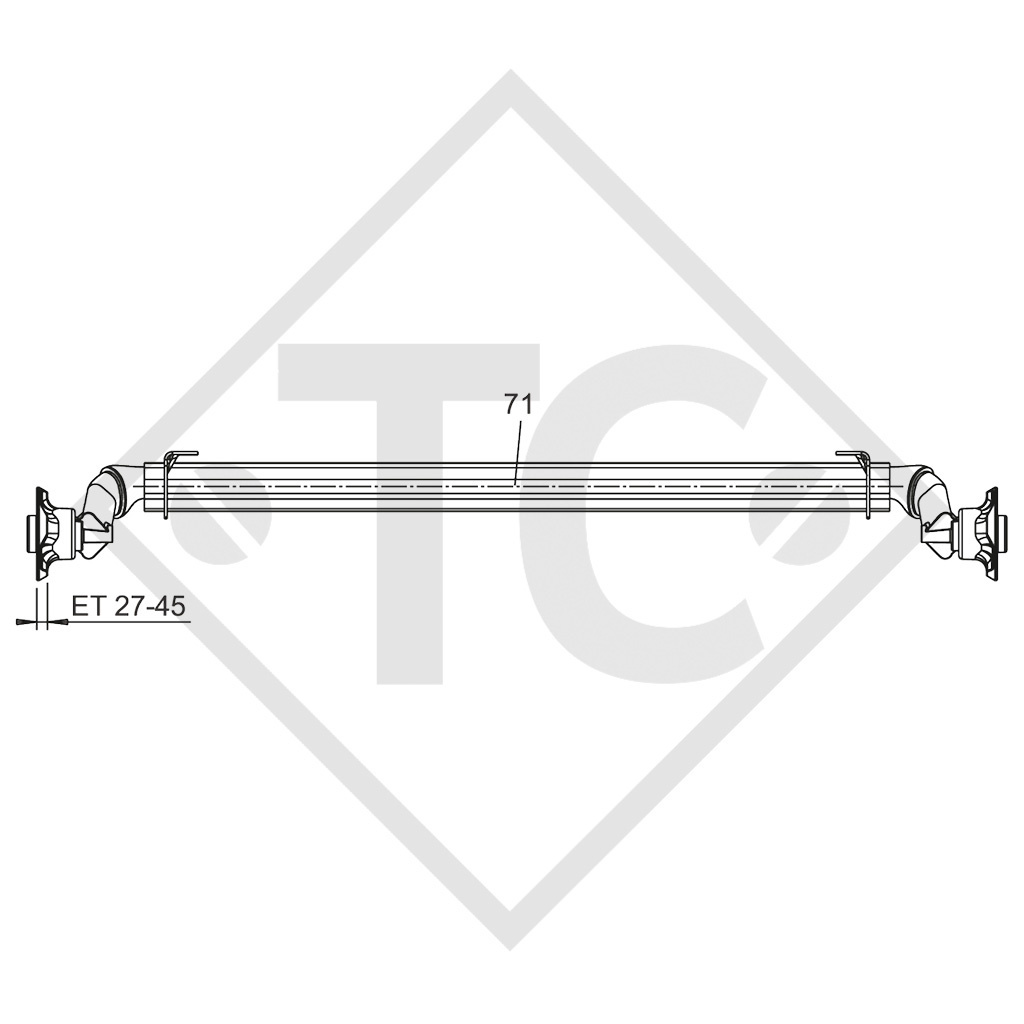

Offset (ET) 27-45mm

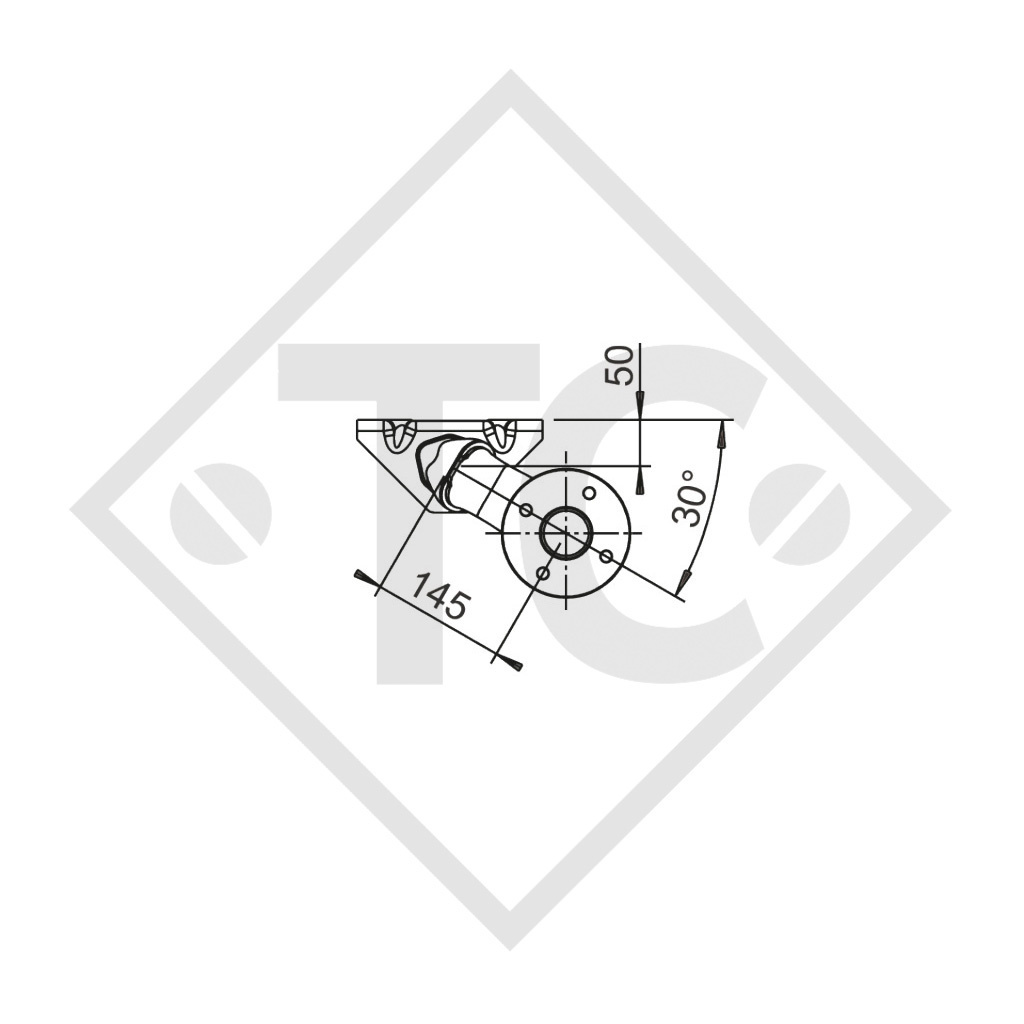

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811241
TECHNOLOGY
Model: PLUS OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
SURFACE TREATMENT
Axle profile hot-dip galvanised
