Home / Unbraked axle 750kg axle type CB 754, 46.14.000.071, ATLAS COPCO

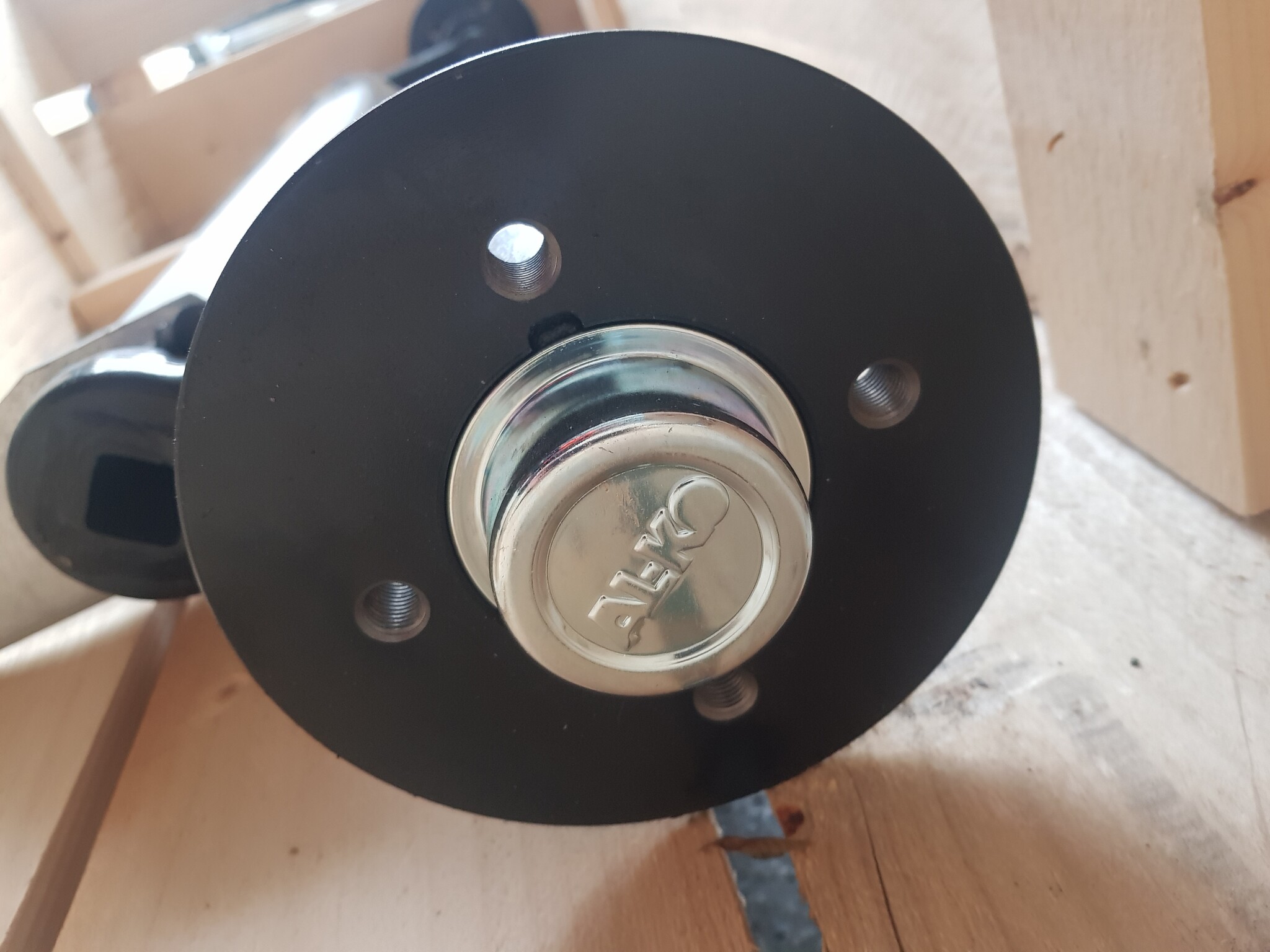

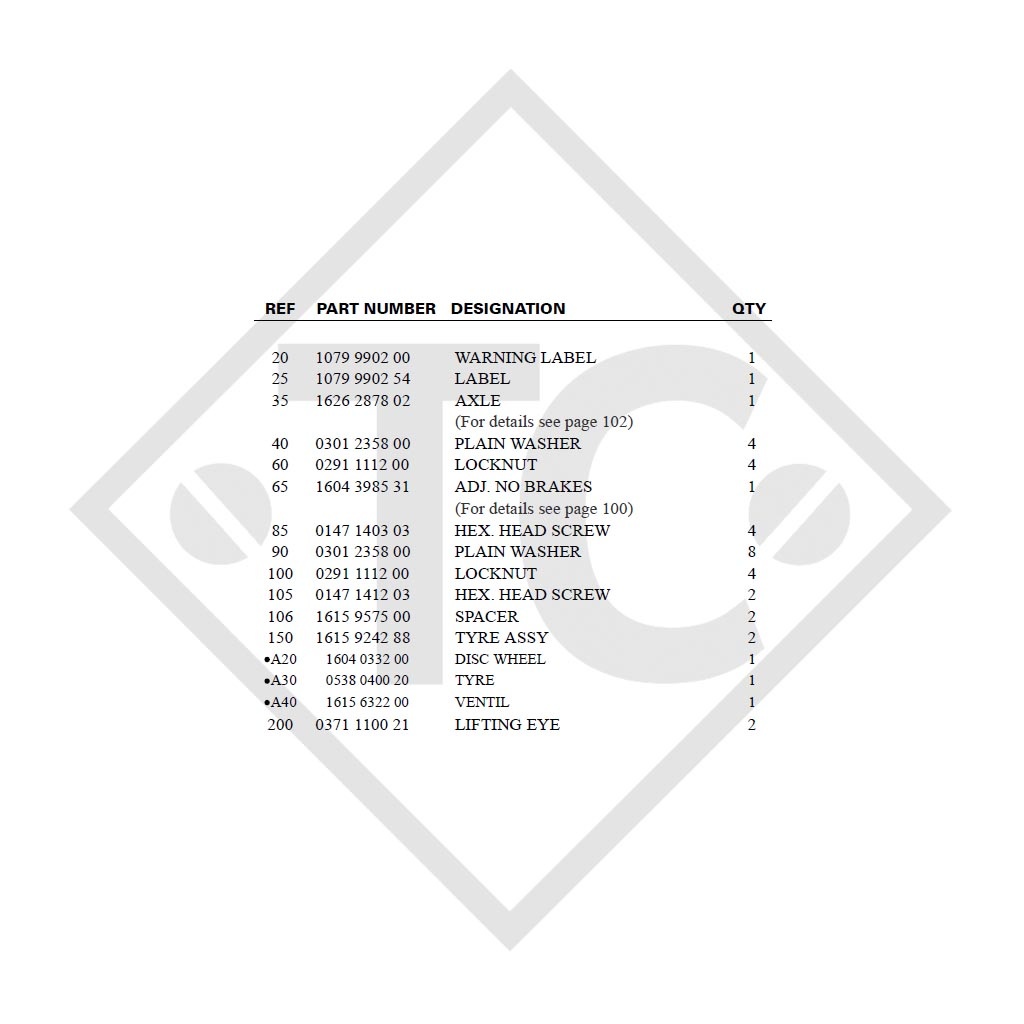

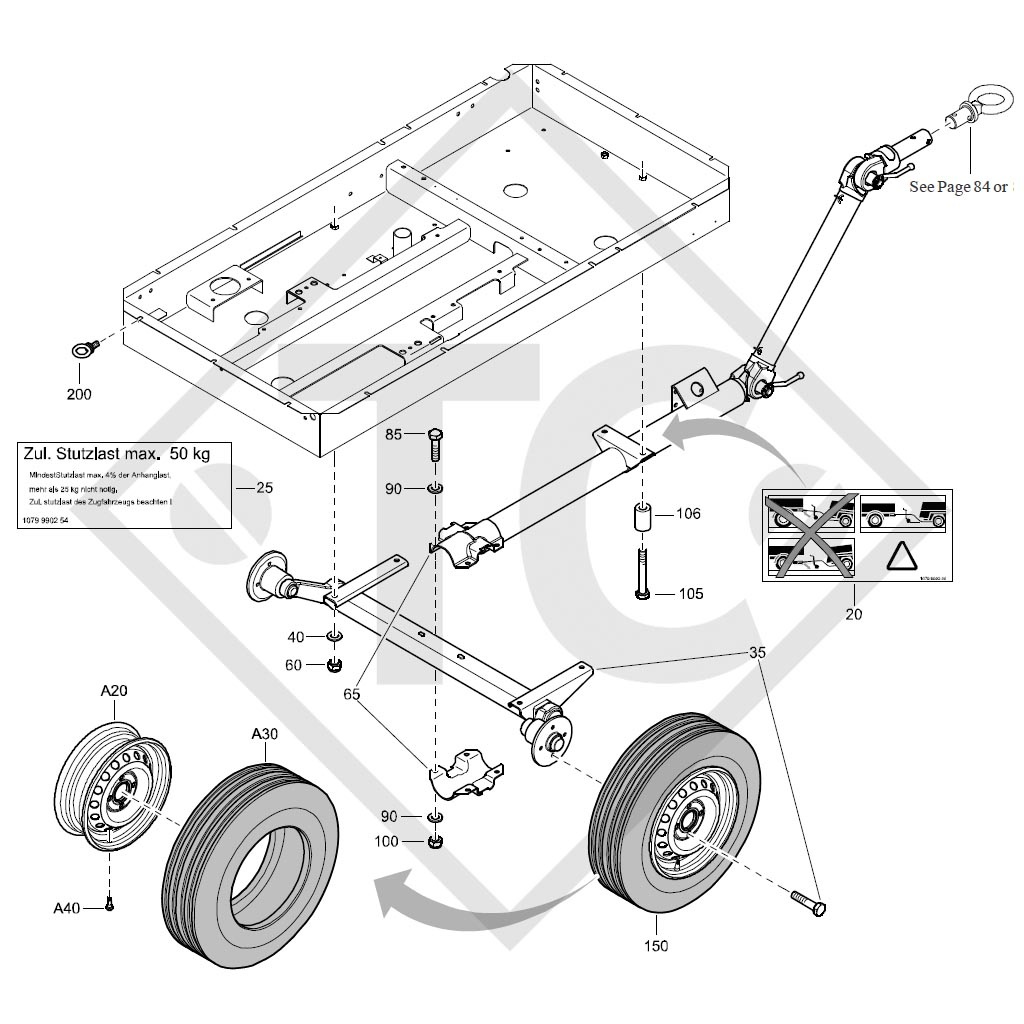

Ref 35, 1626287802. BC: dimension A 770mm, OHF: dimension C 1210mm, wheel connection 100x4, axle profile 60mm, taper-head wheel bolts M12x1.5. Read more...
Part no. OLD 46.14.000.071
Part no. NEW 4012605

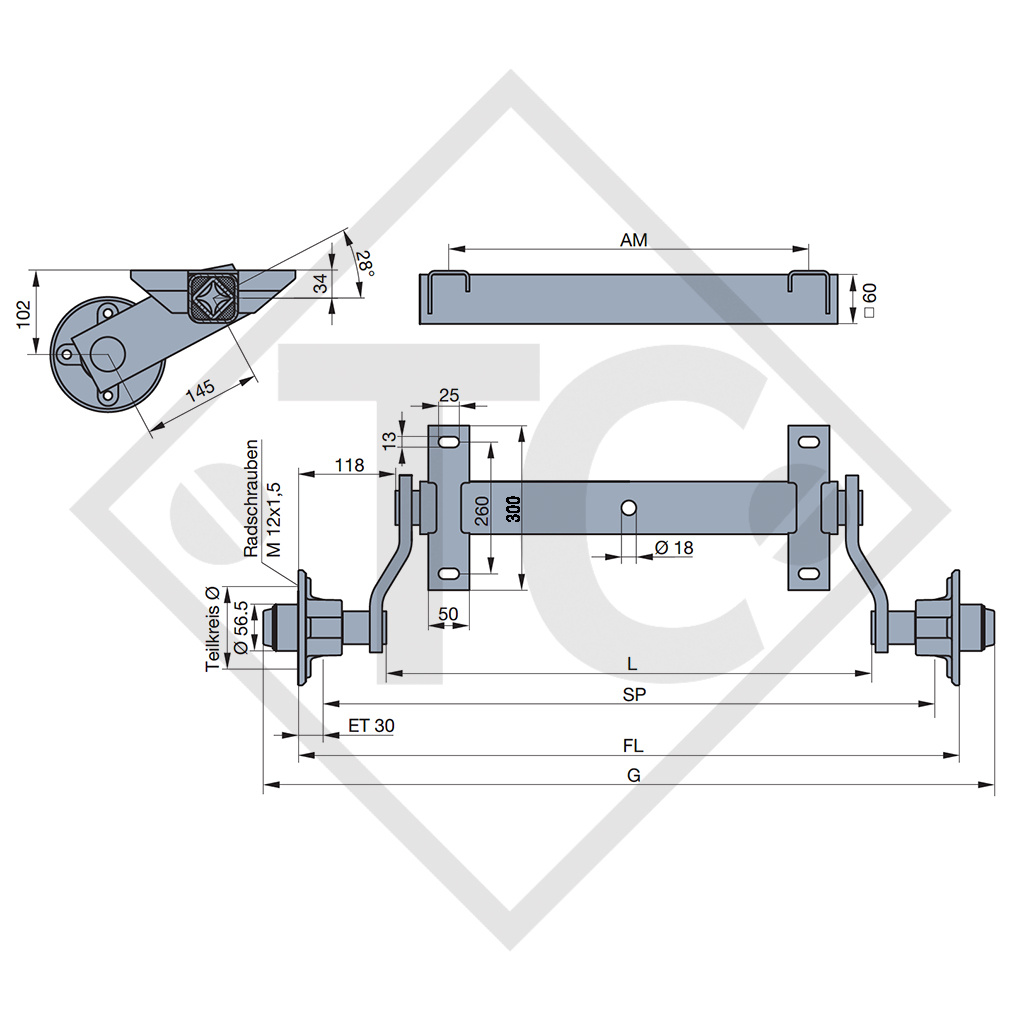

Dimension FL |
1210mm |
Dimension SP |
2190mm |
Dimension AM |
1800mm |
Dimension L |
1992mm |
Dimension G | 2300mm |
Model | SWING |
Axle type | CB1355 |
Axle load single axle | 1350kg |
Axle load: Tandem axel | 2700kg |
Wheel brake | S 2005-7 RASK |
Suspension | Square rubber suspension |
Swing arm | 160mm |
Wheel connection | 112x5 |
Wheel bearing | Compact bearings |
Centre hole rim | min. 56.5mm |
Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030
SCOPE OF DELIVERY
Axle
Welded-on shock absorber brackets
Taper-head wheel bolts M12x1.5 loose
DETAILS
