BC: dimension A 950mm, OHF: dimension C 1380mm, wheel connection 100x4, offset (ET) 27-45mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1709531

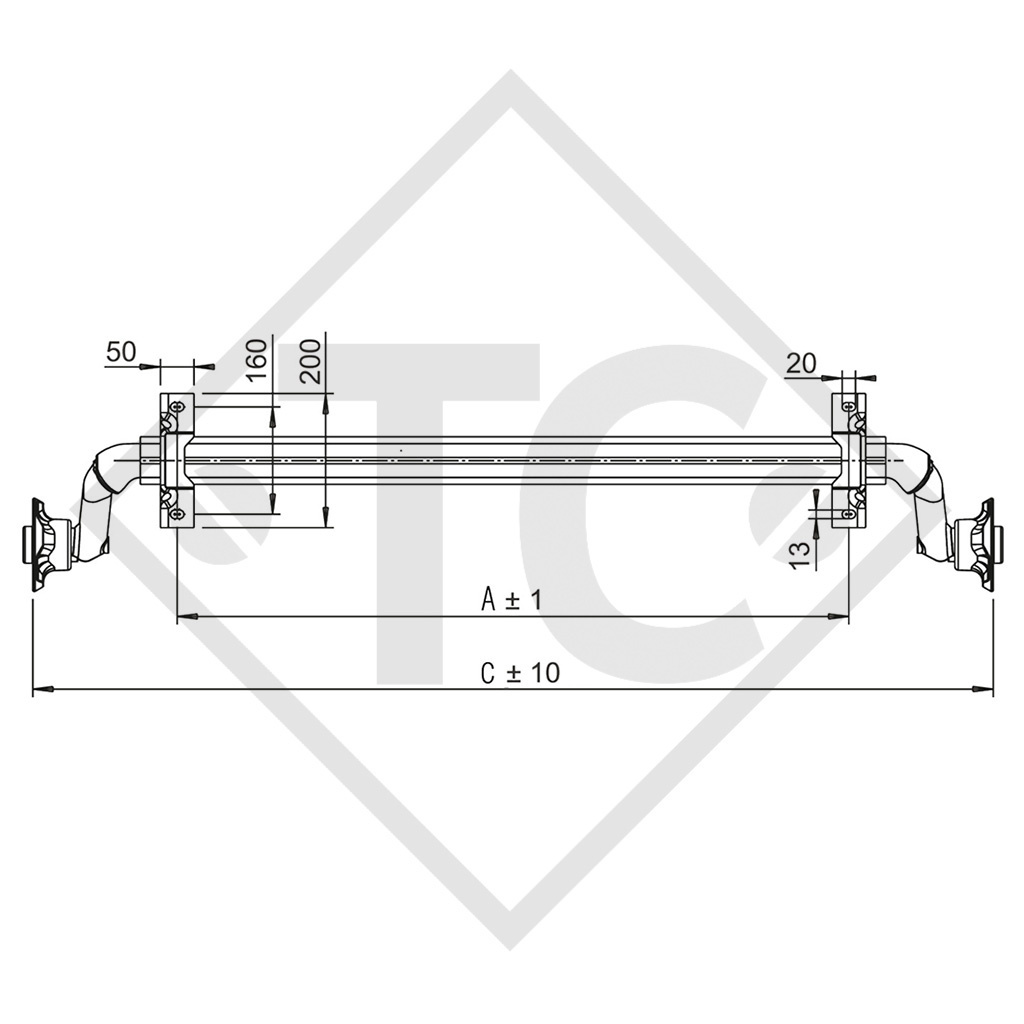

BC: dimension A 950mm
OHF: dimension C 1380mm
Wheel connection 100x4

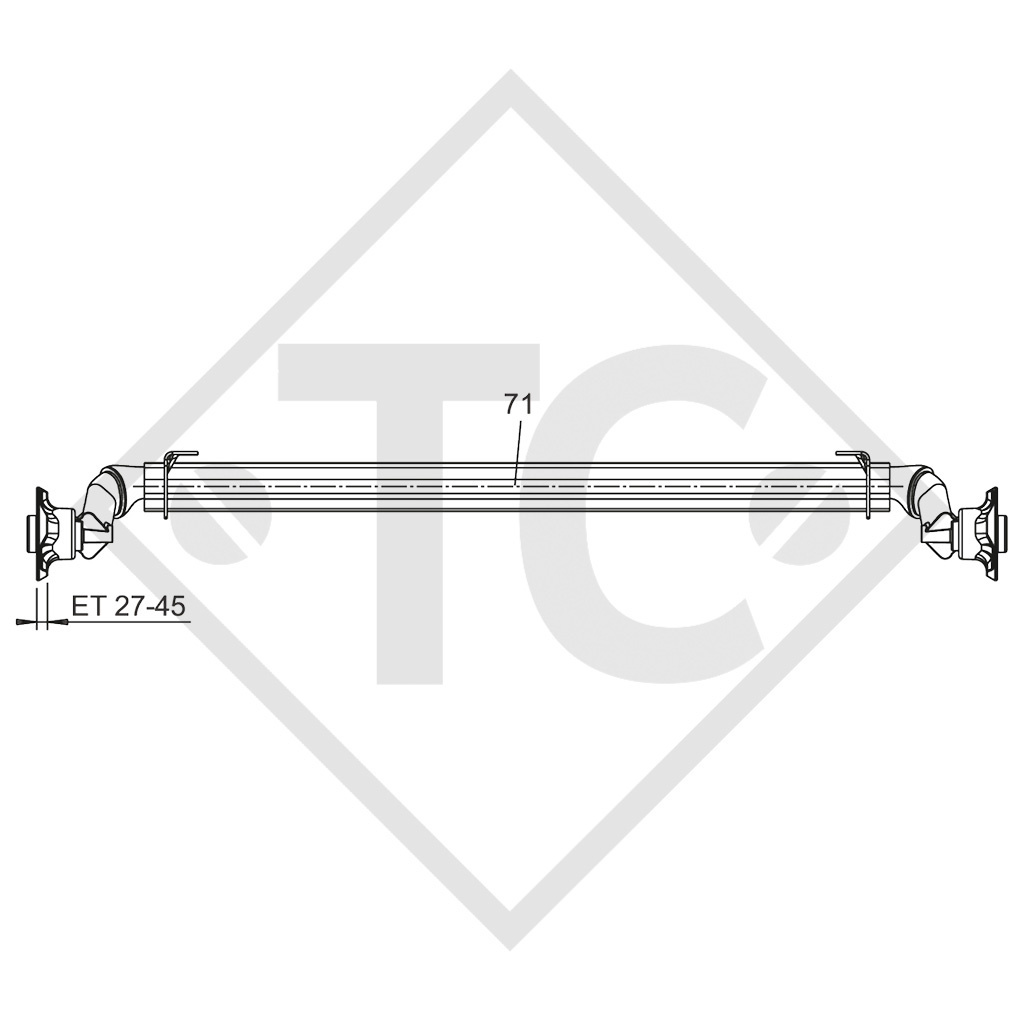

Offset (ET) 27-45mm
Swing arm position 20°
Axle profile 62mm
Original operating instructions
Replacement part identification number (ETI) 811240
TECHNOLOGY
Model: BASIC
Axle type: 400-2
Axle load: 350kg
Suspension: Hexagonal rubber suspension
Swing arm length: 130mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
