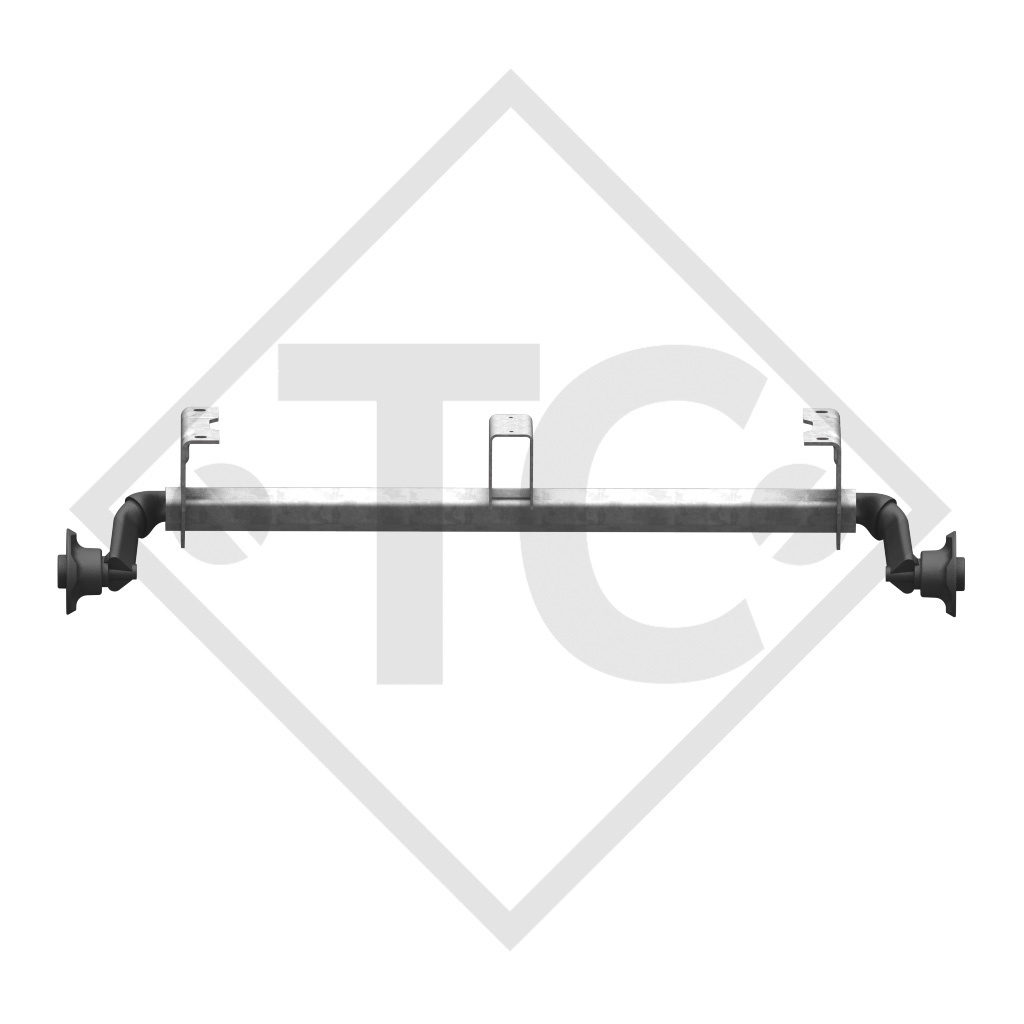

Home / Brands / WINTERHOFF / Unbraked axle 750kg BASIC axle type 700-5 watertight with shackle and high axle bracket
BC: dimension A 900mm, OHF: dimension C 1330mm, wheel connection 112x5, offset (ET) 27-45mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20060077

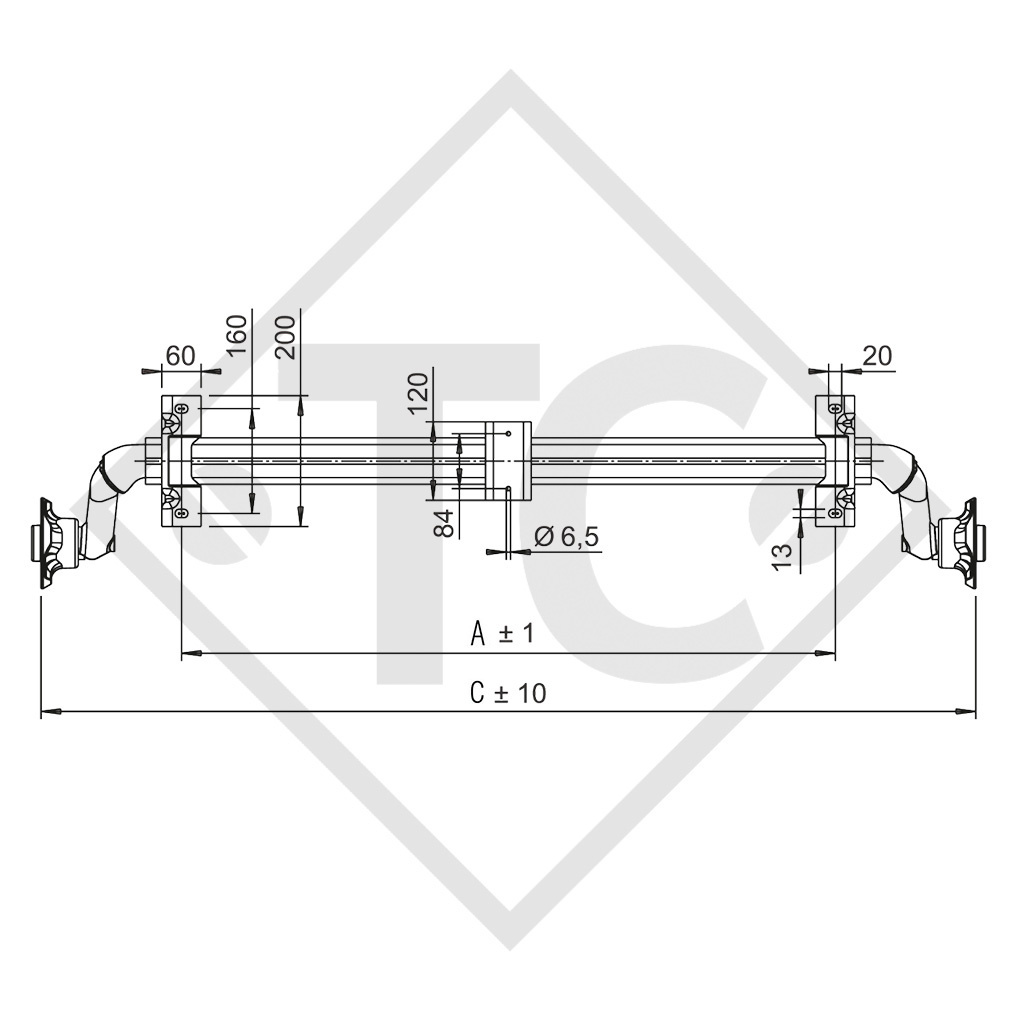

BC: dimension A 900mm
OHF: dimension C 1330mm
Wheel connection 112x5

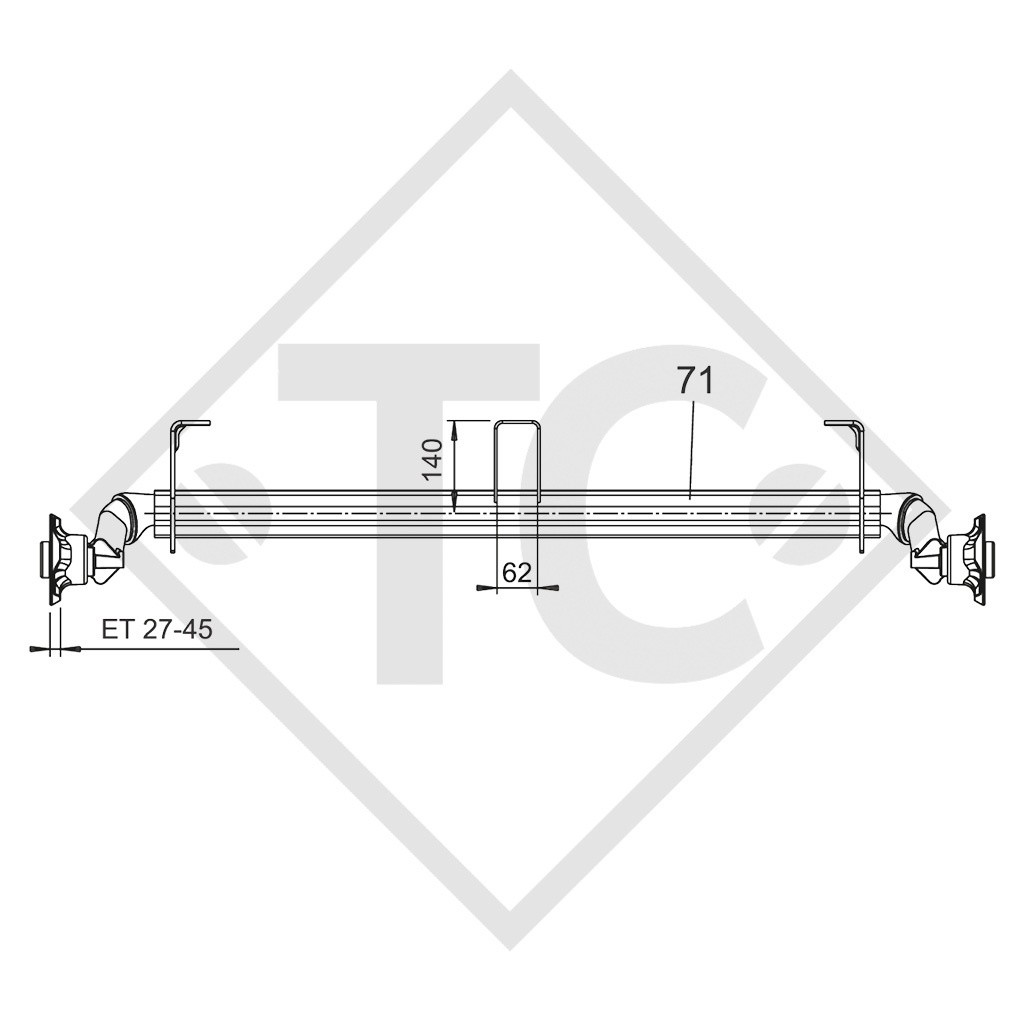

Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811726
TECHNOLOGY
Model: BASIC
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Unbraked axle 750 KG BASIC
Modern, maintenance-free axle technology "Made in Germany"
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
