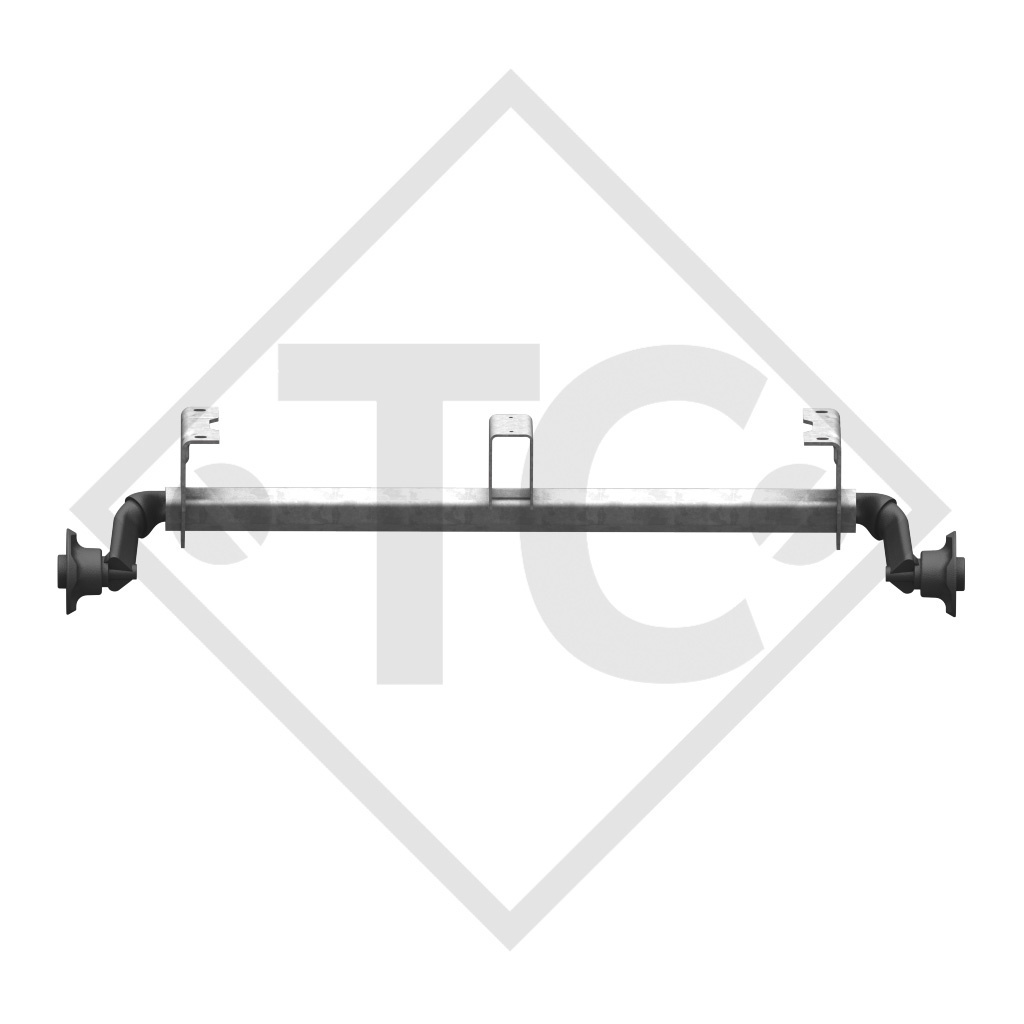

Unbraked axle 750kg axle type 700-5 with shackle and high axle bracket

Unbraked axle 750kg PLUS OPTIMA axle type 700-5 with shackle and high axle bracket

BC: dimension A 1150mm, OHF: dimension C 1565mm, wheel connection 112x5, offset (ET) 27-45mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 375,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1760432 (46.14.000.720)

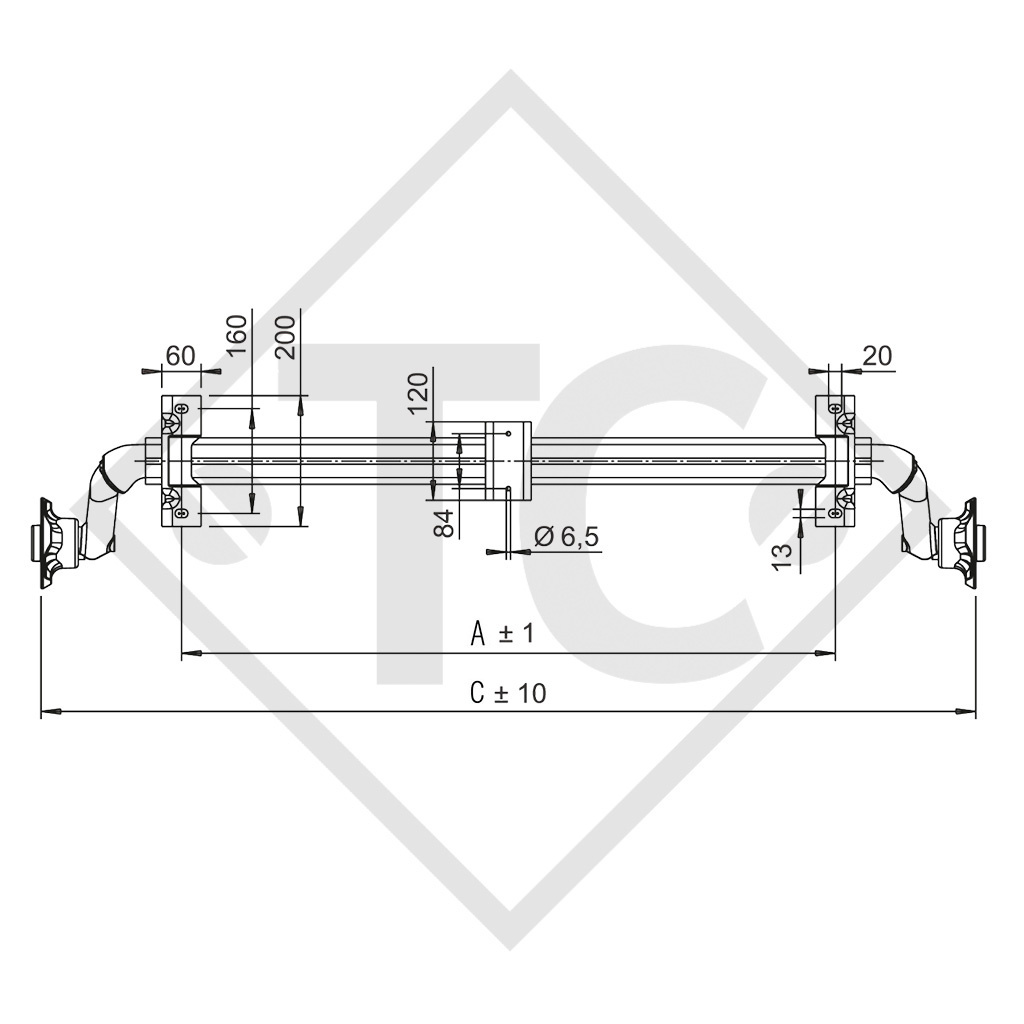

BC: dimension A 1150mm
OHF: dimension C 1565mm
Wheel connection 112x5

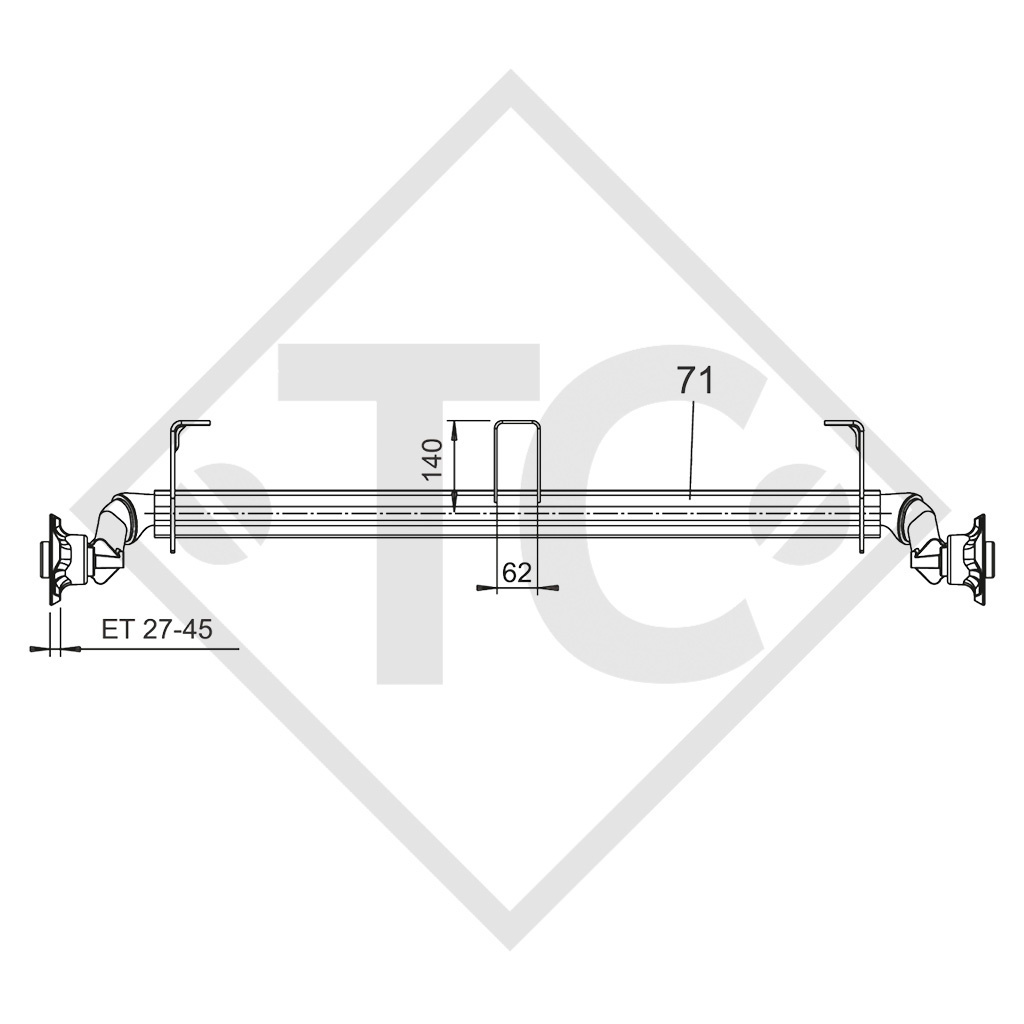

Offset (ET) 27-45mm

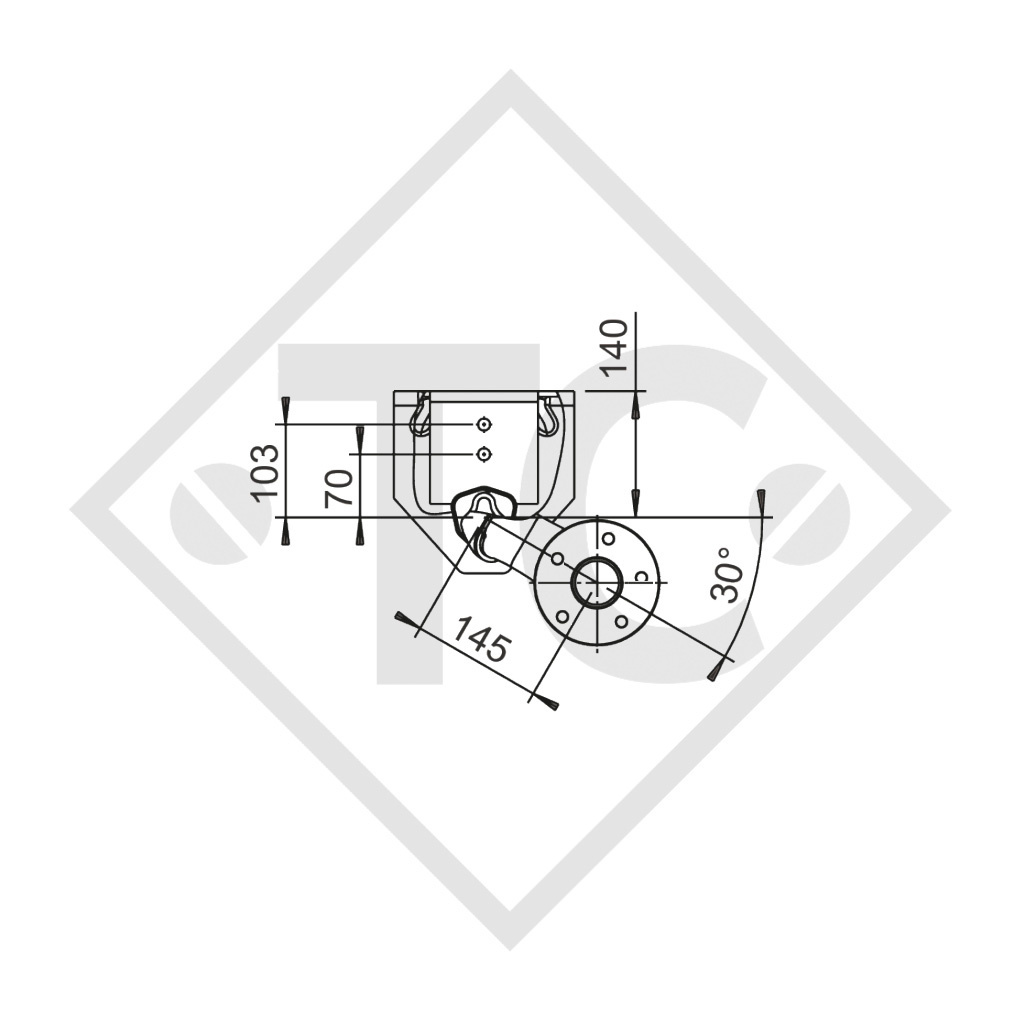

Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) XX.14.000.XXX

TECHNOLOGY
Model: PLUS OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

AL-KO Unbraked axle 750kg PLUS OPTIMA axle type 700-5 with shackle and high axle bracket
