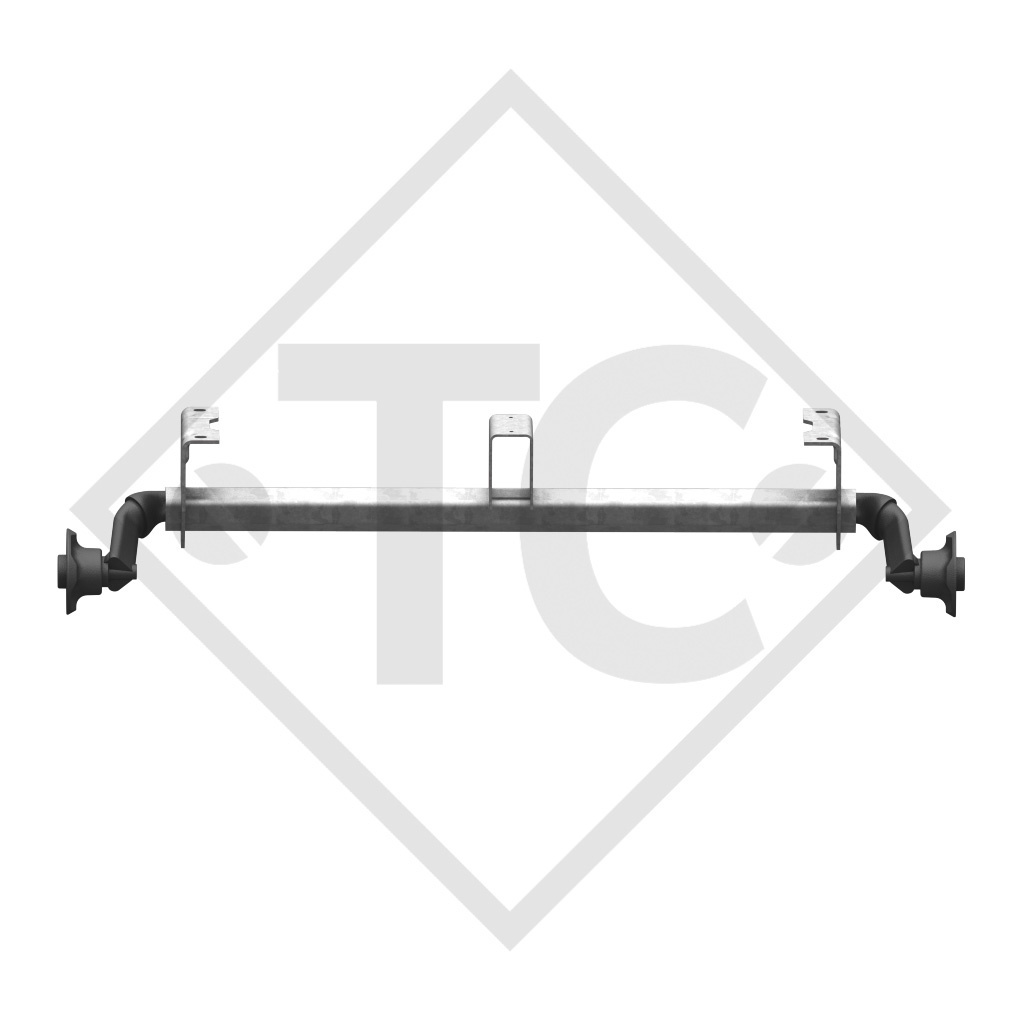

Home / Unbraked axle 750kg PLUS OPTIMA axle type 700-5 with shackle and high axle bracket
BC: dimension A 1400mm, OHF: dimension C 1810mm, wheel connection 100x4, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1426176 (1529373)

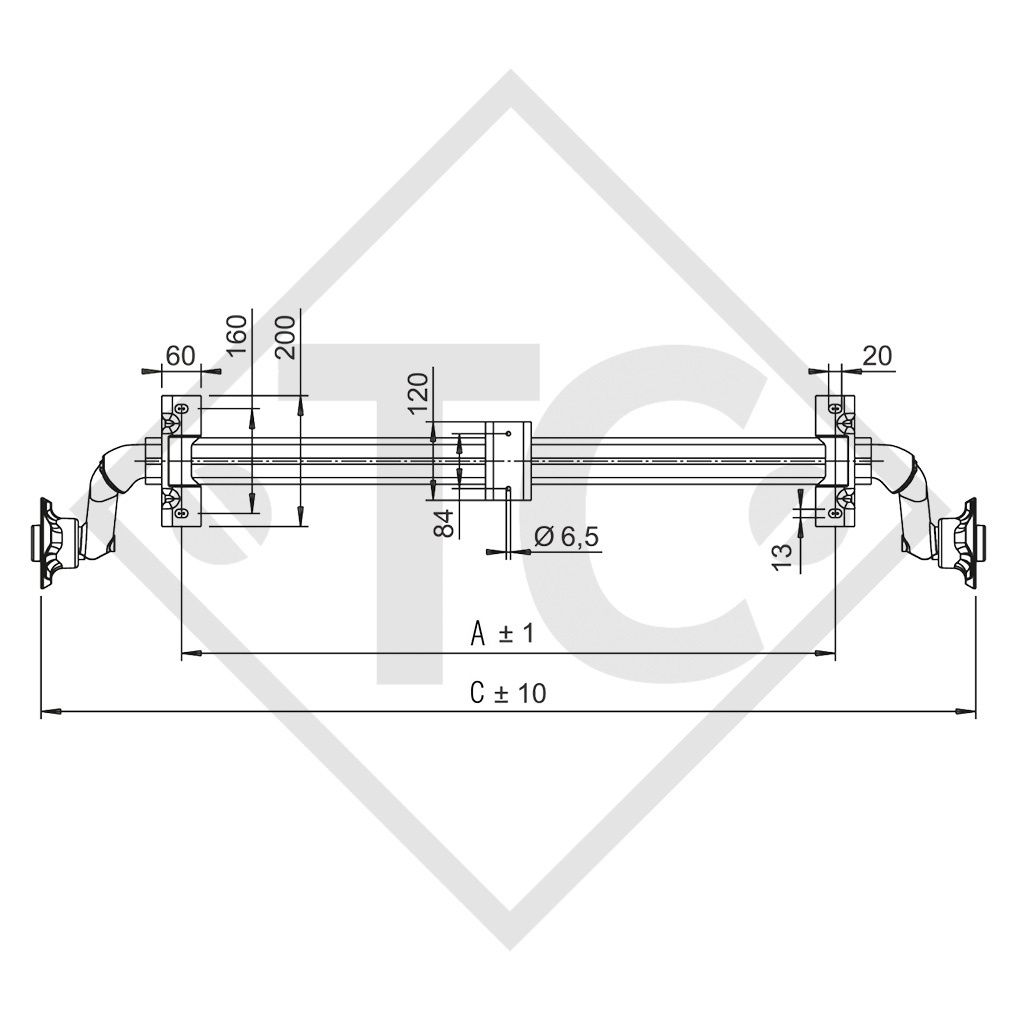

BC: dimension A 1400mm
OHF: dimension C 1810mm
Wheel connection 100x4

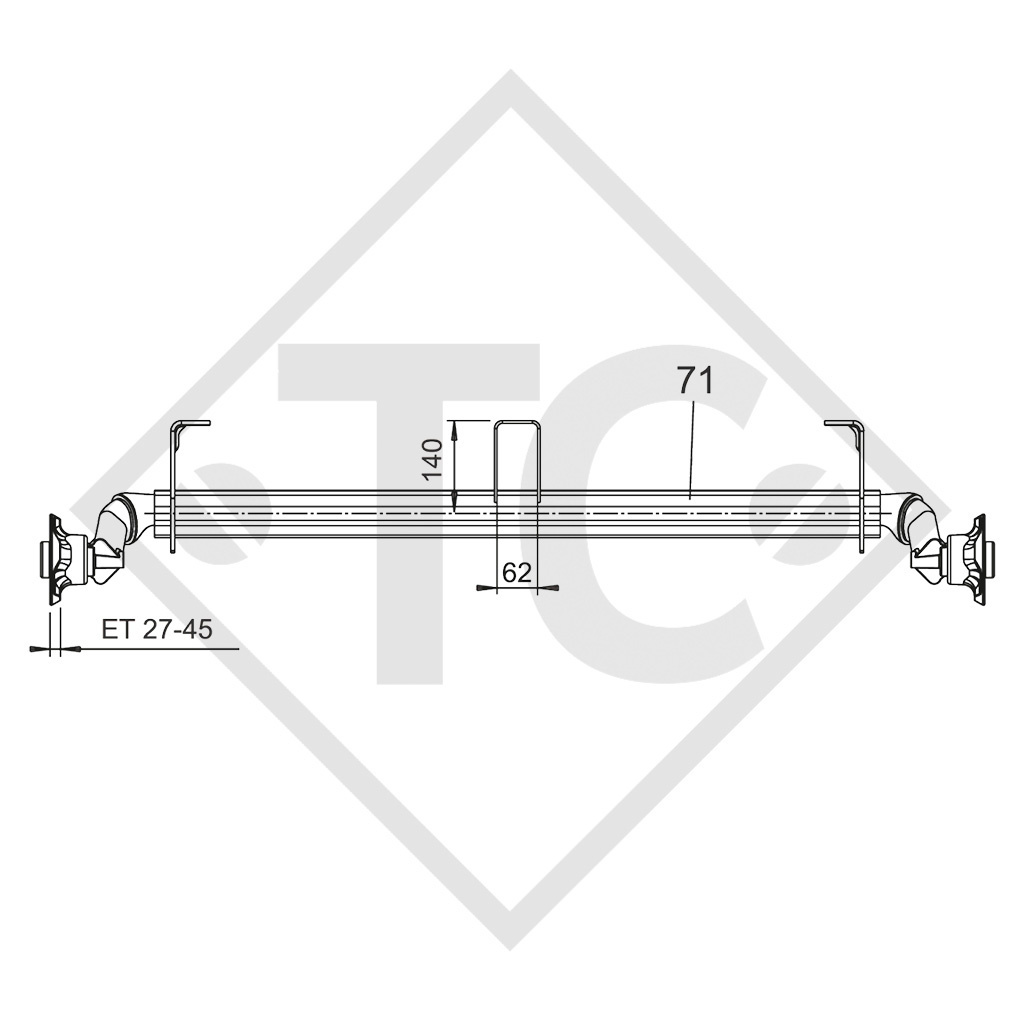

Offset (ET) 27-45mm

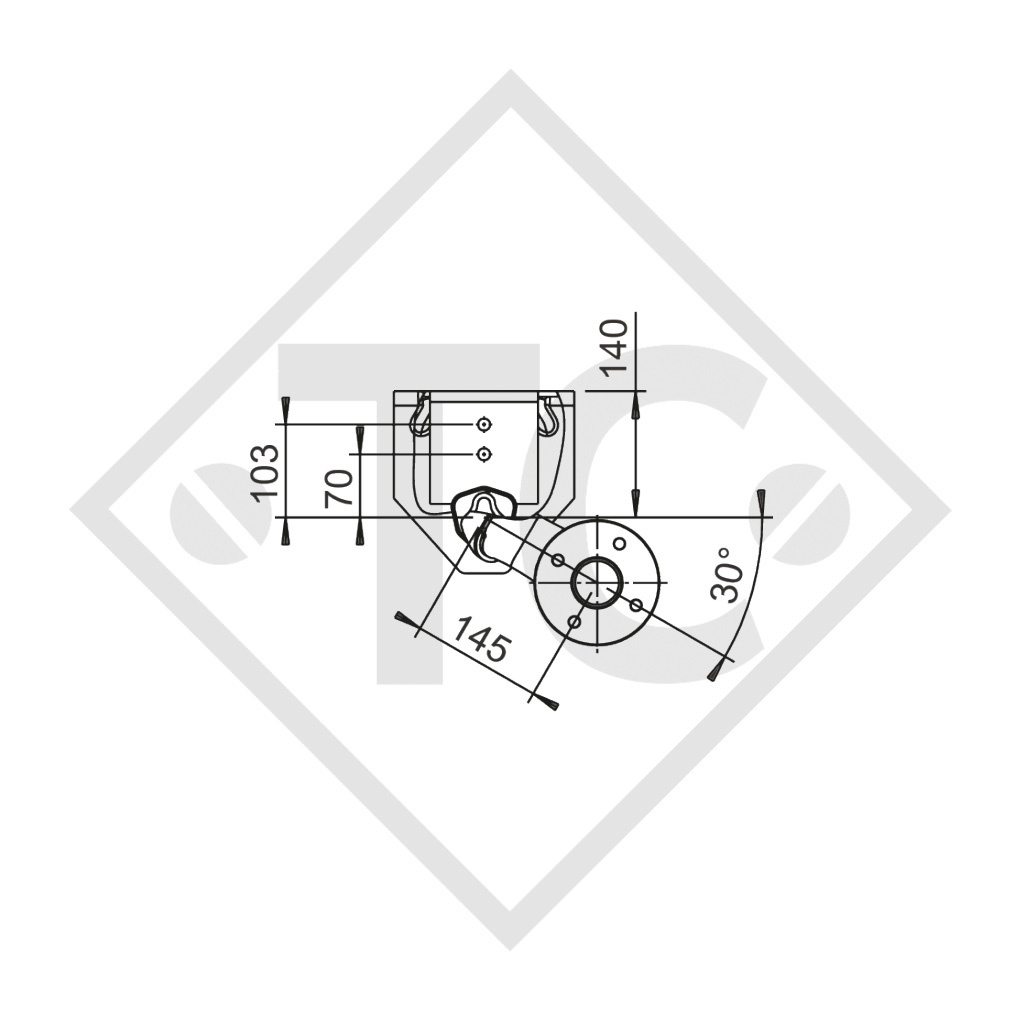

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811676
TECHNOLOGY
Model: PLUS OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
