Home / Unbraked tandem axle unit 800kg WT-Metallbau axle type 400-3
BC: dimension A 1180mm, OHF: dimension C 1530mm, wheel connection 100x4, offset (ET) 20-33mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1212765 (1323757)

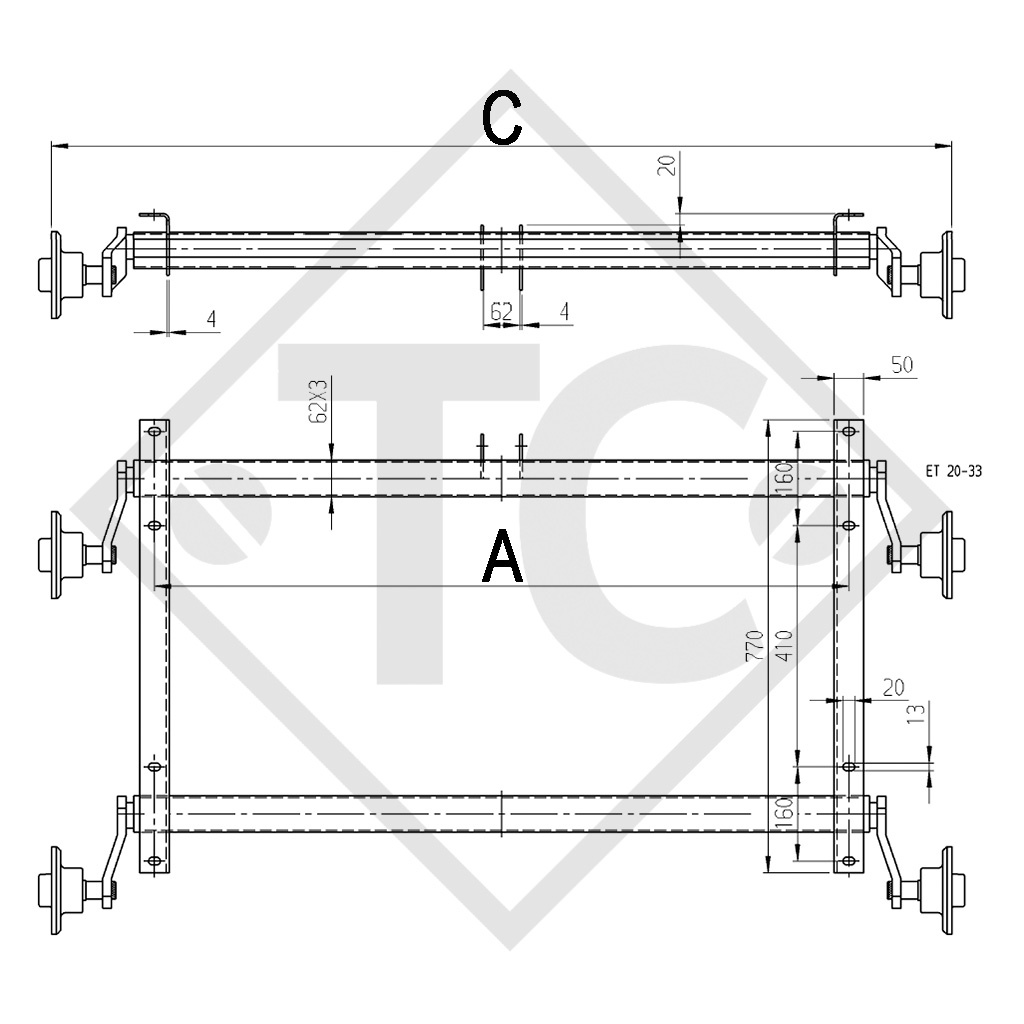

BC: dimension A 1180mm
OHF: dimension C 1530mm
Wheel connection 100x4
Offset (ET) 20-33mm

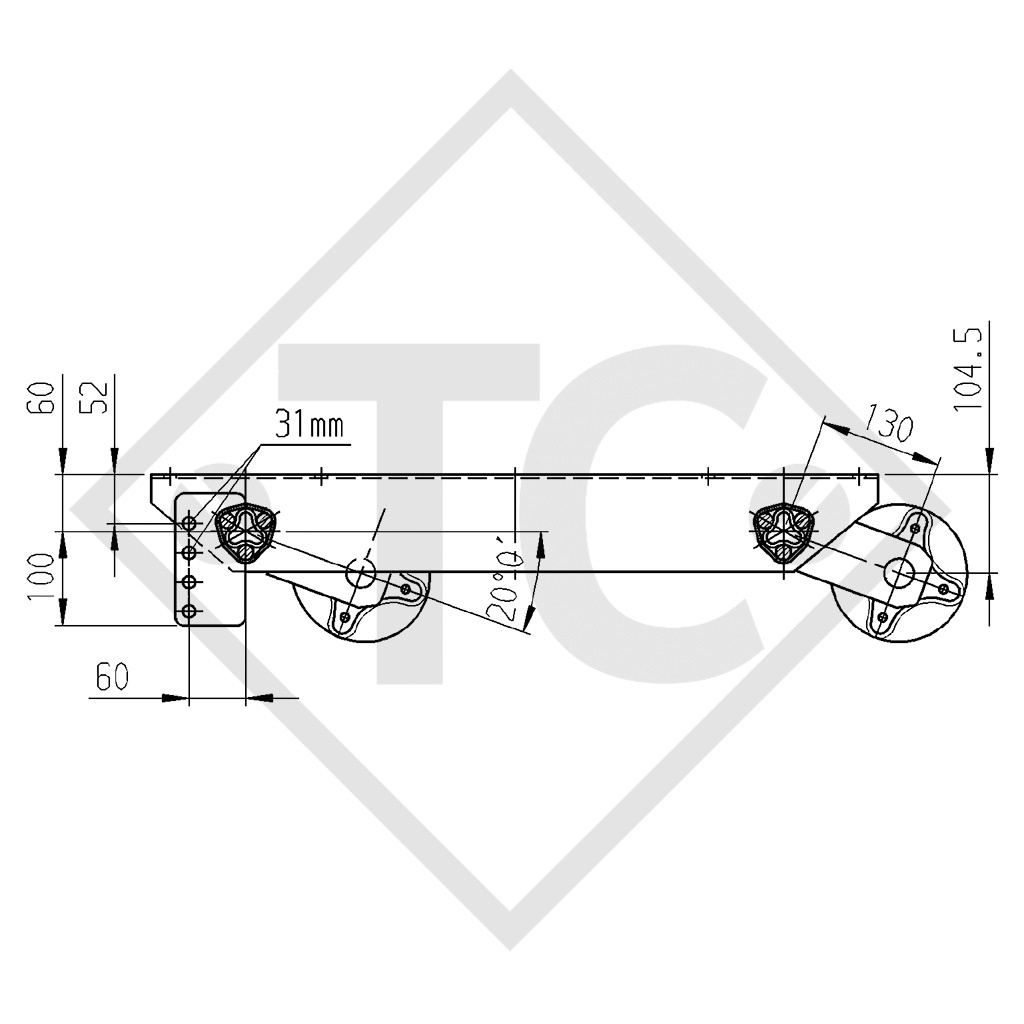

Swing arm position 20°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811265
TECHNOLOGY
Model: BASIC
Axle type: 400-3
Axle load: 800kg
Suspension: Hexagonal rubber suspension
Swing arm length: 130mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
IMPORTANT! These axles cannot be combined with 8" complete wheels!
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Unbraked axle 750 KG BASIC
Modern, maintenance-free axle technology "Made in Germany"
