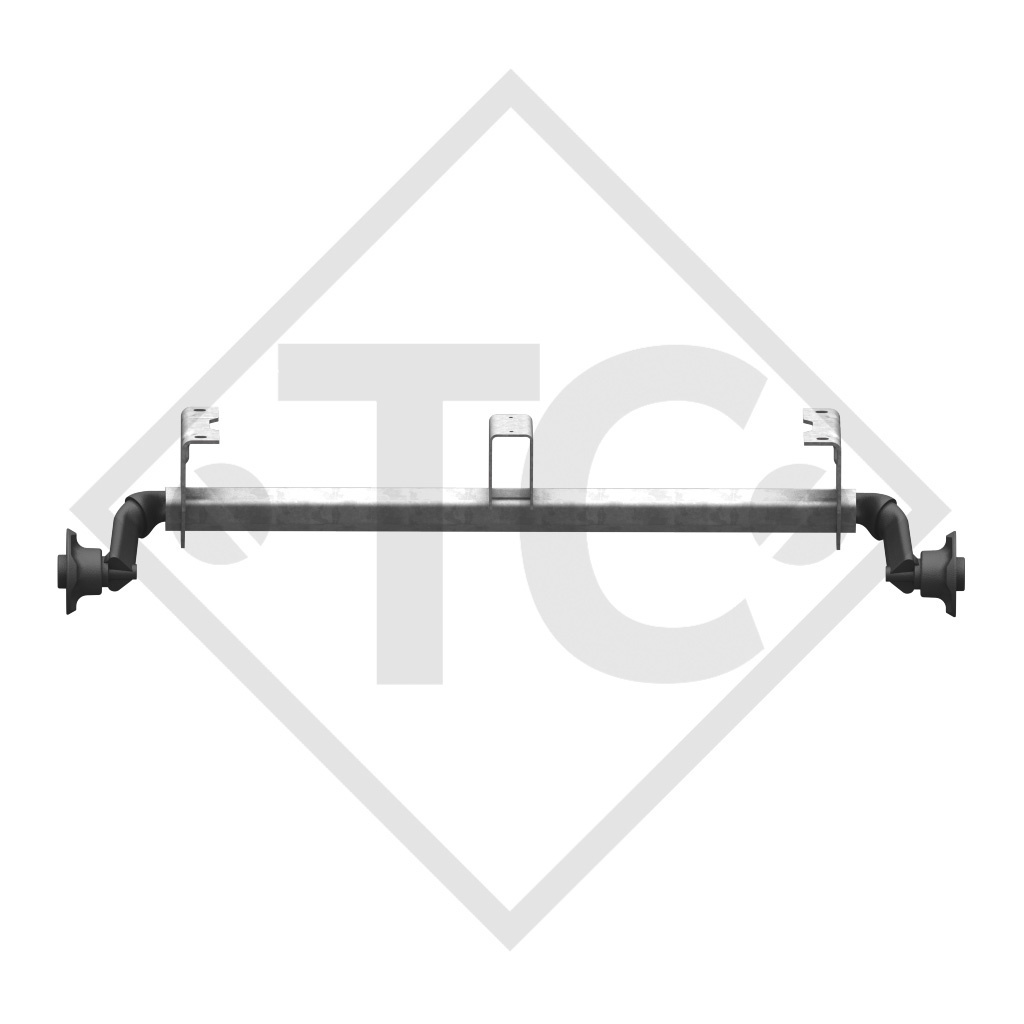

AL-KO Unbraked axle 850kg axle type 850-4 with shackle and high axle bracket

Part no. 1423979_1070_1455_100x4  (53.16.1.00.203)

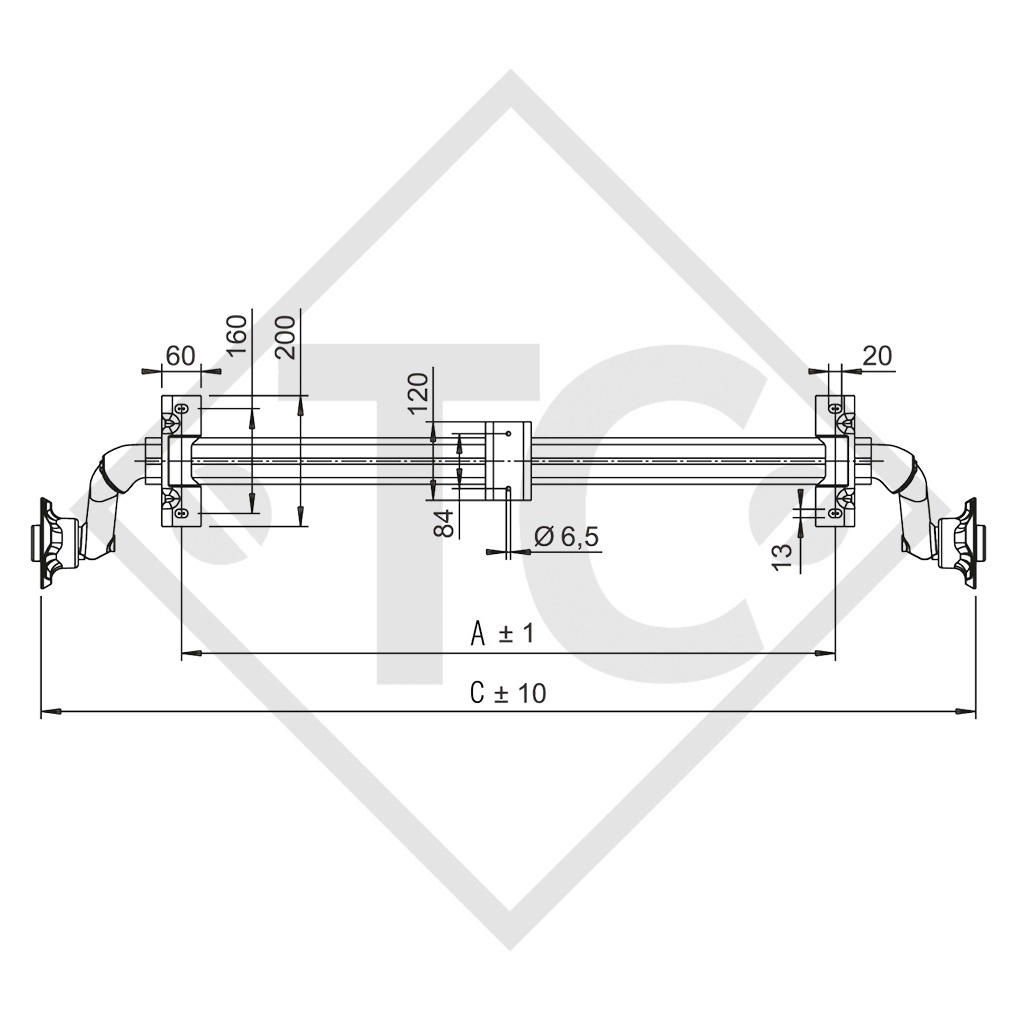

BC: dimension A 1070mm
OHF: dimension C 1455mm
Wheel connection 100x4

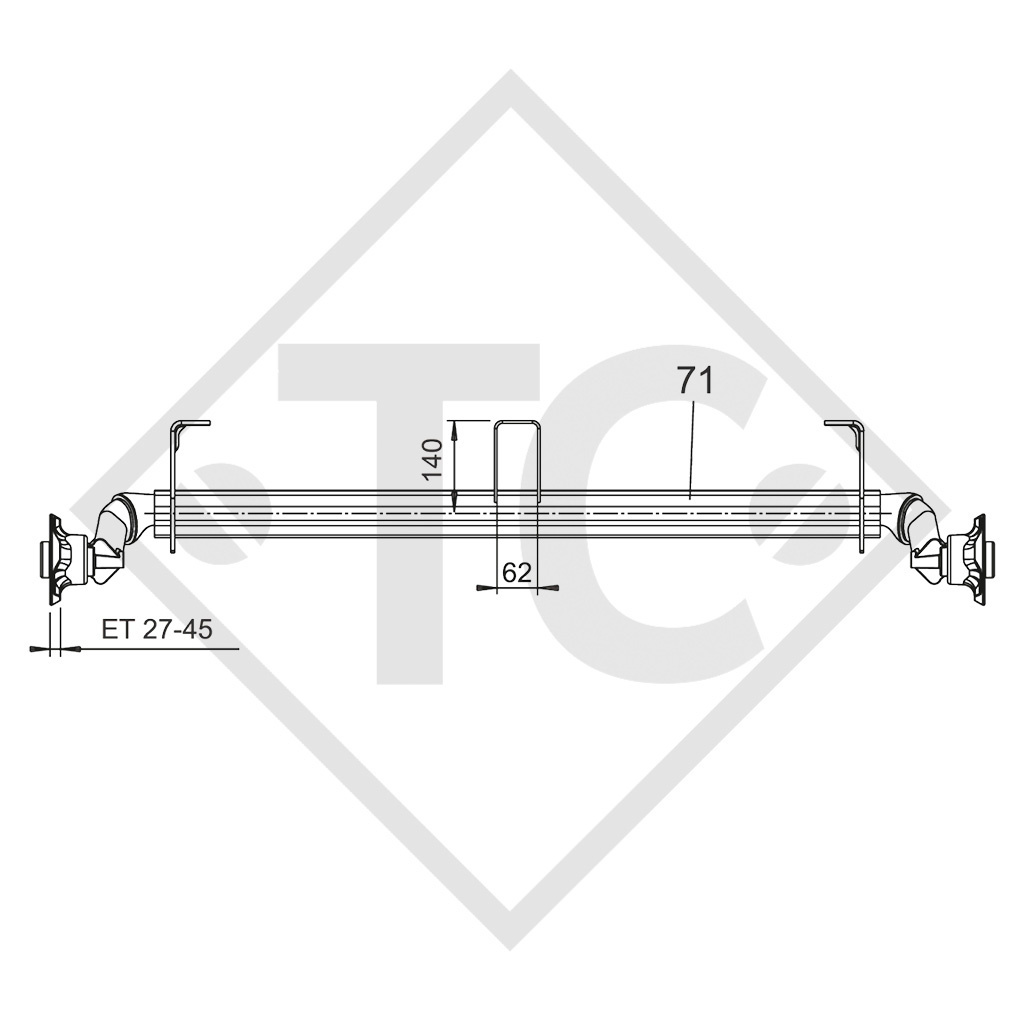

Offset (ET) 27-45mm

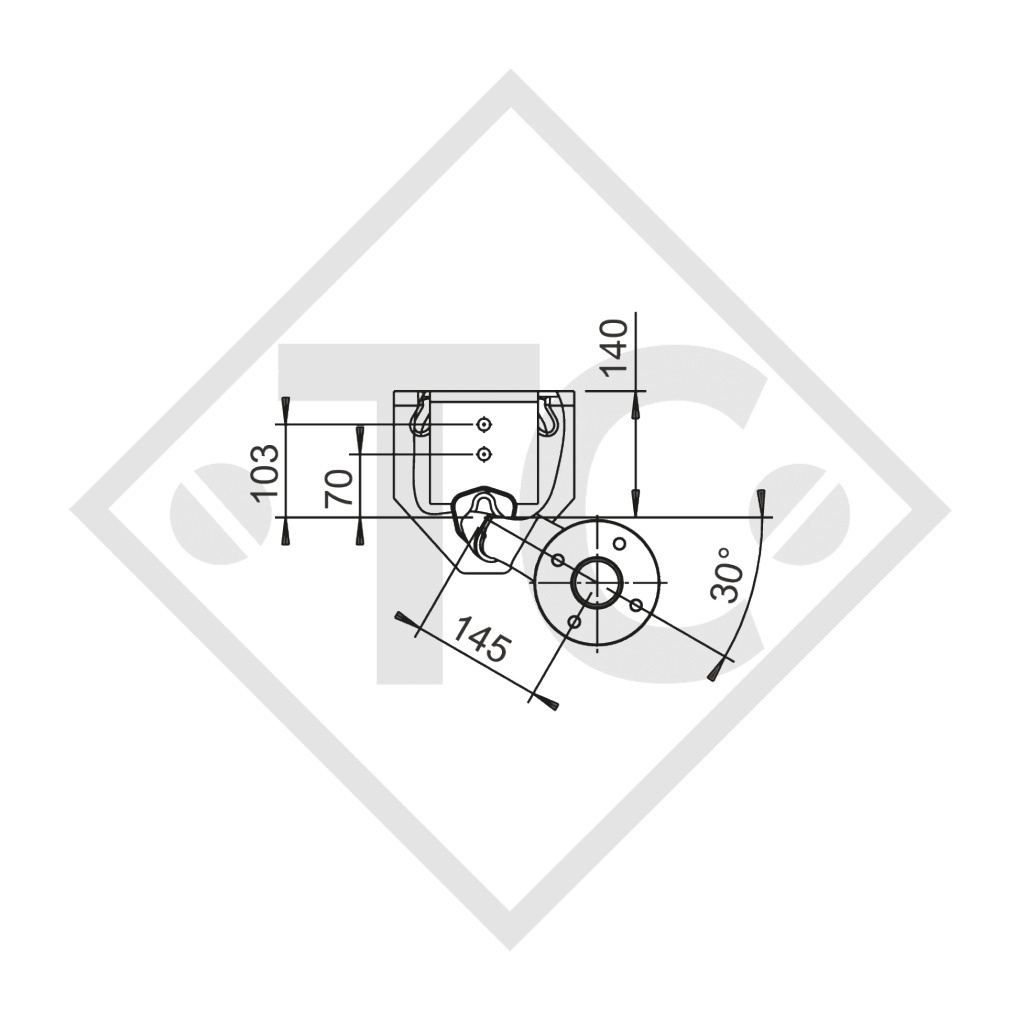

Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) 811676

TECHNOLOGY
Model: UBR PLUS
Axle type: 850-4
Axle load: 850kg
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle

SURFACE TREATMENT
Axle profile hot-dip galvanised
