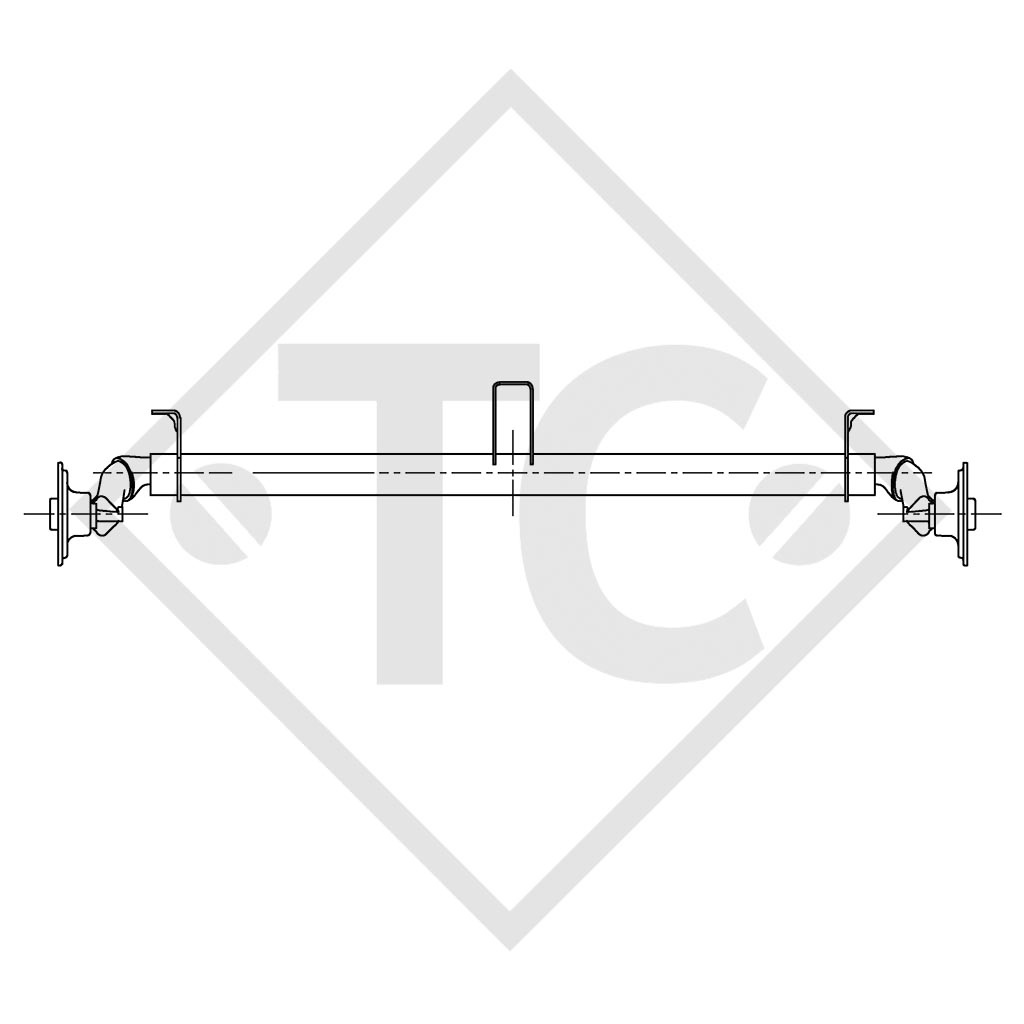

AL-KO Unbraked axle 750kg PLUS OPTIMA axle type 700-5 with shackle and high axle bracket

Part no. 1424268

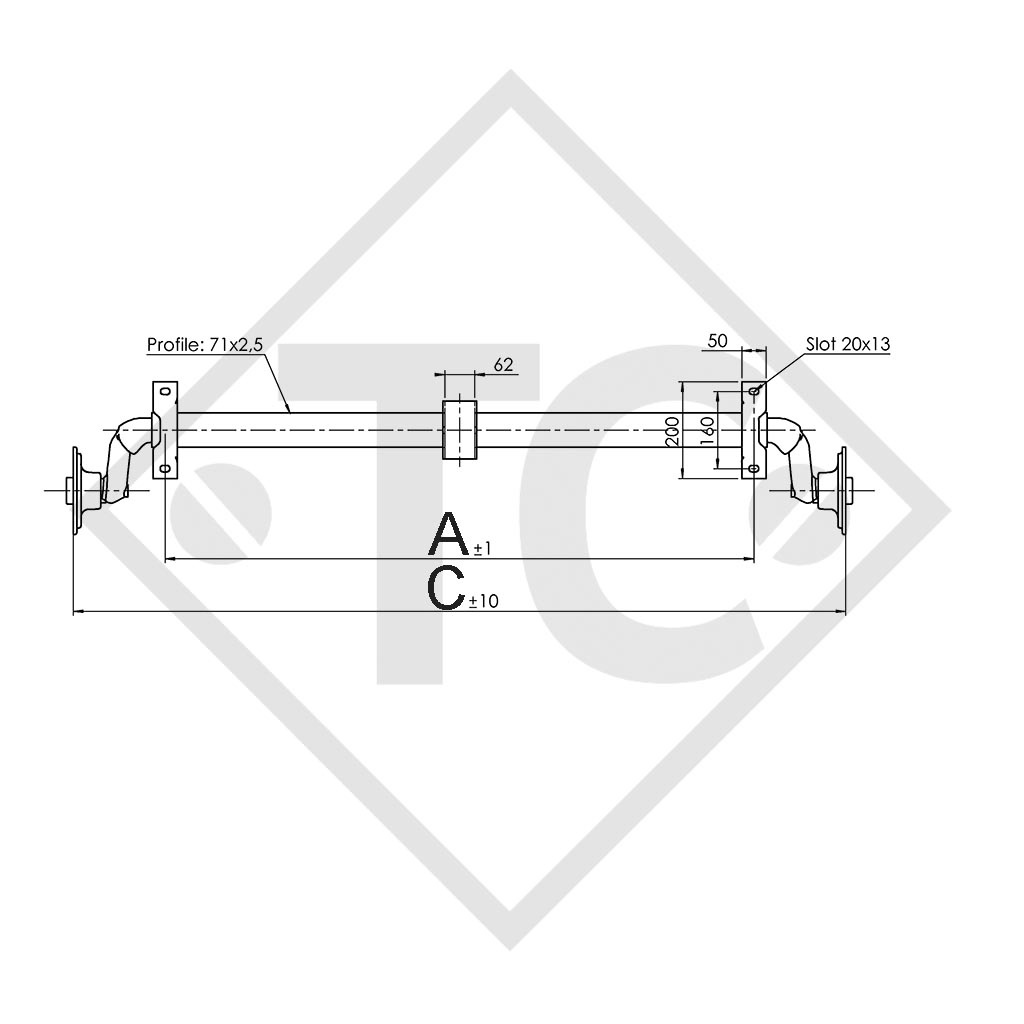

BC: dimension A 1220mm
OHF: dimension C 1600mm
Wheel connection 112x5
Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811676

TECHNOLOGY
Model: PLUS OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension

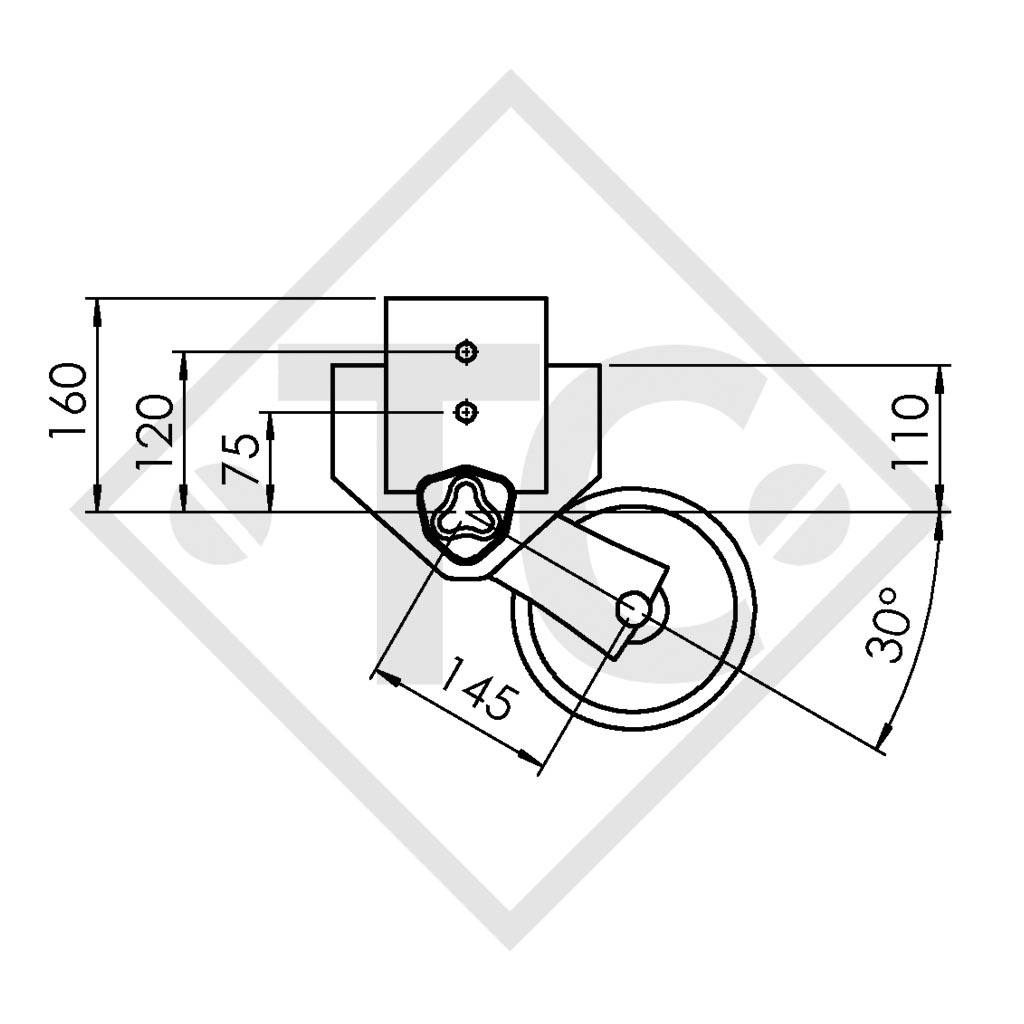

Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
