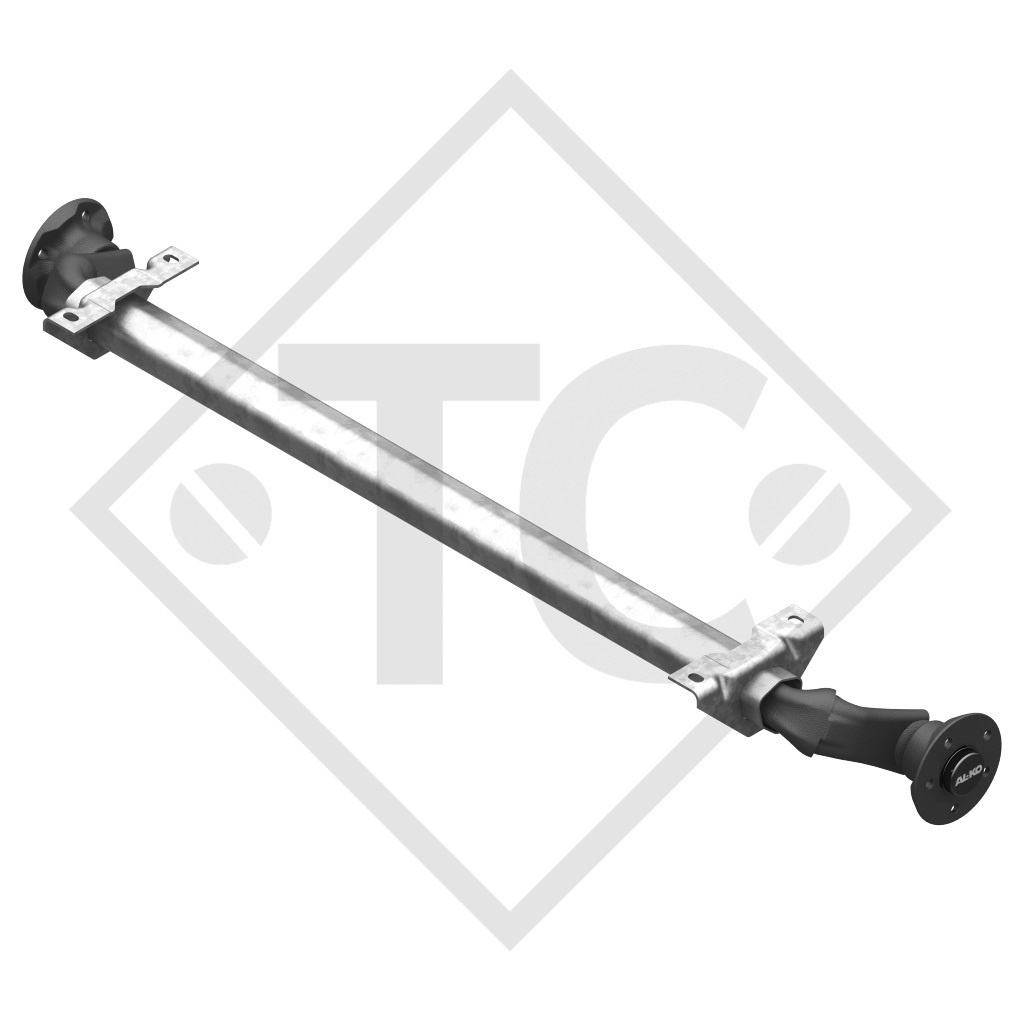

AL-KO Unbraked axle 750kg BASIC axle type 700-5 watertight

Part no. 200600XX

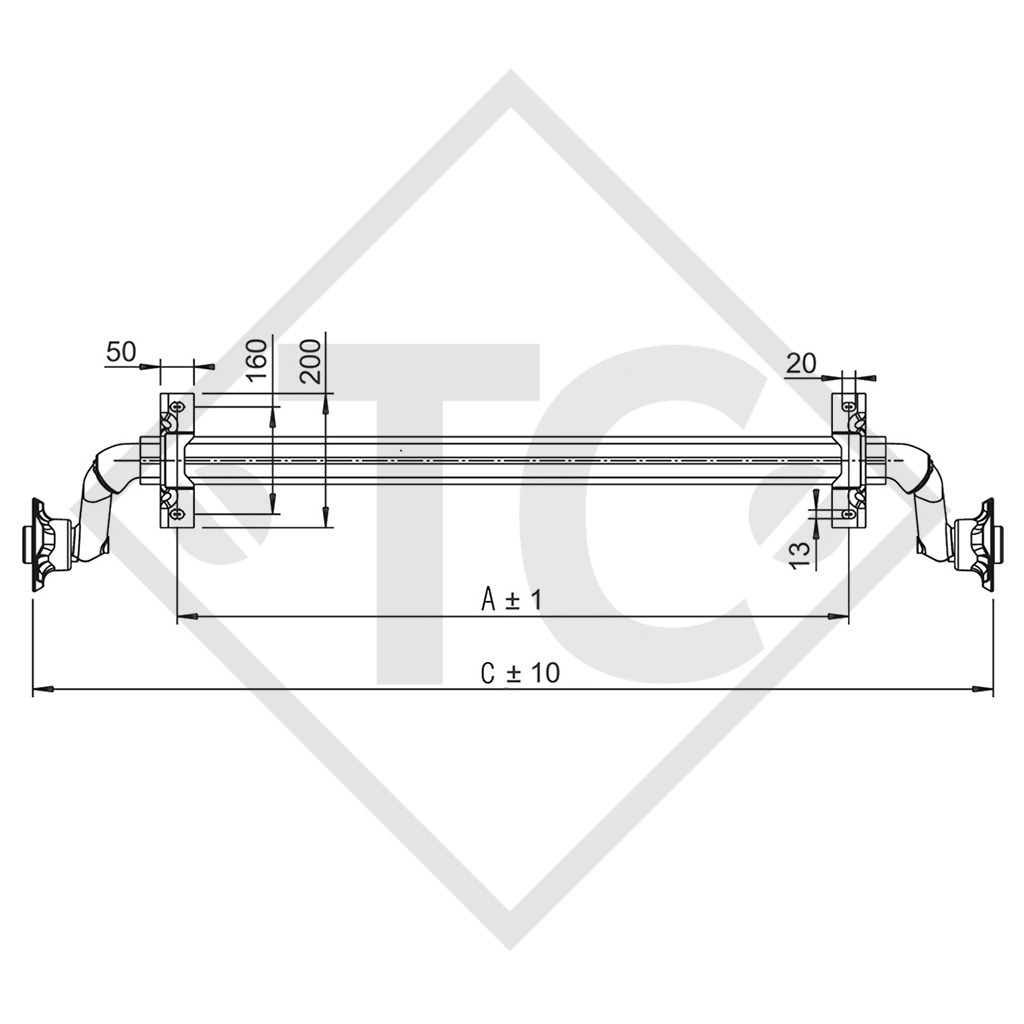

BC: dimension A 1050mm
OHF: dimension C 1570mm
Wheel connection 112x5

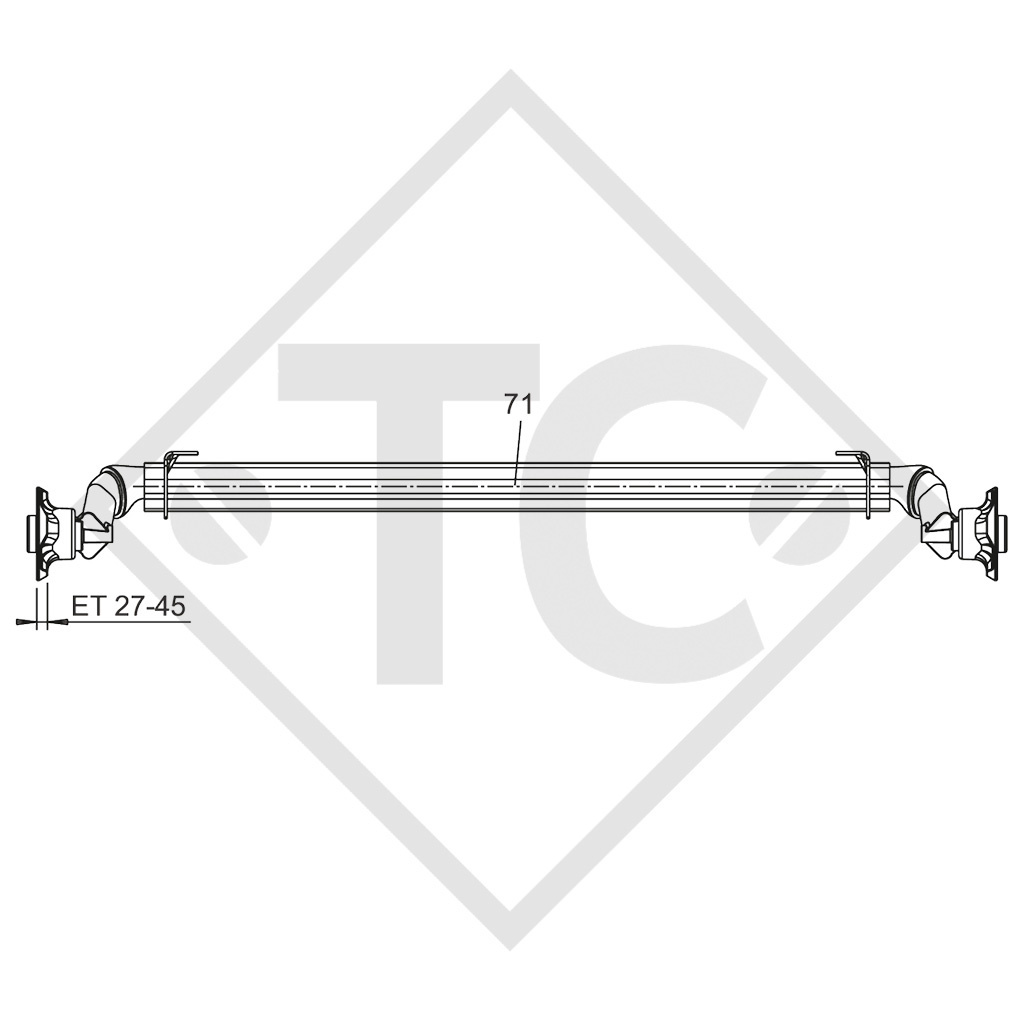

Offset (ET) 27-45mm

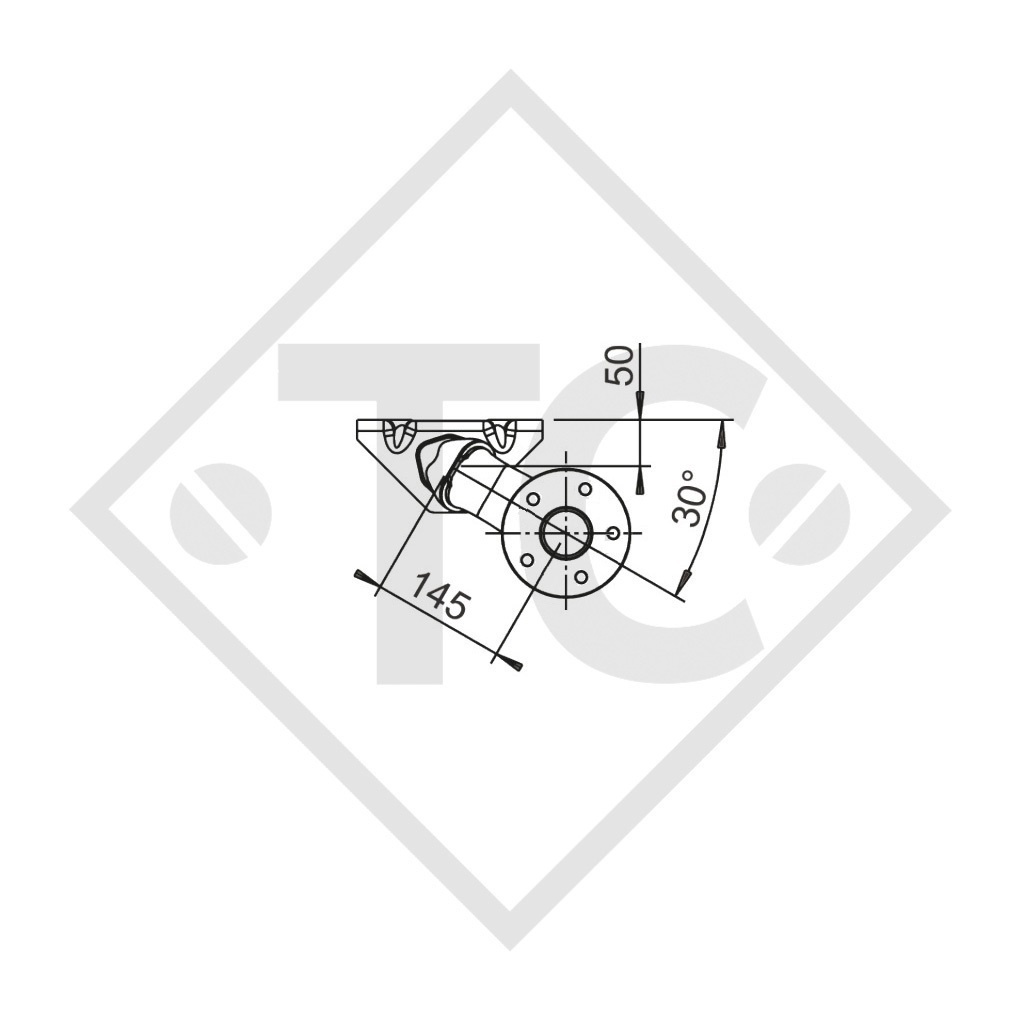

Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811726

TECHNOLOGY
Model: BASIC
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

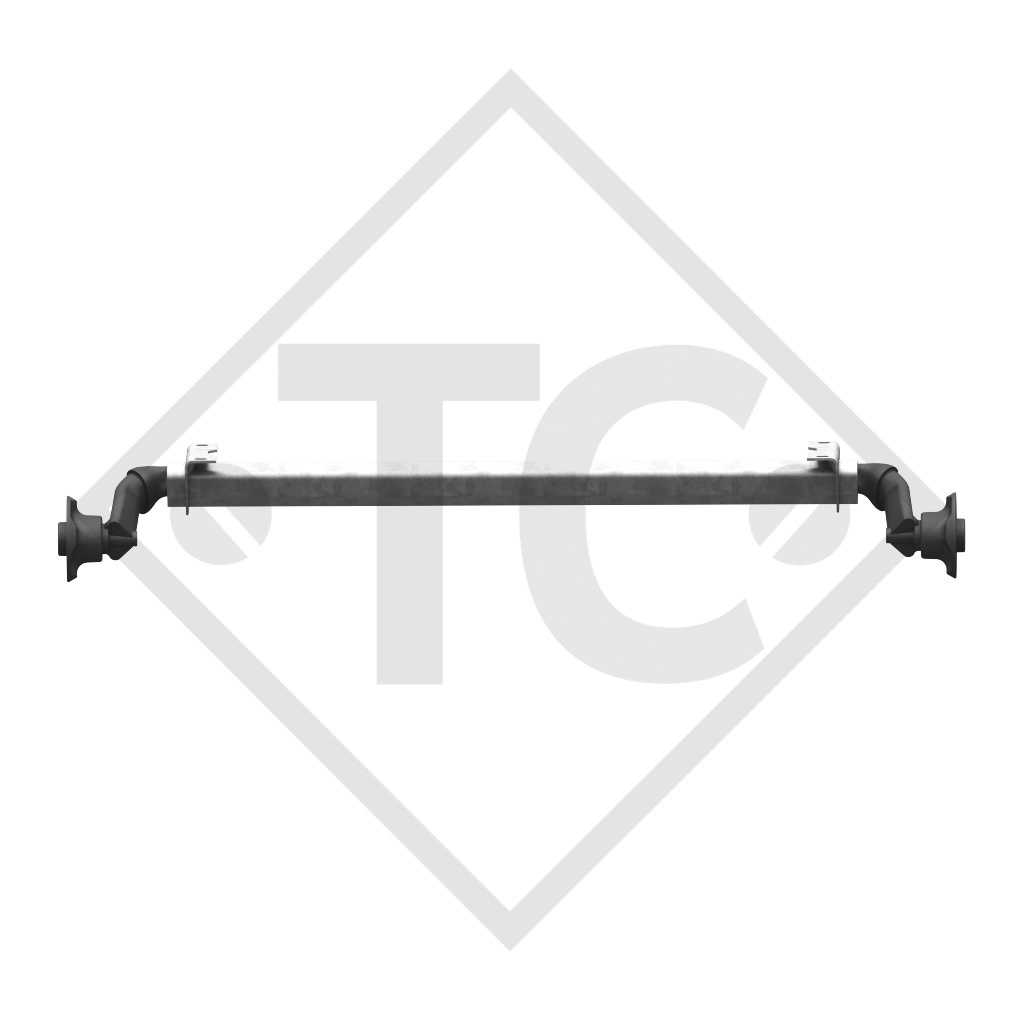

Unbraked axle 750 KG BASIC
Modern, maintenance-free axle technology "Made in Germany"
