BC: dimension A 1376mm, OHF: dimension C 1694mm, wheel connection 100x4, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1423840

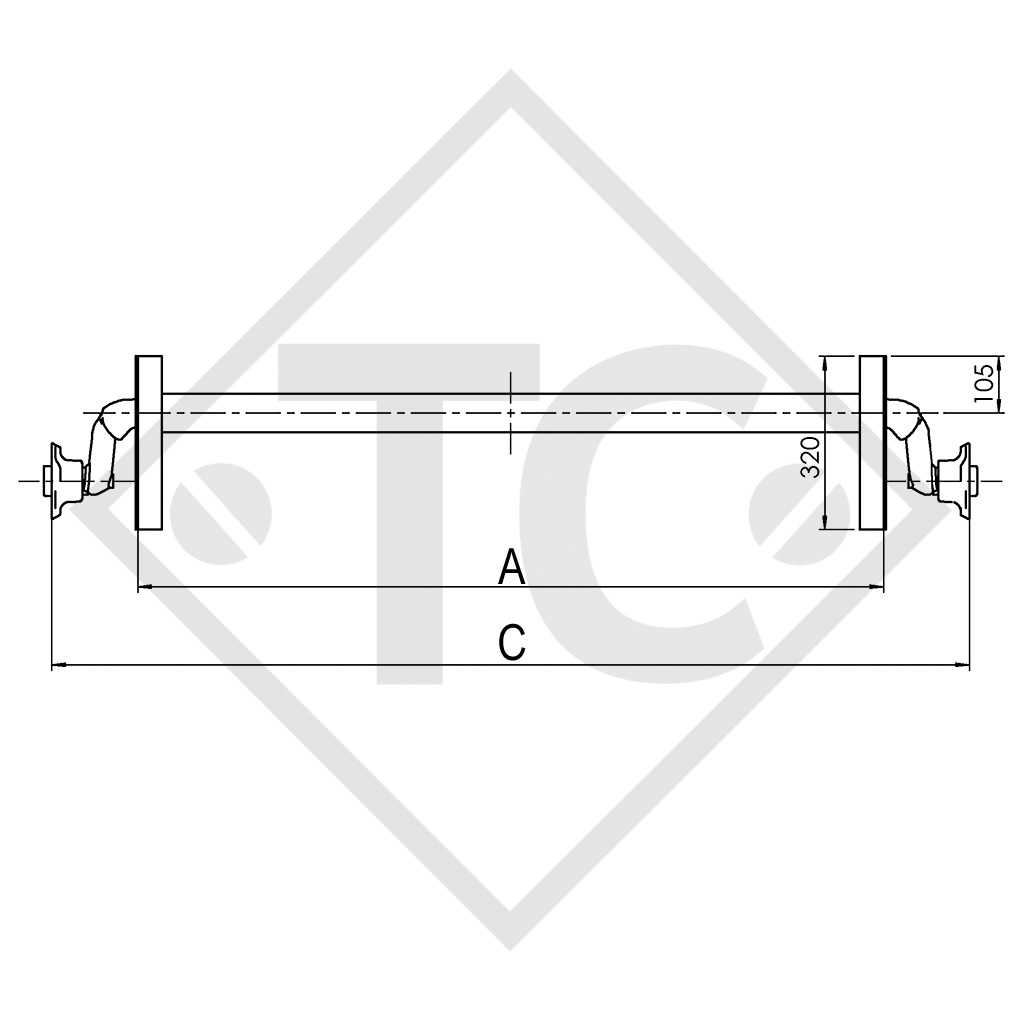

BC: dimension A 1376mm
OHF: dimension C 1694mm
Wheel connection 100x4
Offset (ET) 27-45mm

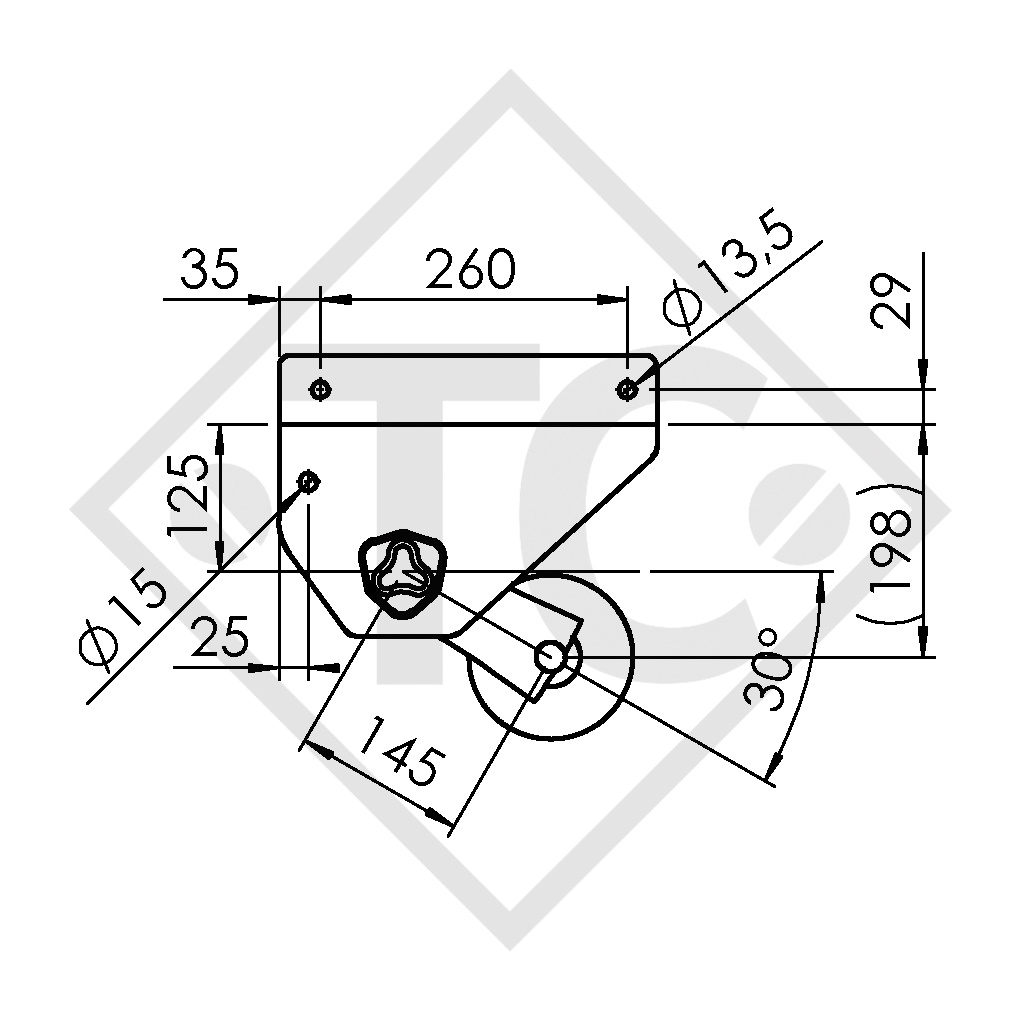

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811441
TECHNOLOGY
Model: OPTIMA
Axle type: 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
