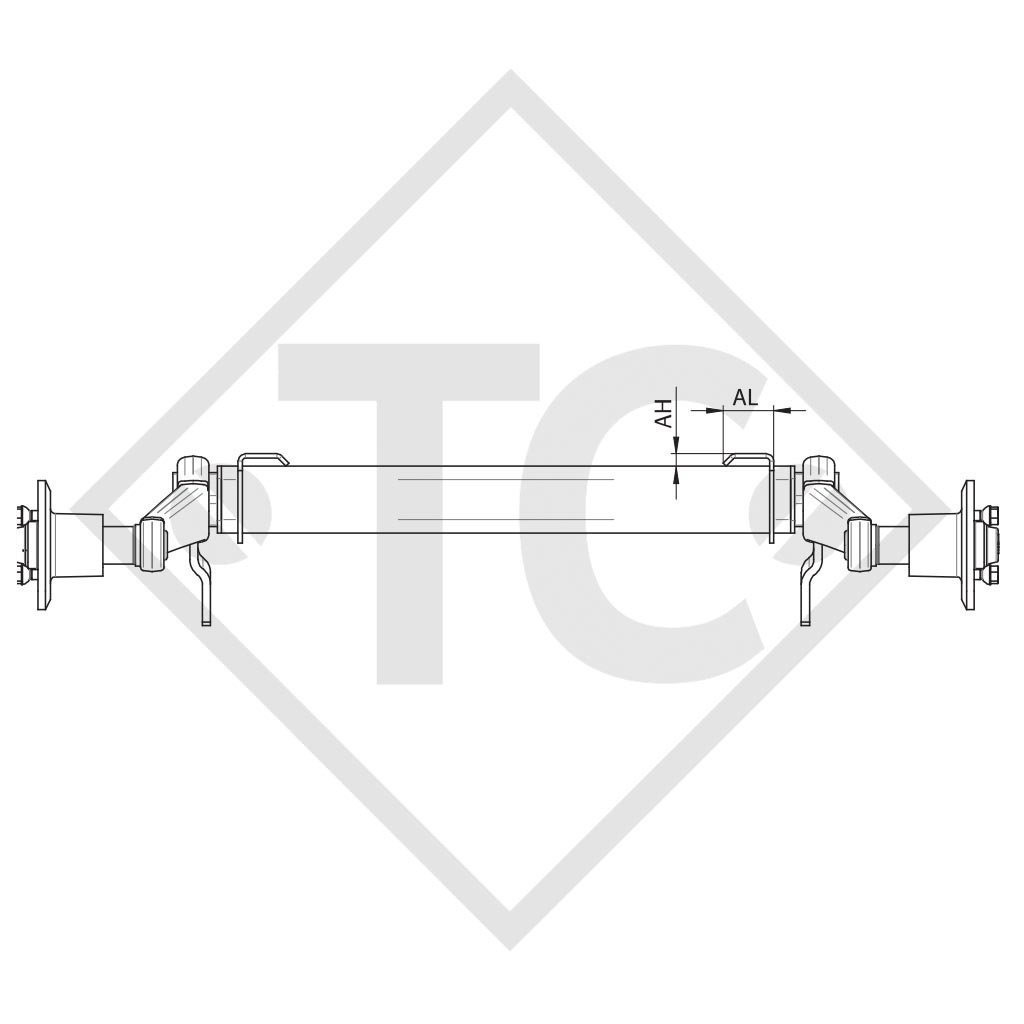

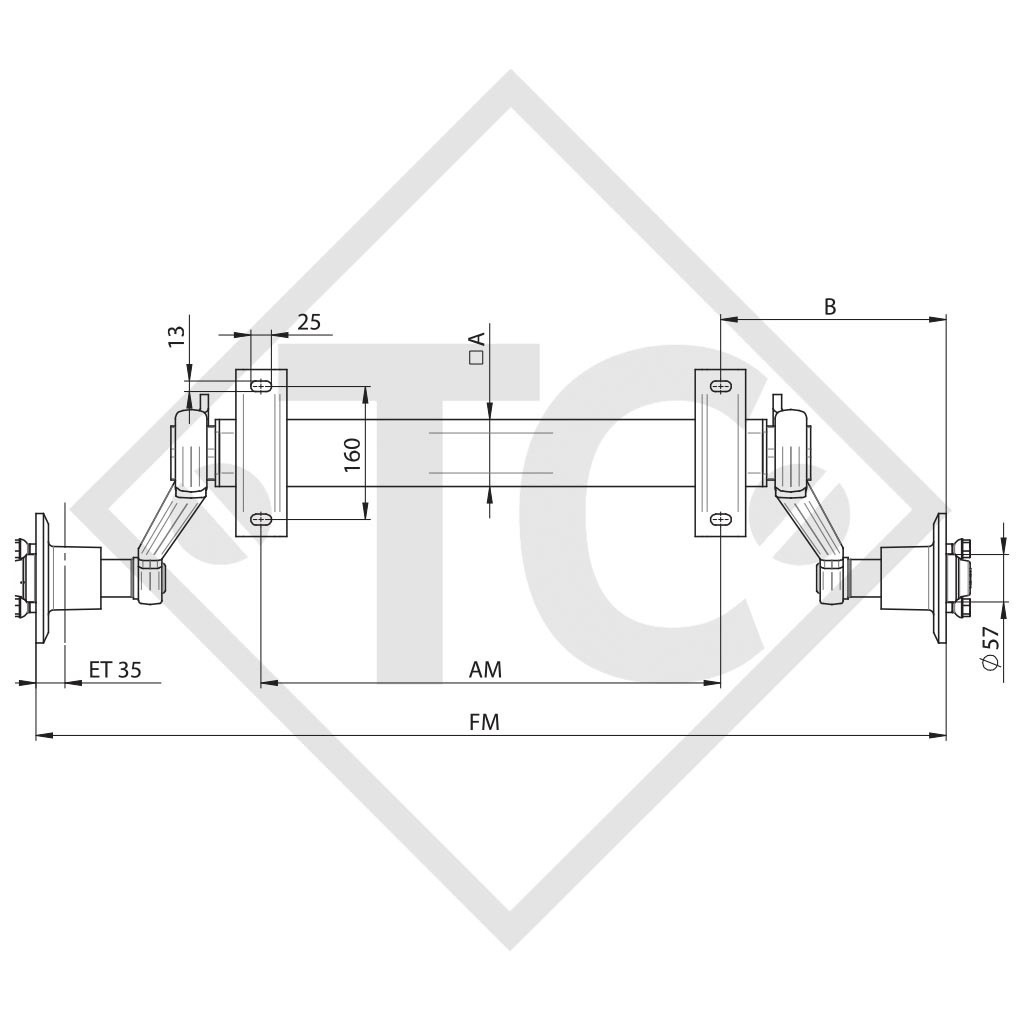

Dimension A (axle profile)
|
64mm |
Spare part list.pdf
TECHNOLOGY
Model: WAG-L
Axle type: WAG 065 L
Axle load: 650kg

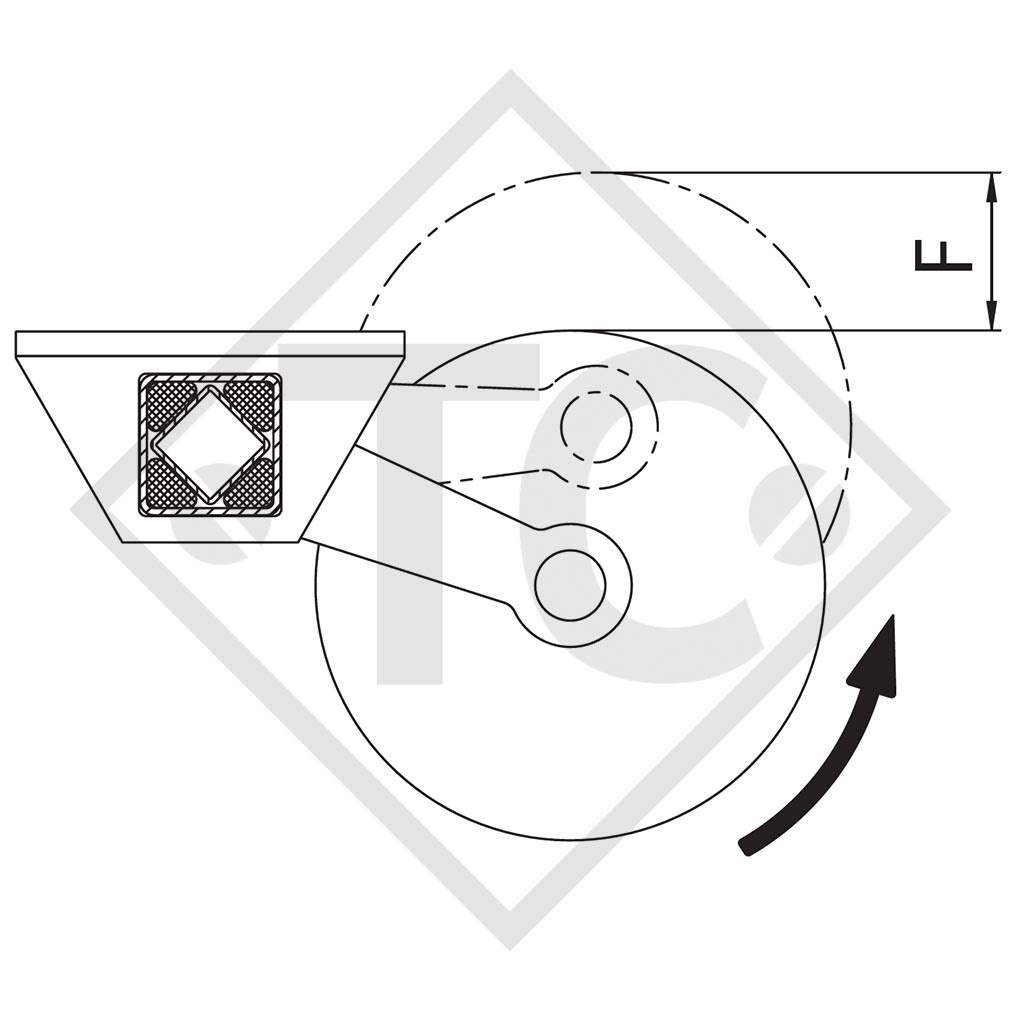

Suspension: Square rubber suspension

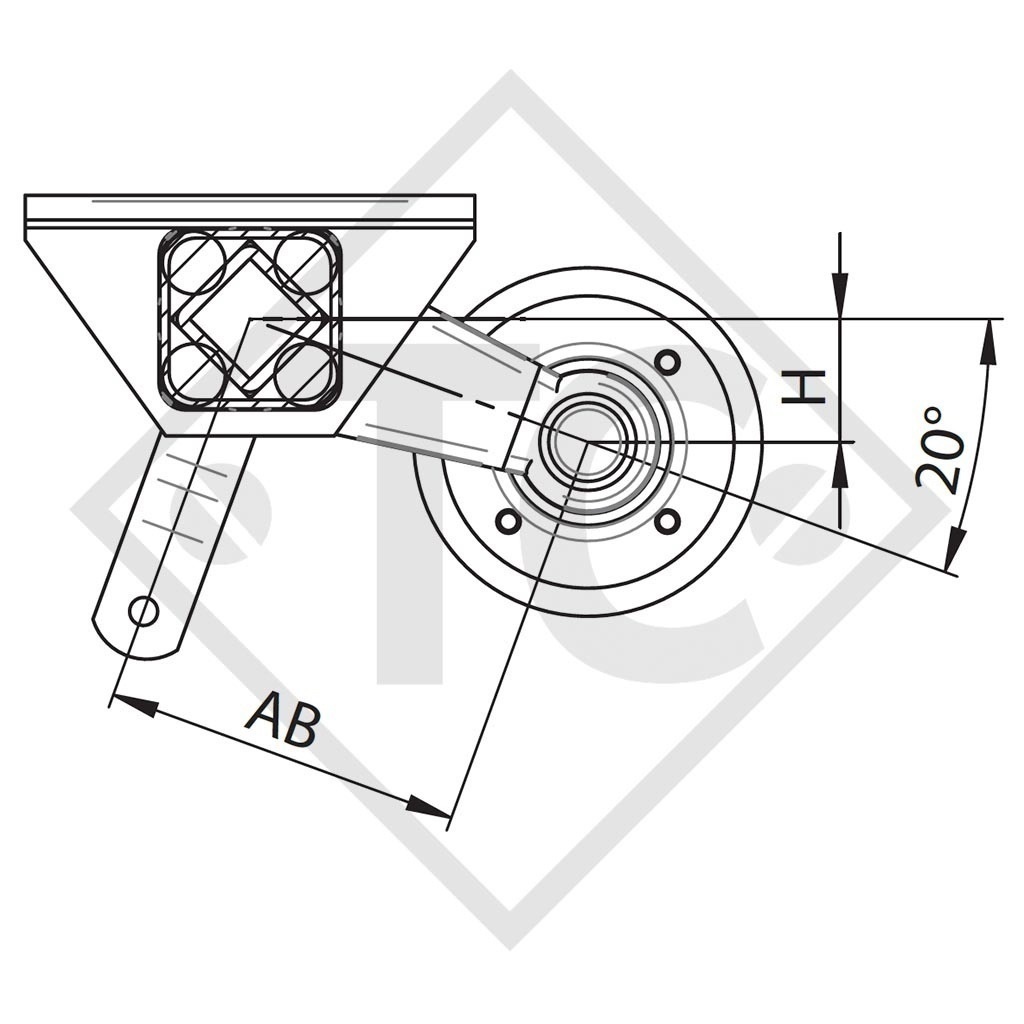

Swing arm length: 145mm
Wheel connection: 112x5
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

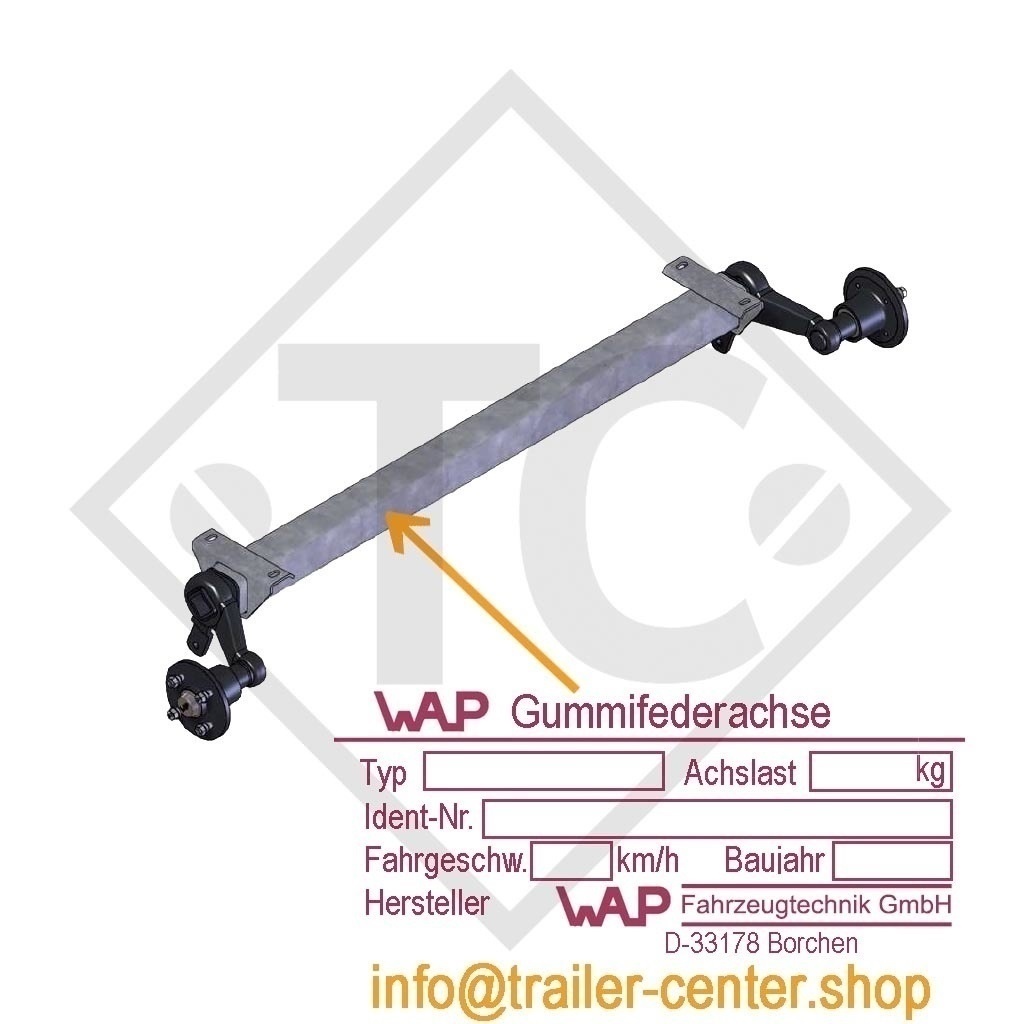

Simply send us a photo of your axle type plate, together with your address and telephone number to
Please feel free to avail of our service and request a non-binding offer by email today!
|
