Dimension A (axle profile)
|
64mm |
Spare part list.pdf
TECHNOLOGY
Model: WAG-L

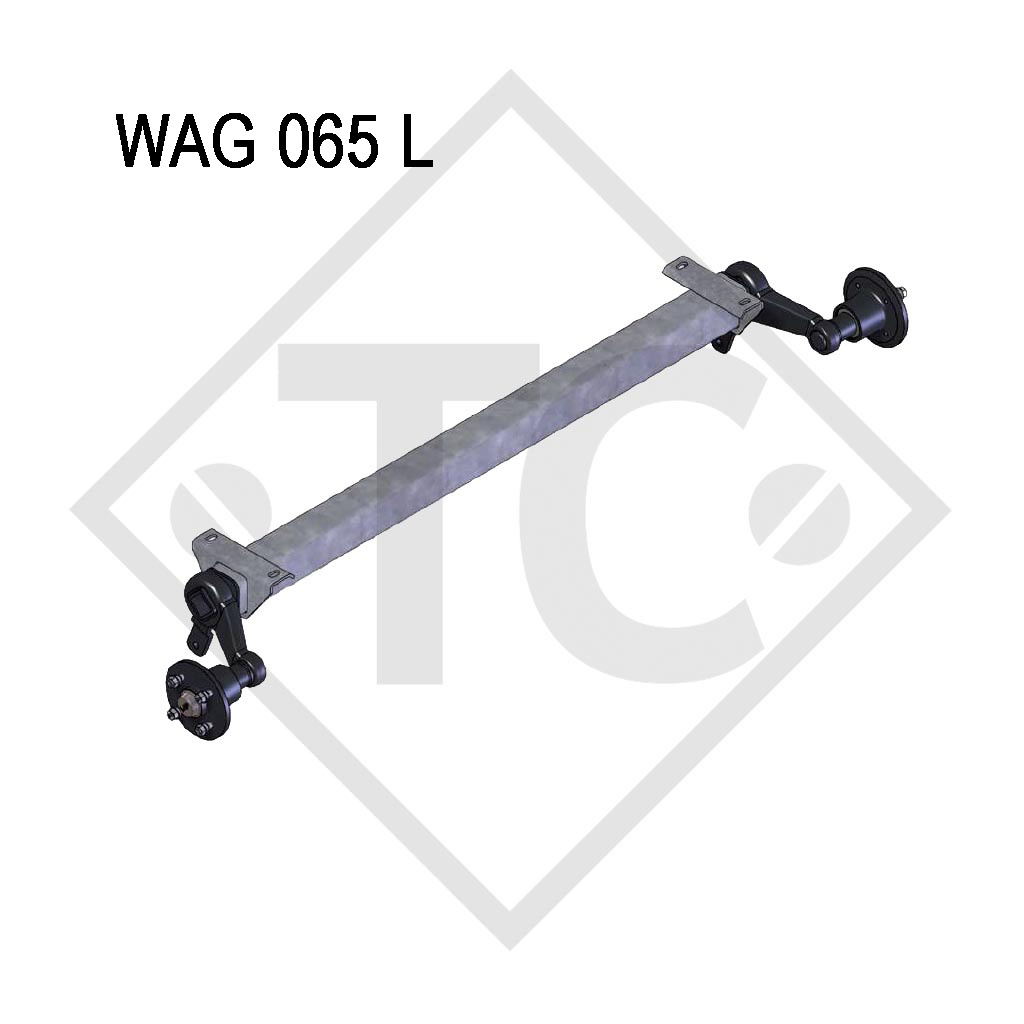

Axle type: WAG 065 L
Axle load: 650kg

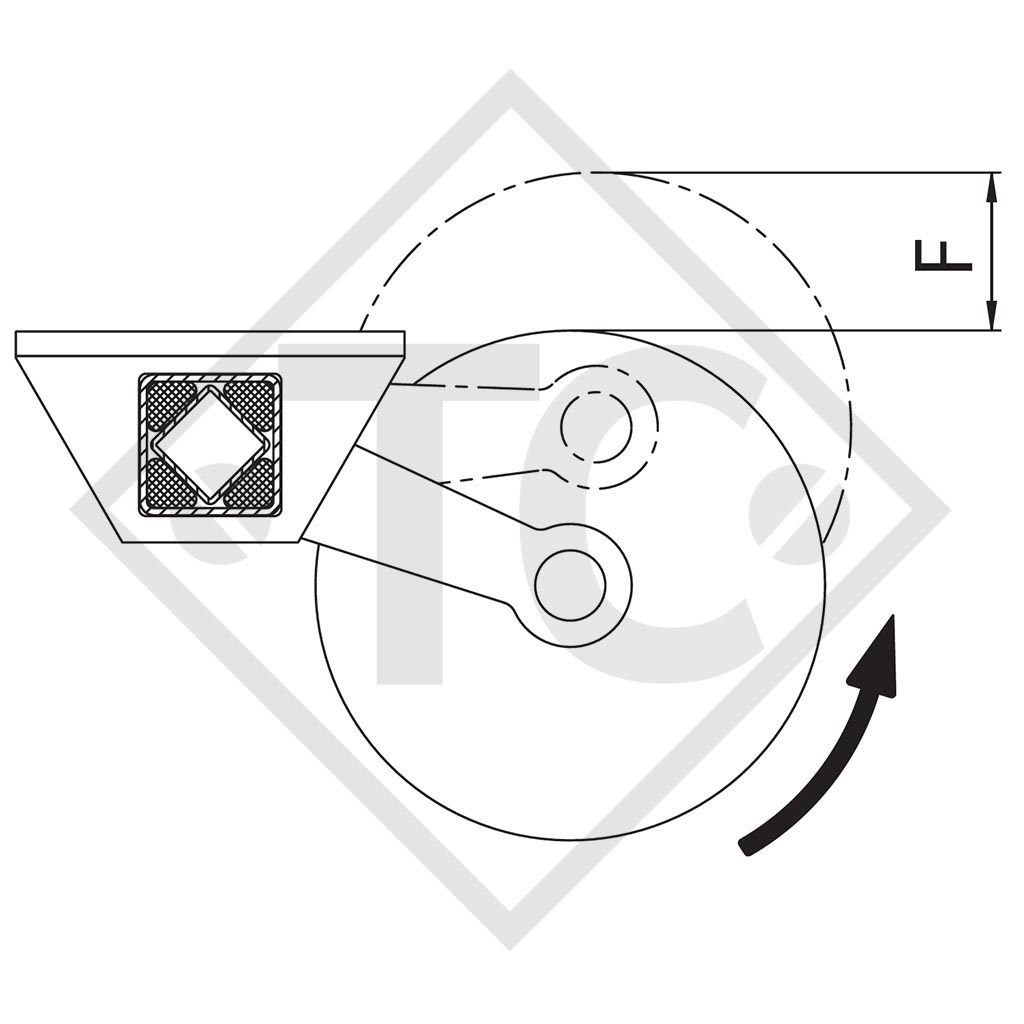

Suspension: Square rubber suspension

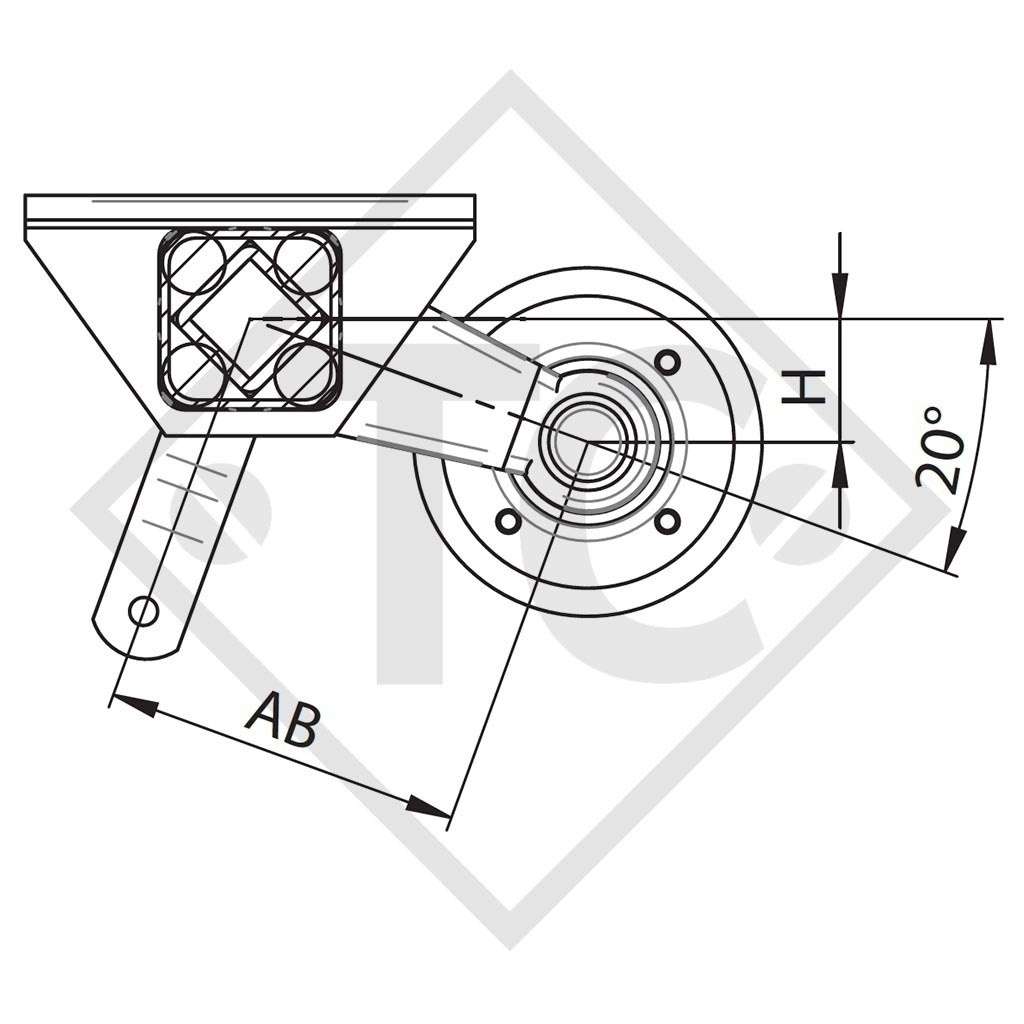

Swing arm length: 145mm
Wheel connection: 98x4
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
