Part no. 573149 (273160)

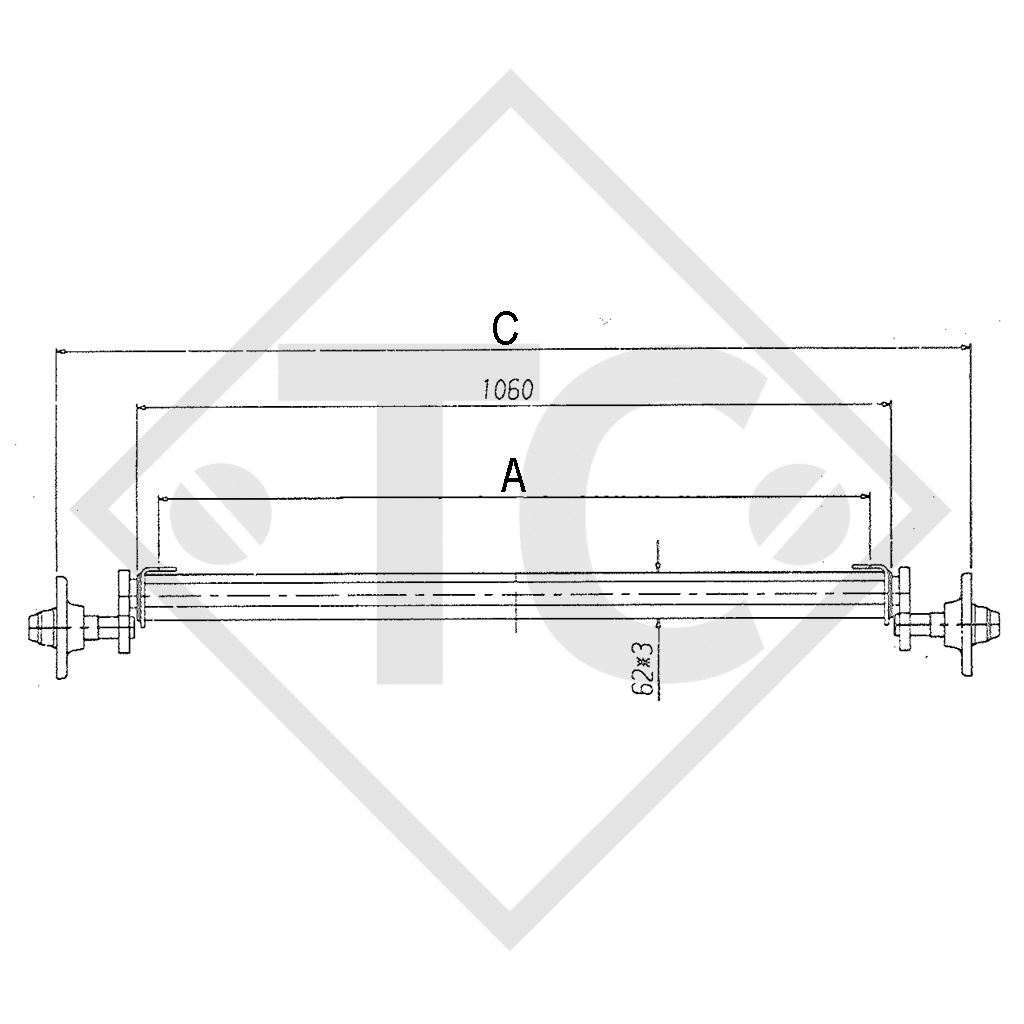

BC: dimension A 1000mm
OHF: dimension C 1285mm
Wheel connection 100x4
Offset (ET) 0mm

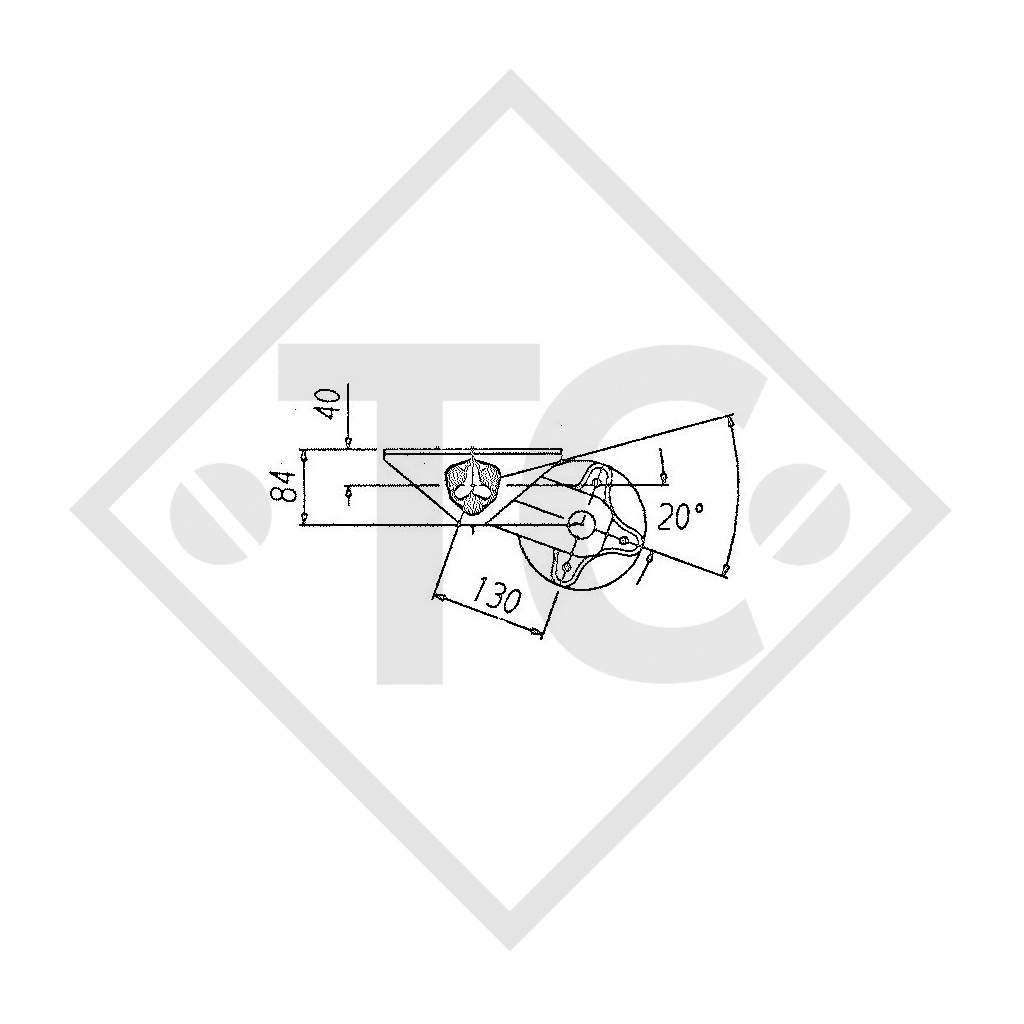

Swing arm position 20°
Axle profile 62mm

Original operating instructions
Replacement part identification number (ETI) 811676

TECHNOLOGY
Model: UBR 400
Axle type: 400-5
Axle load: 500kg

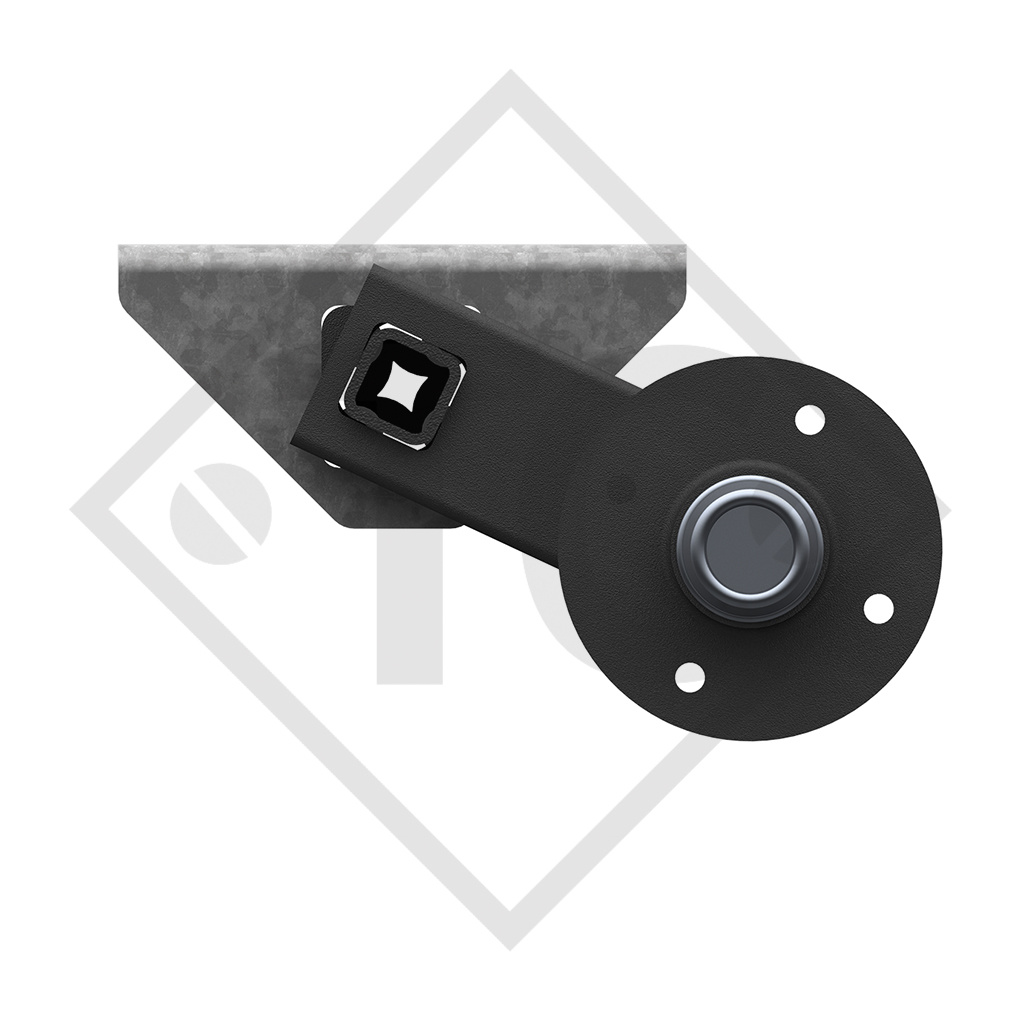

Suspension: Hexagonal rubber suspension
Swing arm length: 130mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

IMPORTANT! These axles cannot be combined with 8" complete wheels!

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
