AL-KO Unbraked axle 1800kg PLUS axle type 1800-9

Part no. 20057024

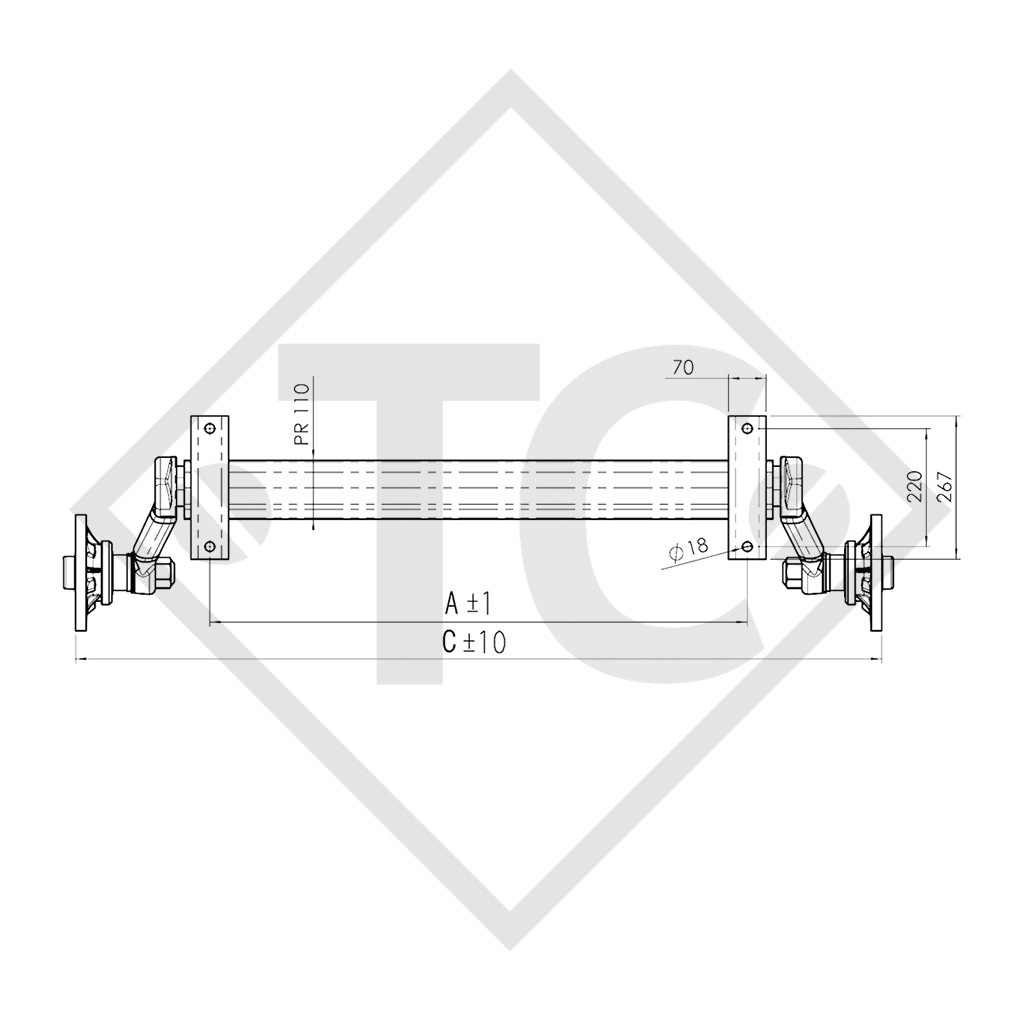

BC: dimension A 1850mm
OHF: dimension C 2350mm
Wheel connection 112x5

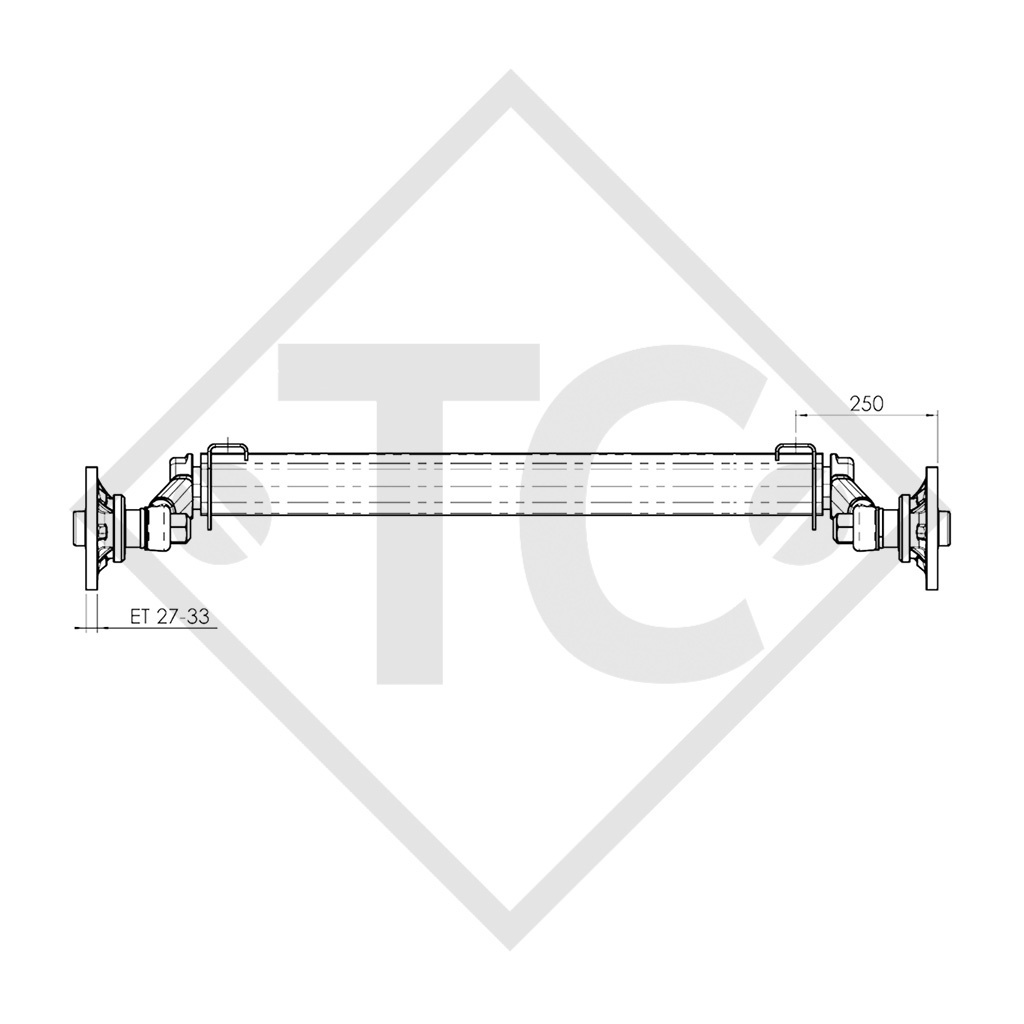

Offset (ET) 27-33mm

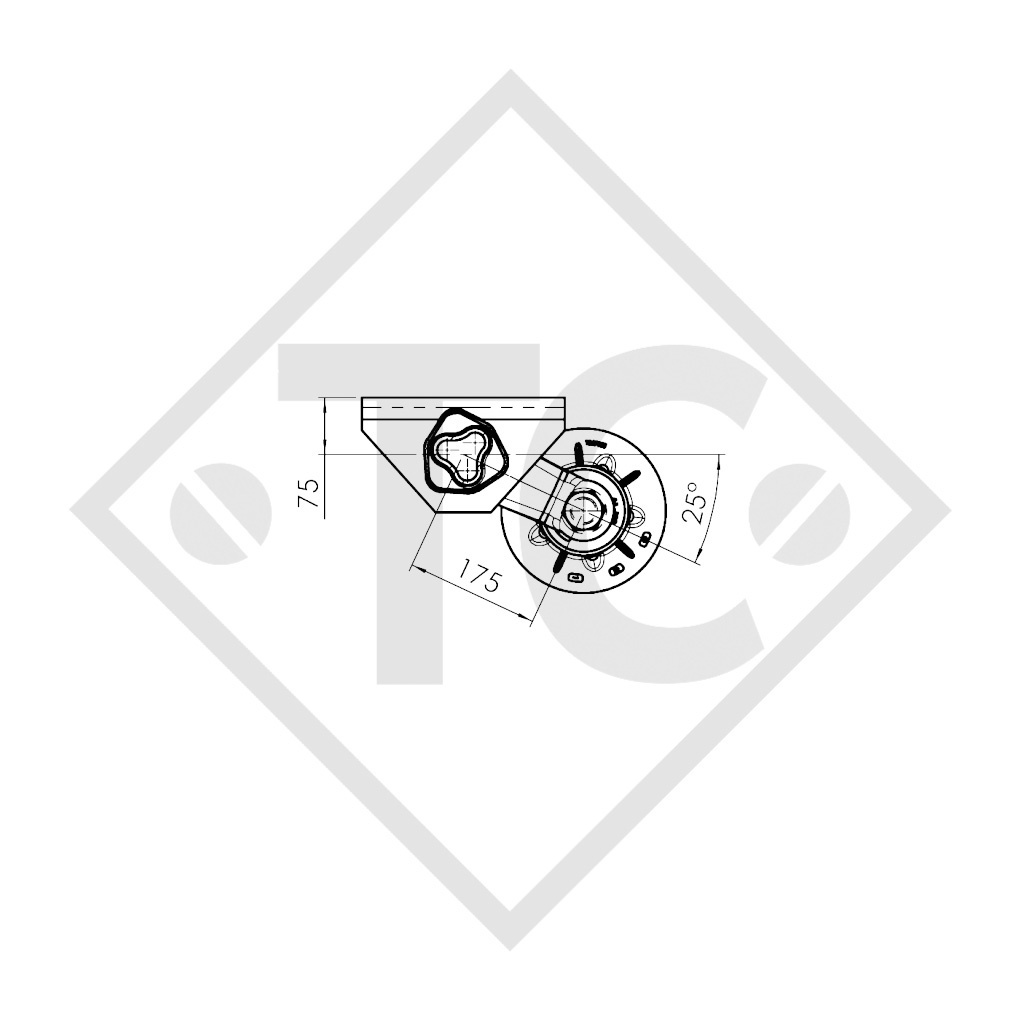

Swing arm position 25°
Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811628

TECHNOLOGY
Model: PLUS
Axle type: 1800-9
Axle load: 1800kg
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 66,5mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
