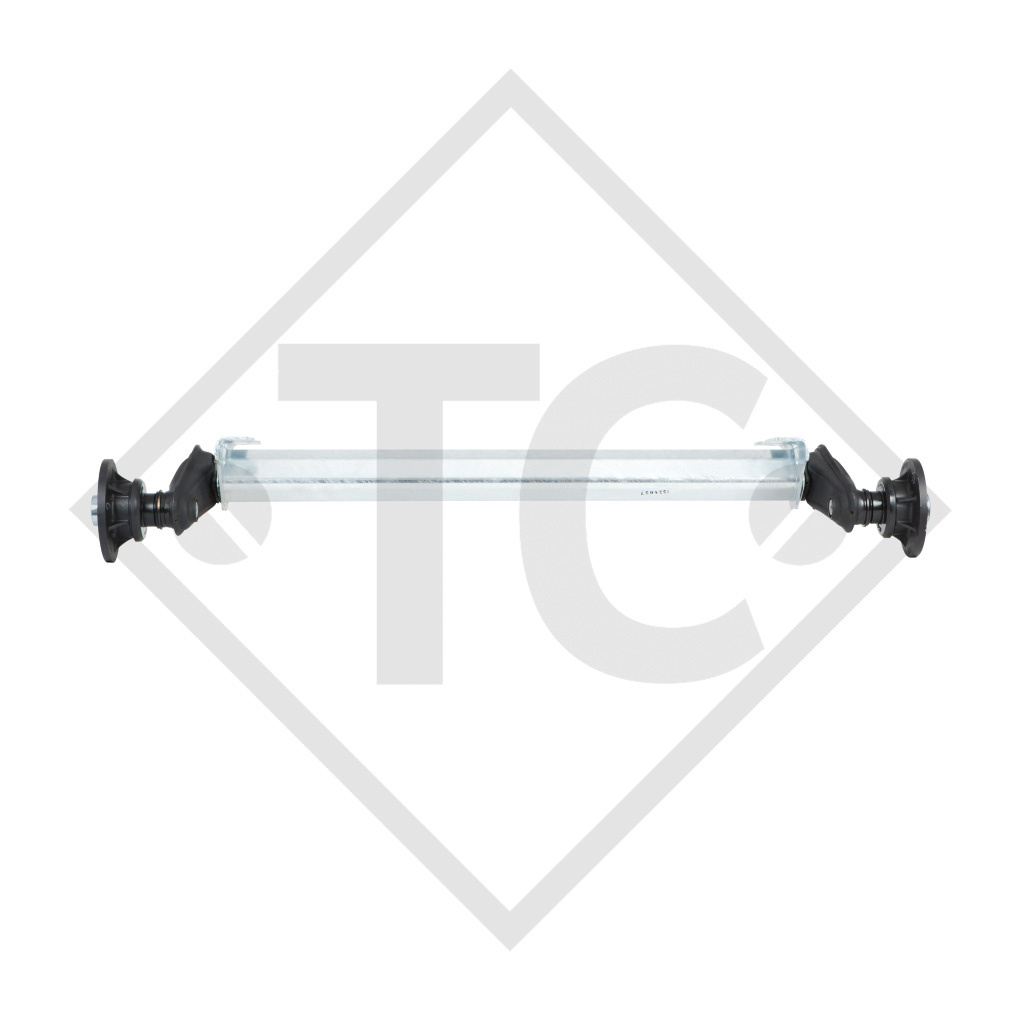

AL-KO Unbraked axle 1500kg BASIC axle type 1600-3

Part no. 20056906

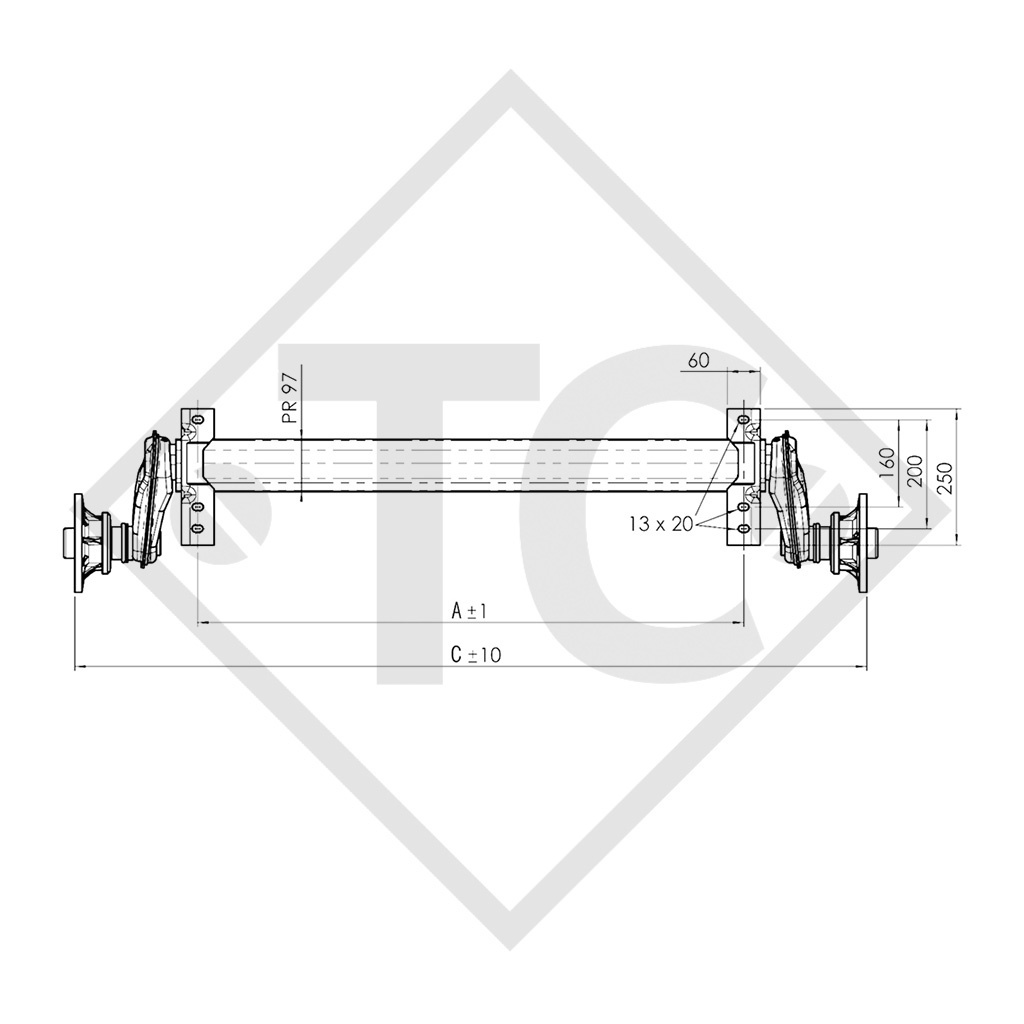

BC: dimension A 1040mm
OHF: dimension C 1490mm
Wheel connection 112x5

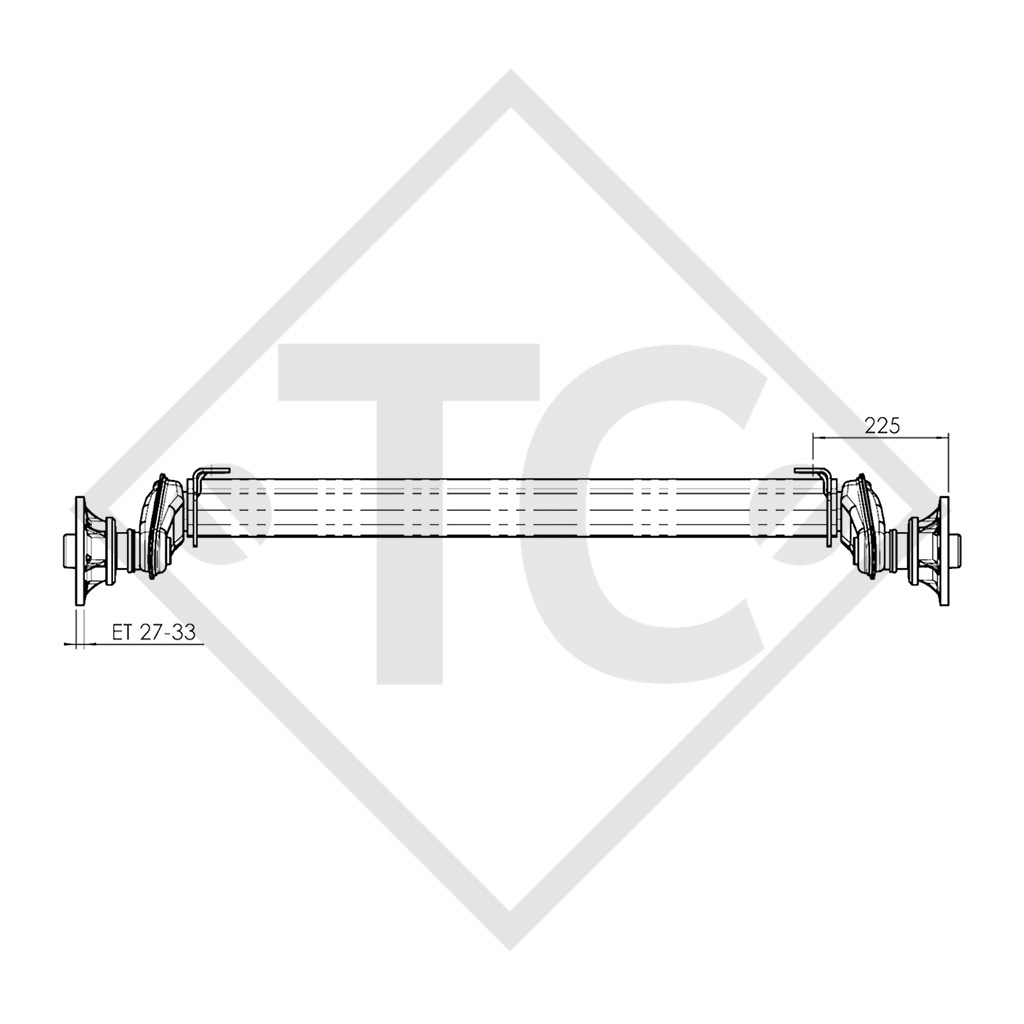

Offset (ET) 27-33mm

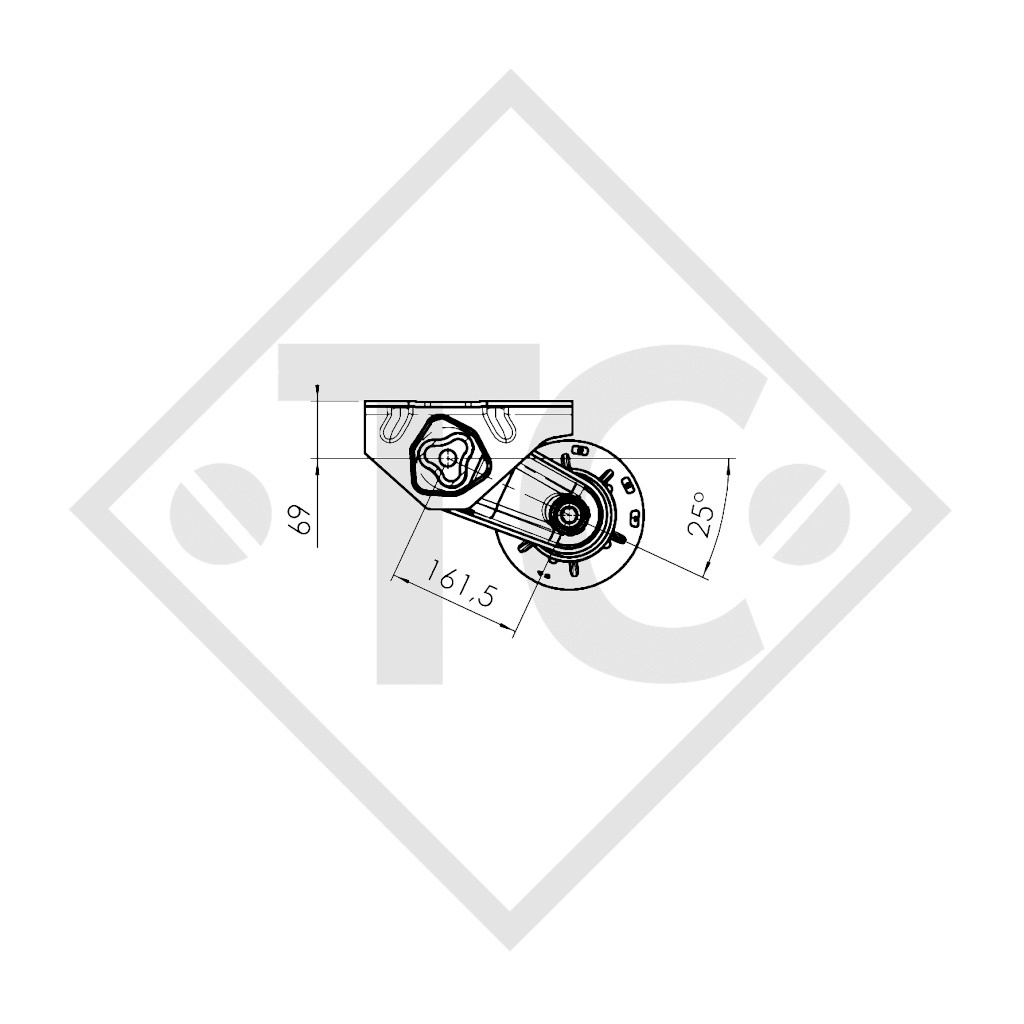

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811982

TECHNOLOGY
Model: BASIC
Axle type: 1600-3
Axle load: 1500kg
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
