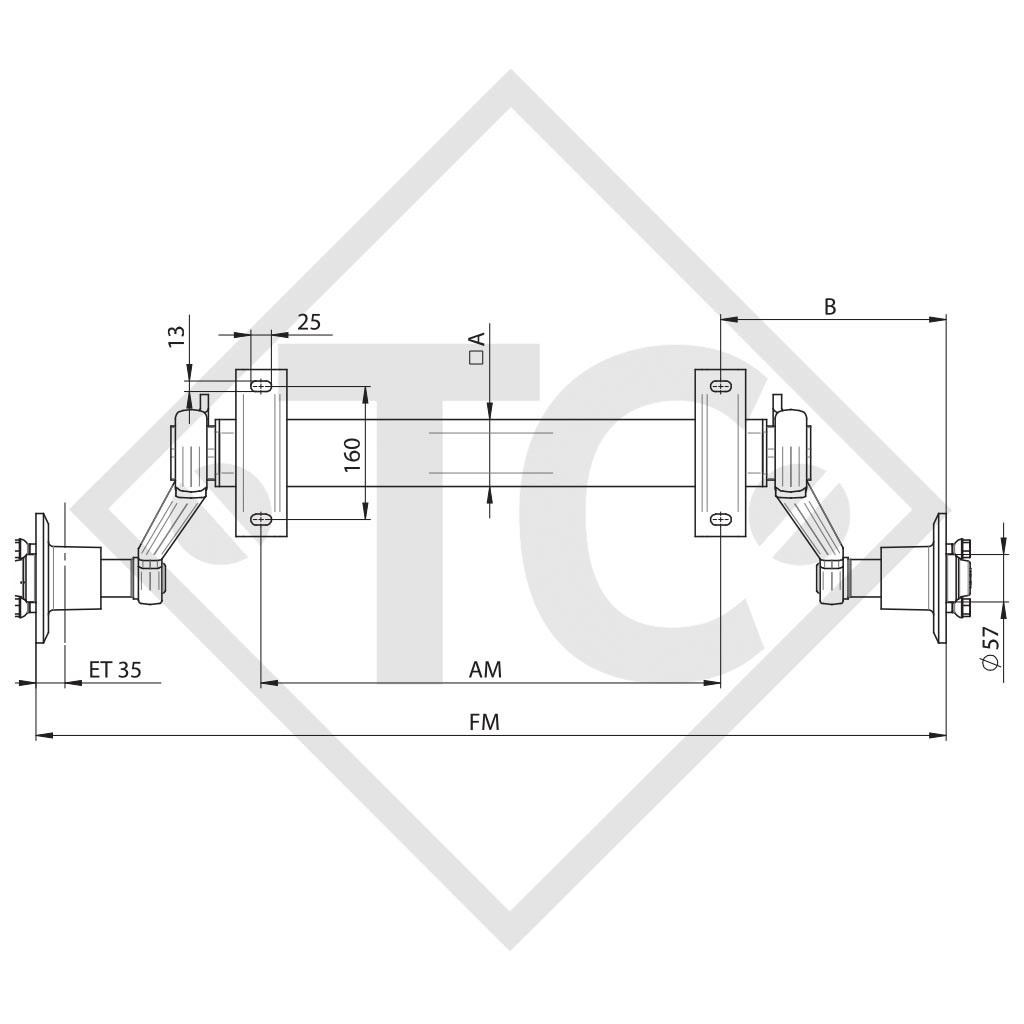

BC: dimension AM 850mm, OHF: dimension FM 1290mm, wheel connection 112x5, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Dimension A (axle profile)
80mm
Dimension B
220mm
Dimension AB
160mm
Dimension H
55mm

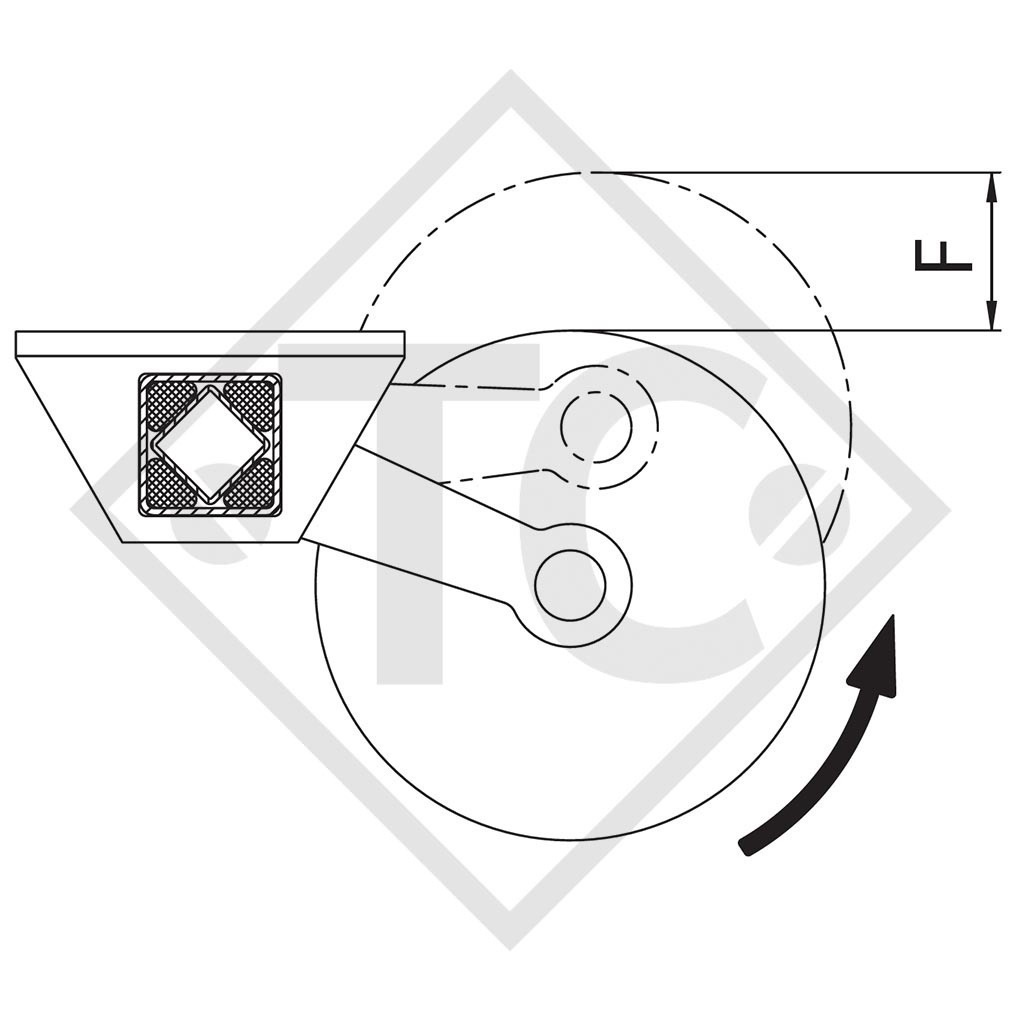

Dimension F
90mm
Dimension M
37mm

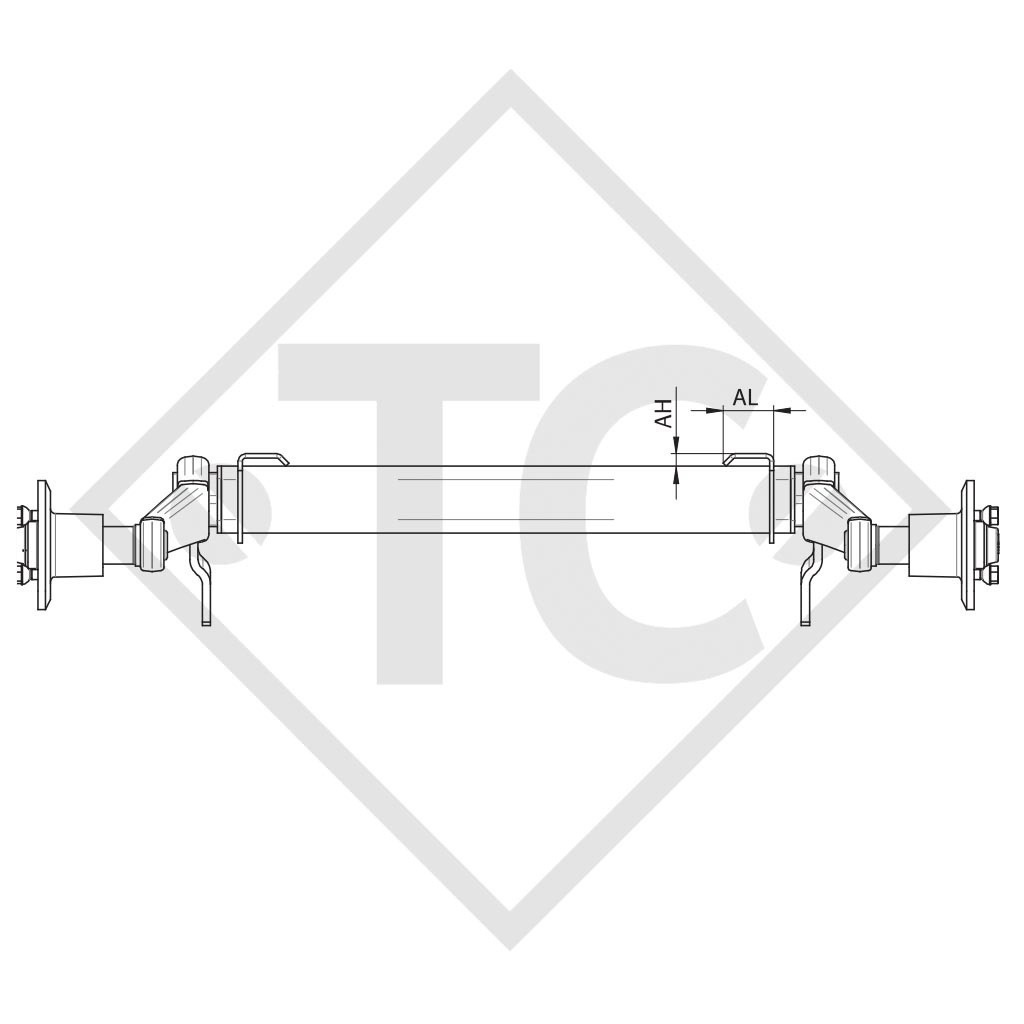

Dimension AH
15mm
Dimension AL 60mm



Spare part list.pdf

TECHNOLOGY

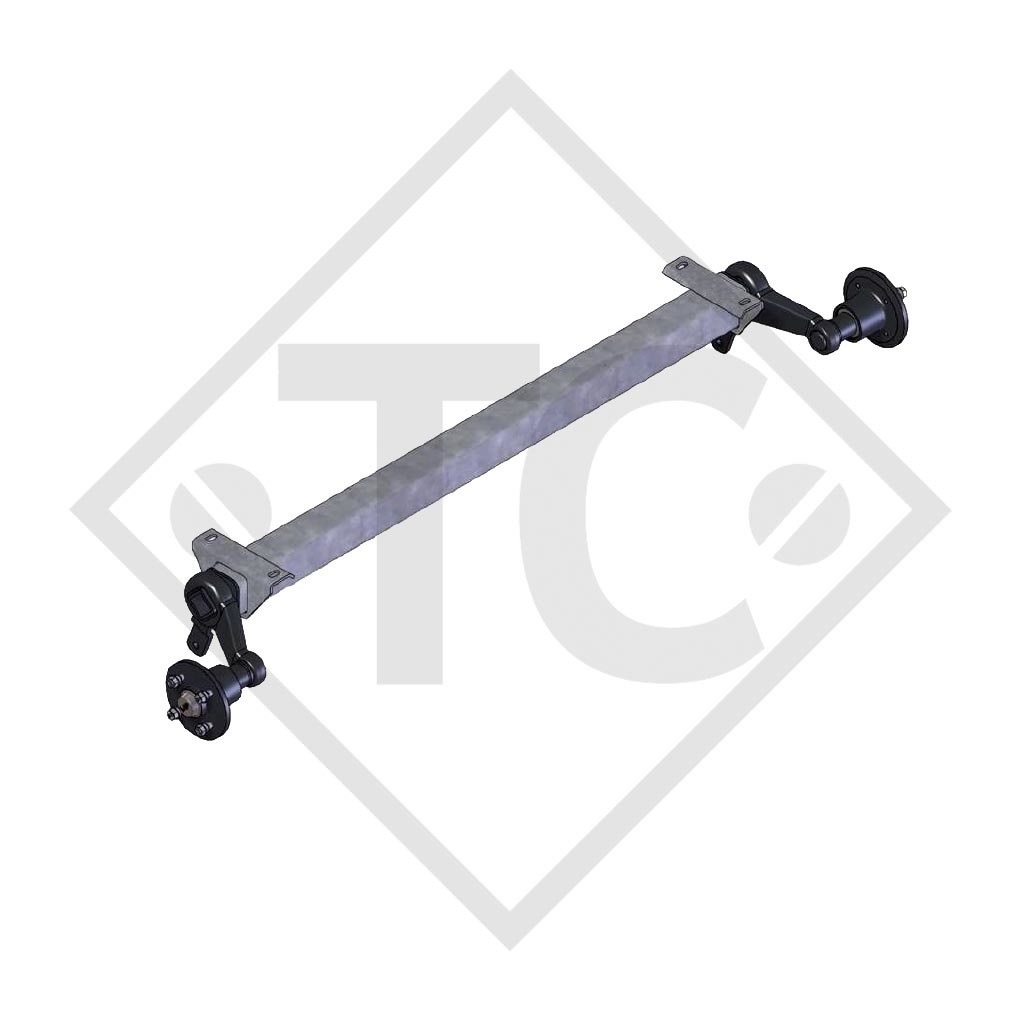

Model: WAG-L

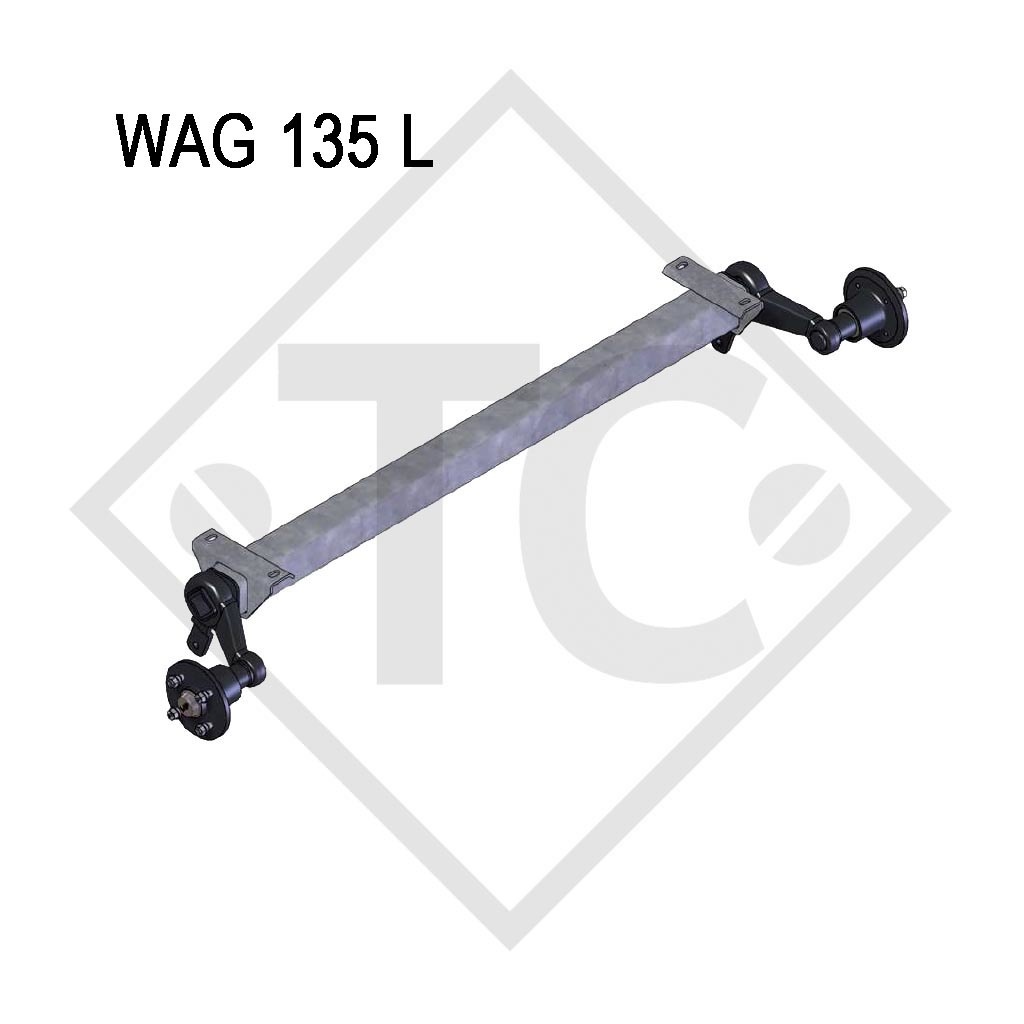

Axle type: WAG 135 L
Axle load: 1350kg
Suspension: Square rubber suspension
Swing arm length: 160mm
Wheel connection: 112x5
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

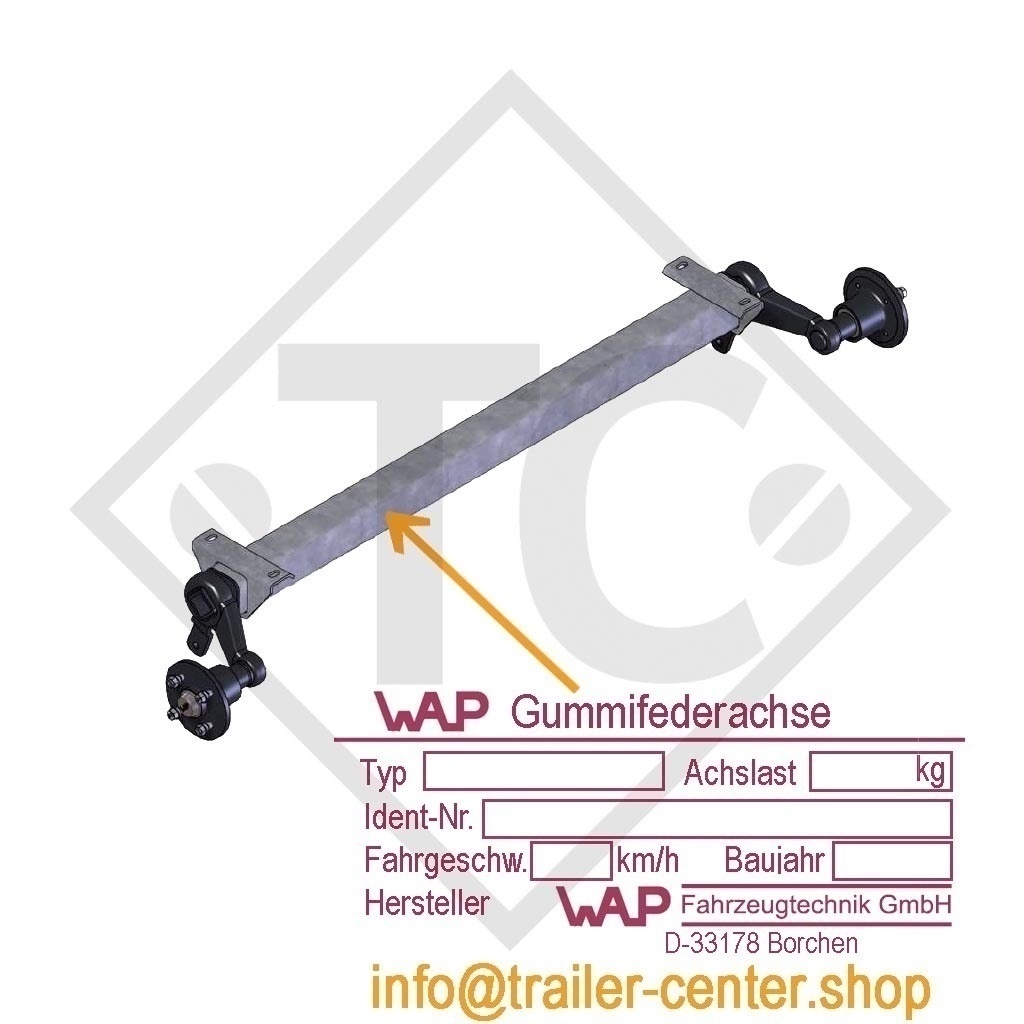

Simply send us a photo of your axle type plate, together with your address and telephone number to



info@trailer-center.shop


Please feel free to avail of our service and request a non-binding offer by email today!
