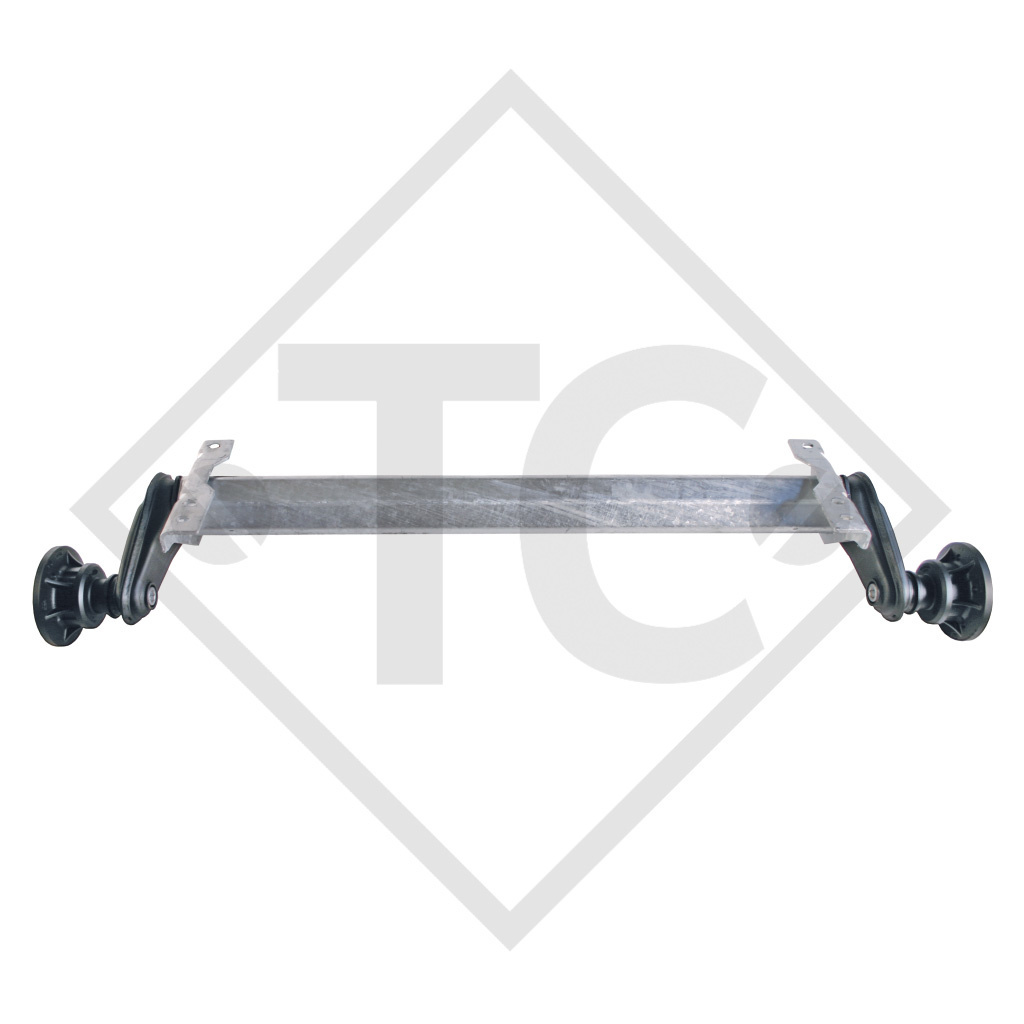

BC: dimension A 950mm, OHF: dimension C 1400mm, wheel connection 112x5, offset (ET) 27-33mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20056105

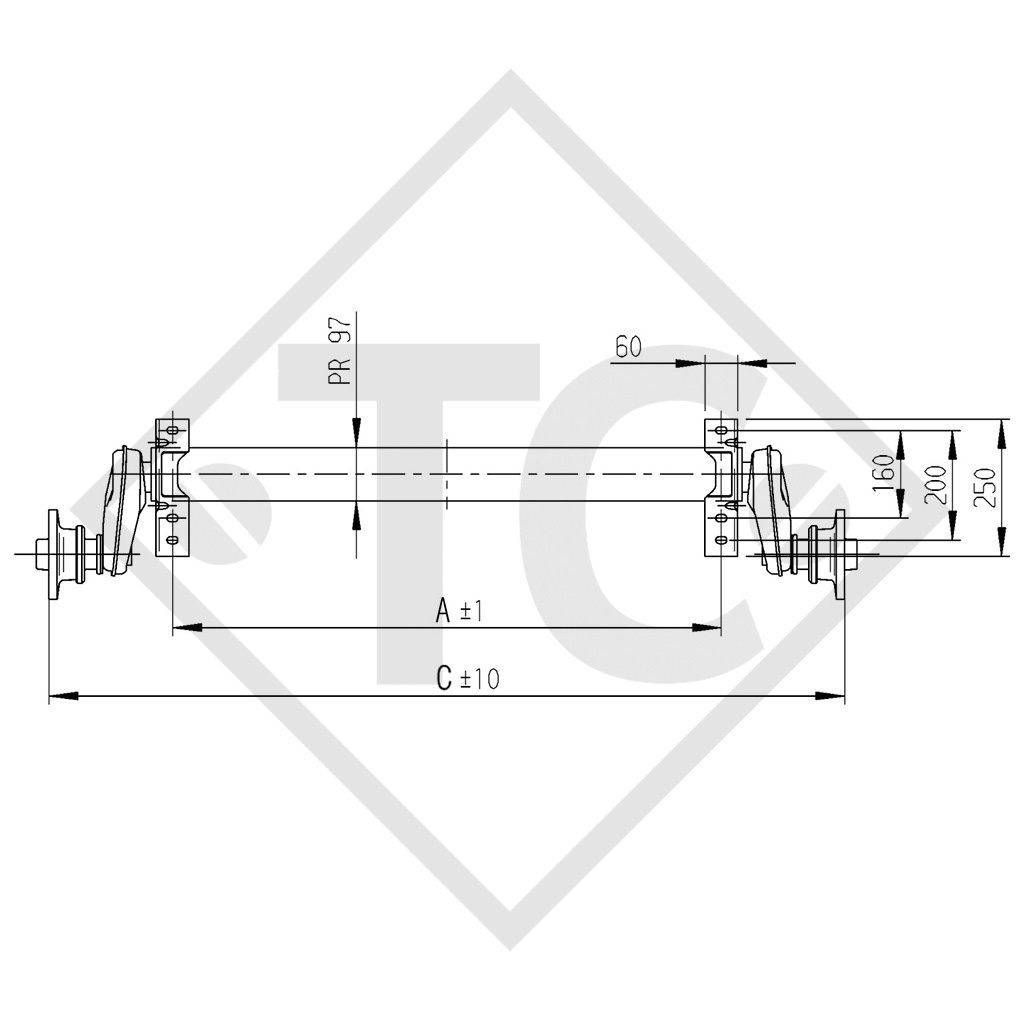

BC: dimension A 950mm
OHF: dimension C 1400mm
Wheel connection 112x5

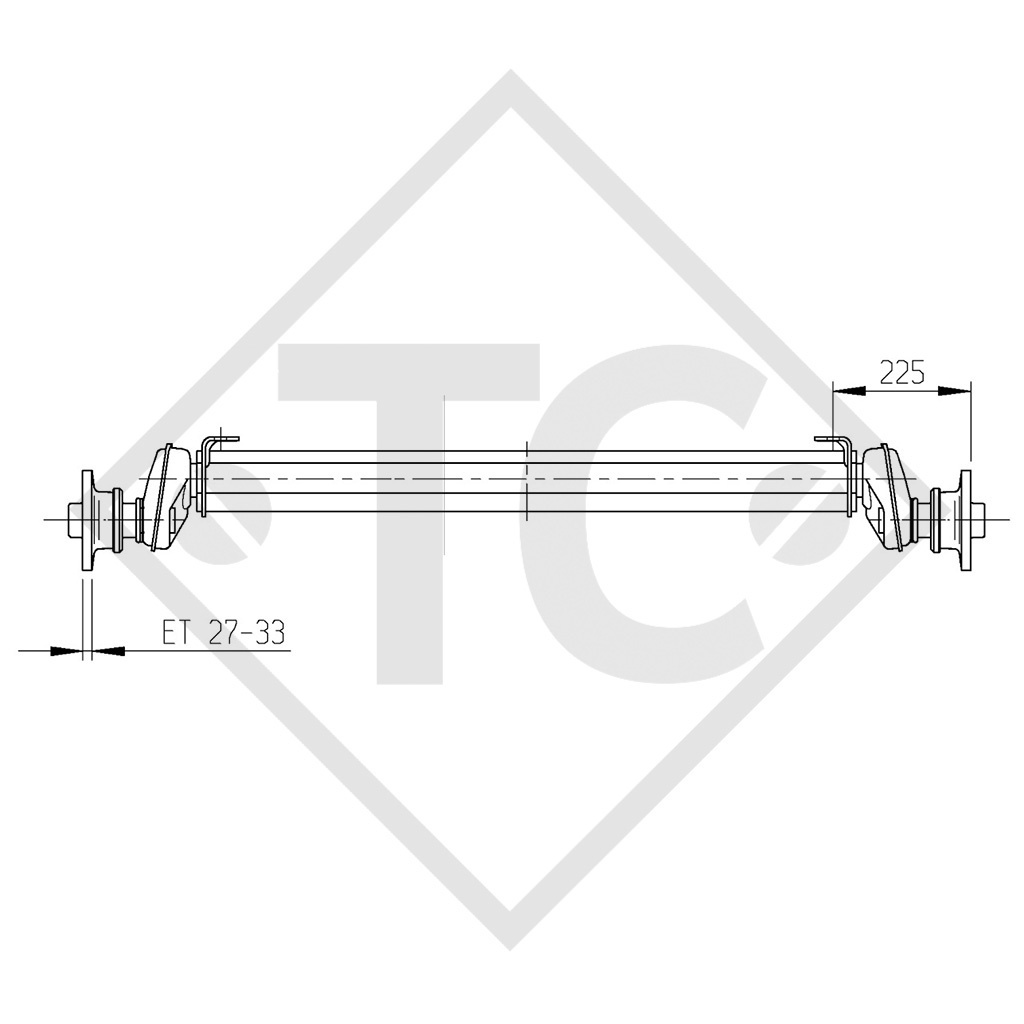

Offset (ET) 27-33mm

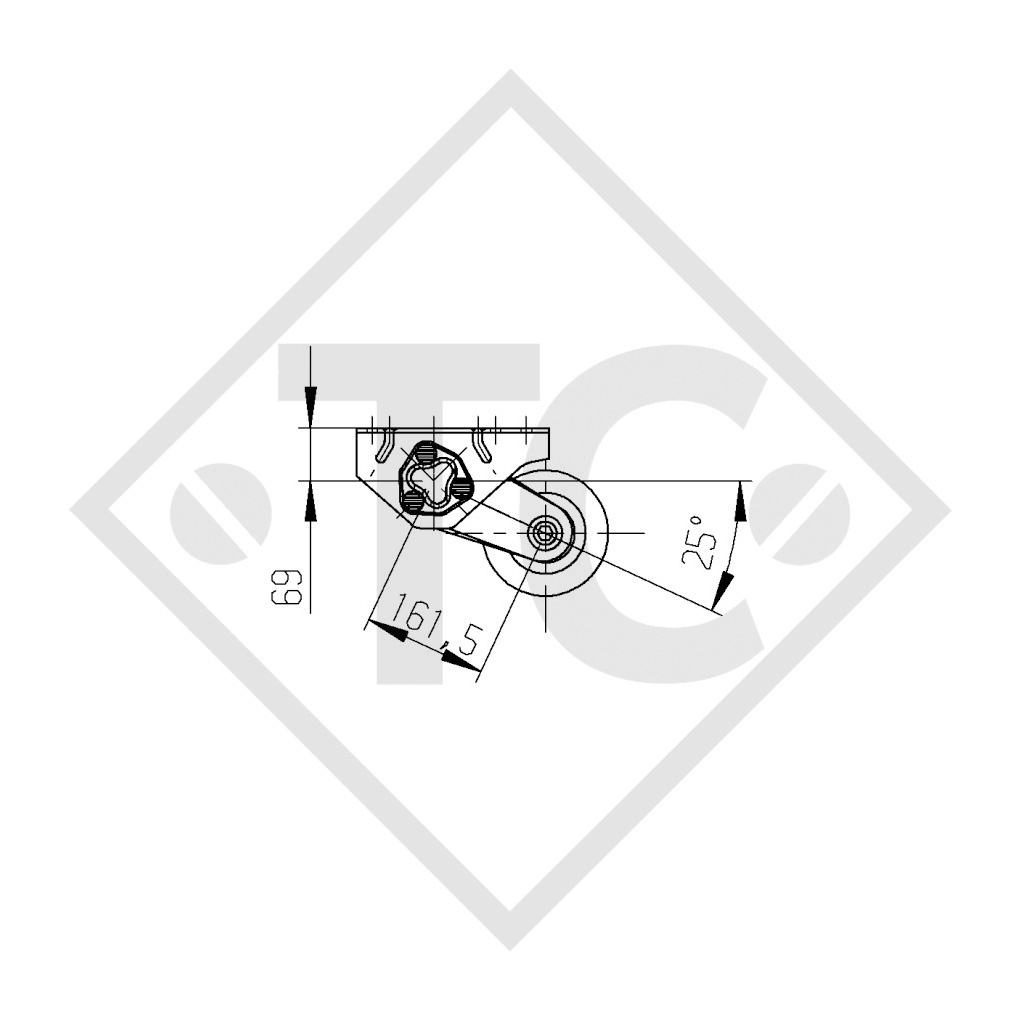

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811980
TECHNOLOGY
Model: BASIC
Axle type: UBR 1200-5
Axle load: 1300kg
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
