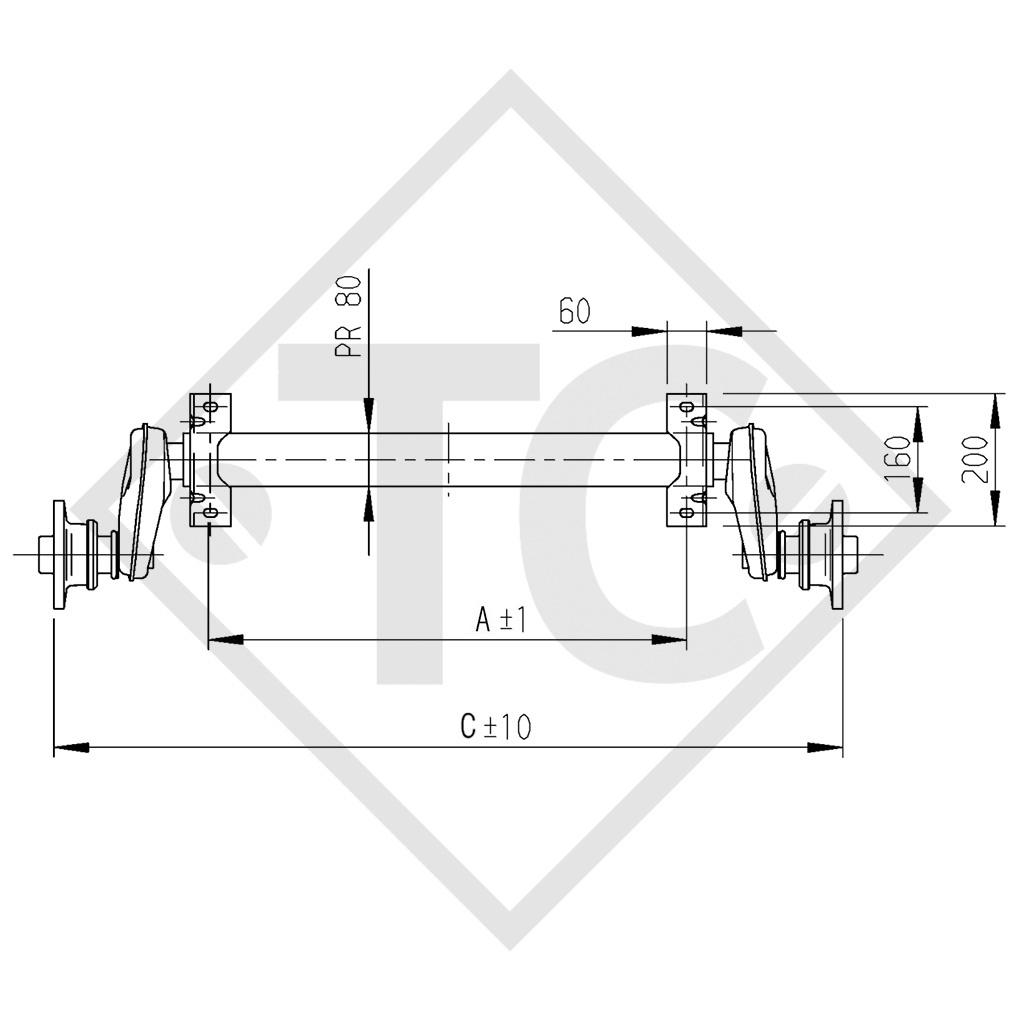

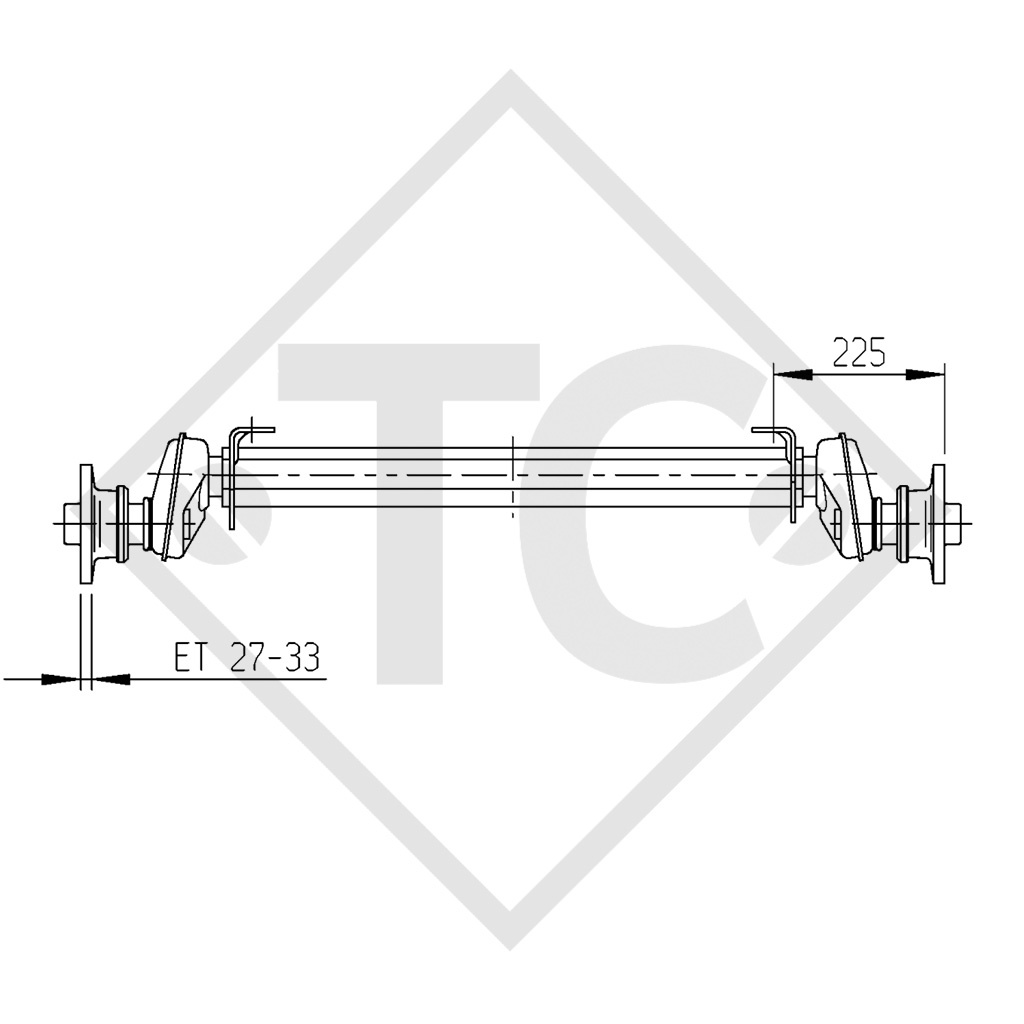

BC: dimension A 750mm, OHF: dimension C 1200mm, wheel connection 100x4, offset (ET) 27-33mm, taper-head wheel bolts M12x1.5. Read more...
Original operating instructions
Replacement part identification number (ETI) 811980
TECHNOLOGY

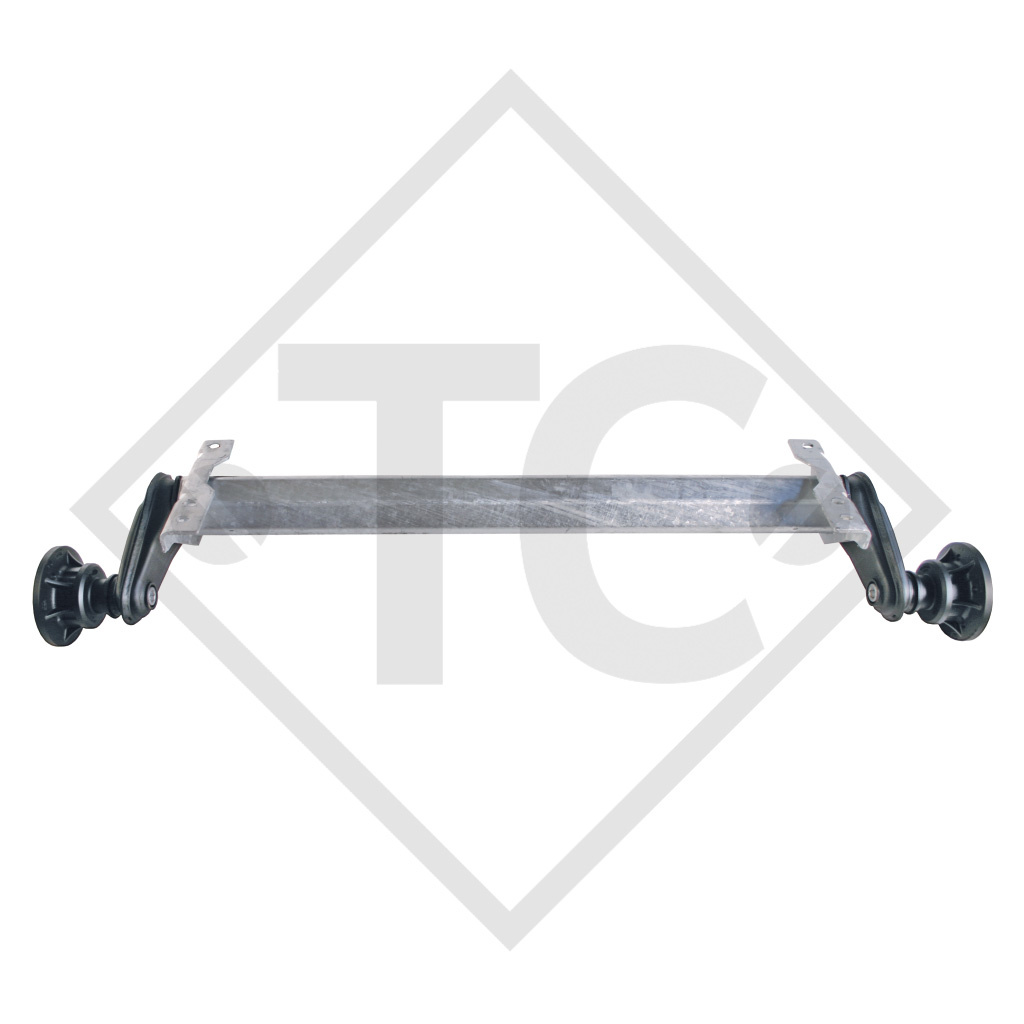

Model: BASIC
Axle type: UBR 850-10
Axle load: 1000kg

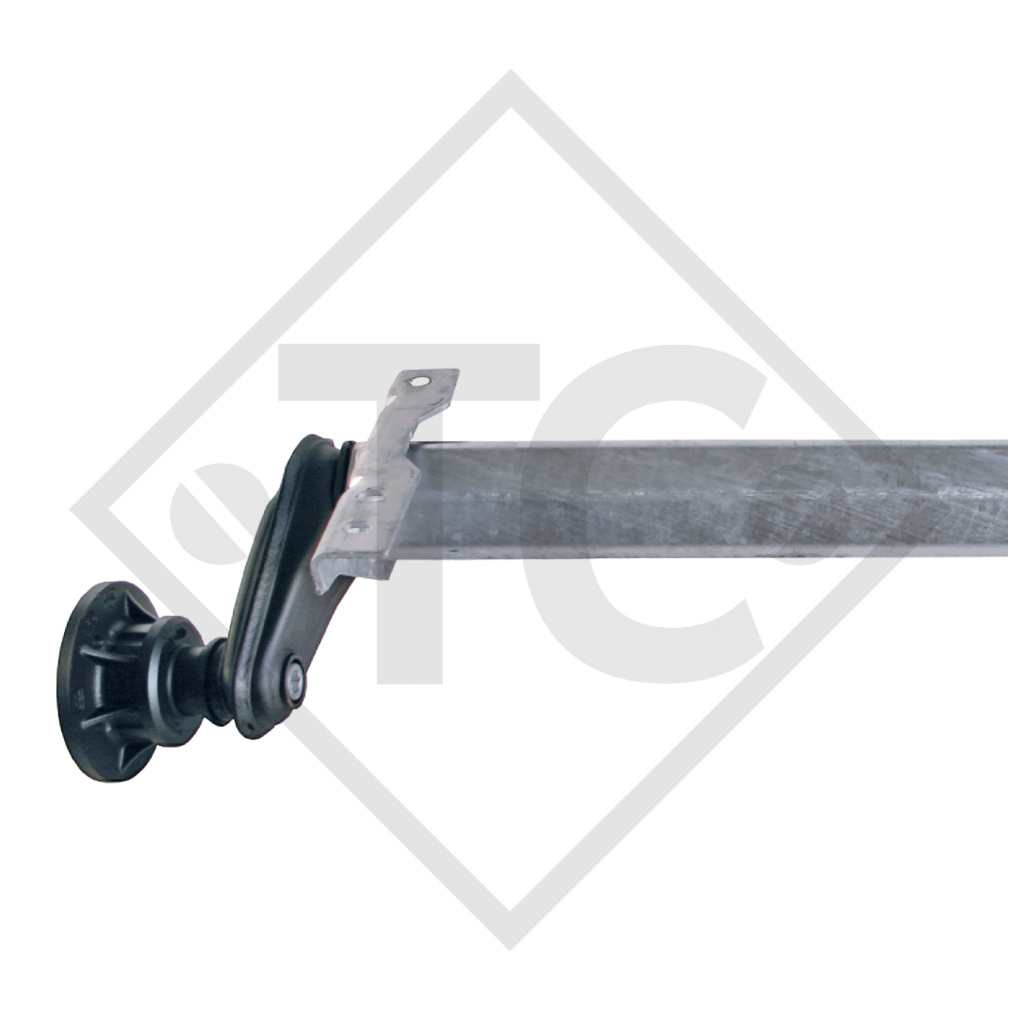

Suspension: Hexagonal rubber suspension

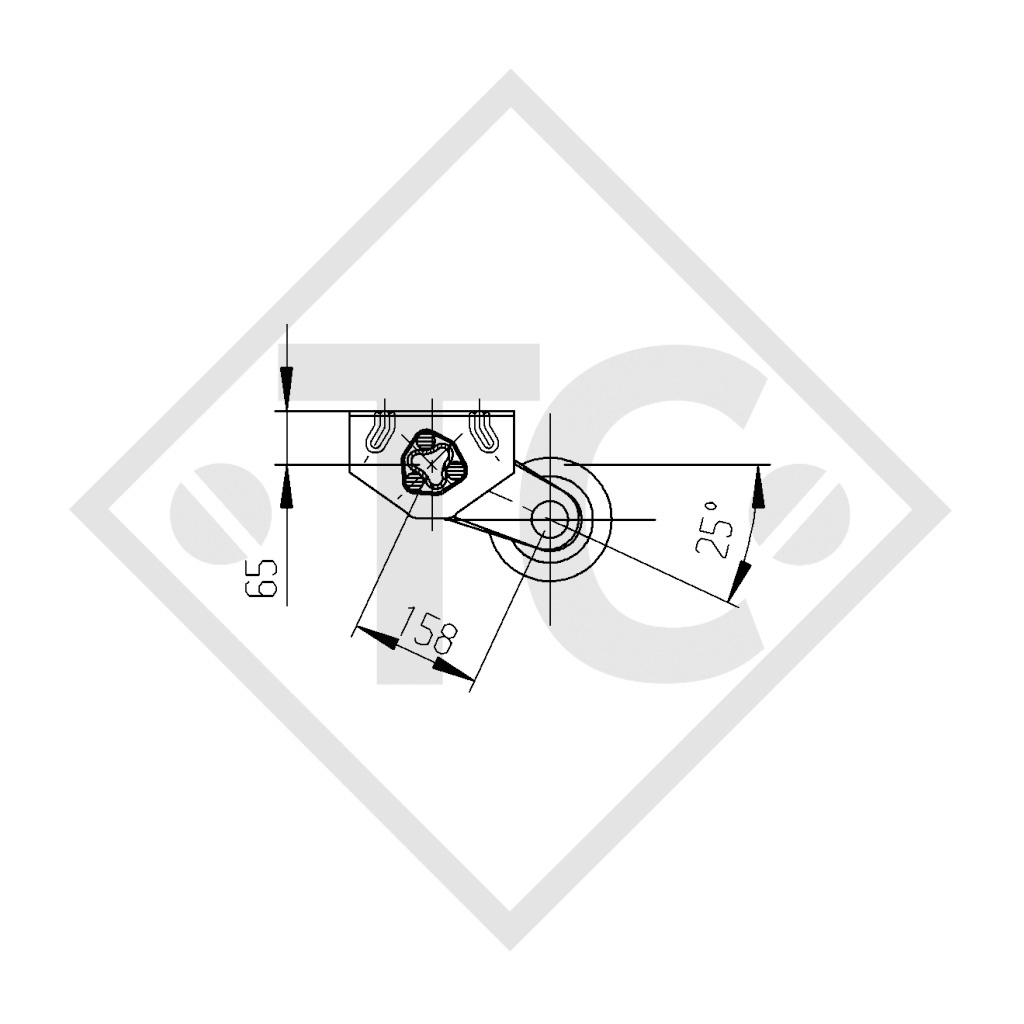

Swing arm length: 158mm
Wheel connection: 100x4 or 112x5
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Wheel bolts loose
Operating instructions
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

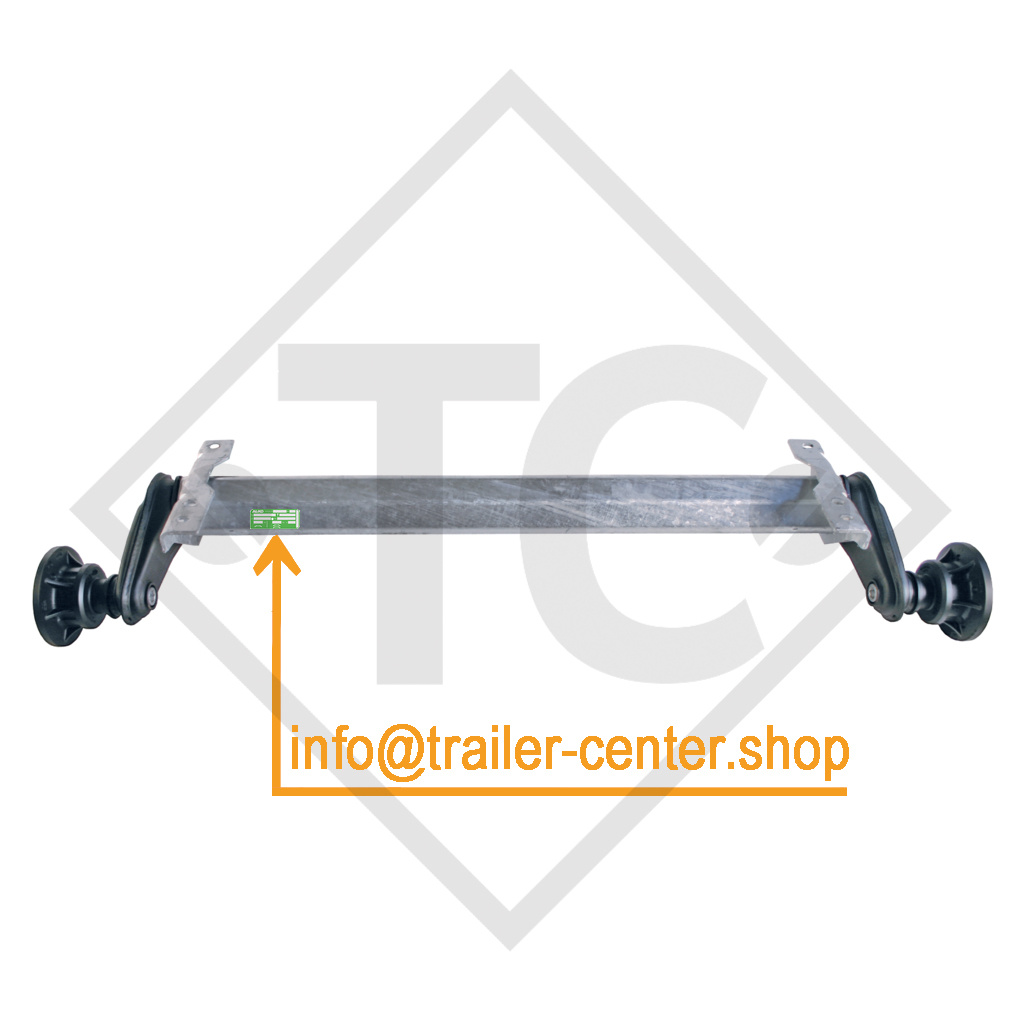

SIMPLY SEND US A PHOTO OF YOUR AXLE TYPE PLATE, TOGETHER WITH YOUR ADDRESS AND TELEPHONE NUMBER TO [email protected]
Please feel free to avail of our service and request a non-binding offer by email today!
