BC: dimension A 1750mm, OHF: dimension C 2200mm, wheel connection 100x4, offset (ET) 27-33mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20056225

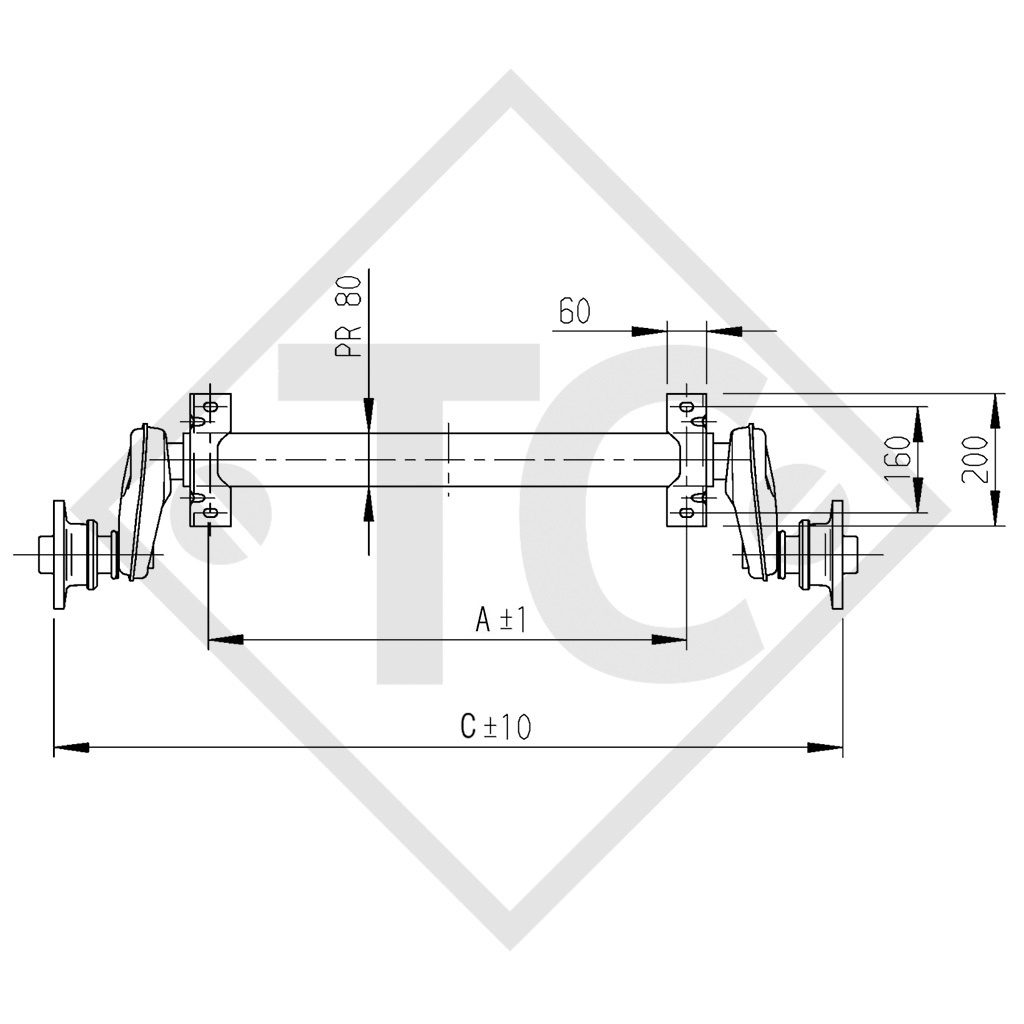

BC: dimension A 1750mm
OHF: dimension C 2200mm
Wheel connection 100x4

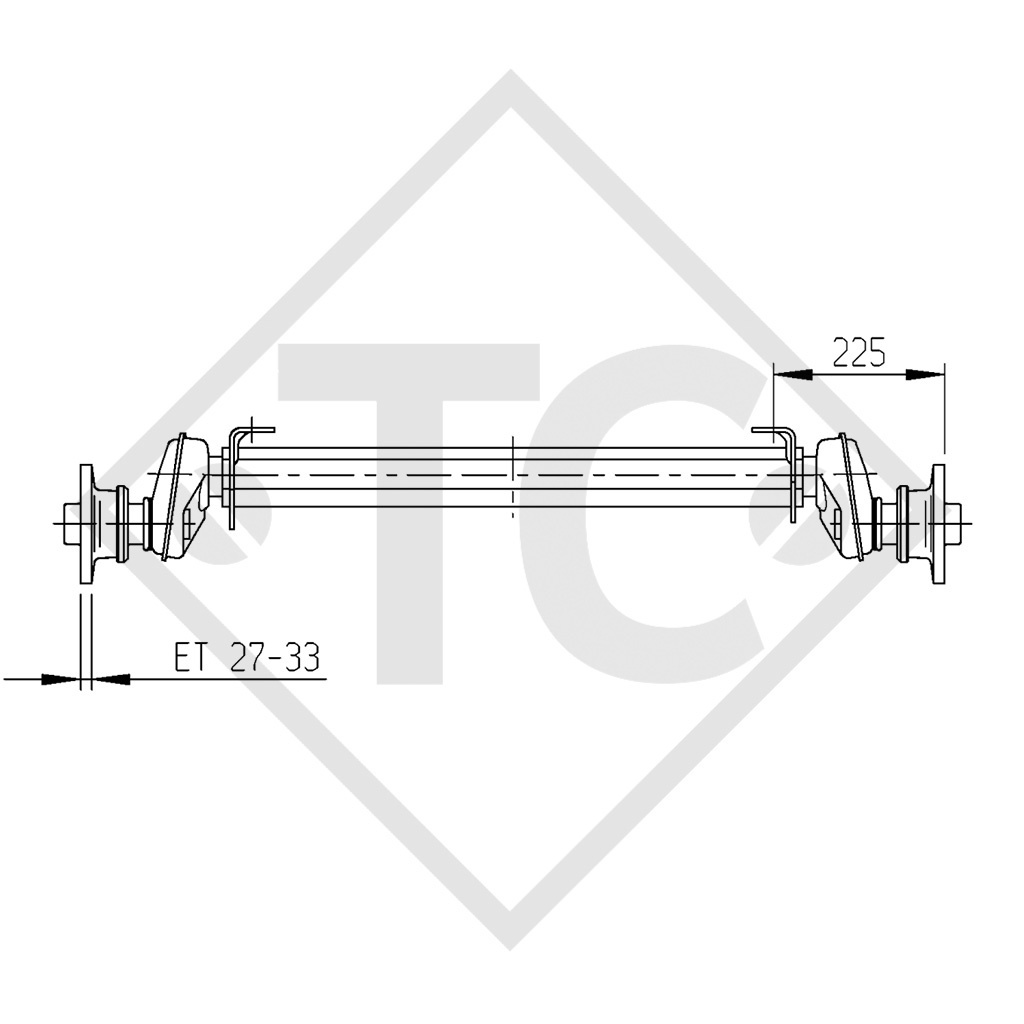

Offset (ET) 27-33mm

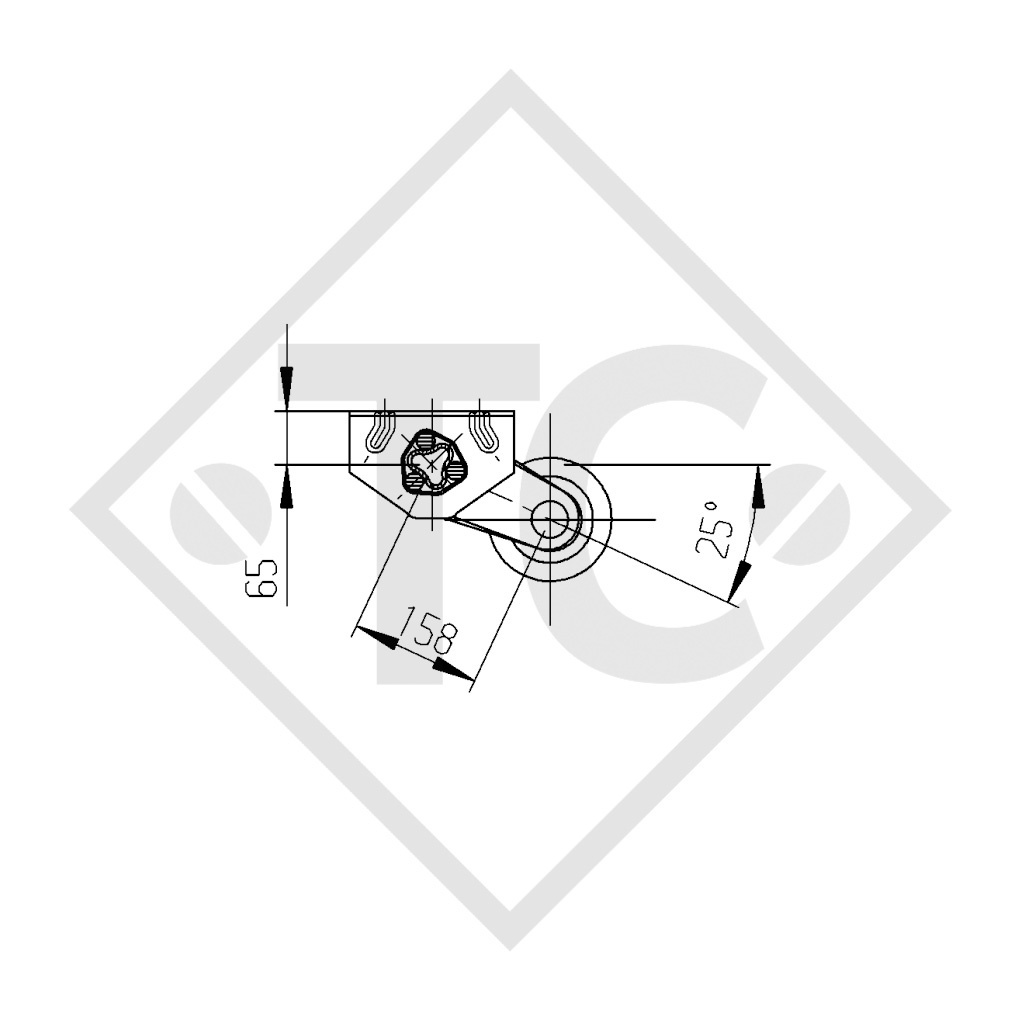

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) 811980
TECHNOLOGY
Model: BASIC
Axle type: UBR 850-10
Axle load: 1000kg
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
