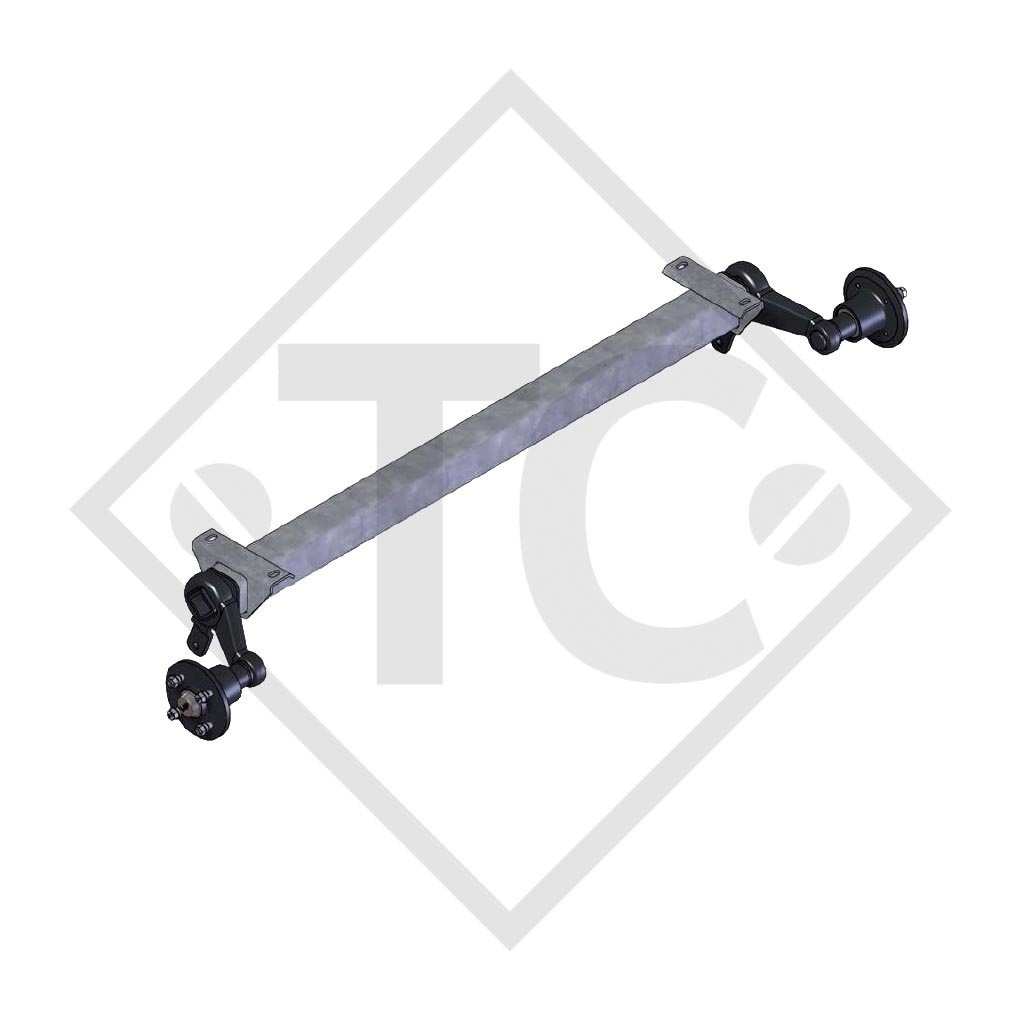

Unbraked axle 1000kg axle type WAG 100 L

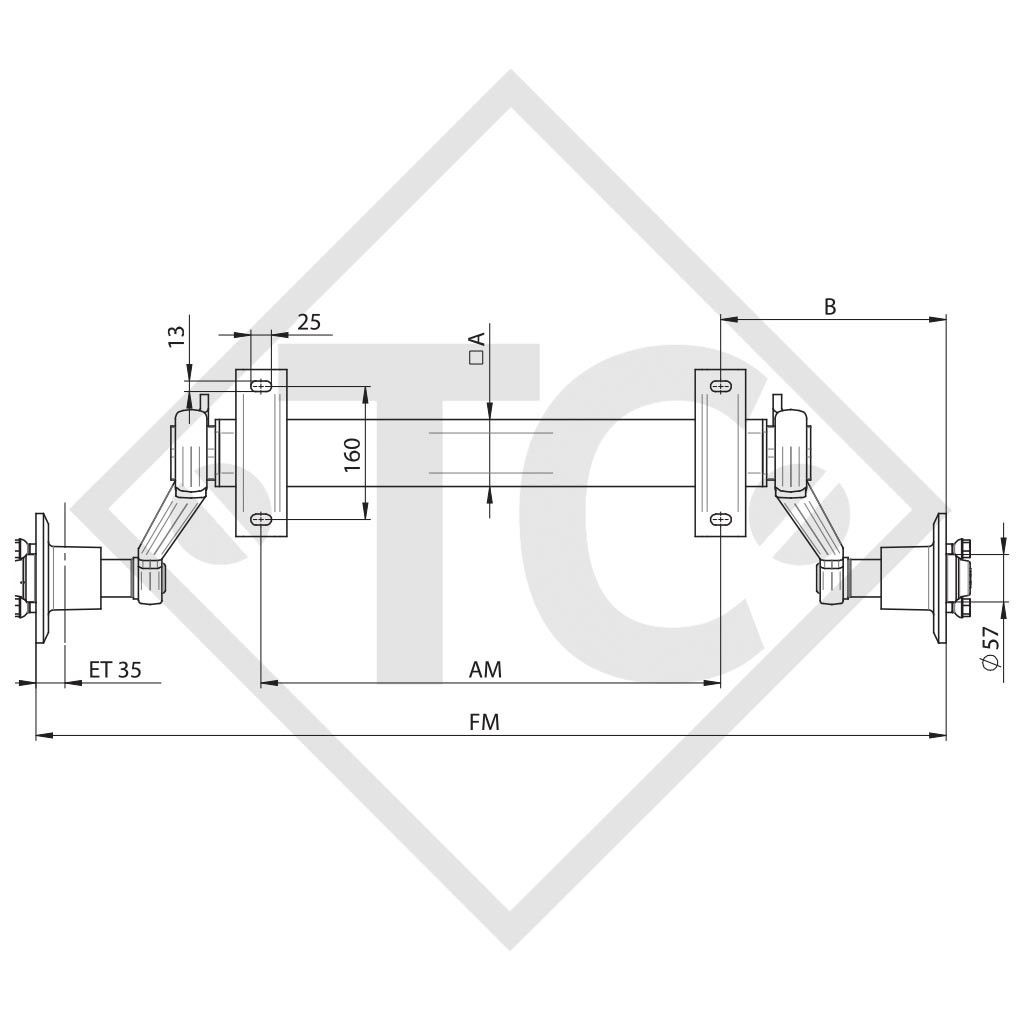

BC: dimension AM 1350mm, OHF: dimension FM 1780mm, wheel connection 100x4, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 394,00 EUR Incl. tax Excl. Shipping costs

Product out of stock

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Dimension A (axle profile)

64mm

Dimension B

215mm

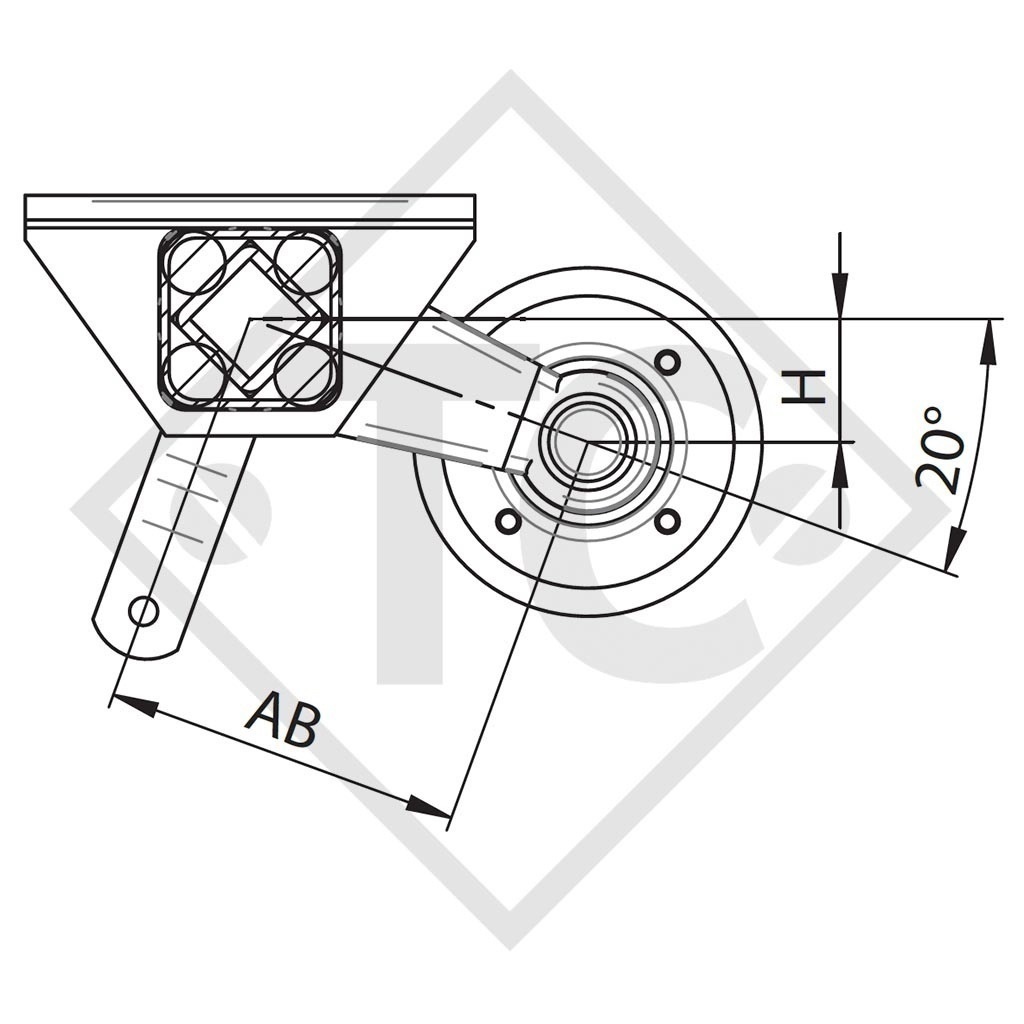

Dimension AB

145mm

Dimension H

50mm

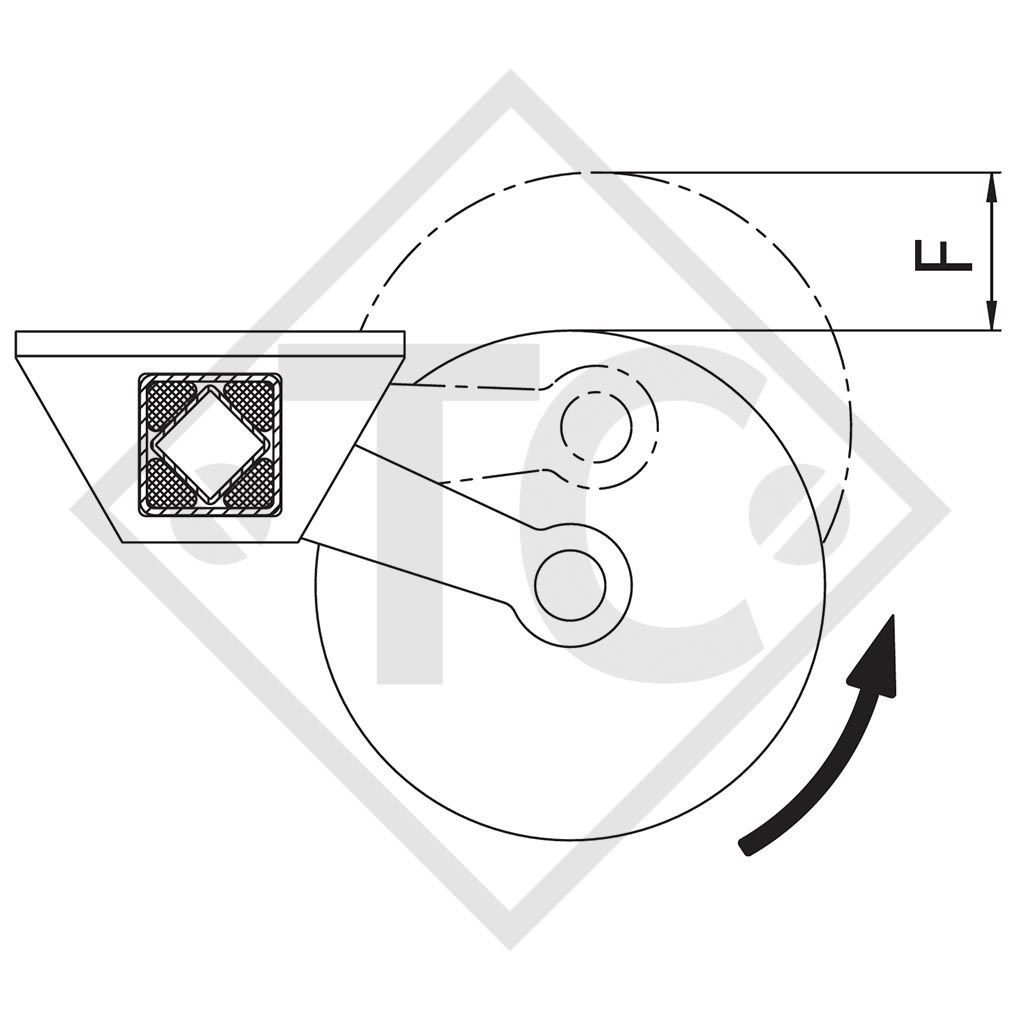

Dimension F

95mm

Dimension M

30mm

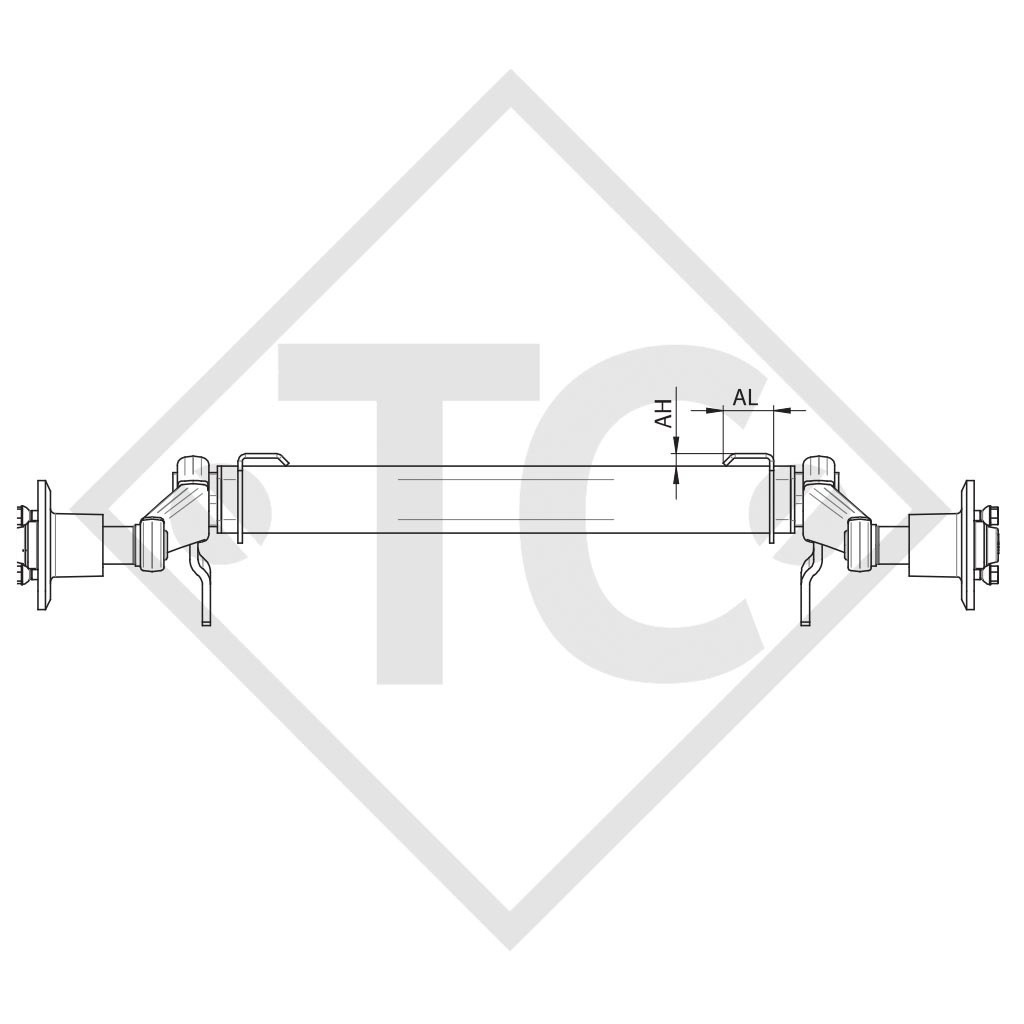

Dimension AH

15mm

Dimension AL

60mm

Spare part list.pdf

TECHNOLOGY
Model: WAG-L

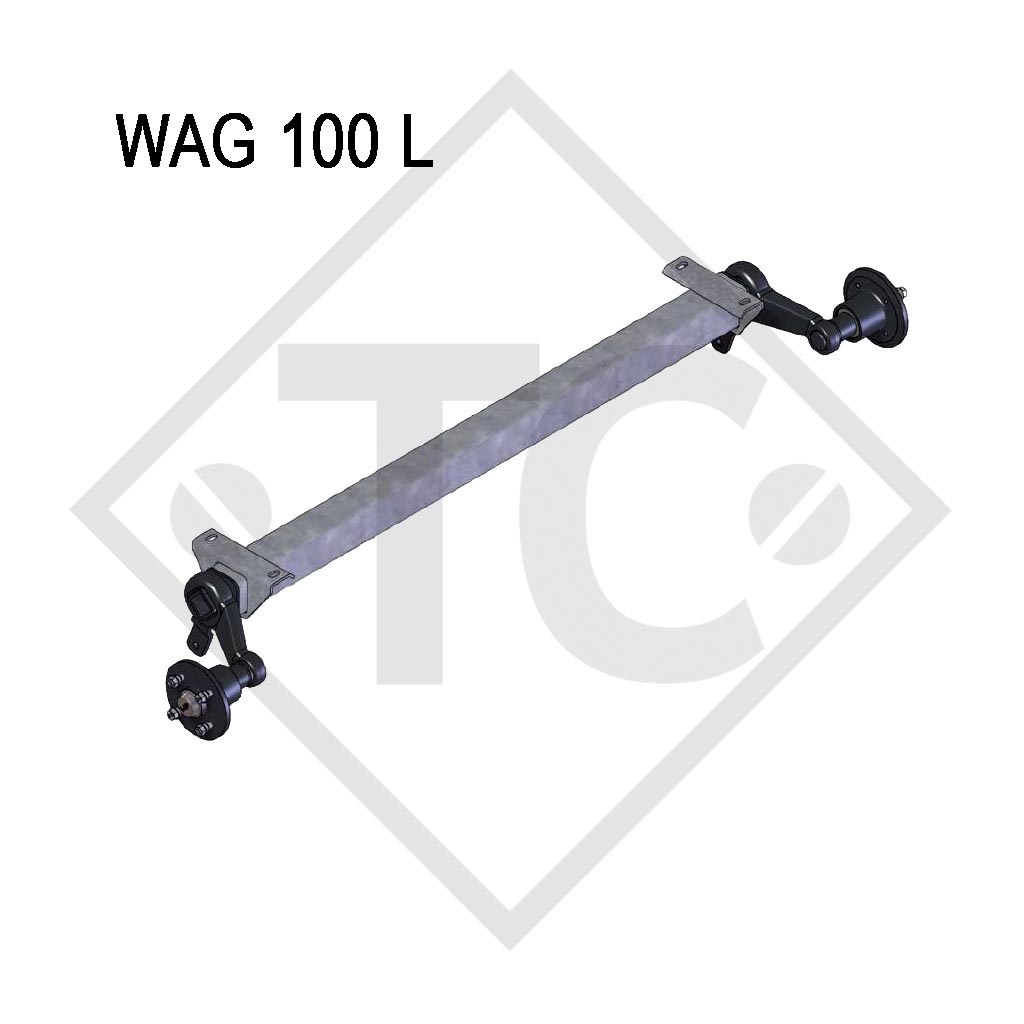

Axle type: WAG 100 L
Axle load: 1000kg
Suspension: Square rubber suspension
Swing arm length: 145mm
Wheel connection: 100x4
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

WAP Unbraked axle 1000kg axle type WAG 100 L

Product description

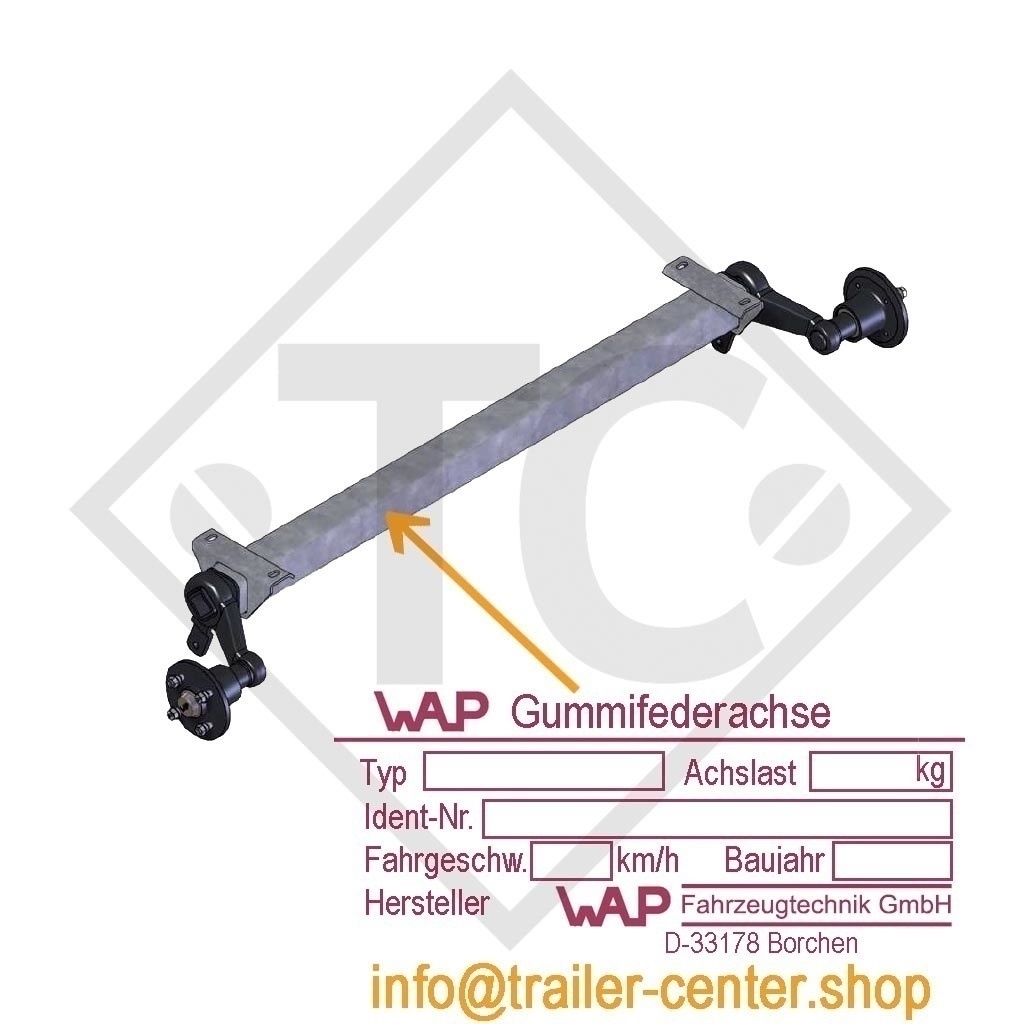

Simply send us a photo of your axle type plate, together with your address and telephone number to

[email protected]

Please feel free to avail of our service and request a non-binding offer by email today!
