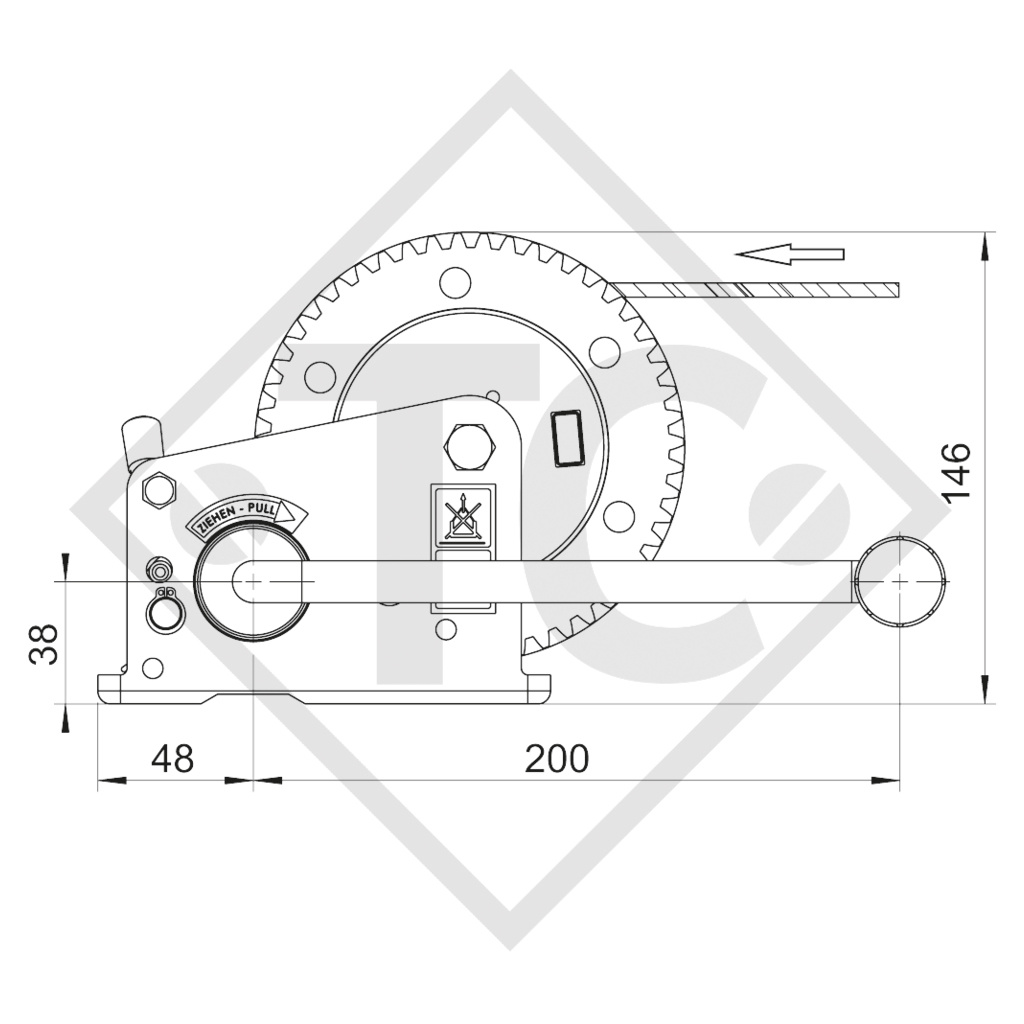

Home / Towing winch BASIC 500kg, type 500 without automatic weight brake, without cable/band, without packaging
manual force 250N, reduction none, lift per crank rotation from 120-150mm, drum capacity for cable ⌀3.5mm: 6 meter. Read more...
Part no. 1213856 without cable/band
| Cable unbraked - type 500 |
| Tensile load max. | see table |
| Manual force | 200 N |
| Reduction | 4,25 : 1 |
| Lift per crank rotation | From 37 - 90 mm |
| Drum capacity for 5 mm ø cable |
15 m |
| Towing winch BASIC 500 kg | Slope | Lowest cable position | Middle cable position | Highest cable position |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
0% (0°) | 800 kg | 550 kg | 300 kg |
INSTRUCTION BOOK
SPARE PART LIST 811391
