Part no. 1210211 fitted with 6 meter cable
| Cable unbraked - type 250 |
| Tensile load max. |
see table |
| Lift per crank rotation |
From 120 - 150 mm |
Drum capacity for 3,5 mm ø cable
|
6 m |

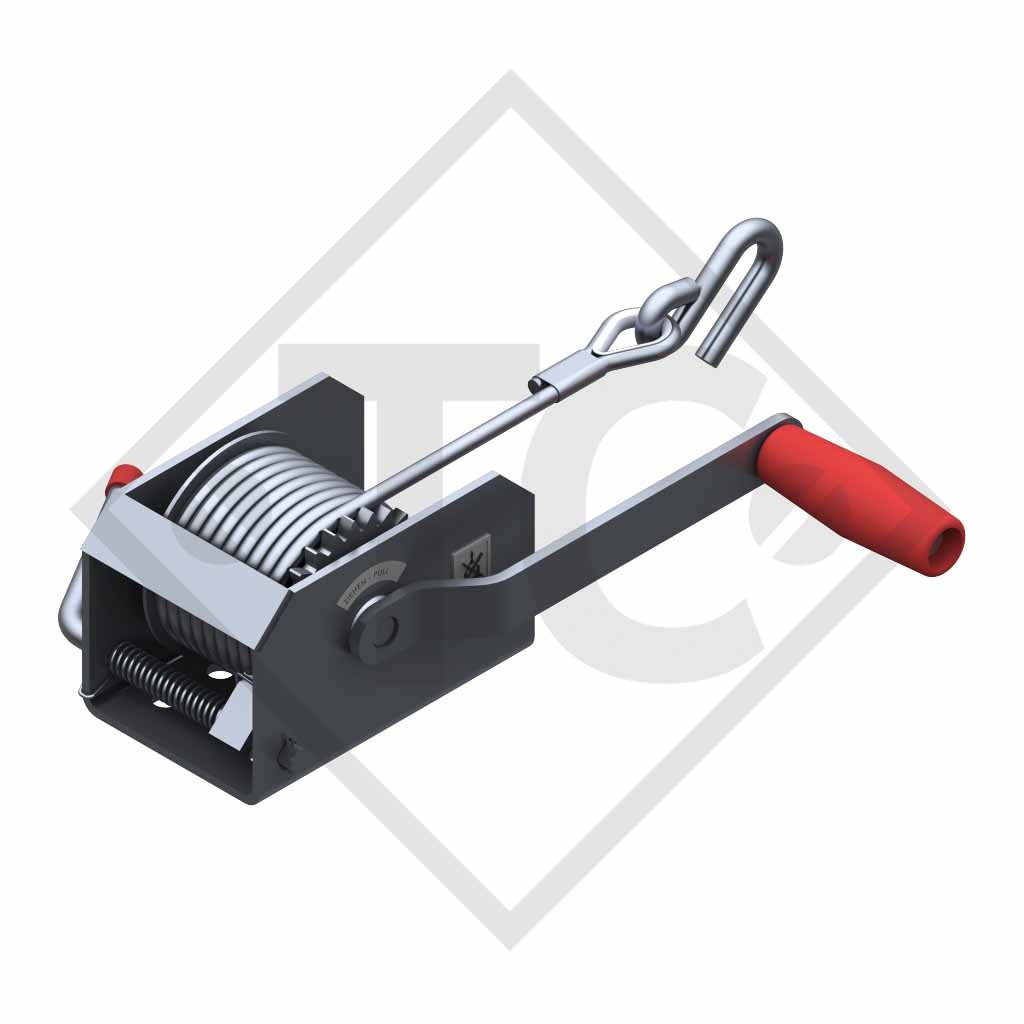

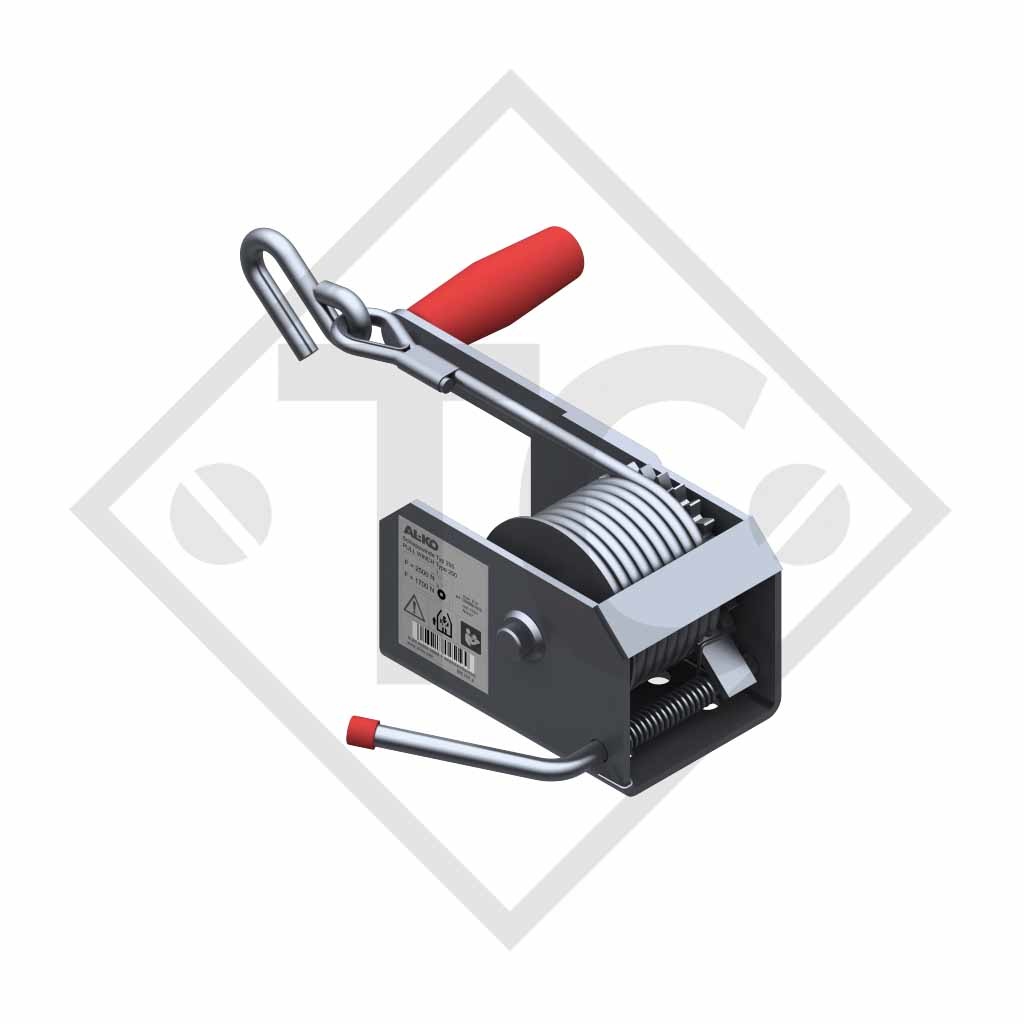

| Towing winch BASIC 250 kg |
Slope |
Lowest cable position |
Middle cable position |
Highest cable position |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5
|
0% (0°) |
400 kg |
300 kg |
200 kg |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
