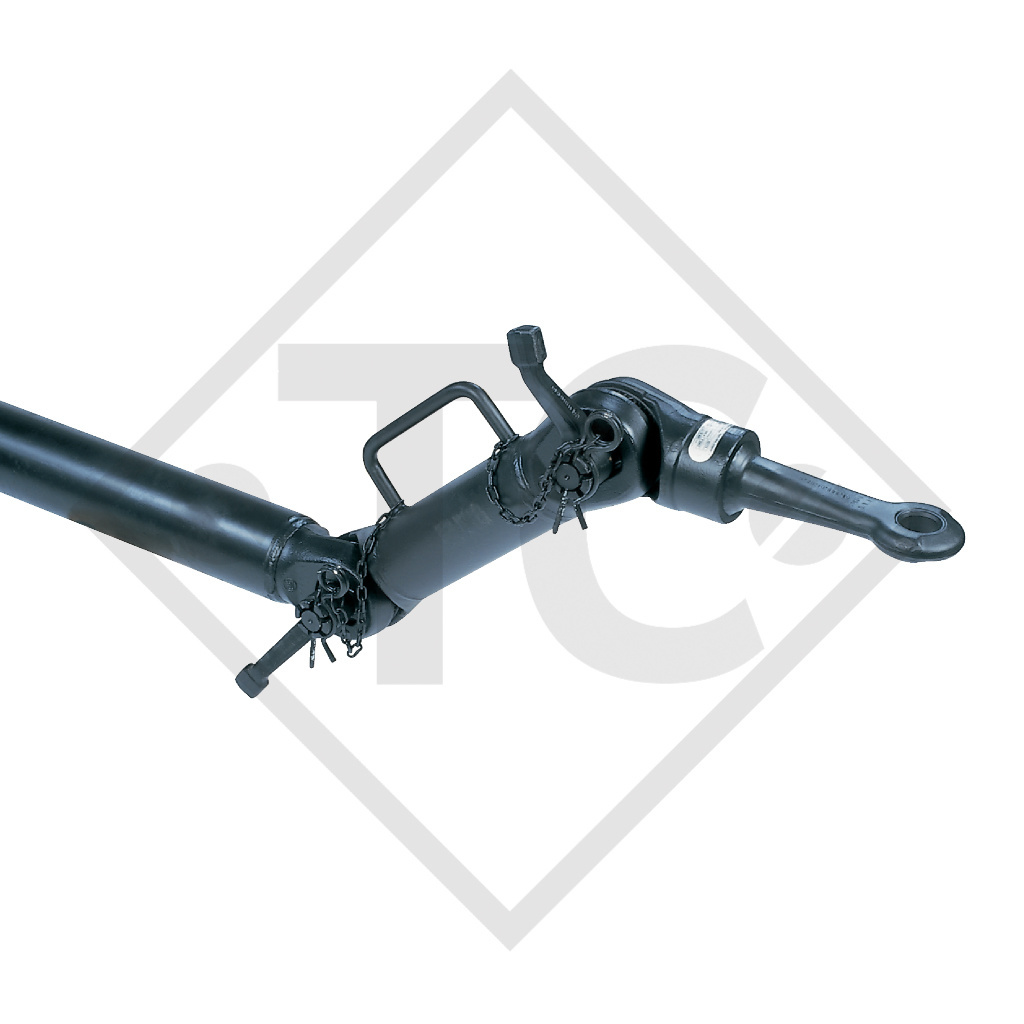

Home / Towbar connection ZOV 5.0-1.1 height-adjustable with drawbar section up to 5000kg, 47.62.403.003

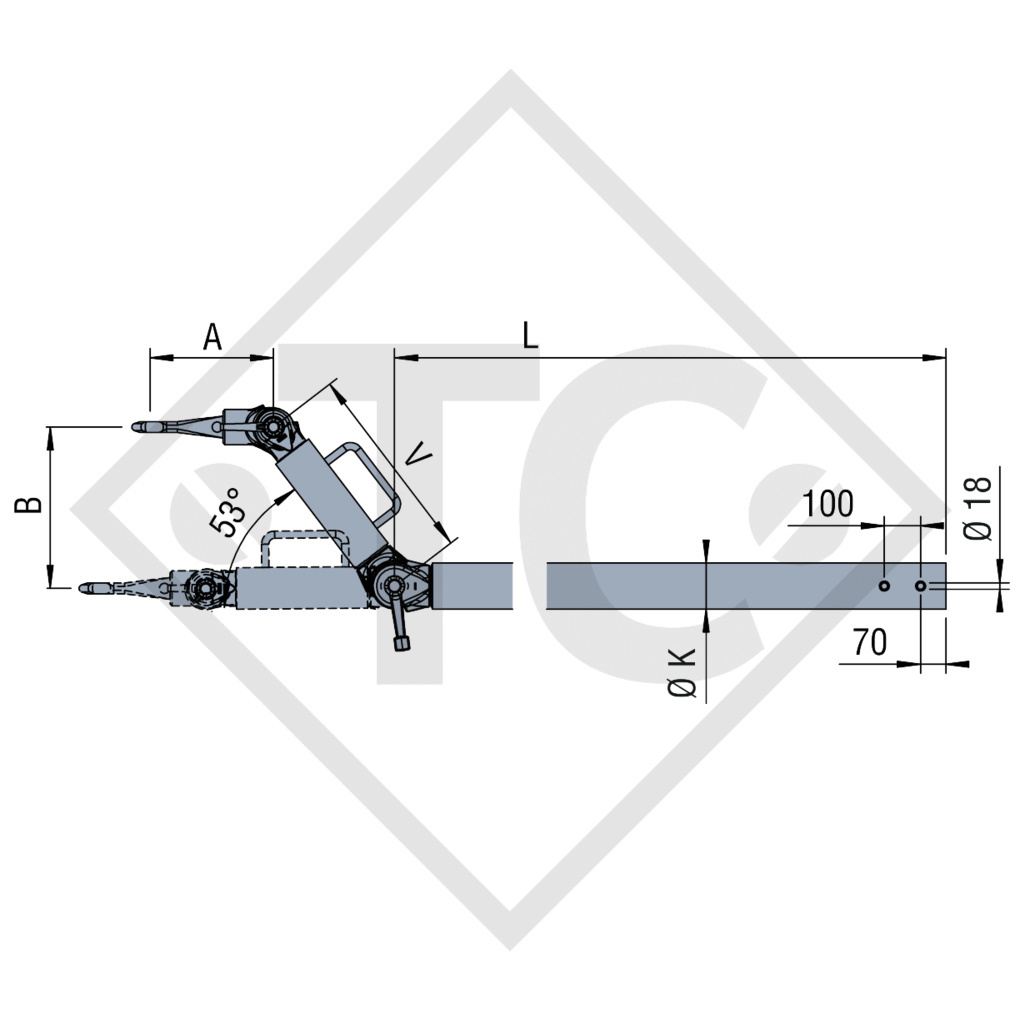

drawbar length L 3000mm, drawbar section K 127mm, with DIN drawbar eye dimension A 716mm, height B 0-413mm, intermediate piece V 550mm, perm. nose load 400kg. Read more...
| Permitted gross weight (kg) | up to 5000kg |
| Sales designation (type) | ZOV 5.0-1.1 |
| Order No. | 4014172 |
| Reference No. | 47.62.403.003 |
| K |
Ø 127mm |
| A | 716mm |
| L |
3000mm |
| B | 0-413mm |
| V |
550mm |
| Perm. nose load (kg) | 400kg |
| ECE test code | E1 55R-01 1345 |
| Replacement part identification number (ETI) NEW | 827024 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
