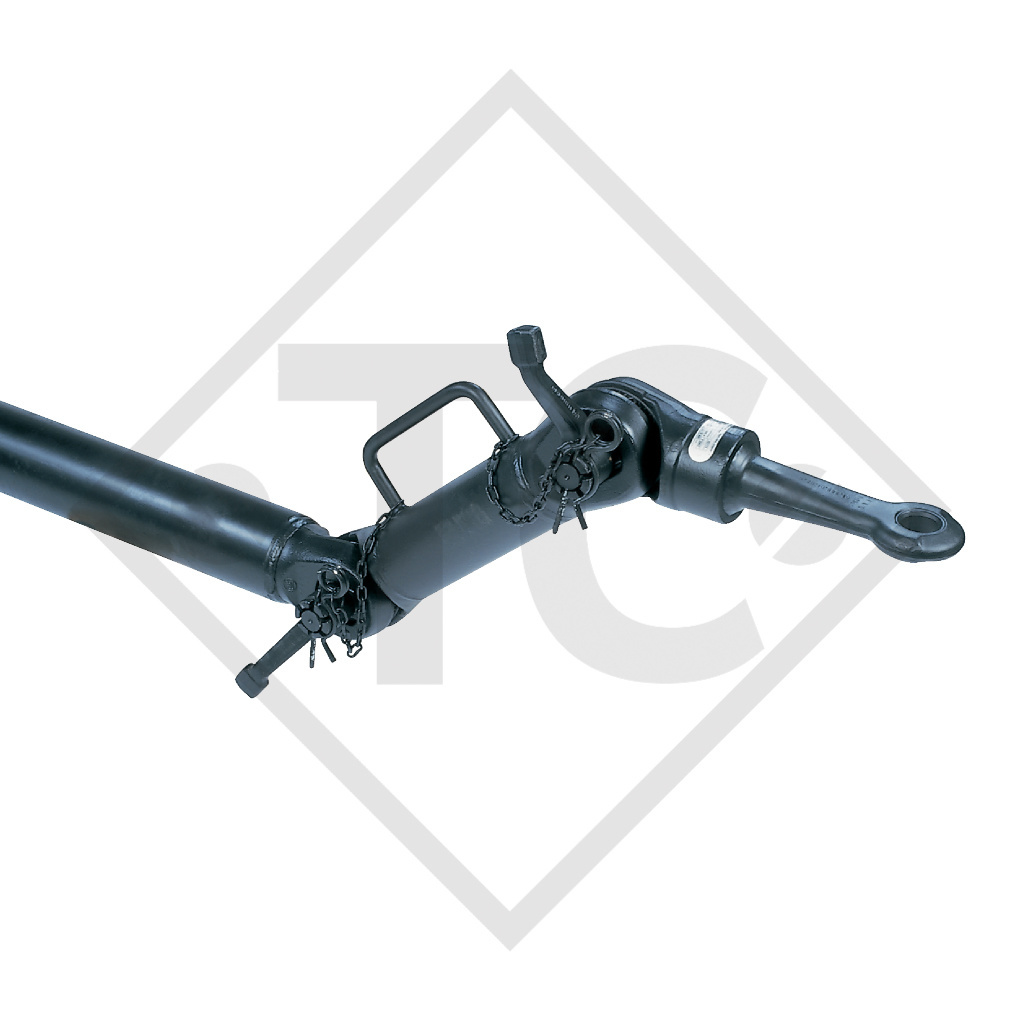

Home / Towbar connection ZOV 2.5-1.1 height-adjustable with drawbar section up to 2500kg, 47.41.403.001

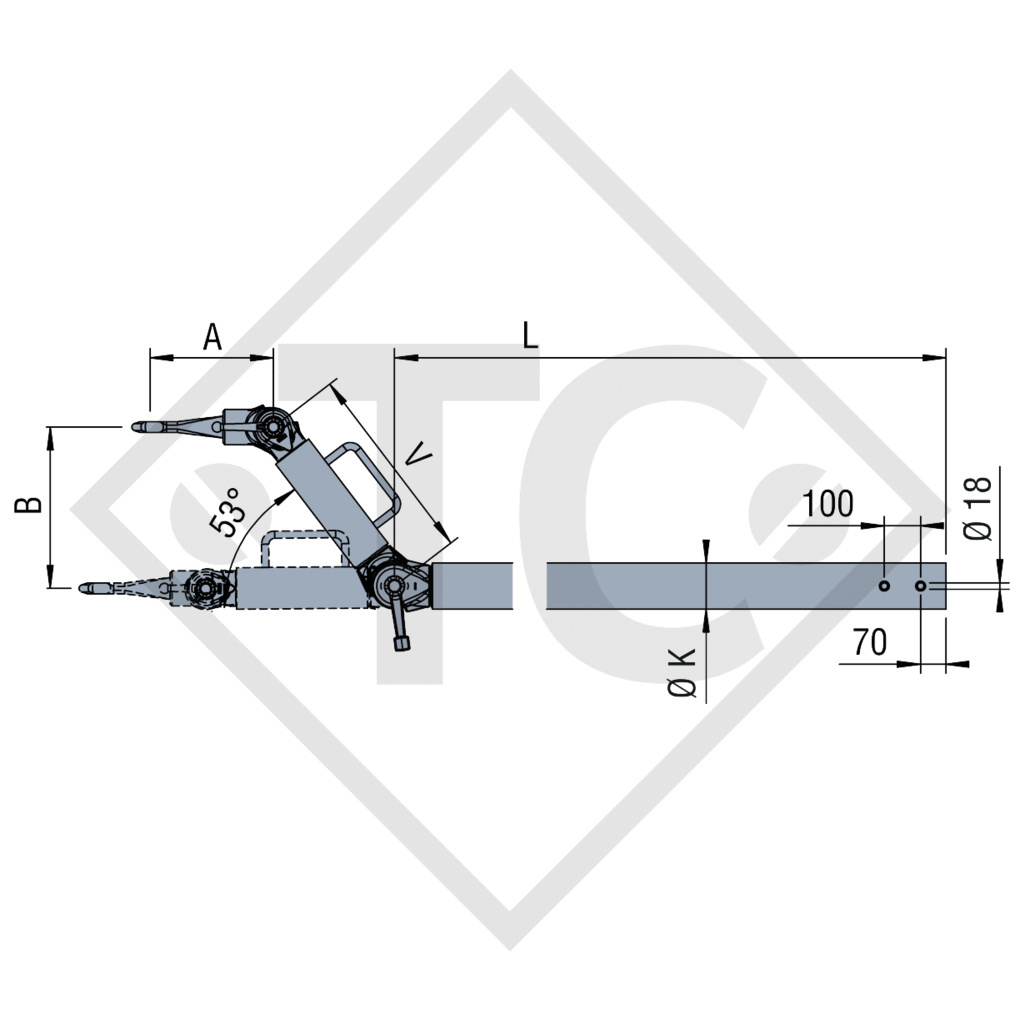

drawbar length L 1090mm, drawbar section K 108/90mm, with DIN drawbar eye dimension A 501mm, height B 0-225mm, intermediate piece V 300mm, perm. nose load 150kg. Read more...
| Permitted gross weight (kg) | up to 2500kg |
| Sales designation (type) | ZOV 2.5-1.1 |
| Order No. | 4014114 |
| Reference No. | 47.41.403.001 |
| K |
Ø 108/90mm |
| A | 501mm |
| L |
1090mm |
| B | 0-225mm |
| V |
300mm |
| Perm. nose load (kg) | 150kg |
| ECE test code | E1 55R-01 1134 |
| Replacement part identification number (ETI) NEW | 827024 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
