Home / Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.019

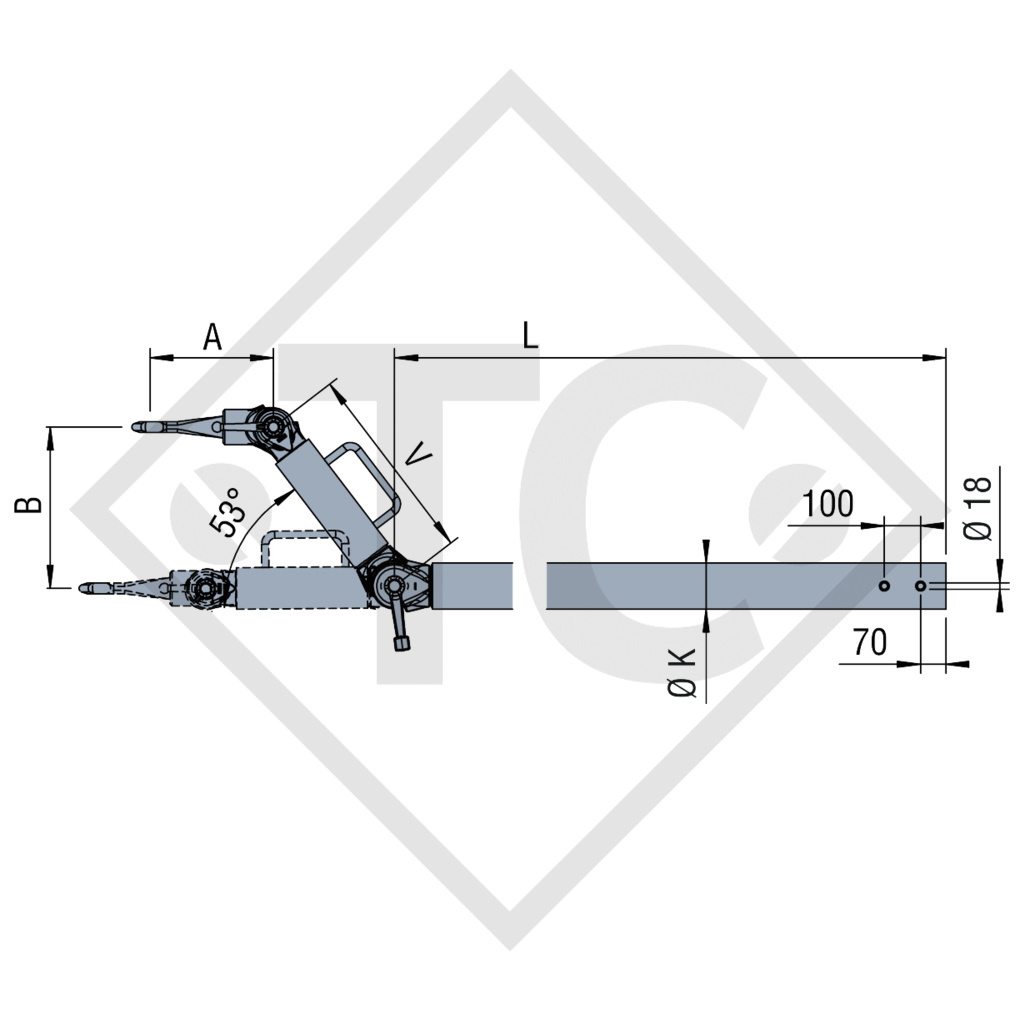

drawbar length L 1570mm, drawbar section K 82.5mm, with DIN drawbar eye dimension A 655mm, height B 0-375mm, intermediate piece V 500mm, perm. nose load 100kg. Read more...
| Permitted gross weight (kg) | up to 1200kg |
| Sales designation (type) | ZOV 1.2-1.1 B |
| Order No. | 4021621 |
| Reference No. | 47.23.403.019 |
| K |
Ø 82.5mm |
| A | 655mm |
| L |
1570mm |
| B | 0-375mm |
| V |
500mm |
| Perm. nose load (kg) | 100kg |
| ECE test code | E1 55R-01 1132 |
| Replacement part identification number (ETI) NEW | 827024 |
