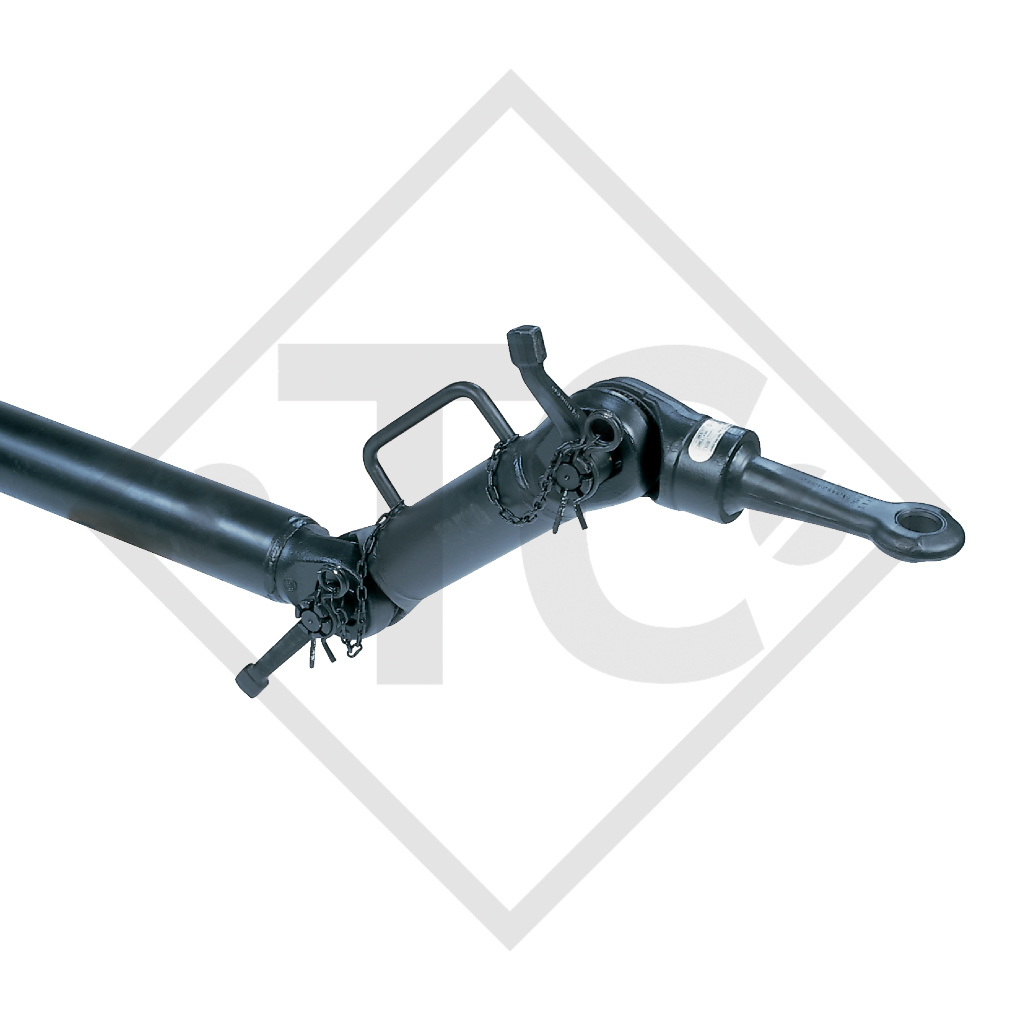

Home / Towbar connection ZOV 1.2-1.1 B height-adjustable with drawbar section up to 1200kg, 47.23.403.010
drawbar length L 1070mm, drawbar section K 82.5mm, with DIN drawbar eye dimension A 523mm, height B 0-225mm, intermediate piece V 300mm, perm. nose load 100kg. Read more...
| Permitted gross weight (kg) | up to 1200kg |
| Sales designation (type) | ZOV 1.2-1.1 B |
| Order No. | 4021617 |
| Reference No. | 47.23.403.010 |
| K |
Ø 82.5mm |
| A | 523mm |
| L |
1070mm |
| B | 0-225mm |
| V |
300mm |
| Perm. nose load (kg) | 100kg |
| ECE test code | E1 55R-01 1132 |
| Replacement part identification number (ETI) NEW | 827024 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
