Home / Towbar connection ZOV 0.75-1 B height-adjustable with drawbar section up to 750kg, 47.14.403.034

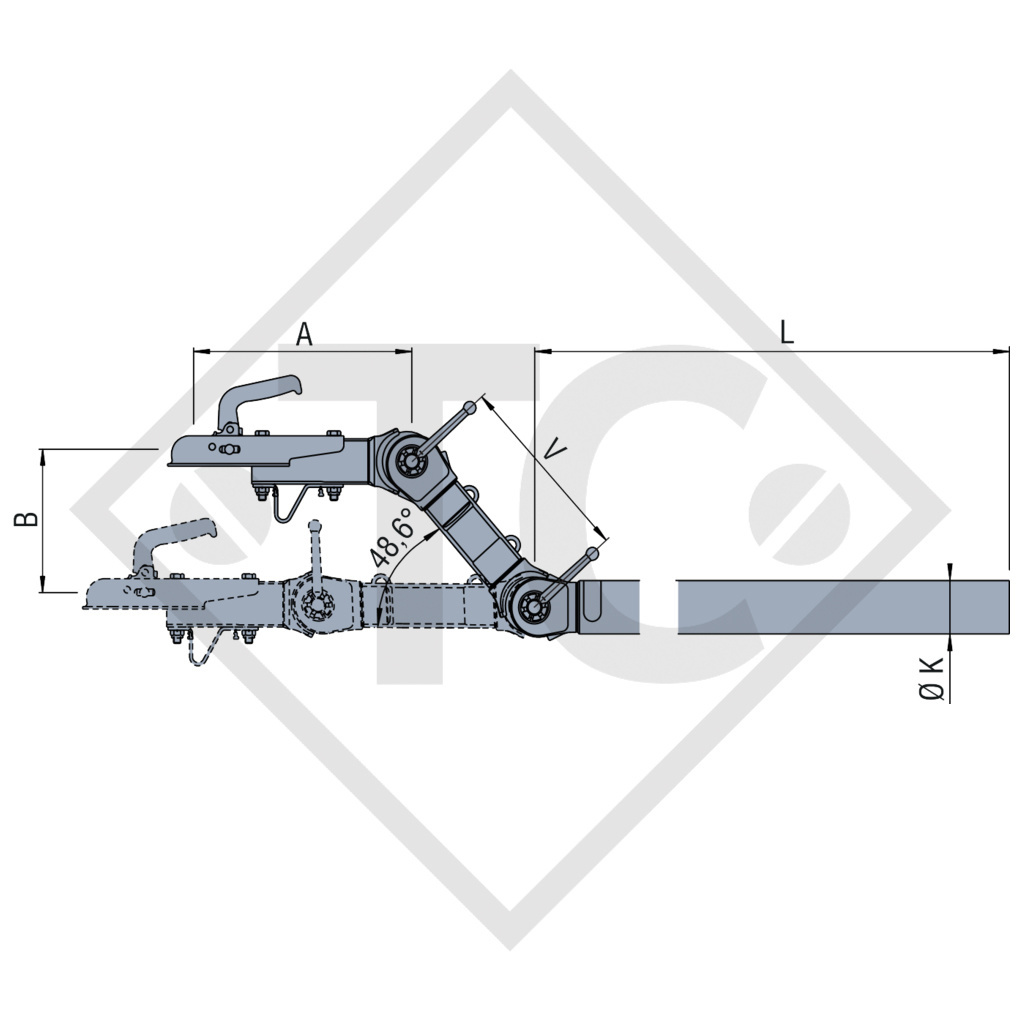

drawbar length L 2075mm, drawbar section K 70mm, with DIN drawbar eye dimension A 655mm, height B 0-375mm, intermediate piece V 500mm, perm. nose load 75kg. Read more...
| Permitted gross weight (kg) | up to 750kg |
| Sales designation (type) | ZOV 0.75-1 B |
| Order No. | 4014035 |
| Reference No. | 47.14.403.034 |
| K |
Ø 70mm |
| A | 655mm |
| L |
2075mm |
| B | 0-375mm |
| V |
300mm |
| Perm. nose load (kg) | 75kg |
| ECE test code | e1*0841*94/20 |
| Replacement part identification number (ETI) NEW | 827024 |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
