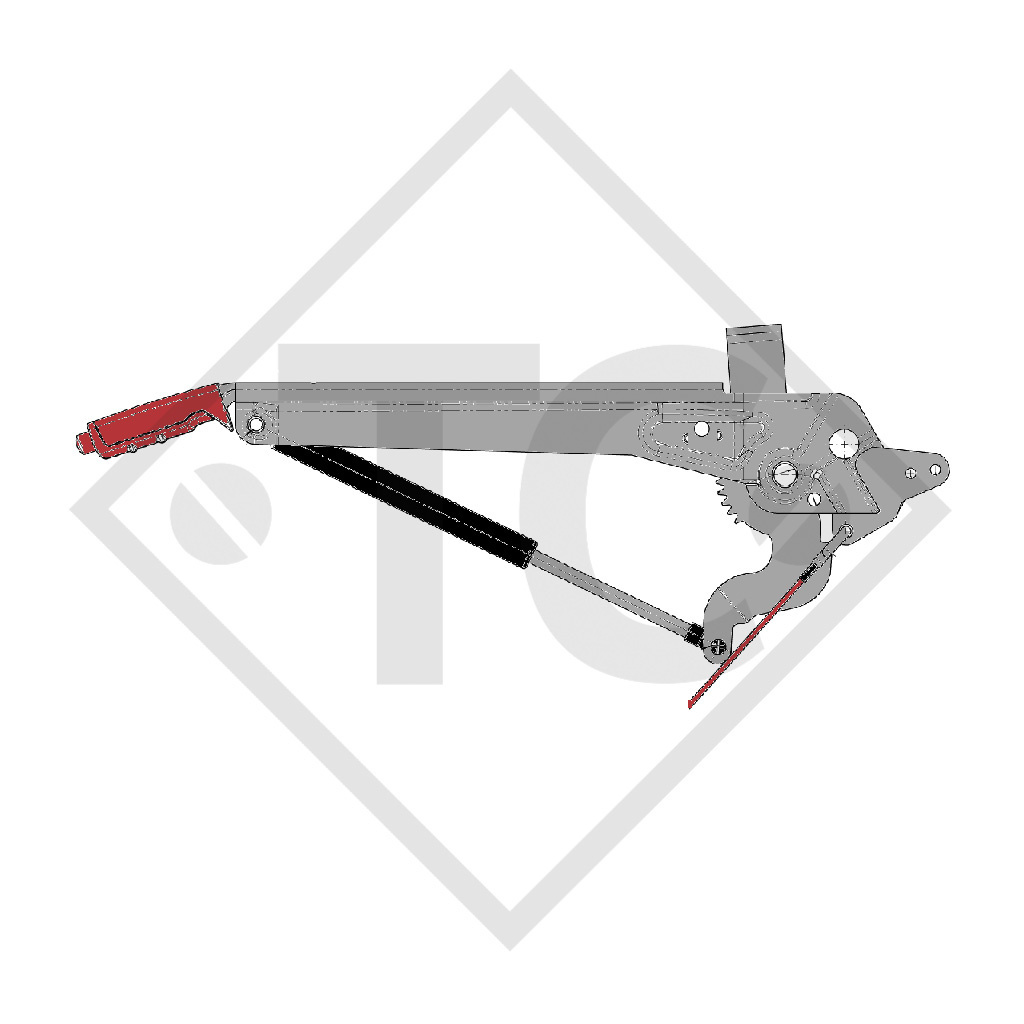

Home / Towbar connection toothed washer type 70.1 VO vers. C1 height-adjustable with drawbar section up to 750kg and parking brake
total length K (at 0°) 3219mm, drawbar length E 2210mm, drawbar section 70x110x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...
Part no. 1225826
Drawbar cpl. with drawbar section mounted (without hitch components)
Total length K at 0°: 3219mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Drawbar length E: 2210mm
Intermediate piece 750mm
Jockey wheel flange = A
Assembly example = X
INSTRUCTION BOOK
SPARE PART LIST 811672
TECHNOLOGY
Drawbar type 70.1 VO vers. C1
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components
ECE type approval no.: E1 55R-01 1135
SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
