AL-KO Towbar connection toothed washer type 70.1 VO vers. C1 height-adjustable with drawbar section up to 750kg and parking brake

Home / Towbar connection toothed washer type 70.1 VO vers. C1 height-adjustable with drawbar section up to 750kg and parking brake

total length K (at 0°) 2579mm, drawbar length E 1570mm, drawbar section 70x110x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...

Wishlist: Add to comparison:

Product description

Part no. 1225818

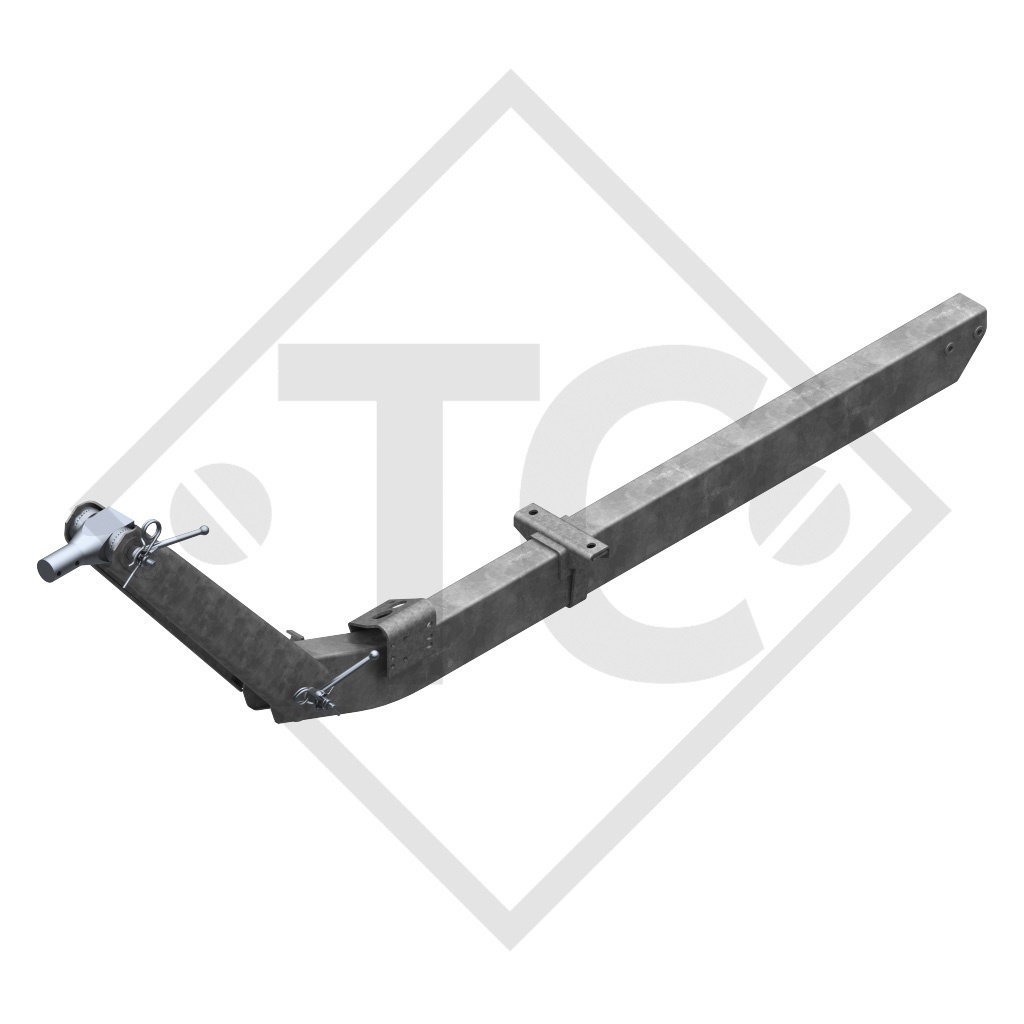

Drawbar cpl. with drawbar section mounted (without hitch components)

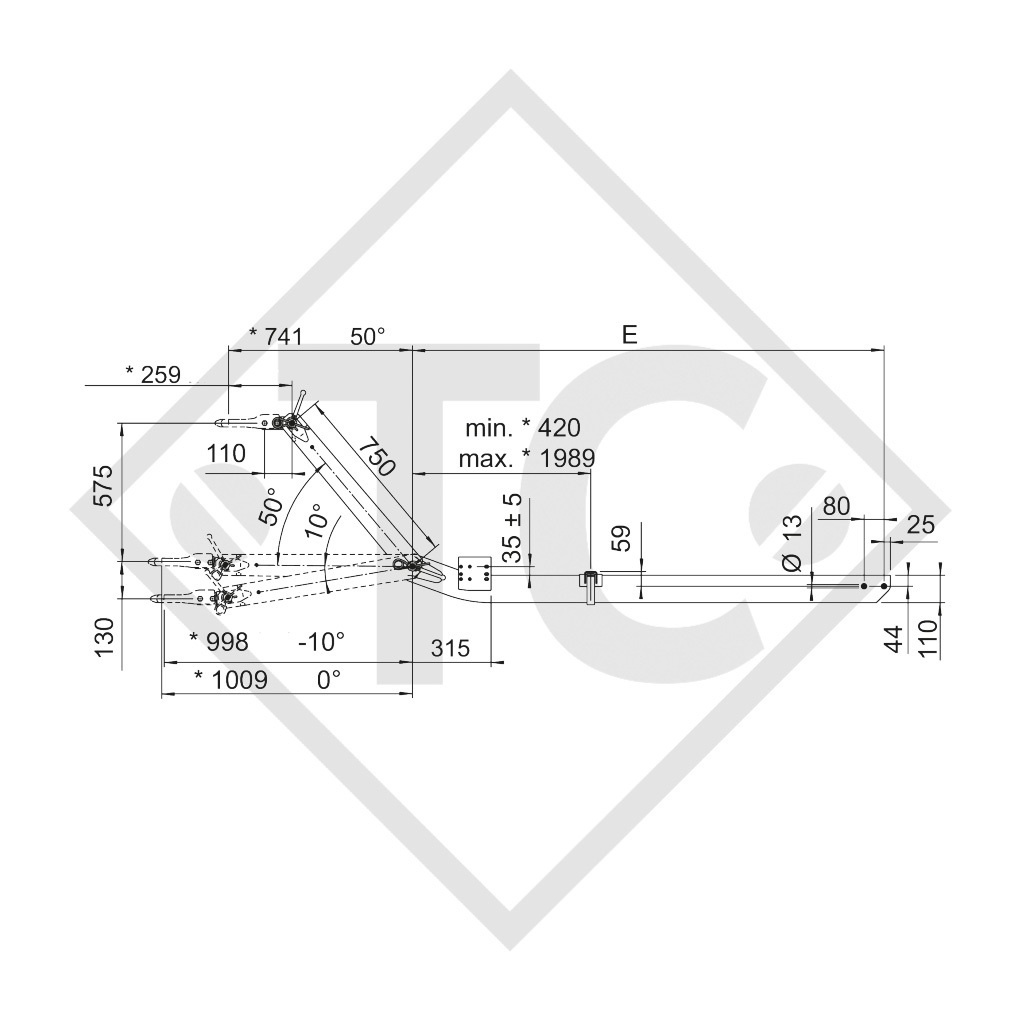

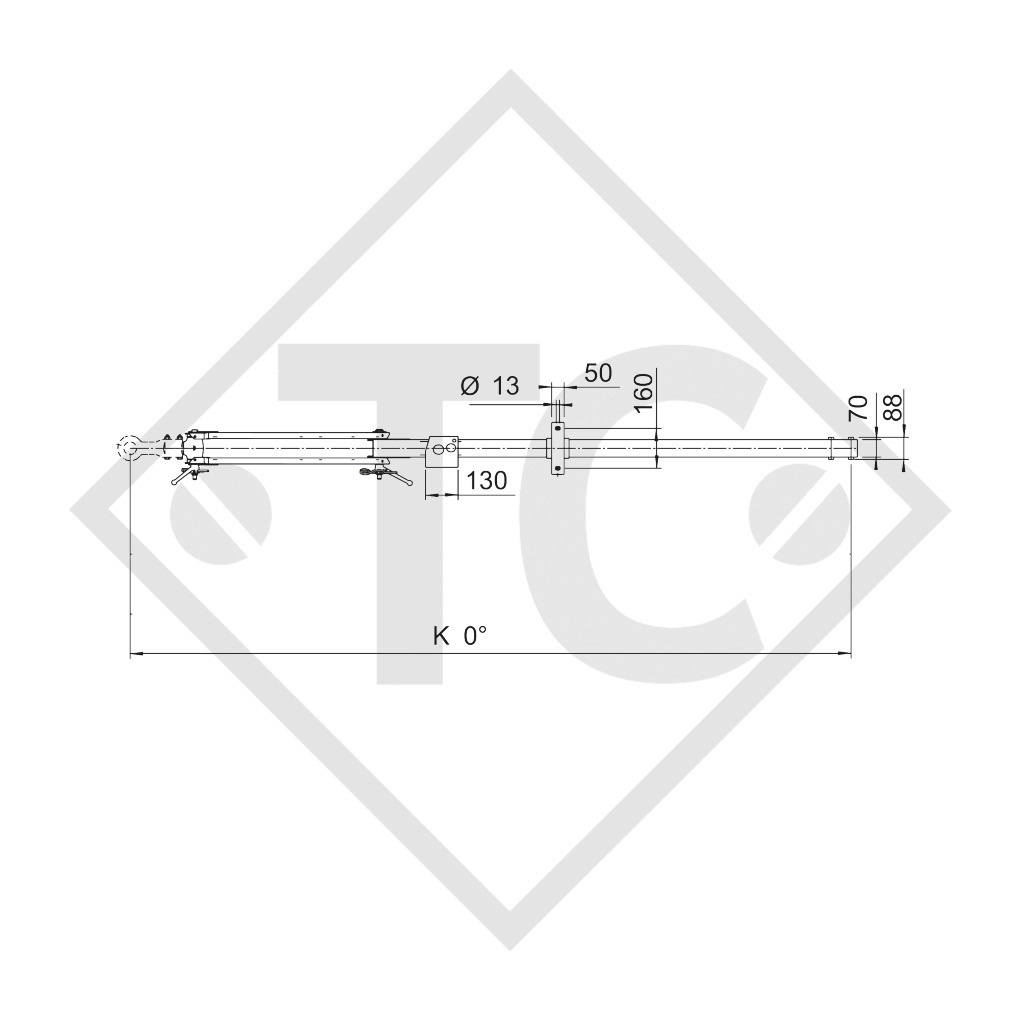

Total length K at 0°: 2579mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Drawbar length E: 1570mm
Intermediate piece 750mm

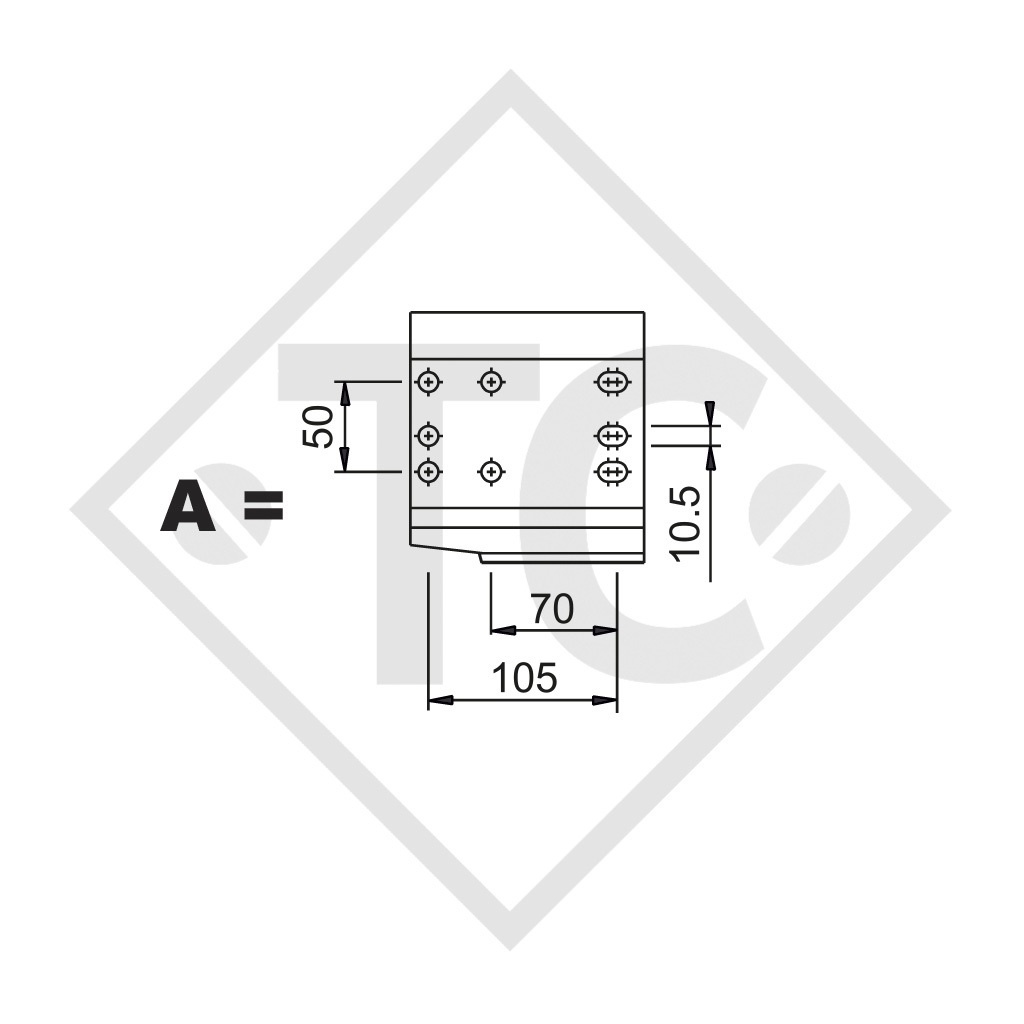

Jockey wheel flange = A

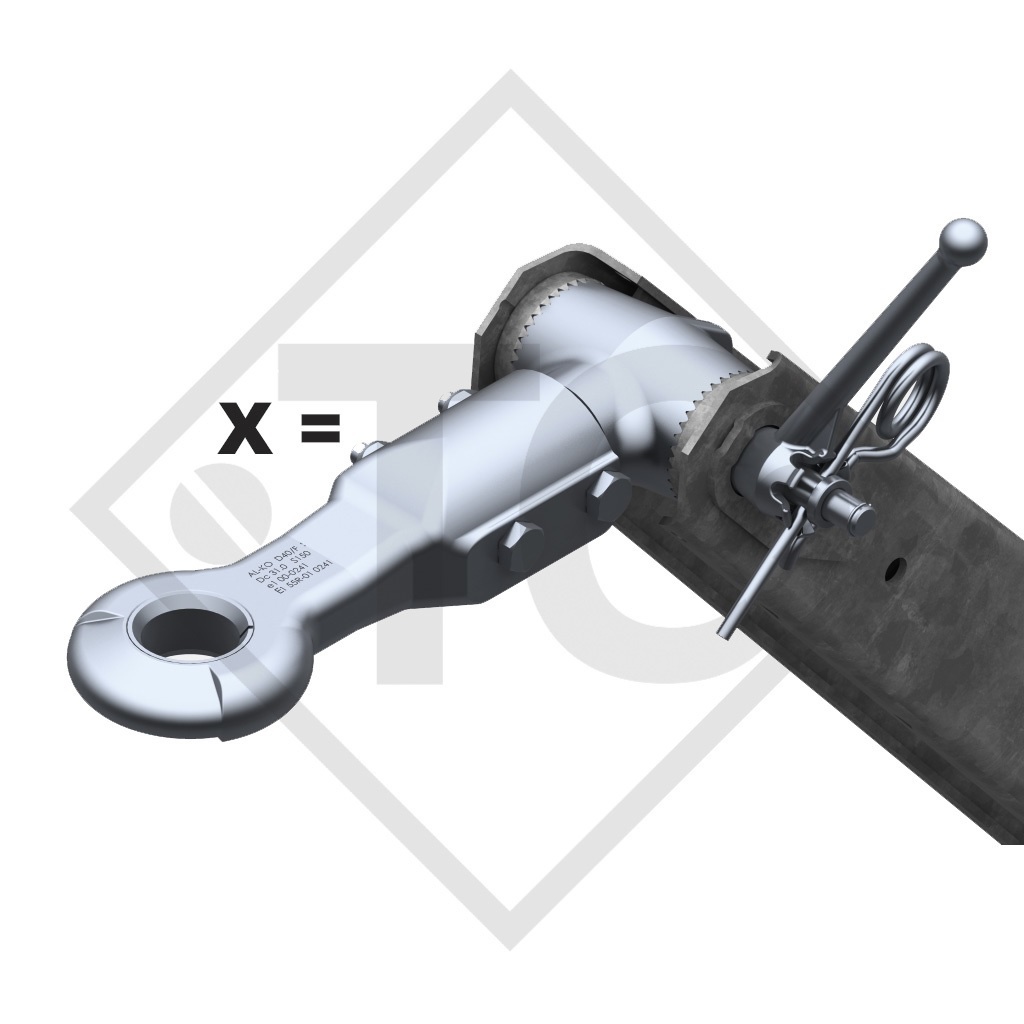

Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811672

TECHNOLOGY
Drawbar type 70.1 VO vers. C1
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 1135

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
