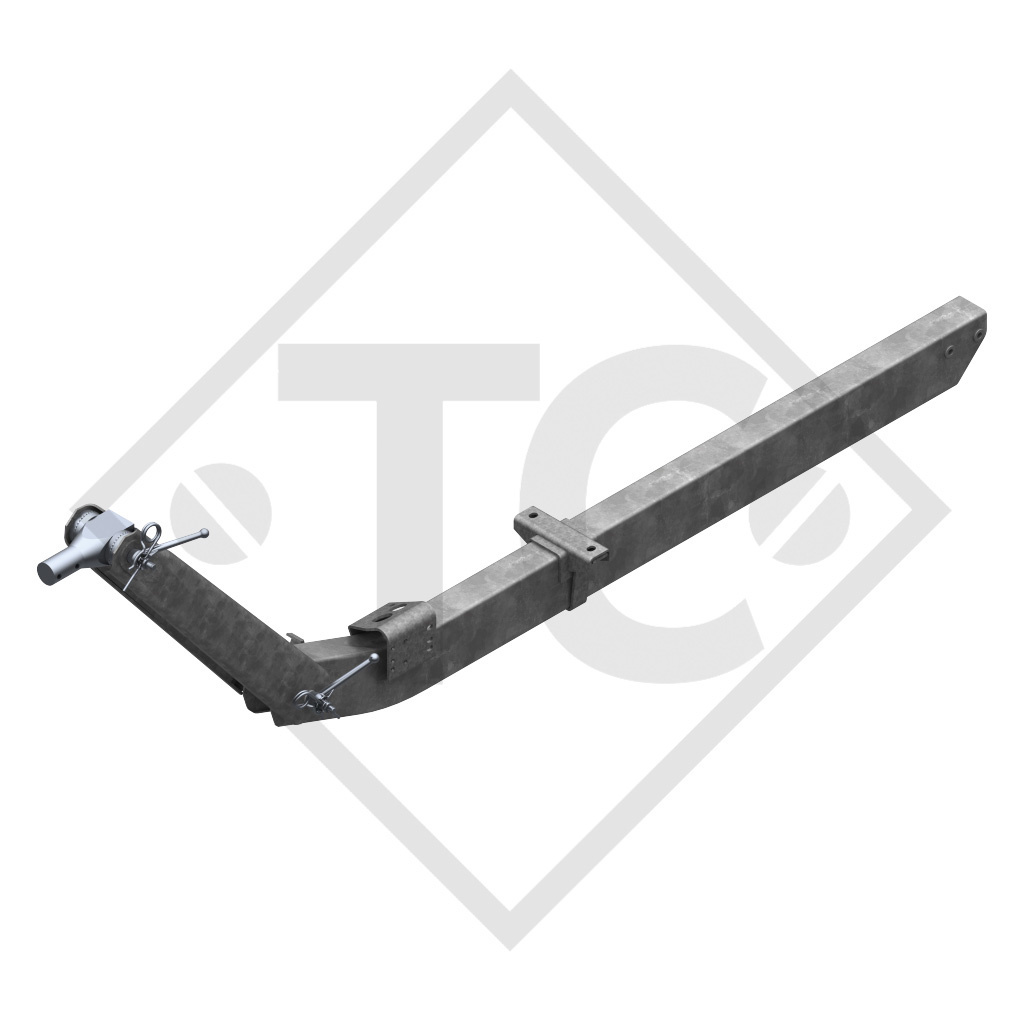

AL-KO Towbar connection toothed washer type 162 VB vers. M height-adjustable with drawbar section up to 1600kg and parking brake

Part no. 1225889
Drawbar cpl. with drawbar section mounted (without hitch components)

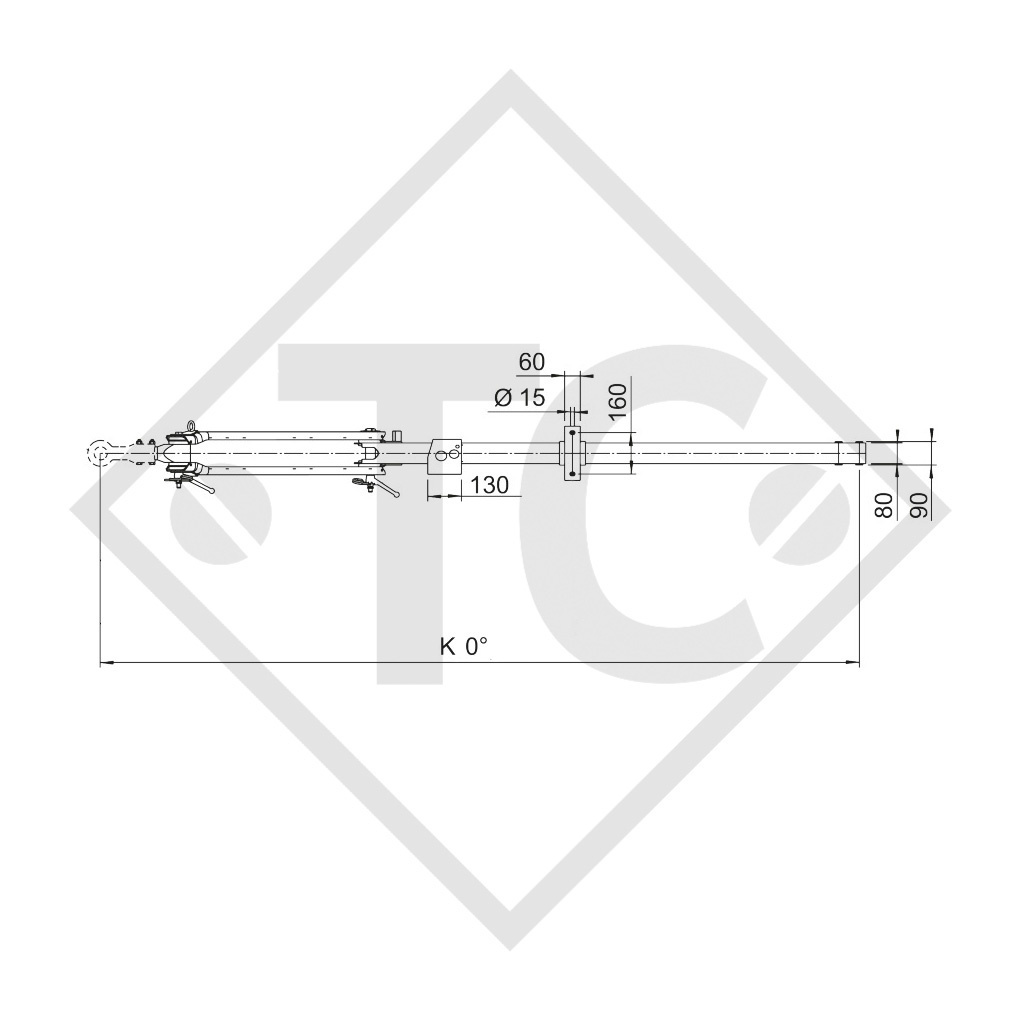

Total length K at 0°: 2622mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

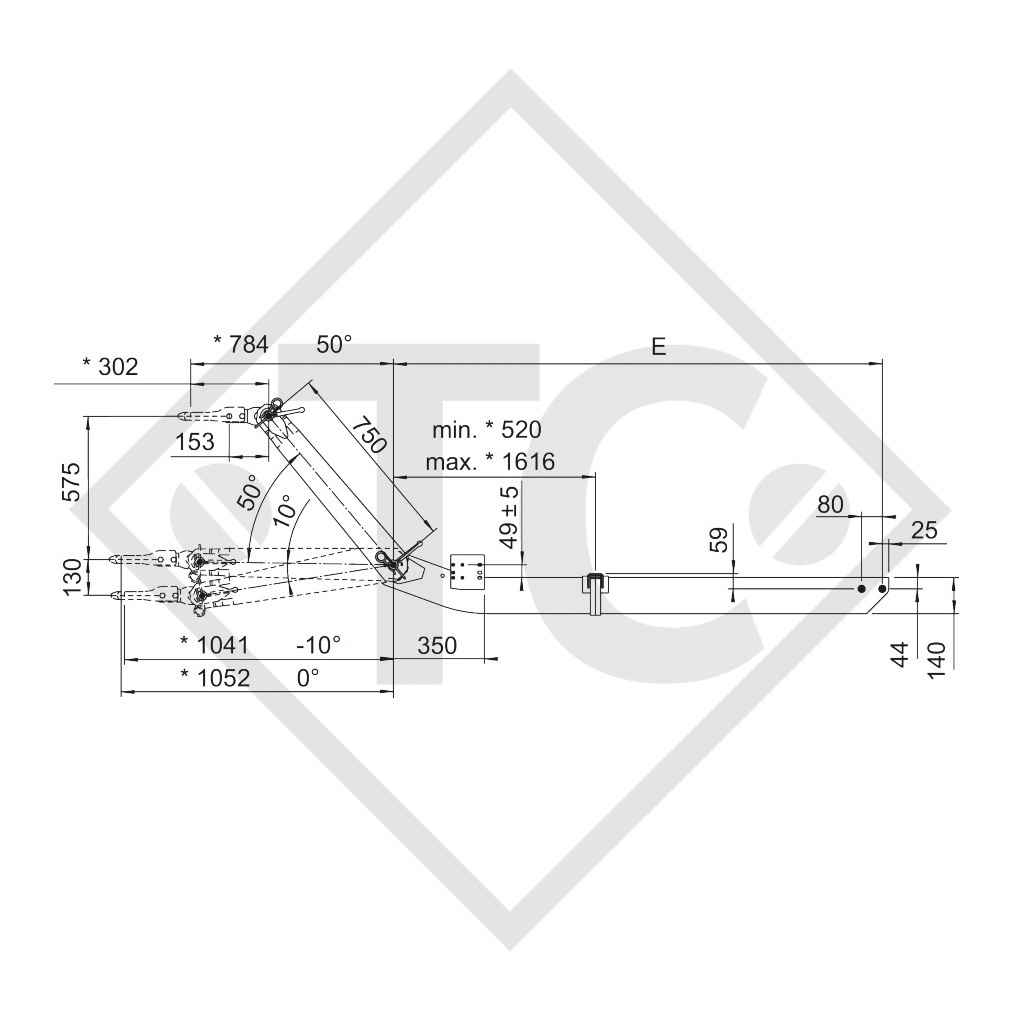

Drawbar length E: 1570mm
Intermediate piece 750mm
Jockey wheel flange = A
Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811675

TECHNOLOGY
Drawbar type 162 VB vers. M
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 0212

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
