Home / Towbar connection toothed washer type 162 VB vers. M height-adjustable with drawbar section up to 1600kg
total length K (at 0°) 3902mm, drawbar length E 2850mm, drawbar section 80x140x4mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...
Part no. 20057721

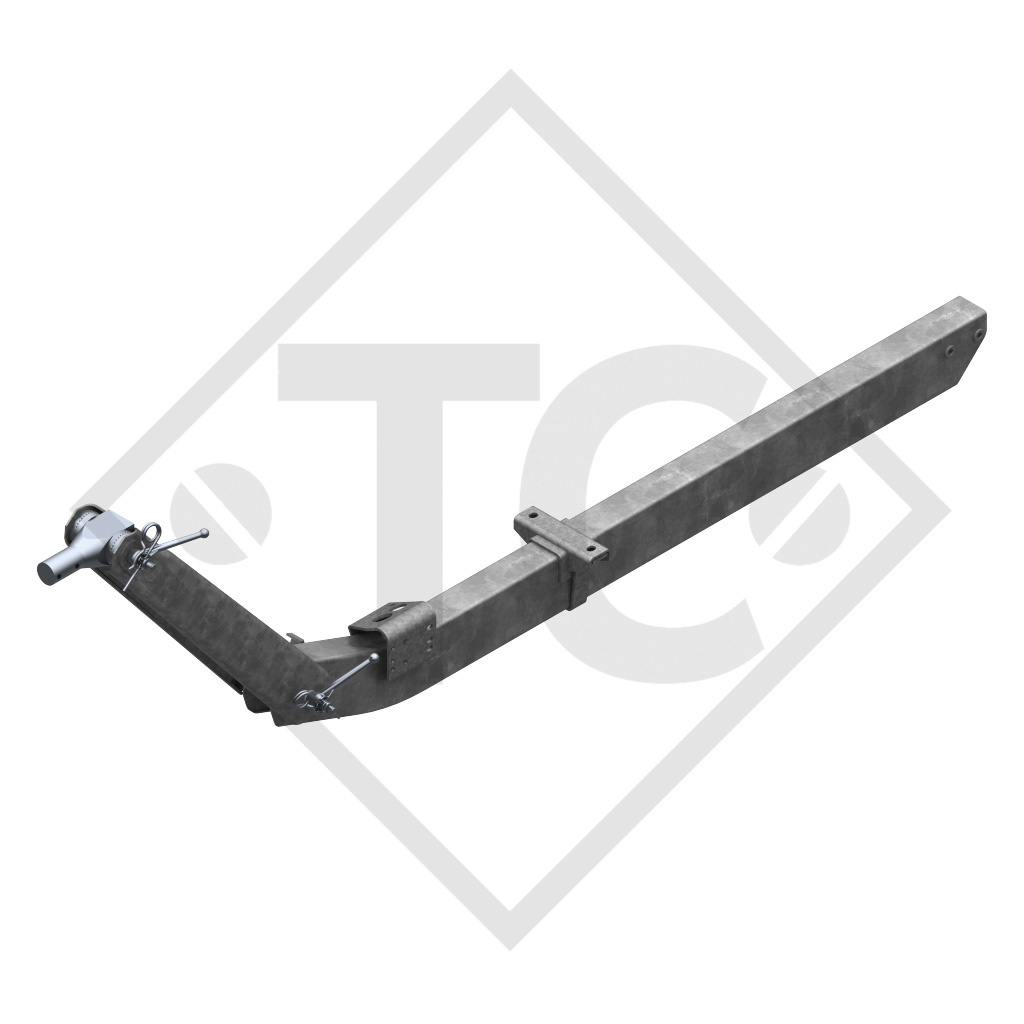

Drawbar cpl. with drawbar section mounted (without hitch components)

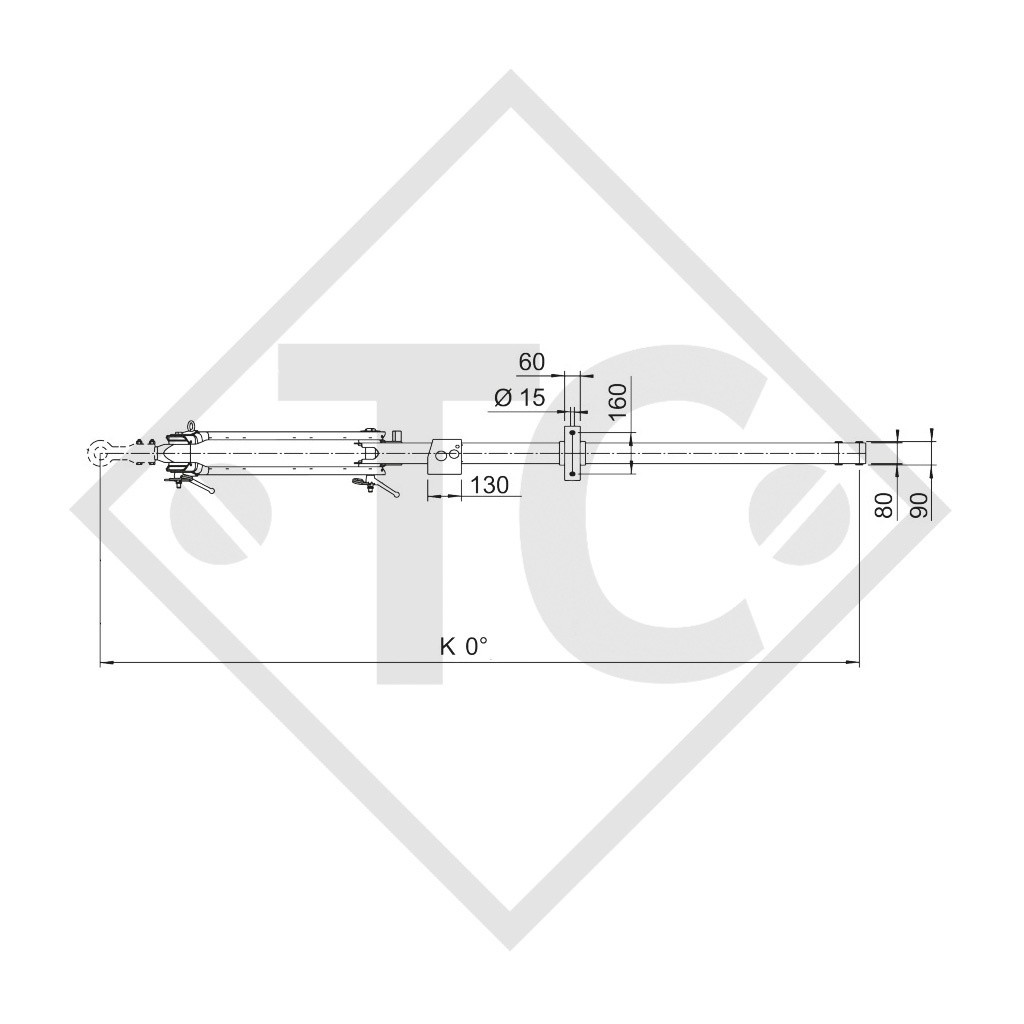

Total length K at 0°: 3902mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

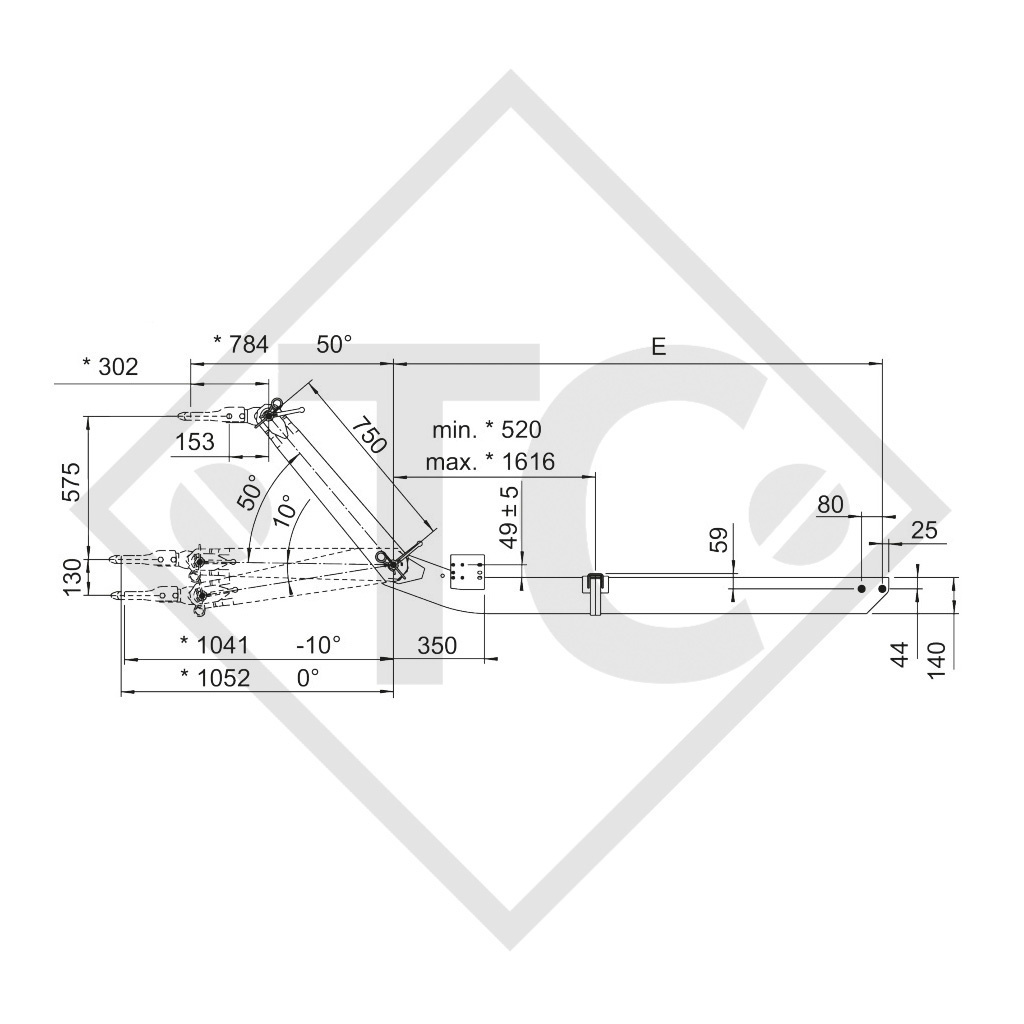

Drawbar length E: 2850mm
Intermediate piece 750mm

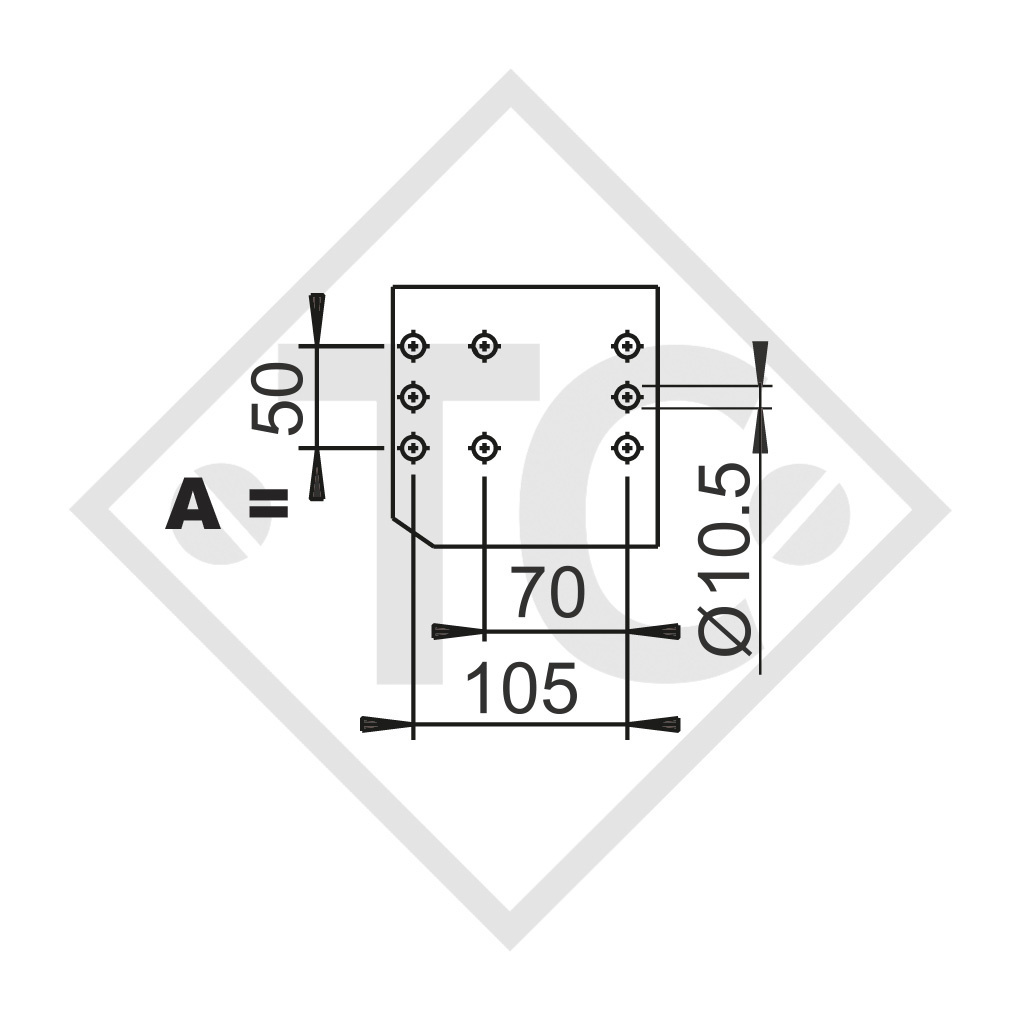

Jockey wheel flange = A

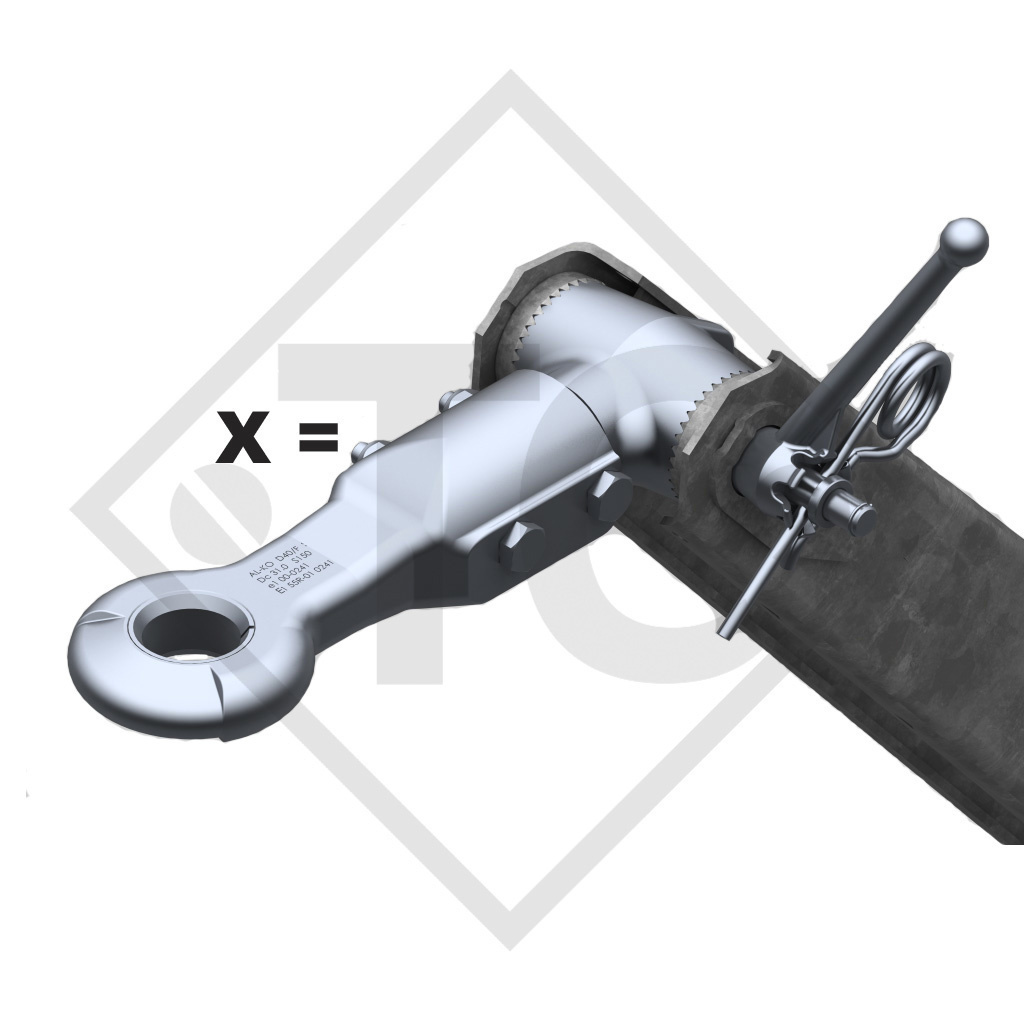

Assembly example = X
INSTRUCTION BOOK
SPARE PART LIST 811675
TECHNOLOGY
Drawbar type 162 VB vers. M
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components
ECE type approval no.: E1 55R-01 0212
SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
