Home / Towbar connection toothed washer type 103 VB vers. G height-adjustable with drawbar section up to 1000kg
total length K (at 0°) 1706mm, drawbar length E 700mm, drawbar section 70x140x3mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components. Read more...
Part no. 1730078
Drawbar cpl. with drawbar section mounted (without hitch components)

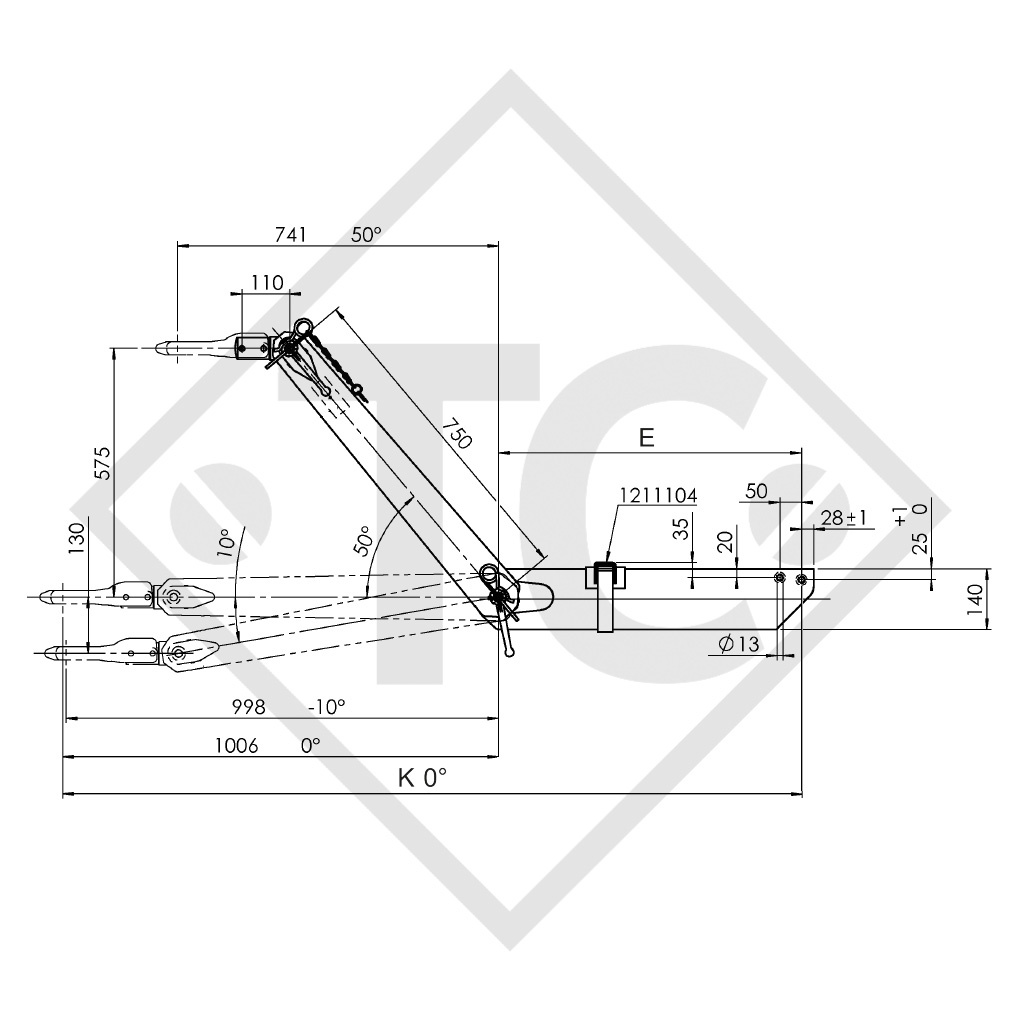

Total length K at 0°: 1706mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Drawbar length E: 700mm
Intermediate piece 750mm

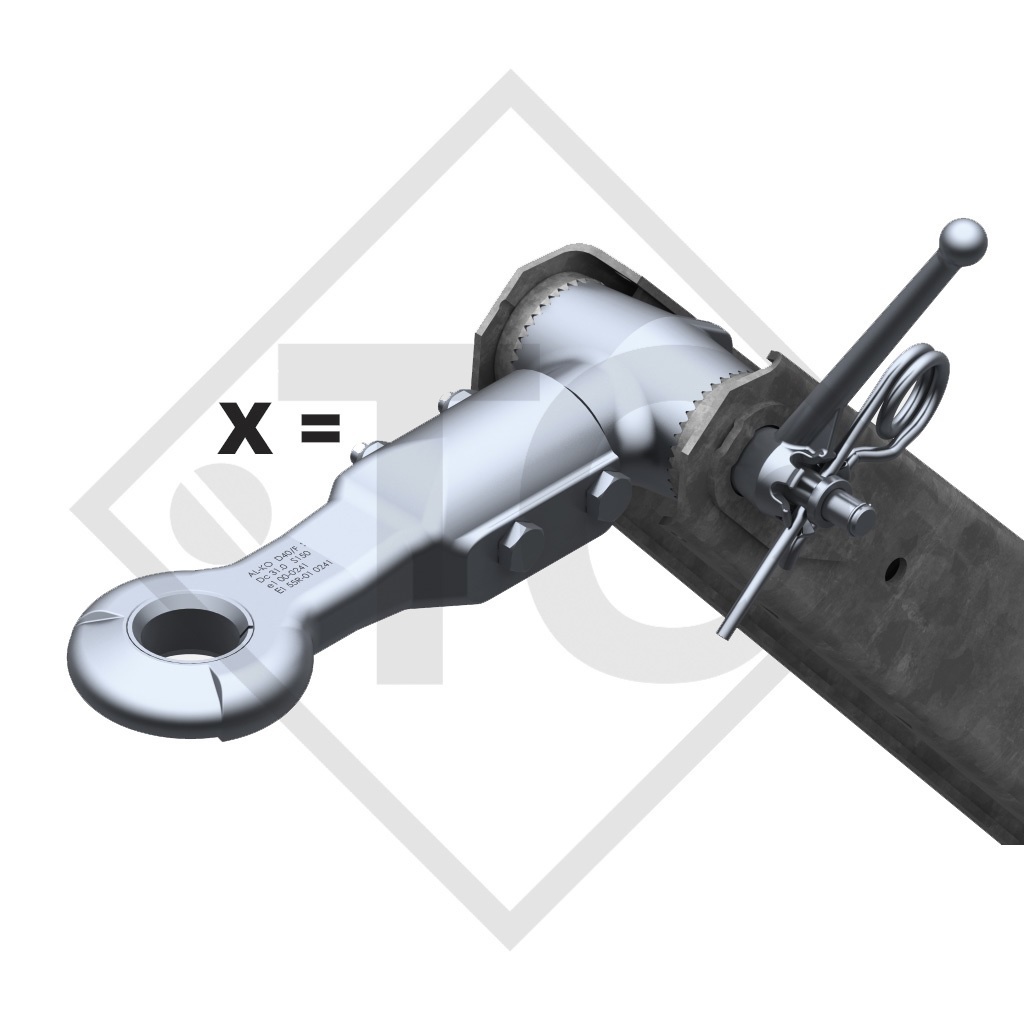

Assembly example = X
TECHNOLOGY
Drawbar type 103 VB vers. G
Intermediate piece with drawbar section
Permitted nose load 100 kg

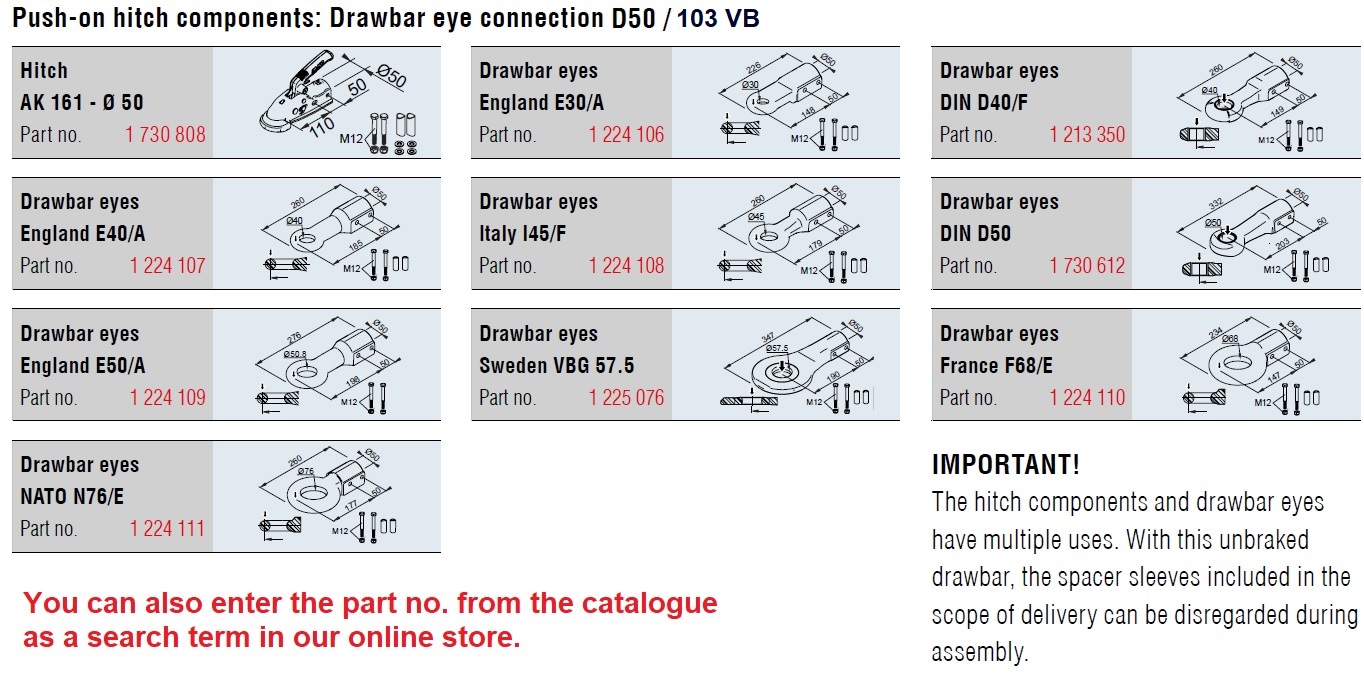

Push-on hitch components
ECE type approval no.: E1 55R-01 0209
SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)
