AL-KO Towbar connection toothed washer type 102 VB vers. N height-adjustable with drawbar section up to 1100kg

Part no. 20057624

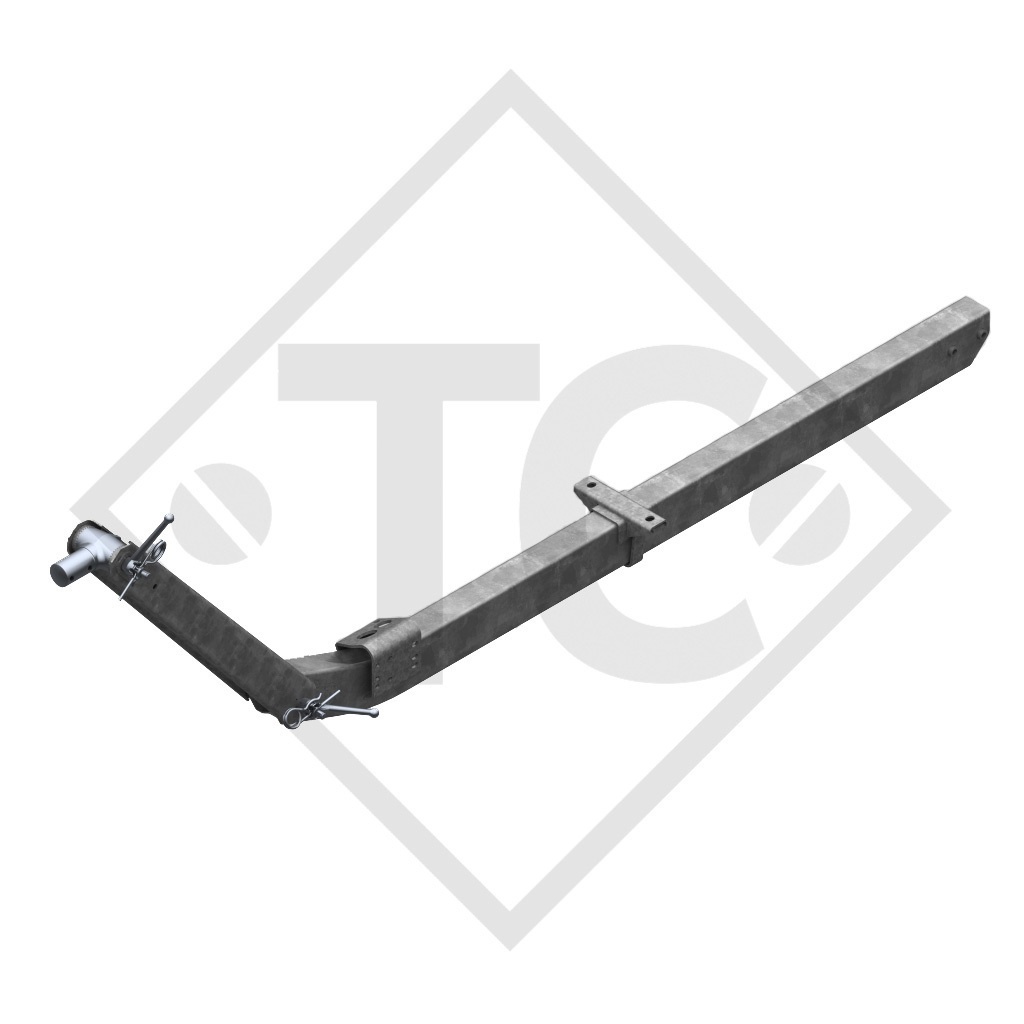

Drawbar cpl. with drawbar section mounted (without hitch components)

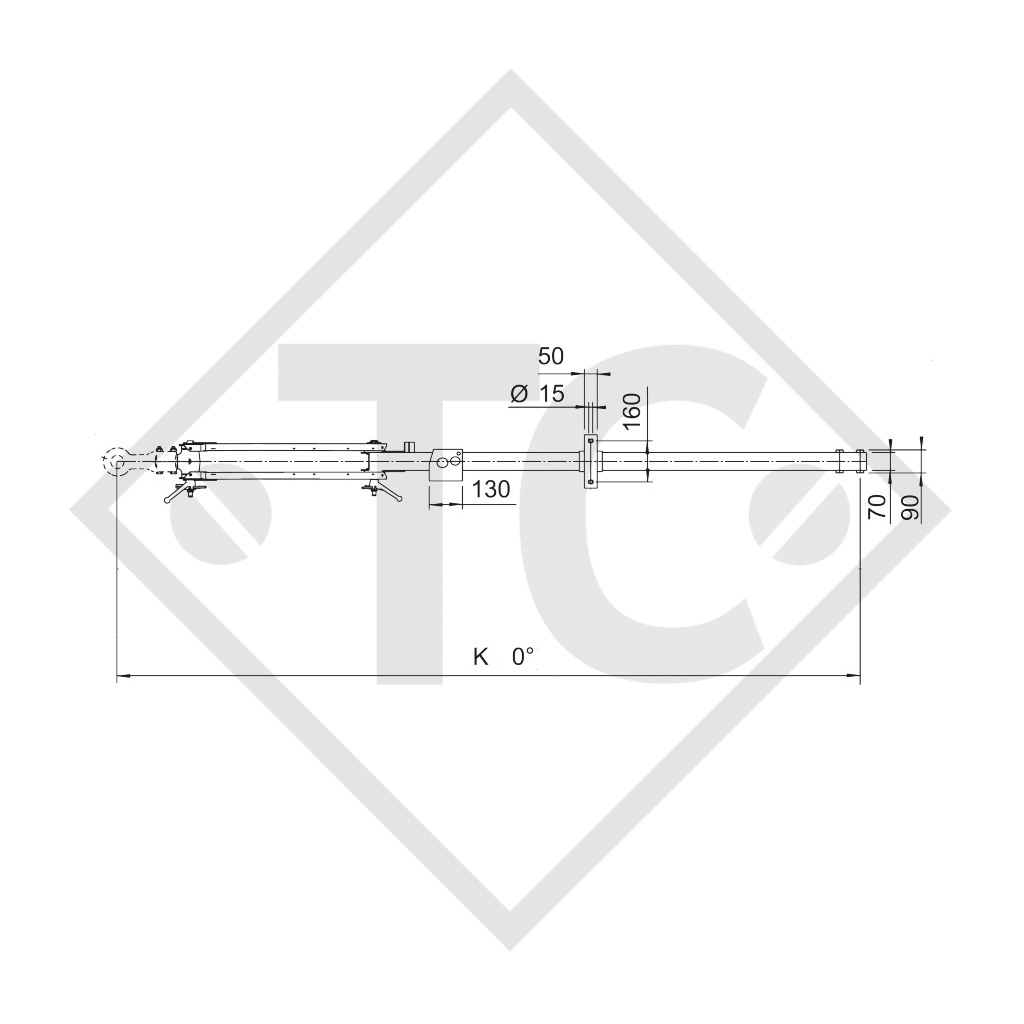

Total length K at 0°: 3859mm with assembly example for drawbar eye DIN D40/F
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)

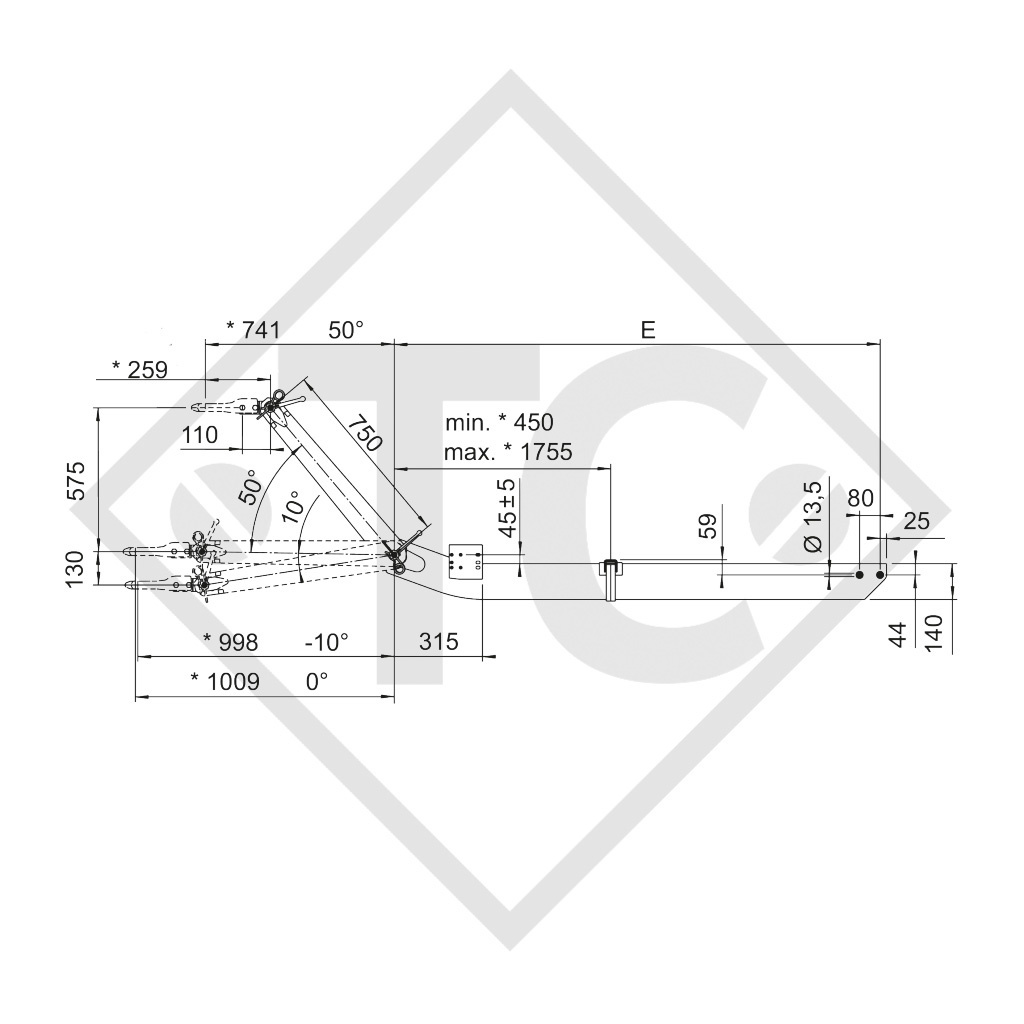

Drawbar length E: 2850mm
Intermediate piece 750mm

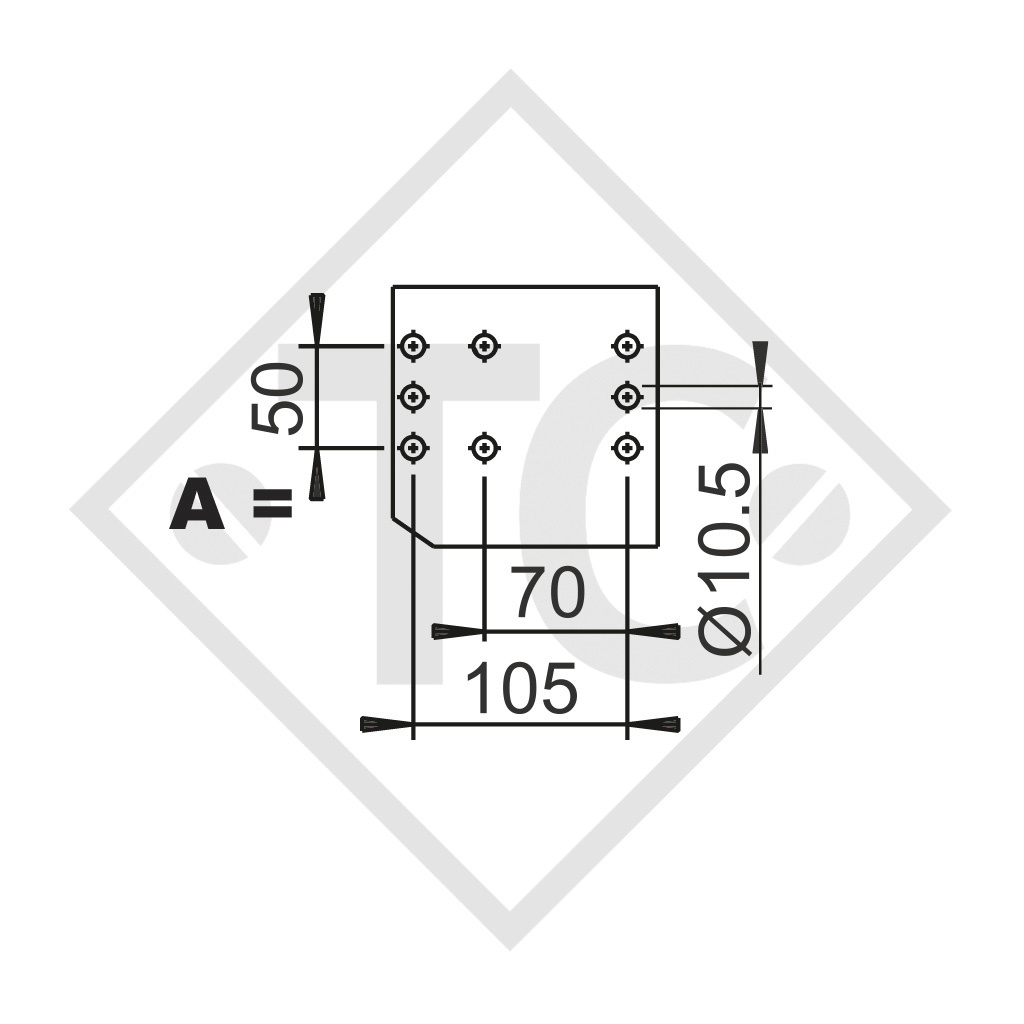

Jockey wheel flange = A

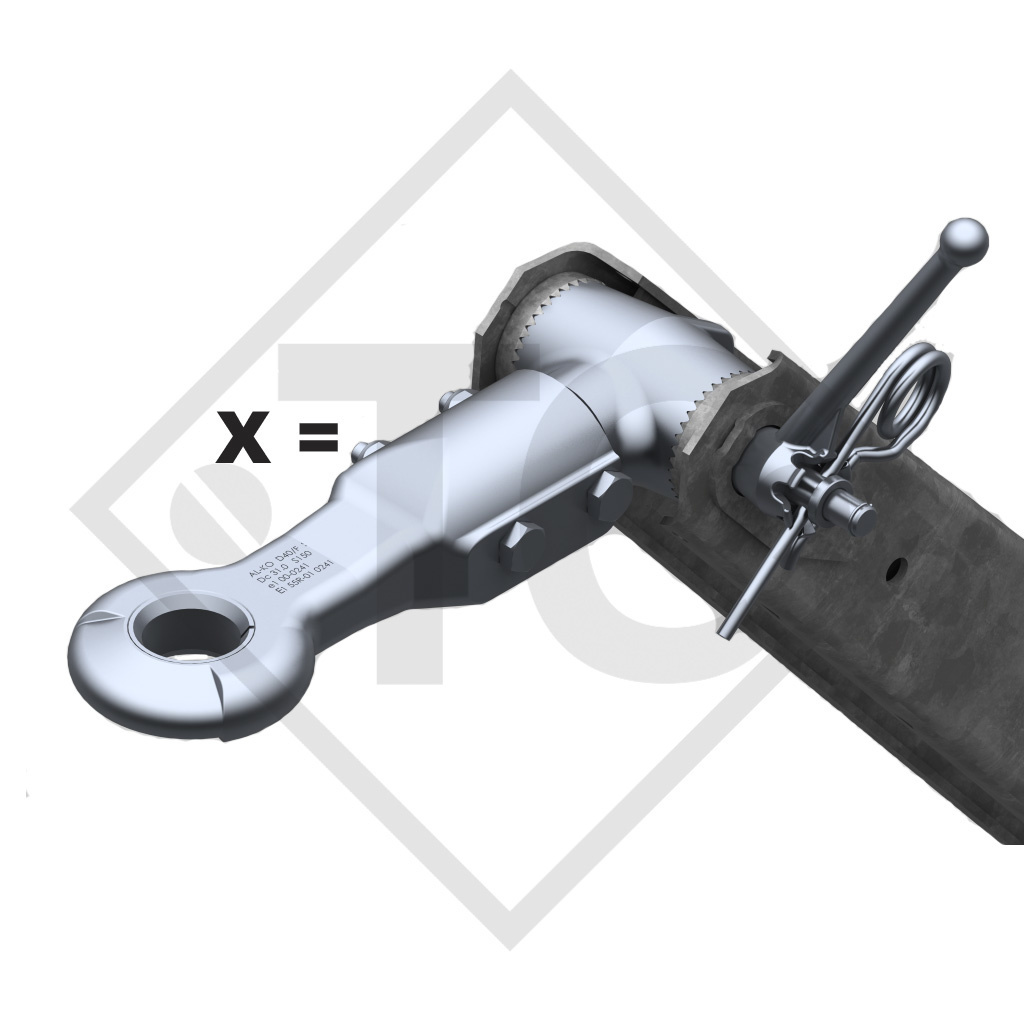

Assembly example = X

INSTRUCTION BOOK
SPARE PART LIST 811674

TECHNOLOGY
Drawbar type 102 VB vers. N
Intermediate piece with drawbar section
Permitted nose load 100 kg
Push-on hitch components

ECE type approval no.: E1 55R-01 0211

SURFACE TREATMENT
Hot-dip galvanised
Hitches, eyes and small parts galvanised (not included in scope of delivery)

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
