Towbar drawbar ⌀(pair) type 351T to 3500kg

total length A 3000mm, dimension F 208mm, nose load 150kg, suitable for overrun device top installation type AE 3500. Read more...

Wishlist: Add to comparison:

Price 483,00 EUR Incl. tax Excl. Shipping costs

- +

Add to cart

Part no. per pair 1225040

Towbar connection

Type

351T

Test code

ECE: E1 55R-01 0539

Gross weight trailer

3500kg

Nose load

150kg

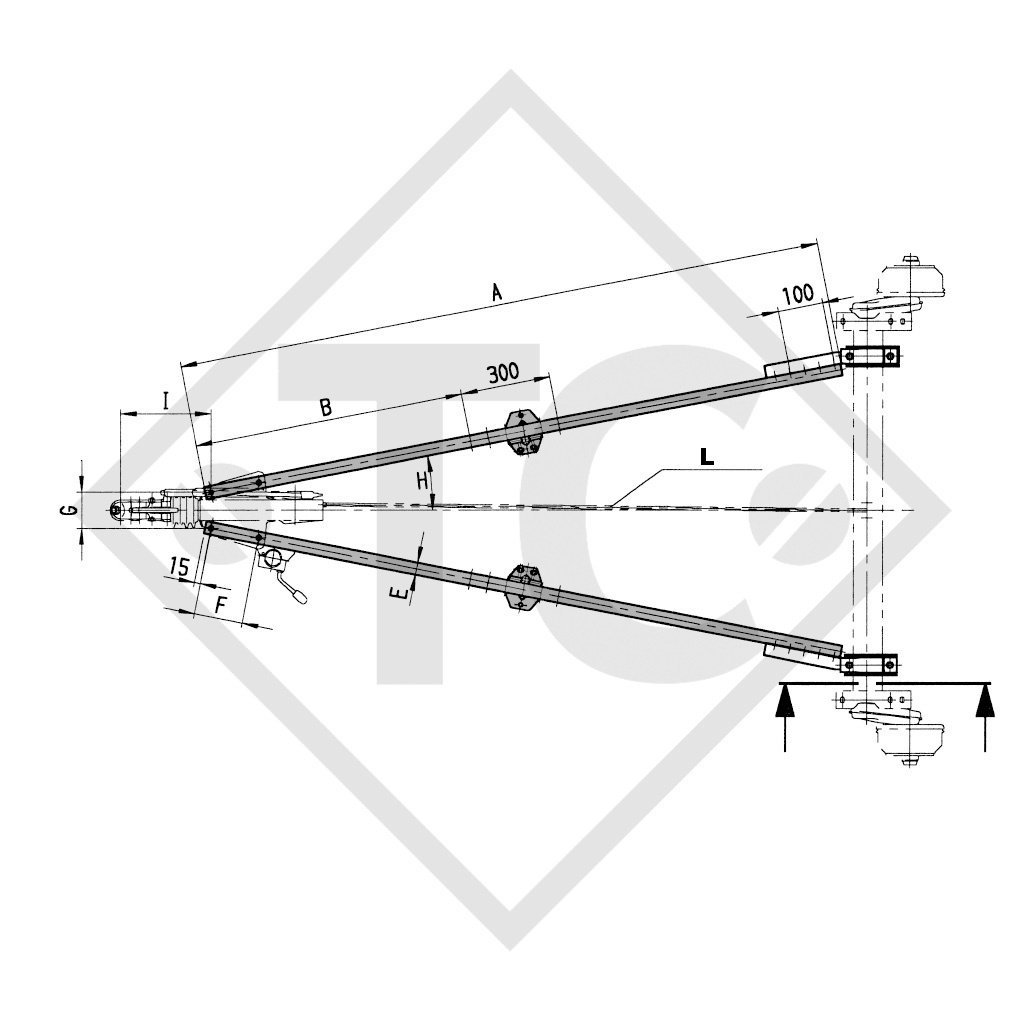

Dimensions Length

3000mm

B	1100 to 1400mm

80mm

53mm

50mm

208mm

135mm

Overrun device

H with top installation

8° to 20°

H with bottom installation

8° to 20°

330mm

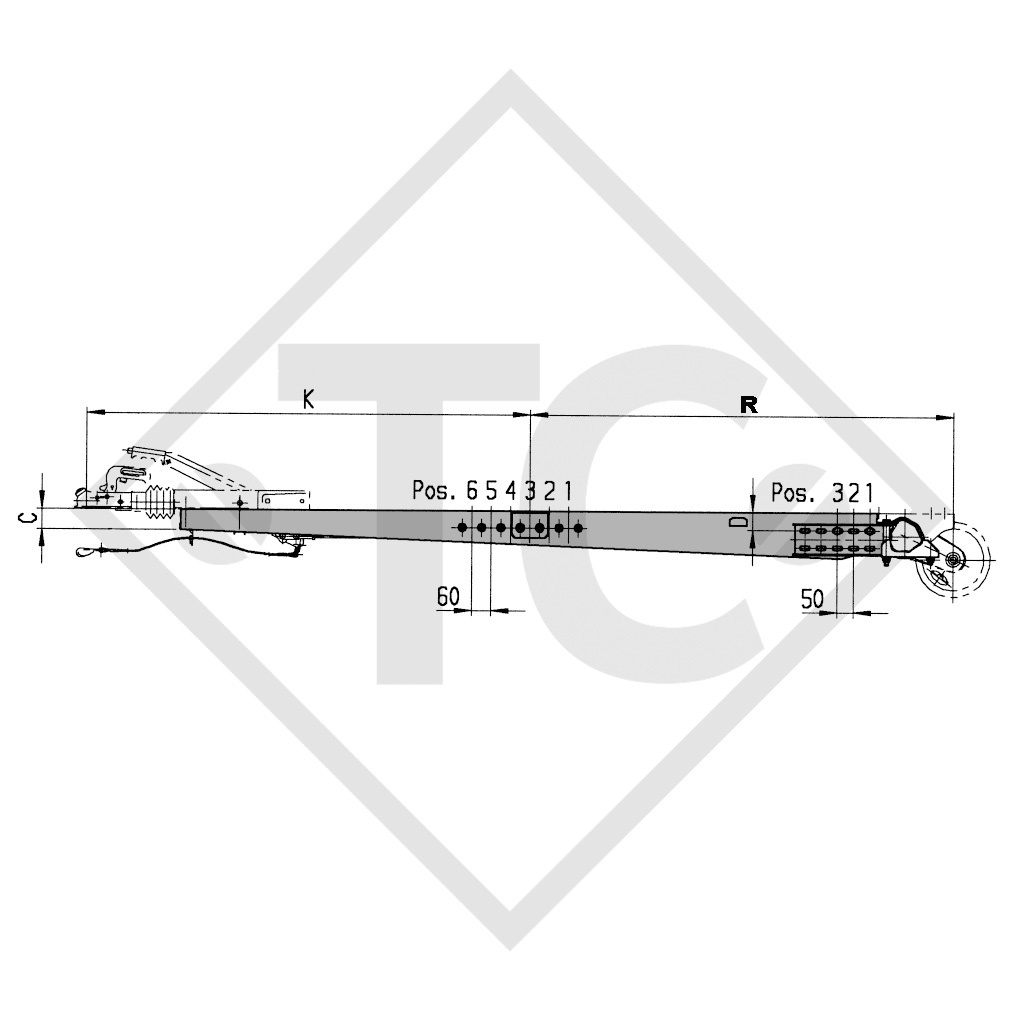

K with

H 14° 1190 to 1485mm

R (loaded)

1320 - 1710mm

K max. permitted acc. to report

1945mm

Matching overrun device top installation type

AE3500

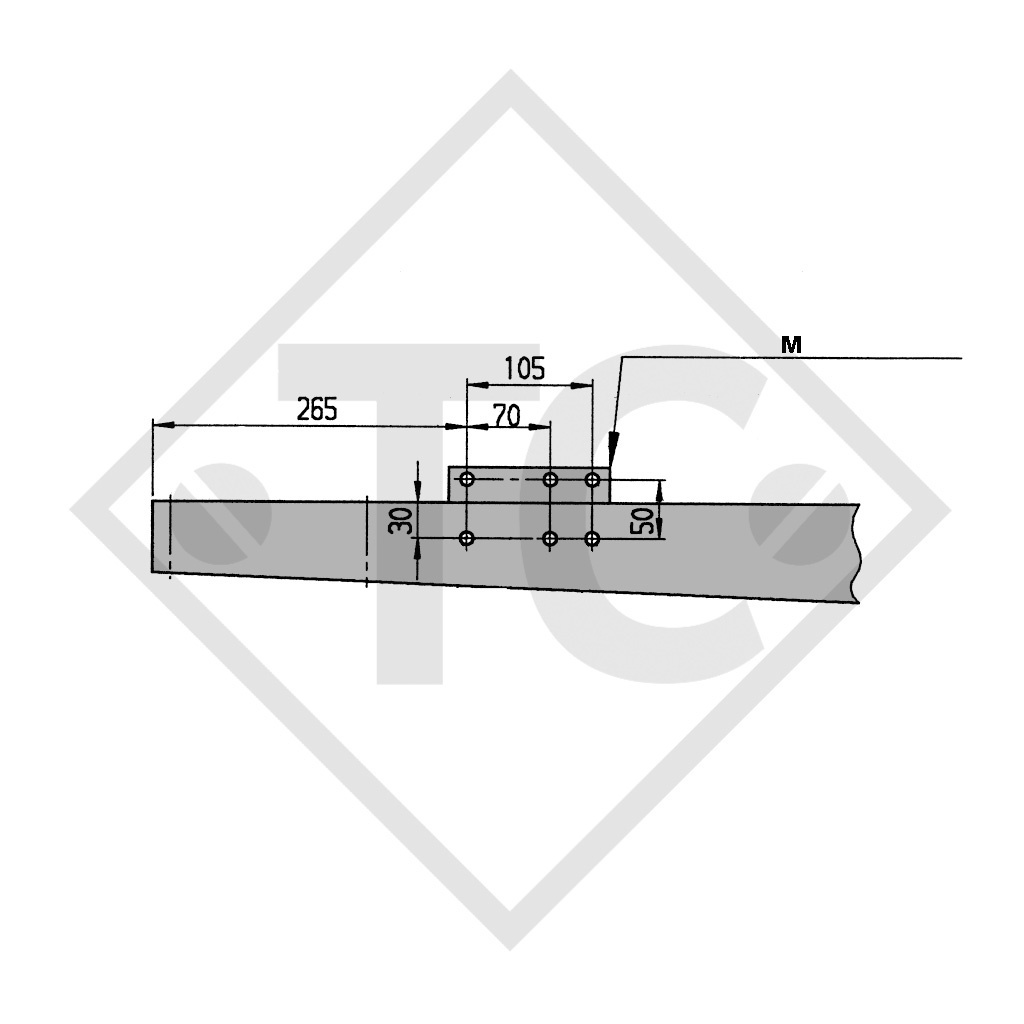

M	Plate for 251T and 351T

TOWBAR CONNECTIONS
Calculation diagram and setting values

SURFACE TREATMENT
Hot-dip galvanised

SCOPE OF DELIVERY
Towbar connection (pair) including:
Fixing bolts
Jockey wheel attachment

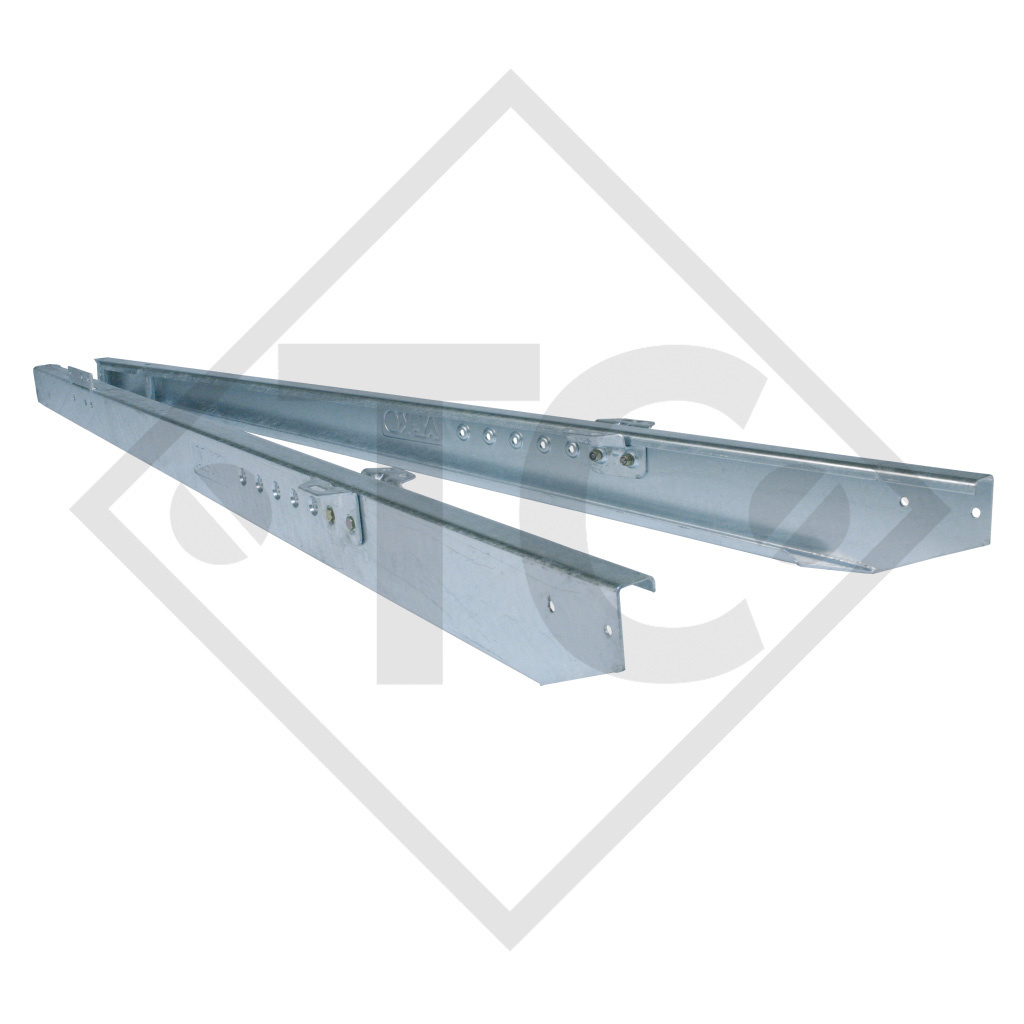

AL-KO Towbar connection (pair) type 351T to 3500kg
