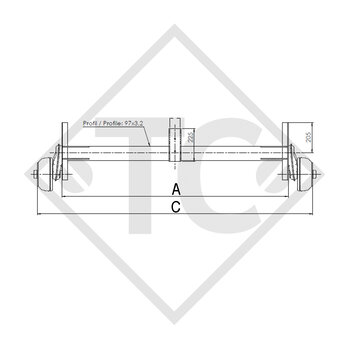

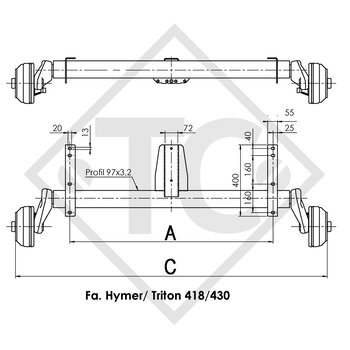

BC: dimension A 1540mm, OHF: dimension C 1942mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1850mm, OHF: dimension C 2300mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1485mm, OHF: dimension C 1905mm, wheel connection 139,7x4, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1395mm, OHF: dimension C 1790mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 990mm, OHF: dimension C 1430mm, wheel connection 120x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm.
BC: dimension A 1600mm, OHF: dimension C 2110mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M14x1.5, axle fit for flushingsystem.
BC: dimension A 1600mm, OHF: dimension C 2130mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
BC: dimension A 1350mm, OHF: dimension C 1800mm, wheel connection 114.3x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5.
