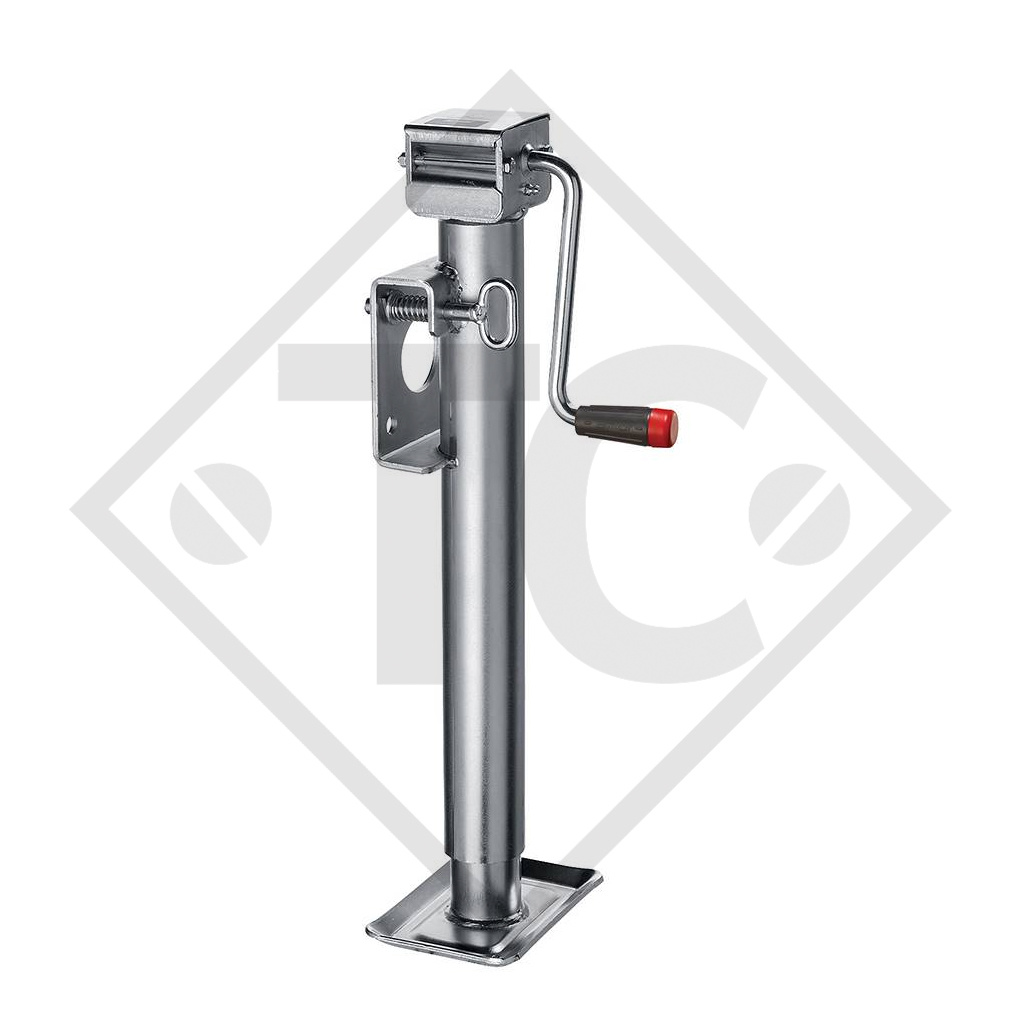

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / UNBRAKED AXLES & ACCESSORIES / UNBRAKED AXLES / UNBRAKED AXLE 750KG BASIC, AXLE TYPE 700-5 WITH SHACKLE AND HIGH AXLE BRACKET / Steday leg pivoting ø57mm round with side crank, with flange, type LF 3151, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 365mm, maxi. static load 1300kg, dimension D 550mm, dimension E 165mm, dimension G 120x165mm, dimension I 390mm. Read more...
| Outer tube |
ø57mm |
| Screw stroke (extended length) | 365mm |
| Maxi. static load | 1300kg |

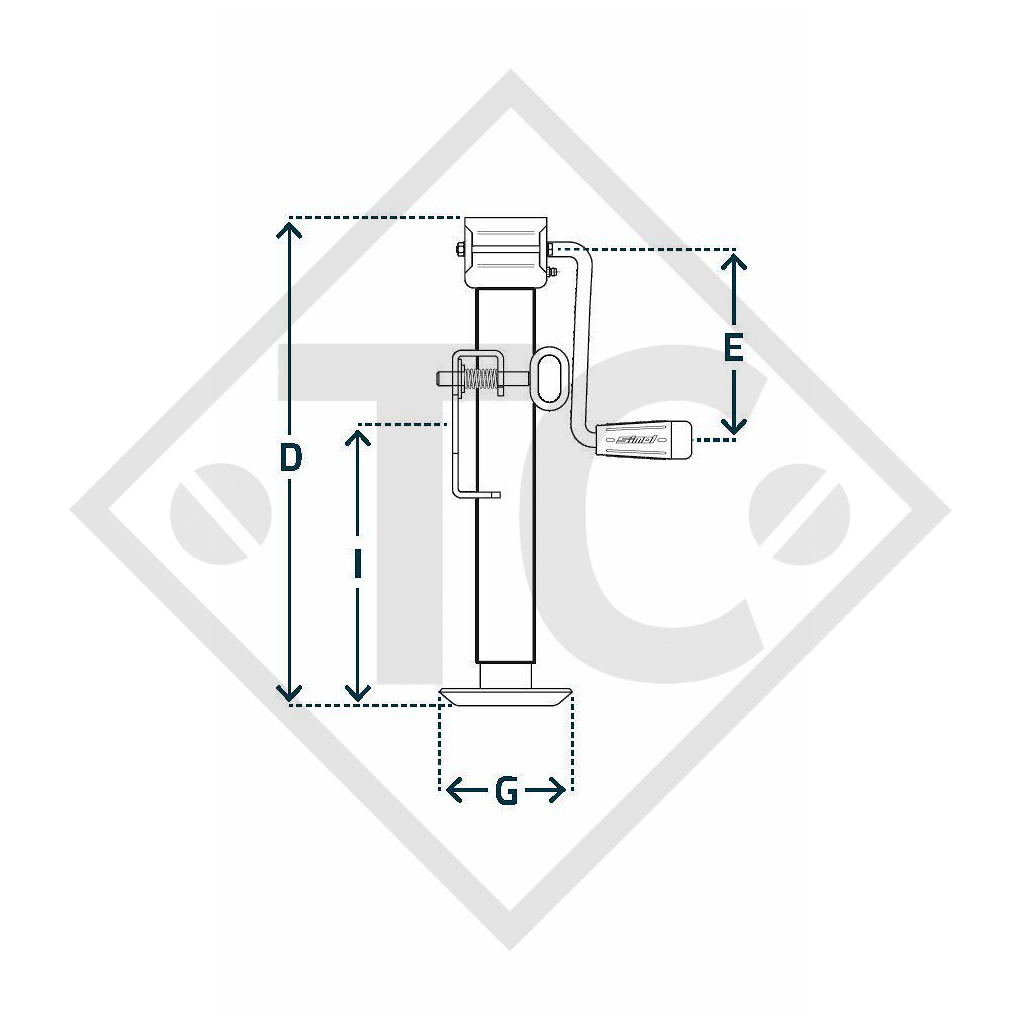

| Dimension D |
550mm |
| Dimension E |
165mm |
| Dimension G |
120x165mm |
| Dimension I | 390mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
