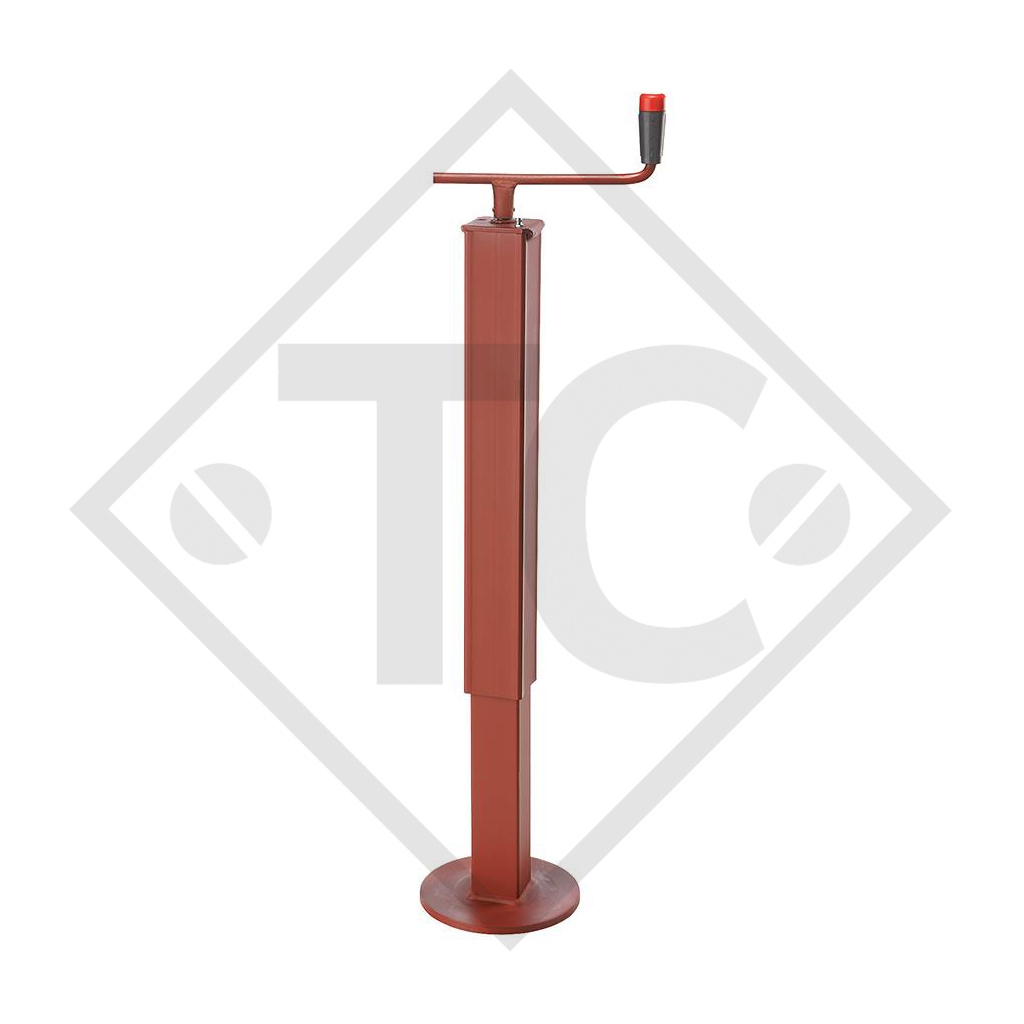

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT 450 TO 3500KG / TYP 161S - R26 AUSF. A BIS 1600KG OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT TYPE 251S - R26 VERS. A TO 2600KG / Steday leg □70mm square, top crank, type P 560, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 310mm, maxi. static load 1000kg, dimension B 500mm, dimension D 675mm, dimension E 185mm, dimension G 160mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 310mm |
| Maxi. static load | 1000kg |

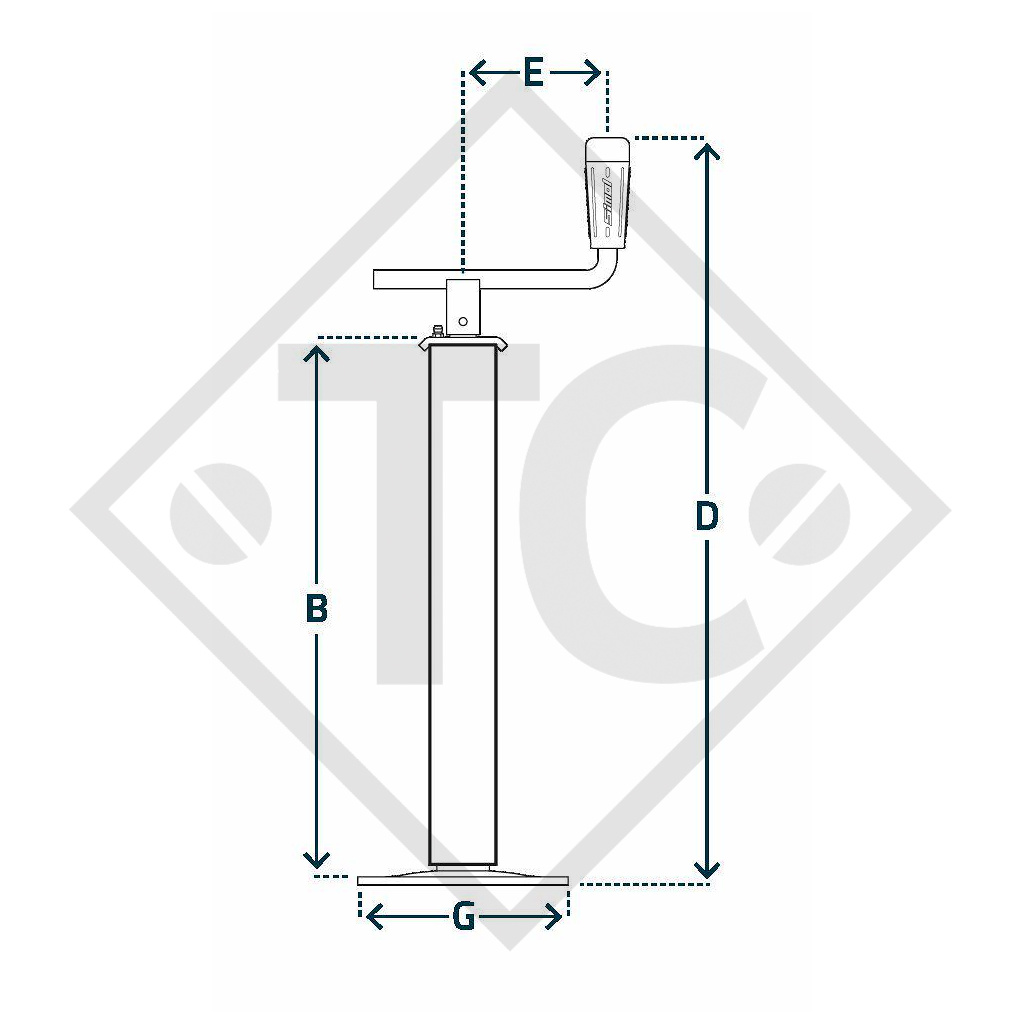

| Dimension B |
500mm |
| Dimension D |
675mm |
| Dimension E |
185mm |
| Dimension G |
160mm |
Zinc plated version on request.
Here, you can find the catalogue page(s) as a convenient PDF download.
