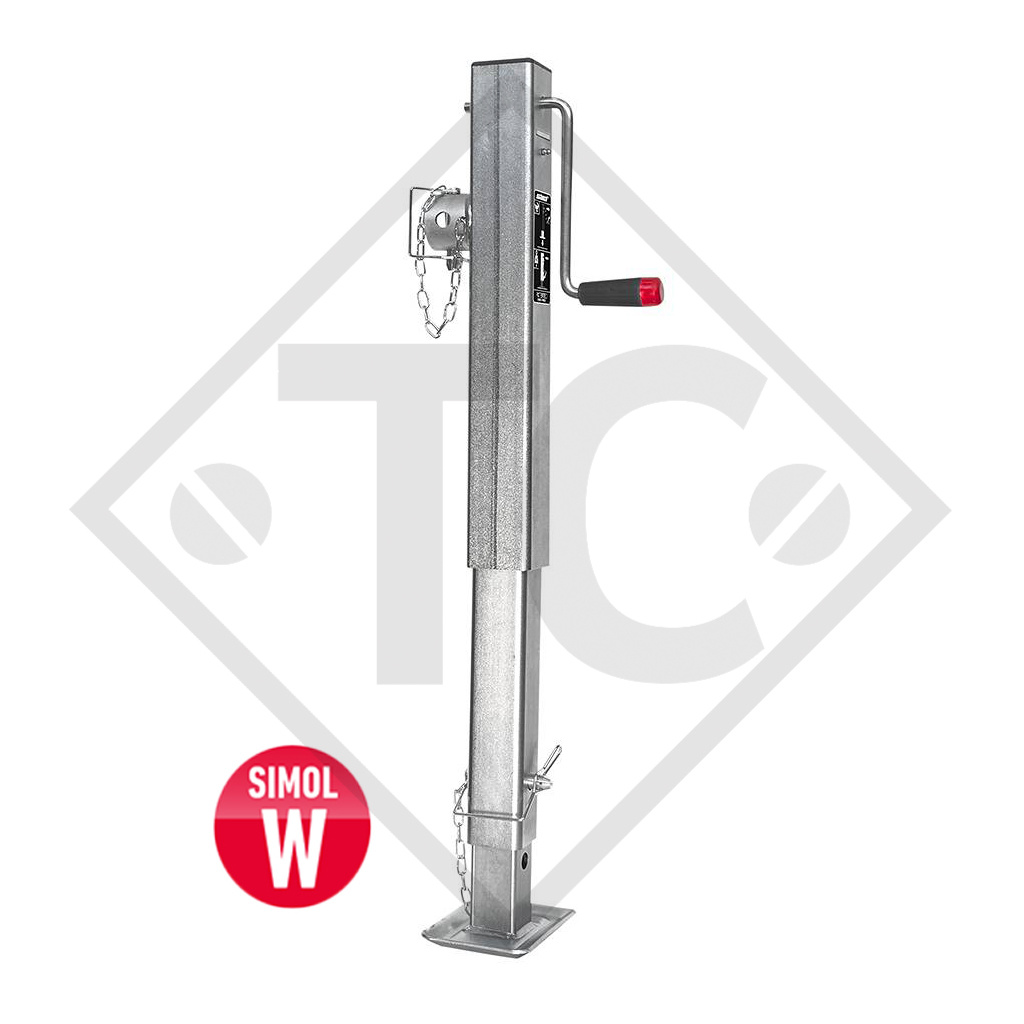

Home / Steday leg □70mm square, top crank, double speed, three-stage, type DG 600/3SF1W, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 300mm, maxi. static load 3270kg, dimension B 545mm, dimension C 375mm, dimension D 635mm, dimension E 210mm, dimension G 120x165mm, dimension H 355mm, dimension I 462mm. Read more...
| Outer tube |
□70mm square |
| Screw stroke (extended length) | 300mm |
| Maxi. static load | 3270kg |

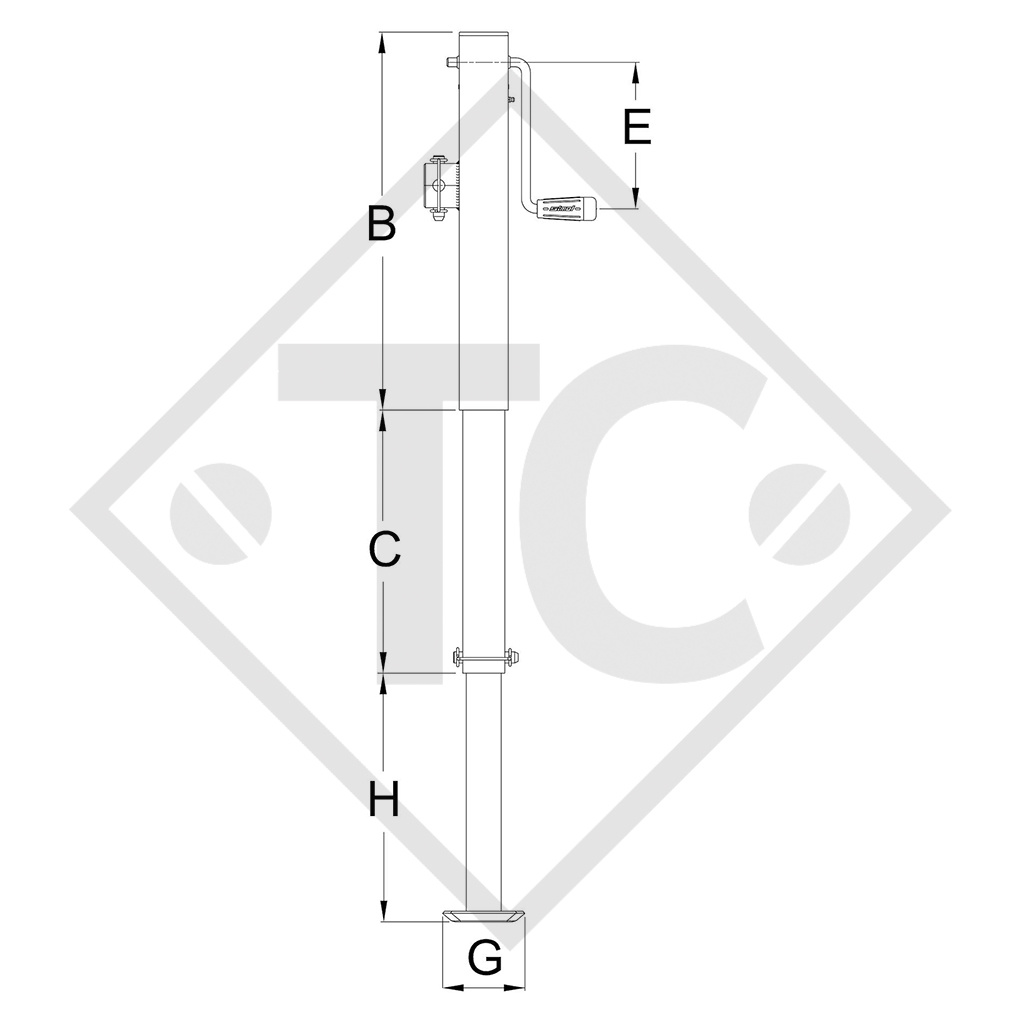

| Dimension B |
545mm |
| Dimension C |
375mm |

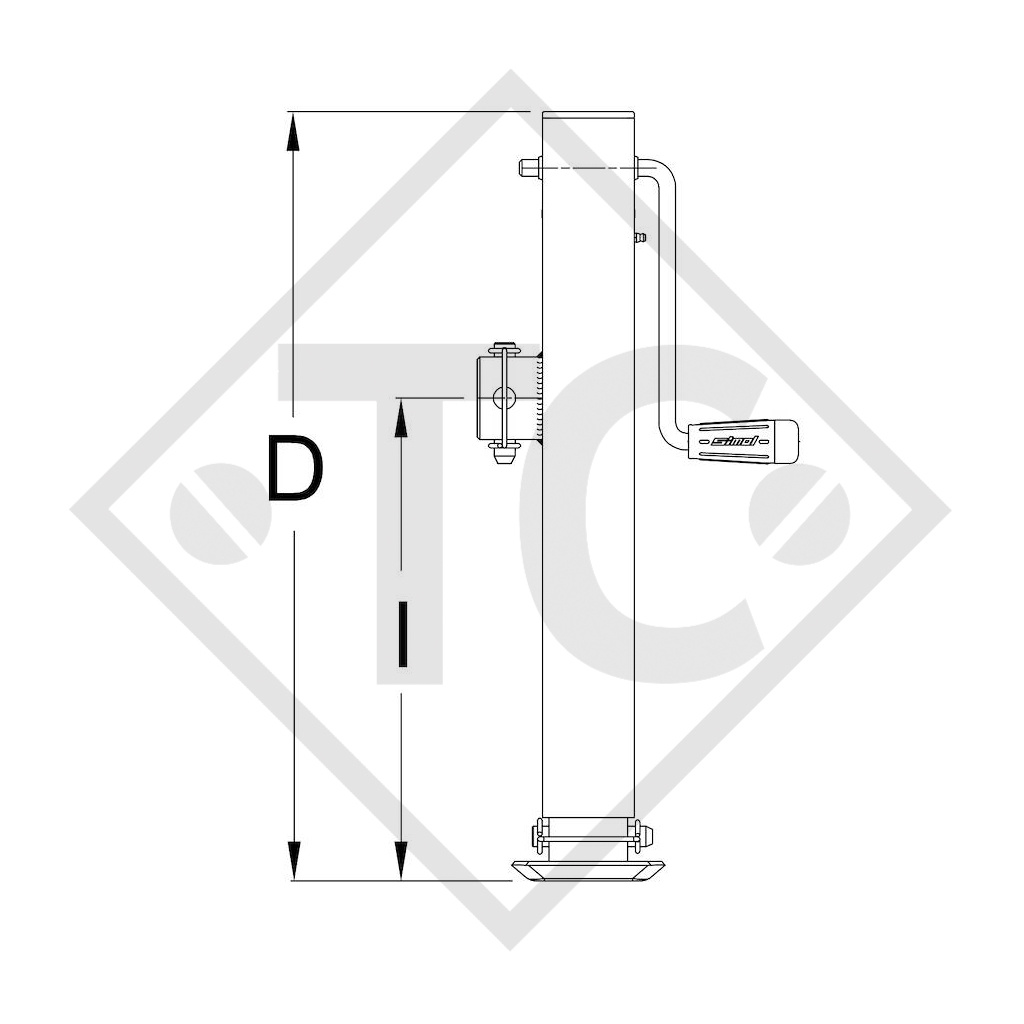

| Dimension D |
635mm |
| Dimension E |
210mm |
| Dimension G | 120x165mm |
| Dimension H | 355mm |
| Dimension I | 462mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
