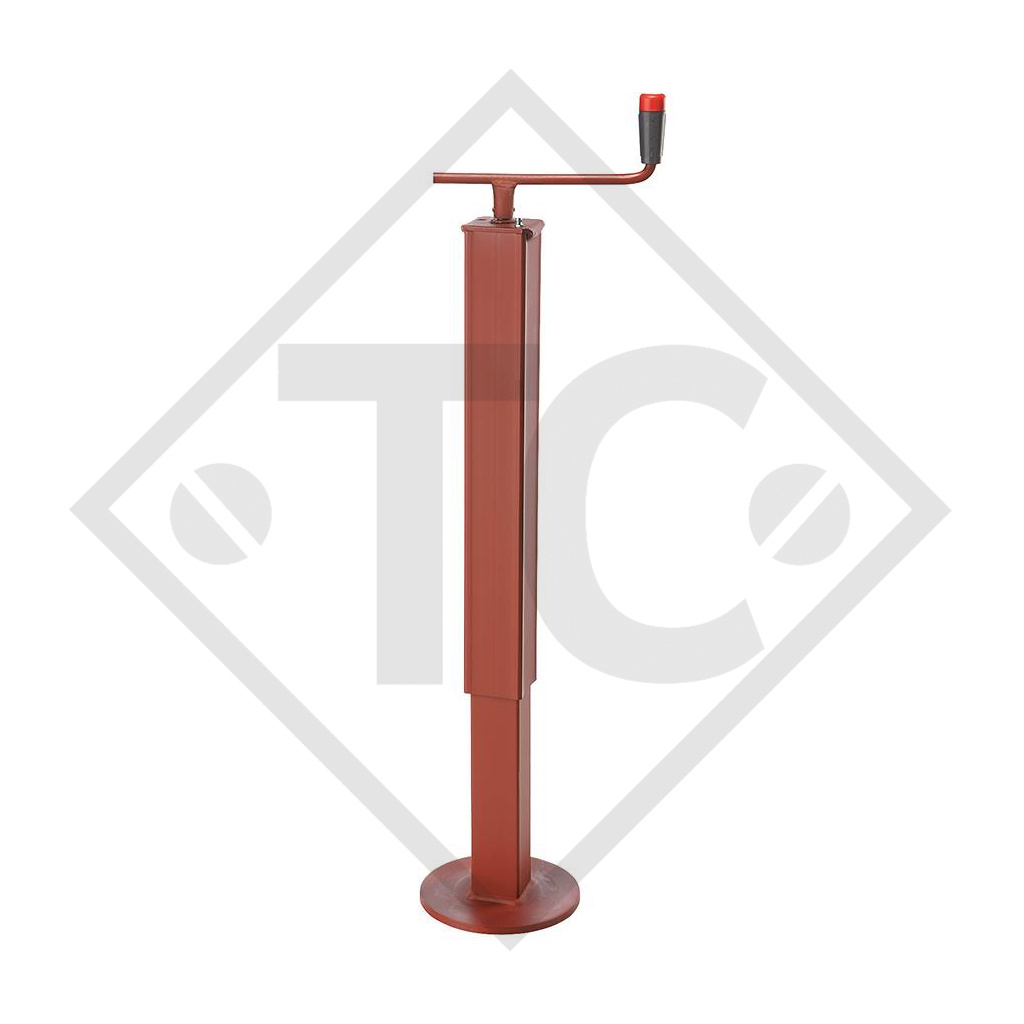

Steday leg □60mm square, type P 548

Steday leg □60mm square, top crank, type P 548, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

screw stroke (extended length) 420mm, maxi. static load 800kg, dimension B 600mm, dimension D 780mm, dimension E 125mm, dimension G 160mm. Read more...

Wishlist: Add to comparison:

Price 82,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Outer tube

□60mm

Screw stroke (extended length)

420mm

Maxi. static load

800kg

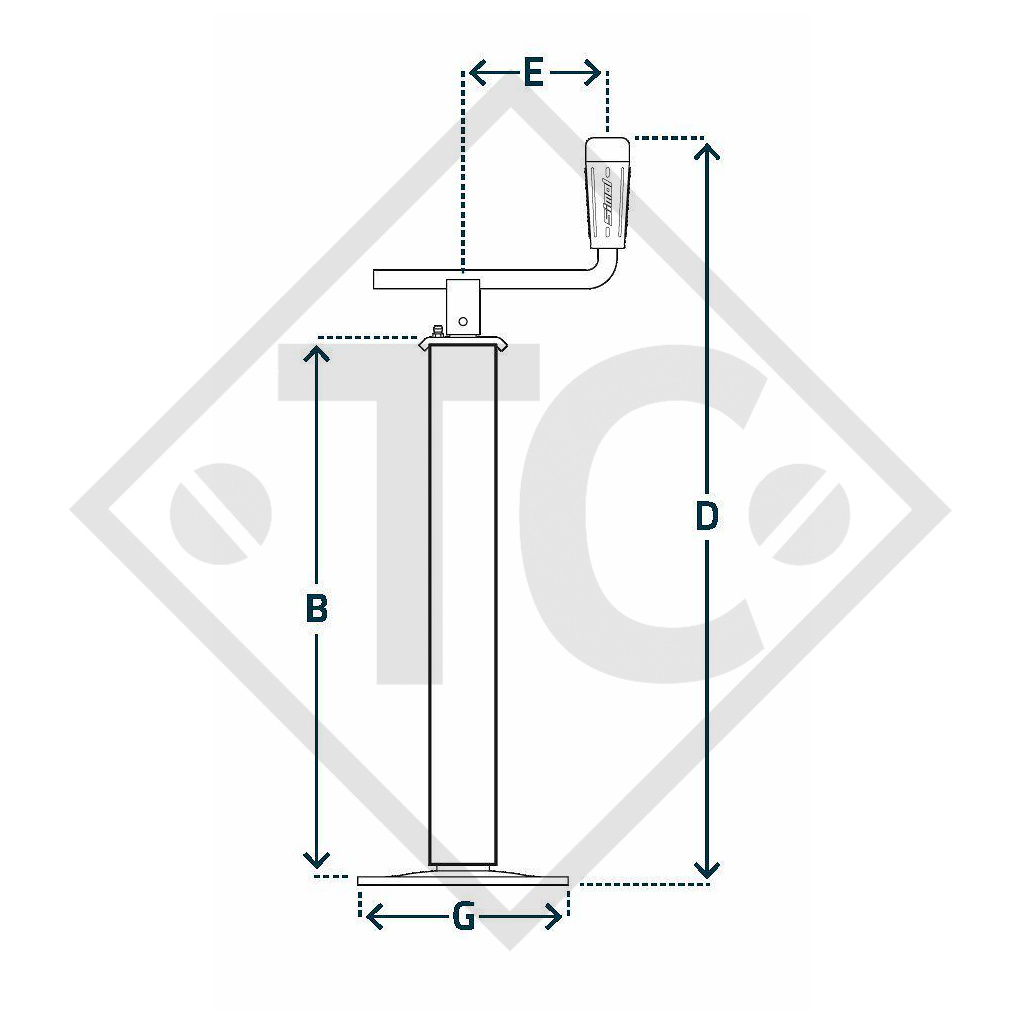

Dimension B

600mm

Dimension D

780mm

Dimension E

125mm

Dimension G

160mm

Zinc plated version on request.

Here, you can find the catalogue page(s) as a convenient PDF download.

SIMOL Steday leg □60mm square, top crank, type P 548, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
