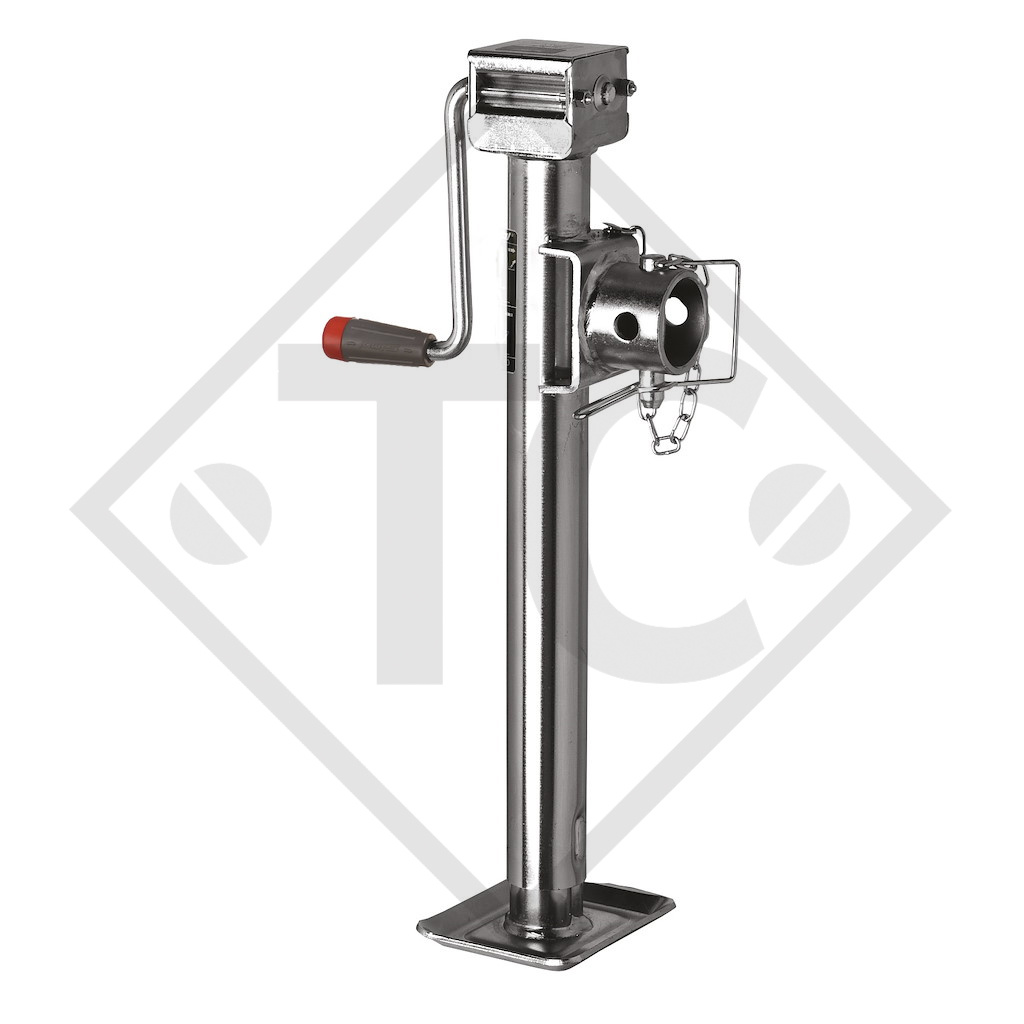

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLES / BRAKED AXLE 1800KG BASIC, AXLE TYPE CB1800 / Steday leg ⌀57mm, side crank and reductions gears, double speed, type LT 5103W, galvanised, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 260mm, maxi. static load 3180kg, dimension D 420mm, dimension E 220mm, dimension G 120x165mm, dimension I 265mm. Read more...
| Outer tube |
⌀57mm |
| Screw stroke (extended length) | 260mm |
| Maxi. static load | 3180kg |

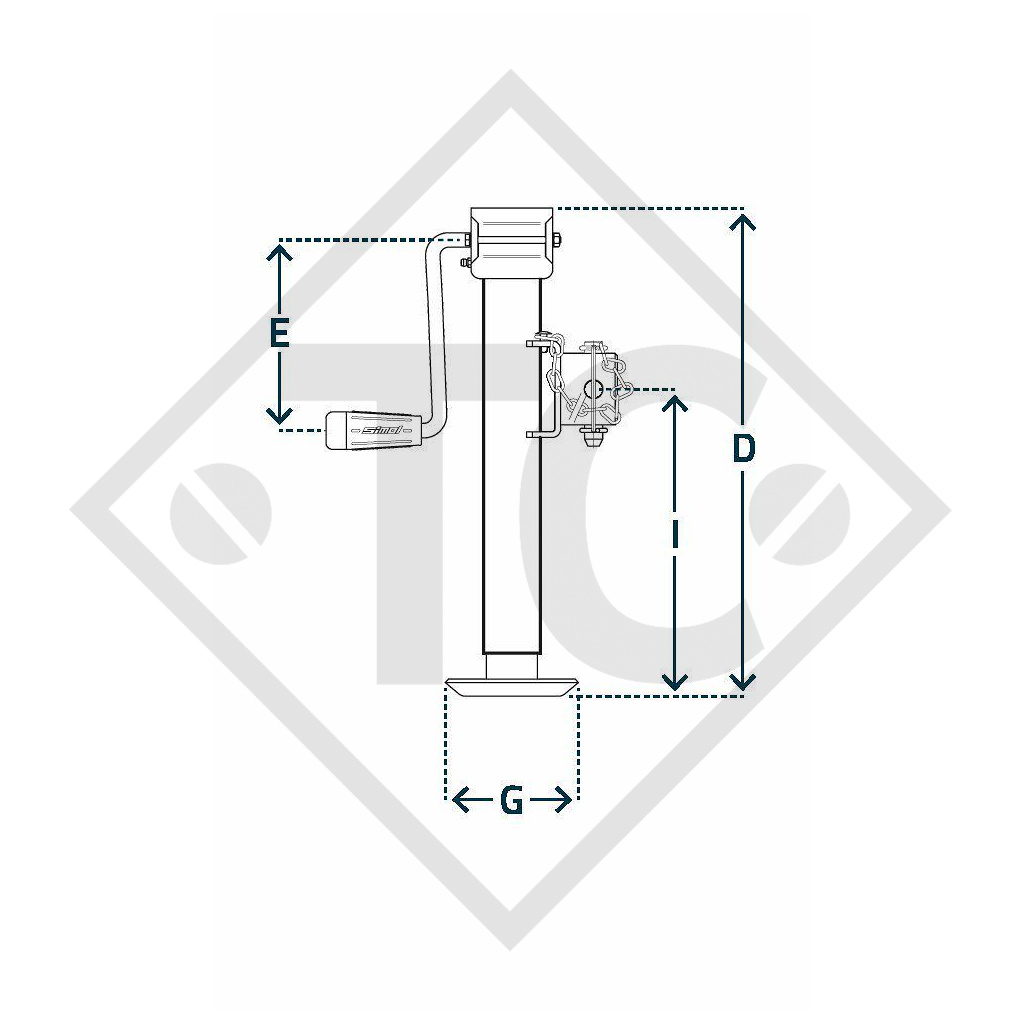

| Dimension D |
420mm |
| Dimension E |
220mm |
| Dimension G |
120x165mm |
| Dimension I |
265mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
