Home / Stabiliser AKS 3504 with integrated lock, Safety-Ball and fixing bolts for braked trailers

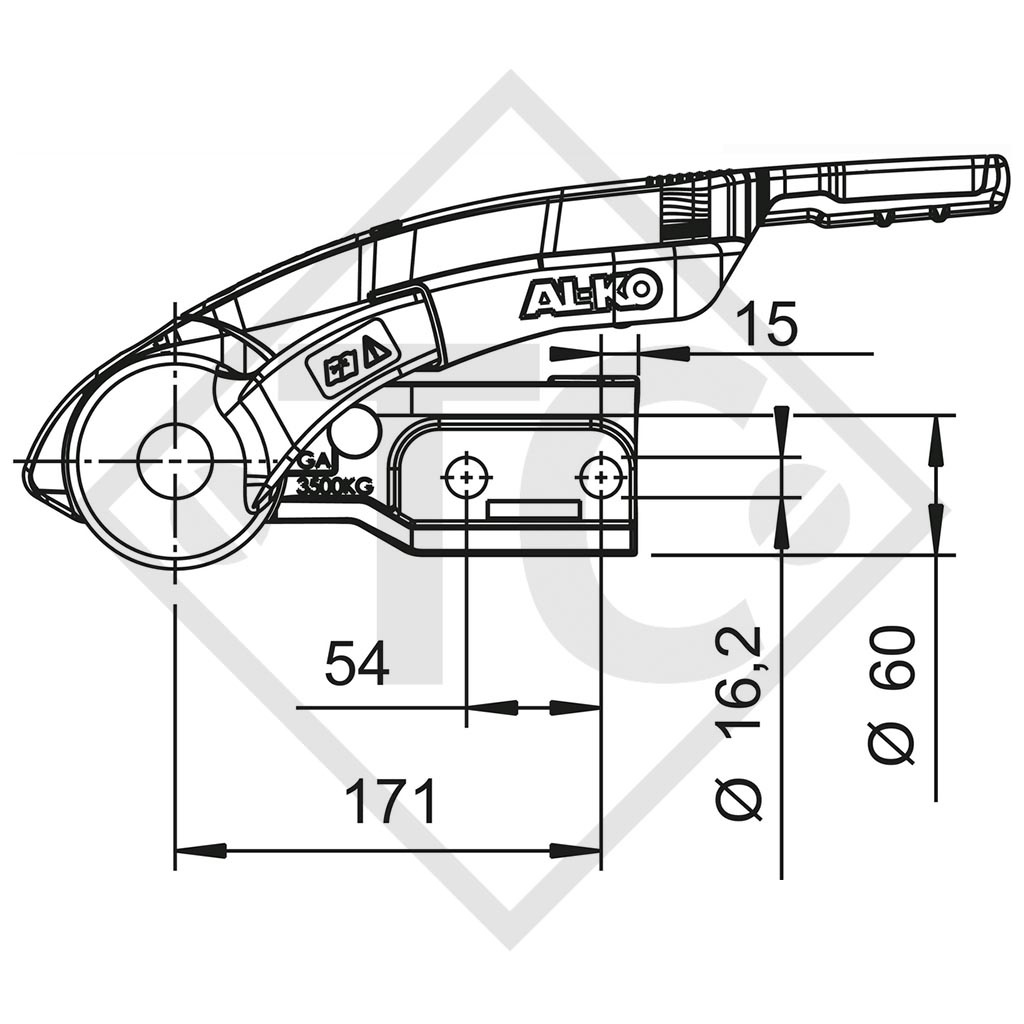

drawbar ⌀60mm round, holes (screw connection) horizontal 16.2mm, hole distance horizontal 54mm, perm. gross weight 3500kg, nose load 350kg, material: cast iron. Read more...
| Drawbar tube ⌀ |
60mm |
| Holes (screw connection) | horizontal 1662mm |
| Hole distance | horizontal 54mm |
| Perm. gross weight | 3500 kg |
| Nose load |
350 kg |
| D / Dc value |
31,0 kN |
| Material | Cast iron |
| Tightening torque strength class 8.8 | M16: 195 Nm |
| ECE type approval no. | E1 55R-01 1796 |
STABILISER COUPLING AKS™
for braked trailers up to 3500 kg
YOUR ADVANTAGE
Safe and relaxed driving with the AKS™
Swaying and pitching movements of the trailer are effec-tively suppressed with the stabiliser coupling.
Emergency situations
The vehicle combination can be restored to stability faster in an emergency situation with the AKS™. Furthermore, the stabiliser coupling permits a higher theoretical maximum speed (pay attention to permitted maximum speed). The AKS™ 3004/3504 complies with ISO 11555-1 (100 km/h approval possible).
Function
Operating the stabilisation handle presses four special friction pads against the car's towball from the left and right as well as the front and rear. The maximum braking torque of the pads can be 320 Nm. Swaying or pitching movements are thus effectively suppressed before they become serious.
Operation
The hitch and stabilisation handles are separate from one another, and each can be operated with one hand. No complicated additional securing devices. The stabilisation handle is simply opened for easier manoeuvring of the trailer.
The AKS – with even better ergonomics – has been presented with the Caravaning Design Award and the Red Dot Design Award for its particularly successful design!
On request as standard equipment or can be retrofitted to trailers with AL-KO chassis.
Function and operation
How to hitch up correctly:
- Use the hitch handle to place the AKS™ on the ball (ball must be free from grease and have a bare metal surface). Push the hitch handle down.
- Push the stabilisation handle down. The AKS™ is now ready for towing.
STABILISIERUNGSKUPPLUNG AKS™
für gebremste Anhänger bis 3500 kg
YOUR ADVANTAGE
ECE approval – no TÜV registration is therefore necessary
Approved for 100 km/h operation accor-ding to ISO 1 1555-1
SURFACE TREATMENT
Housing: Dacromet-coated
Hitch handle: galvanised
Soft-Dock: rubber mixture
Stabilisation handle: Aluminium and Dacromet-coated, grip area additionally with plastic
CHECKING AND MAINTENANCE
| Safety indicator | Left/right friction pad wear indicator | Wear indicator |

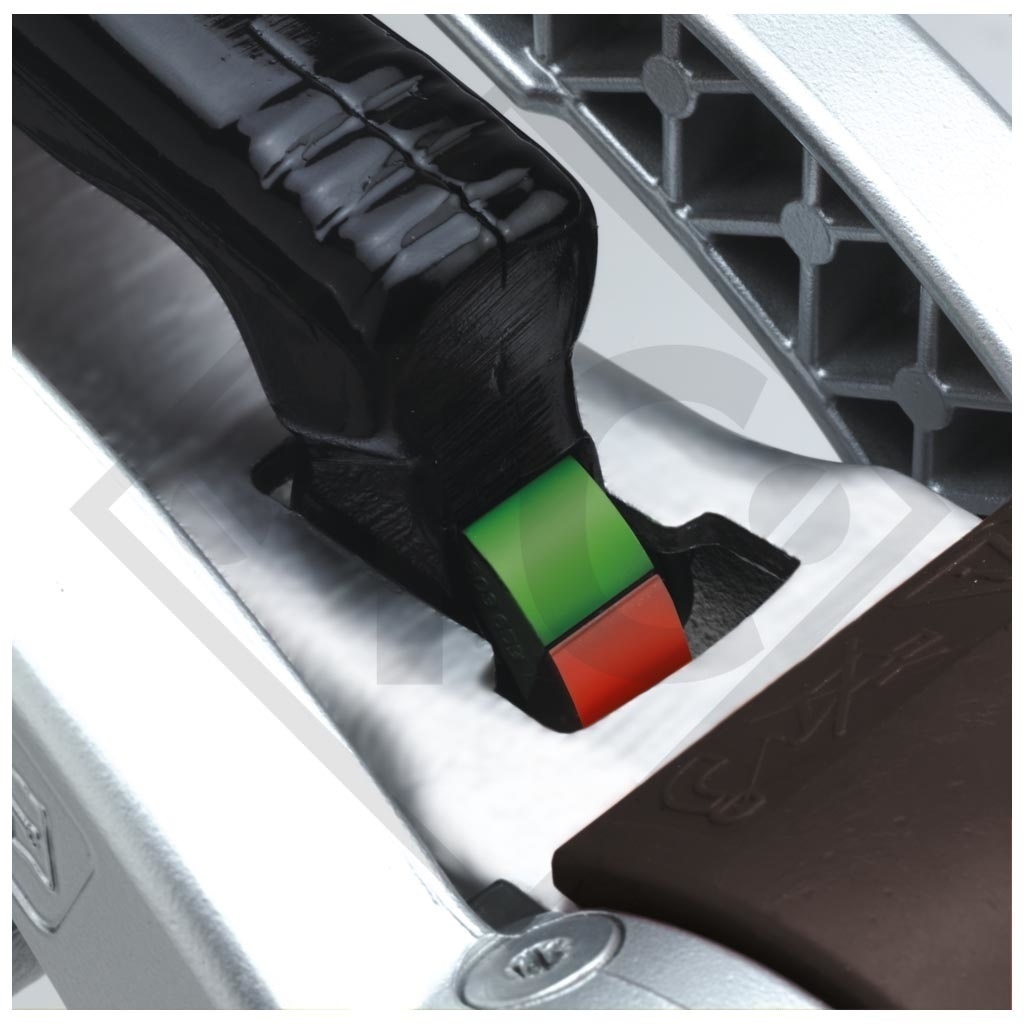

| If the green cylinder is visible, the AKS™ is correctly mounted on the ball. | Friction linings are still OK. | Friction linings are worn. | Wear indicator for front/rear friction pads and hitch mechanism. |
MOUNTING
Before mounting the AKS, check that the preconditions stated here have been met.
Please note: The ball head of the towing hitch must be free from grease and have a bare metal surface (paint must be removed).
Original operating instructions
Replacement part identification number (ETI) 811607
