Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg
Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg
Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg
Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg
Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg

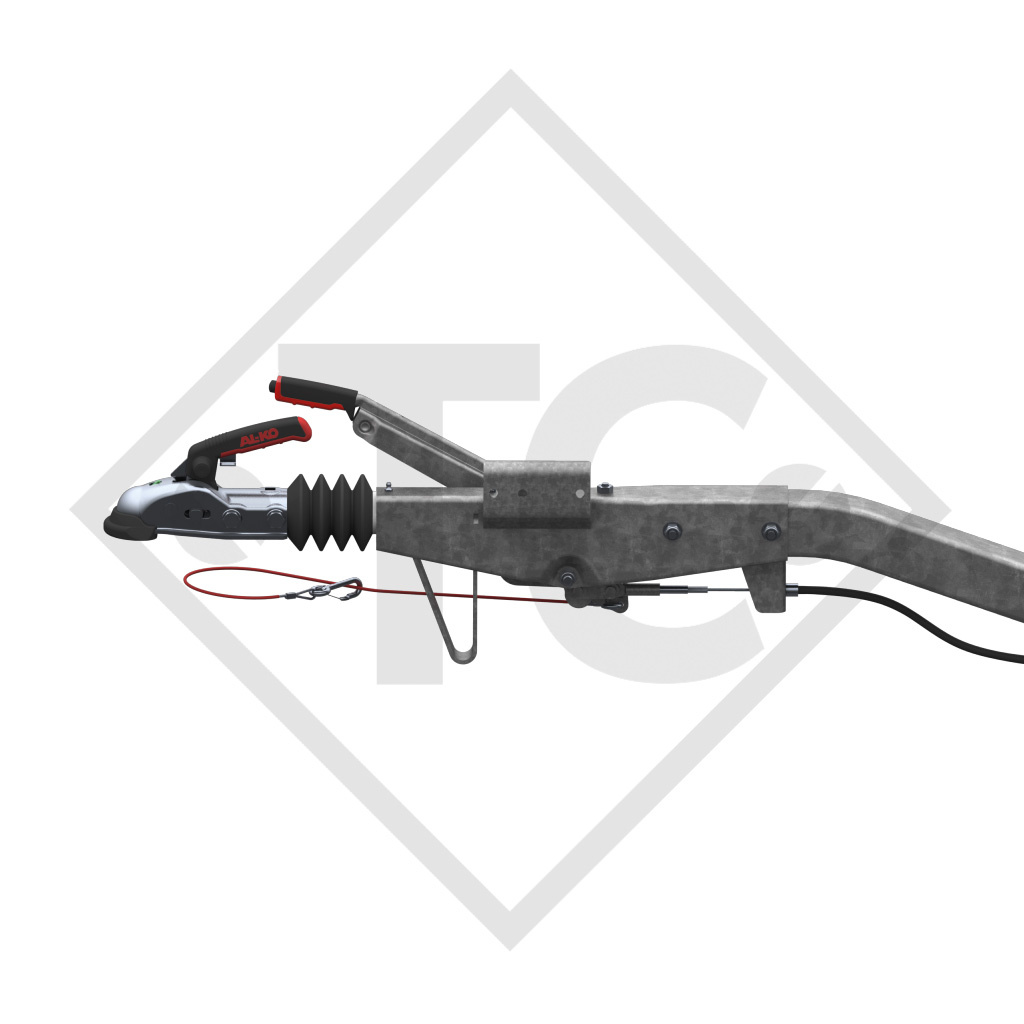

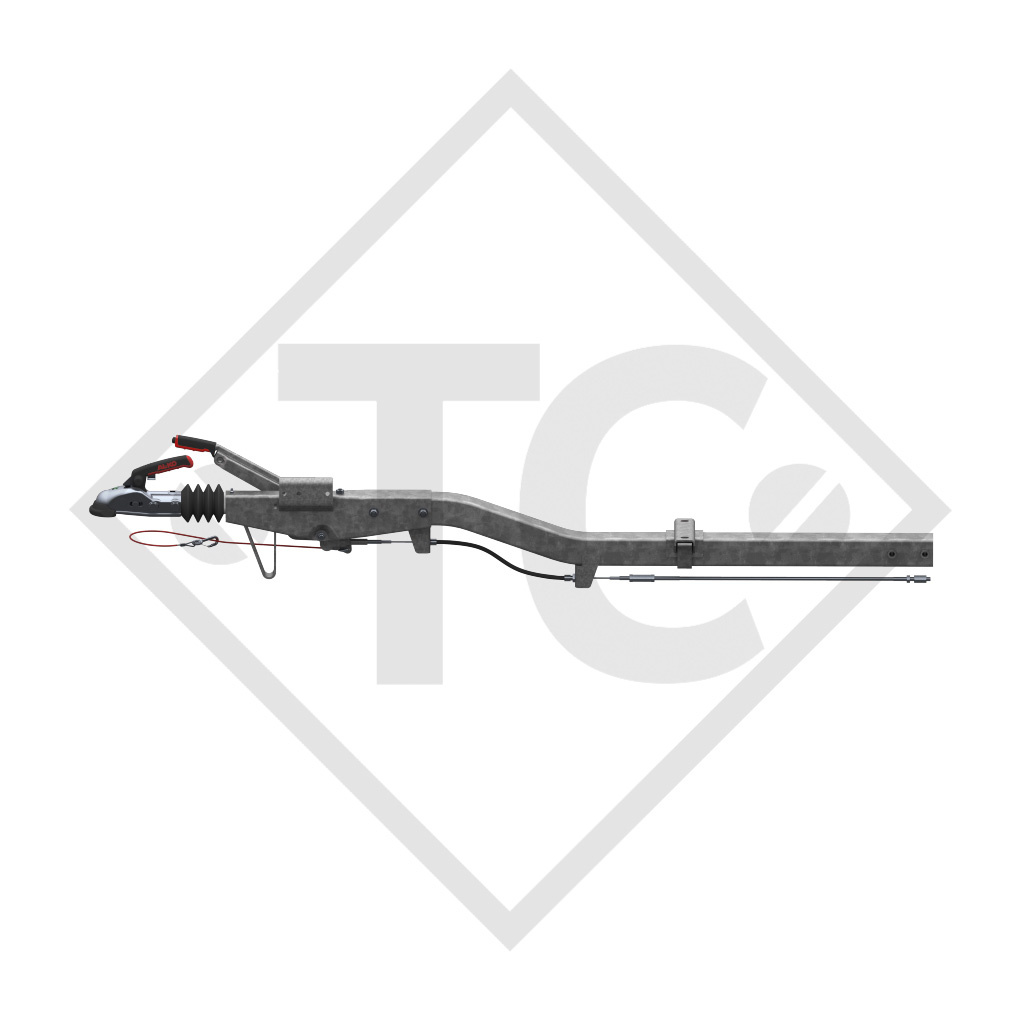

AL-KO Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg

Home / Square overrun device type 90 S/3 - K10 vers. A1 with drawbar section cranked 700 to 1000kg

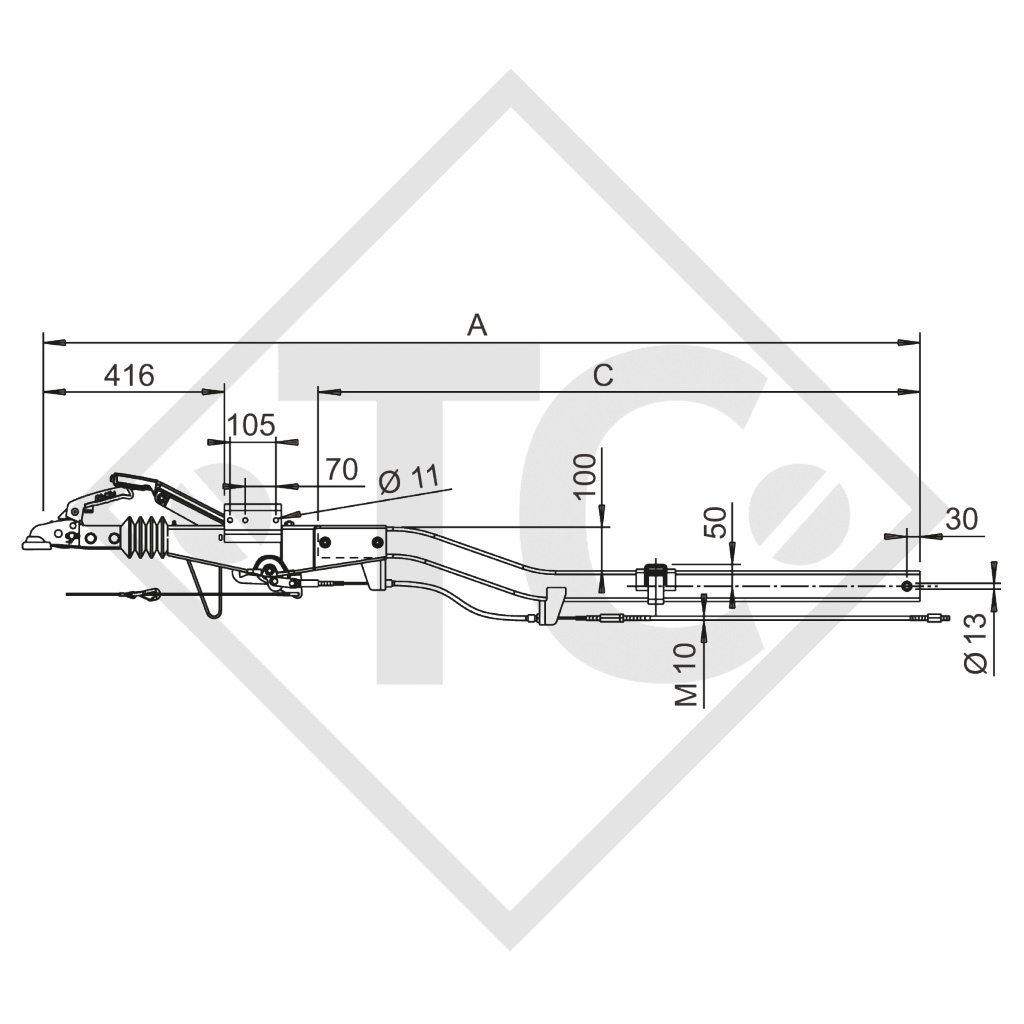

total length A 2005mm, drawbar length C 1380mm, drawbar section 70x70x4mm, perm. nose load 75kg, with coupling head AK 161, for wheel brake 1636G / 1637 / 2051. Read more...

Wishlist: Add to comparison:

Product description

INSTALLATION MANUAL
SPARE PART LIST 811172

TECHNOLOGY
Type 90 S/3 - K10 vers. A
with coupling head AK 161 for wheel brake 1636G / 1637 / 2051 (90/27)
GA 700 to 1000 kg
Perm. nose load 75 kg
Change-over relay lever: No

ECE test report no.:
Overrun device: 361-033-92
ECE type approval no.:
Drawbar installation: E1 55R-01 0233
Drawbar: E1 55R-01 2390

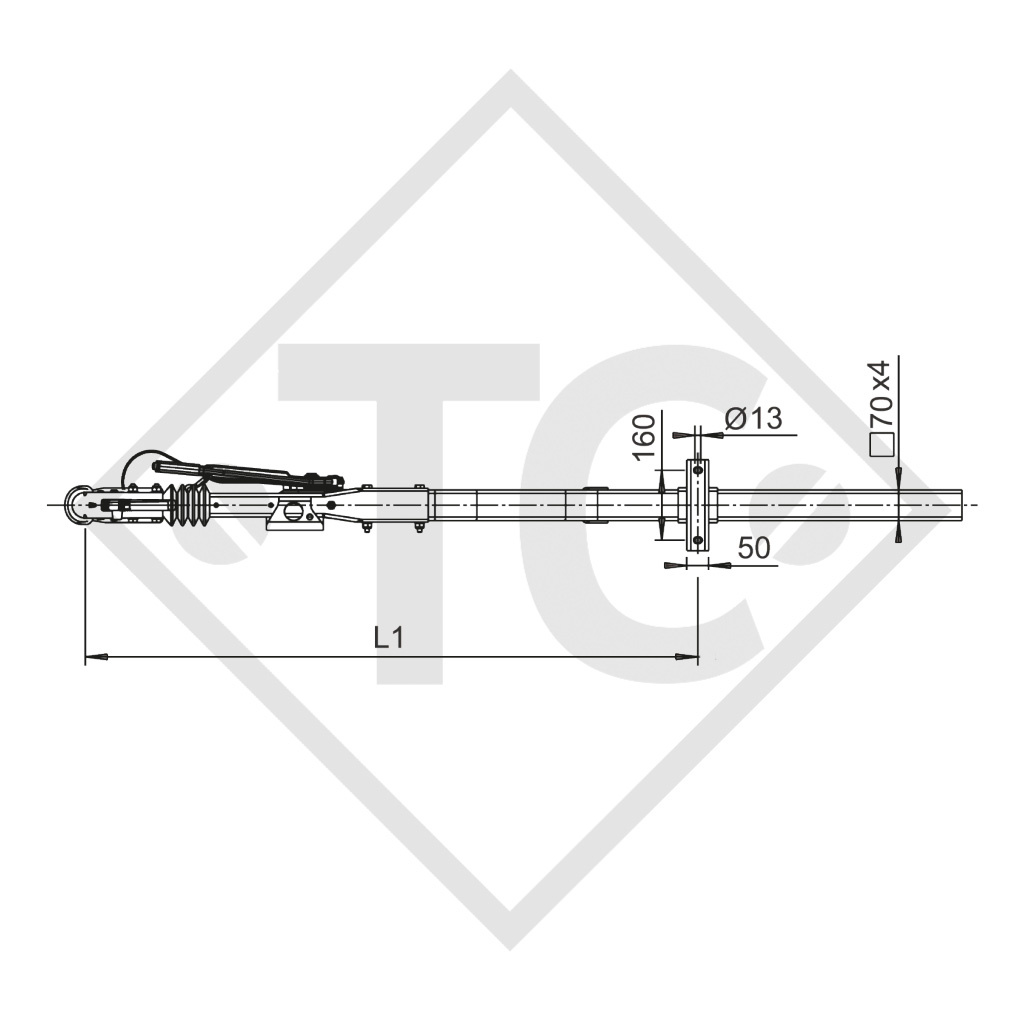

Max. free drawbar lenght at GA 1000 kg (L1): 1450 mm

SURFACE TREATMENT
Hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
