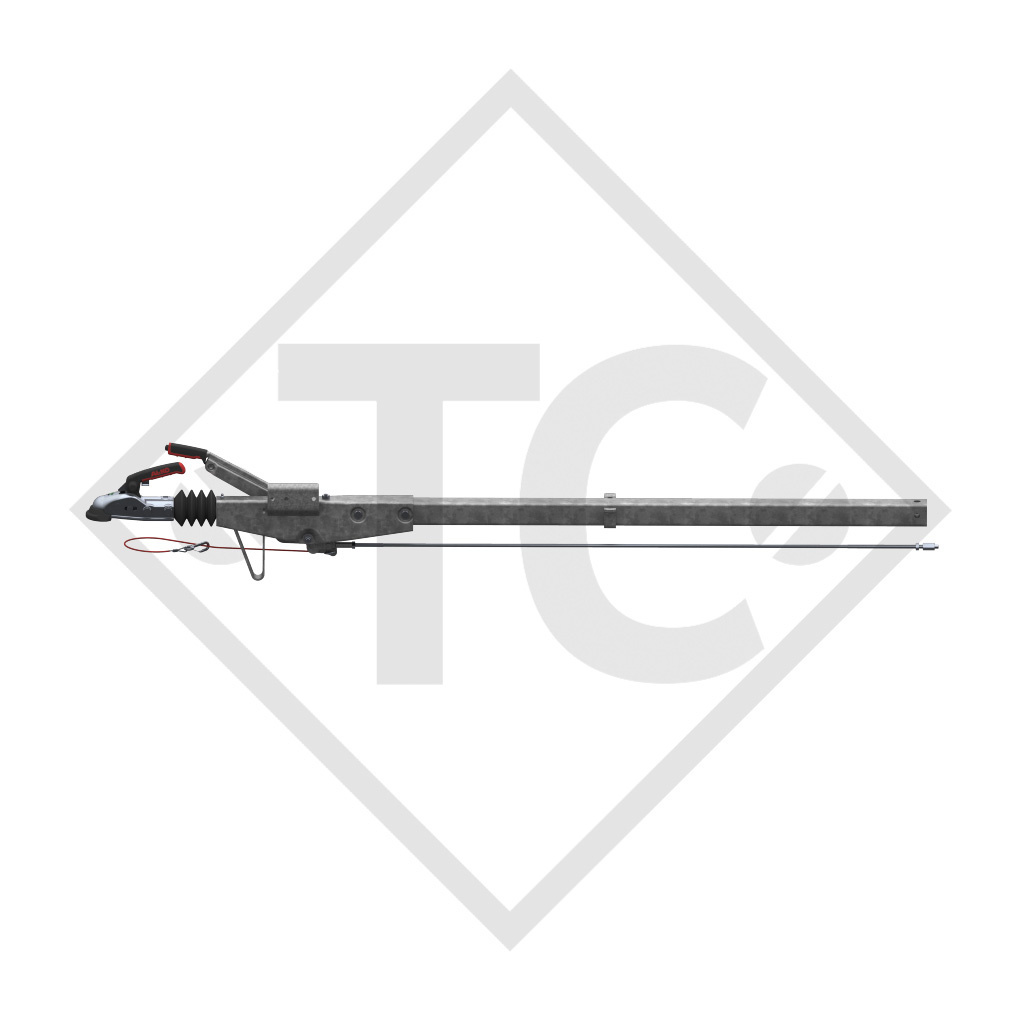

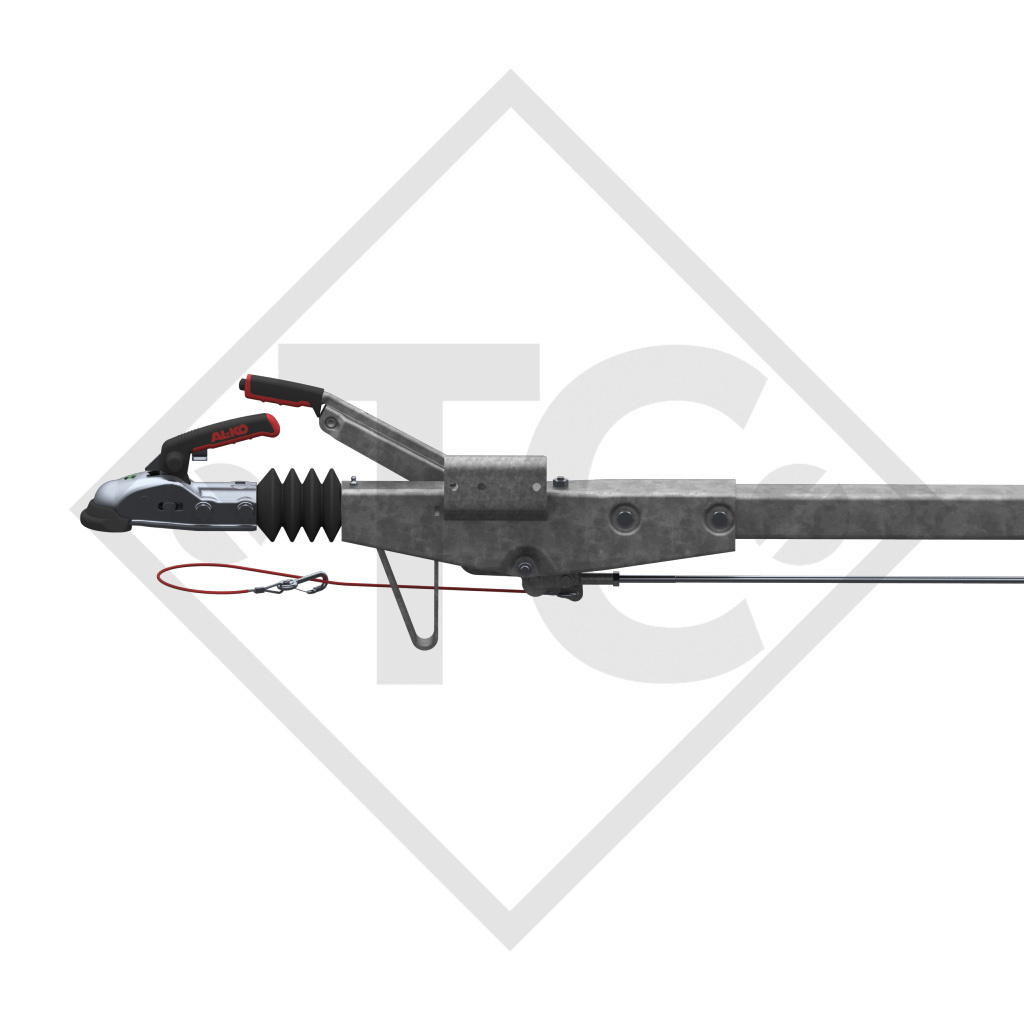

Home / Square overrun device type 60 S/2 - R4 vers. B3 with drawbar section straight 450 to 750kg
total length A 2407mm, drawbar length C 1780mm, drawbar section 60x60x4mm, perm. nose load 75kg, with coupling head AK 161, for wheel brake 1636G / 1637 / 2051. Read more...
Part no. 20061707

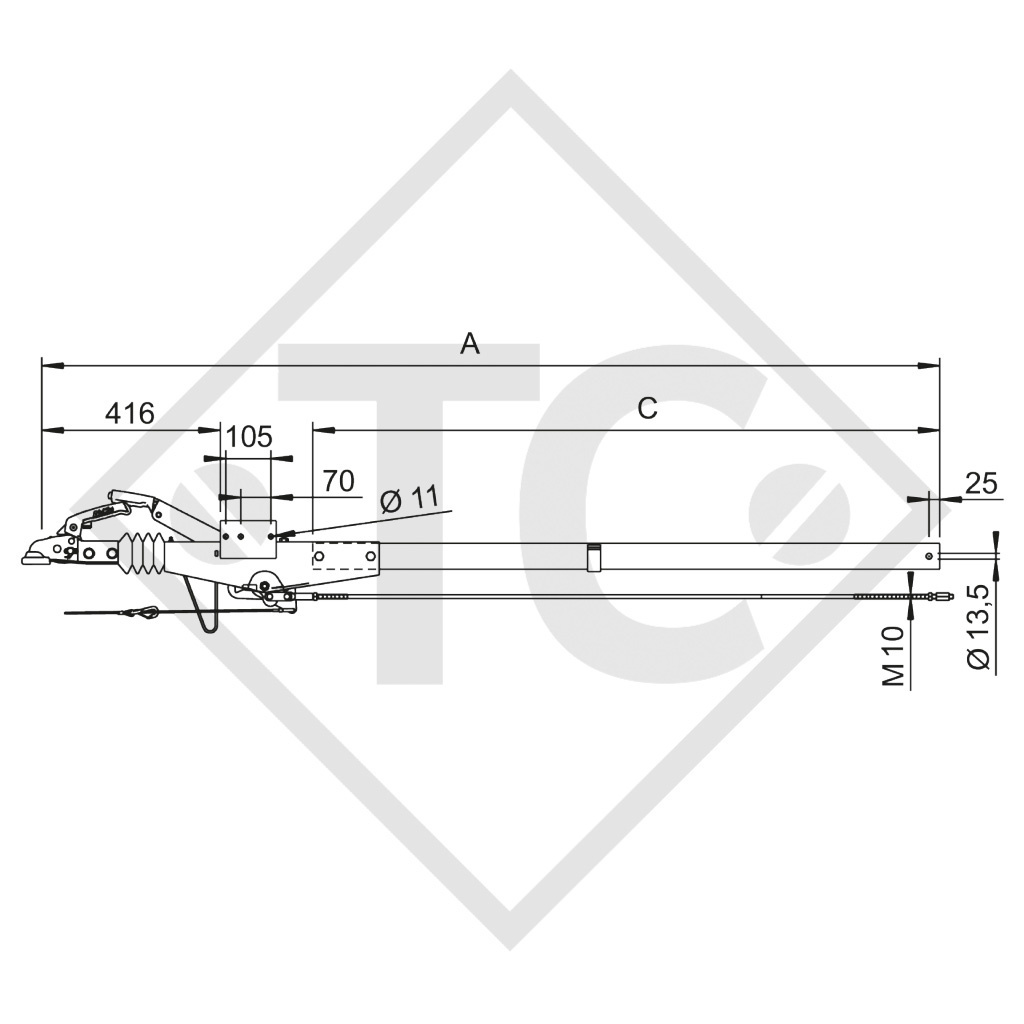

Total length A: 2407mm
Drawbar length C: 1780mm
Drawbar section: 60x60x4mm
INSTALLATION MANUAL
SPARE PART LIST 811171
TECHNOLOGY
Type 60 S/2 - R 4 vers. B 3
with coupling head AK 161 for wheel brake 1636G / 1637 / 2051 (90/27)
GA 450 to 750 kg
Perm. nose load 75 kg
Changeover relay lever: No
ECE test report no.:
Overrun device: 361-0126-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0234
Drawbar: E1 55R-01 0388

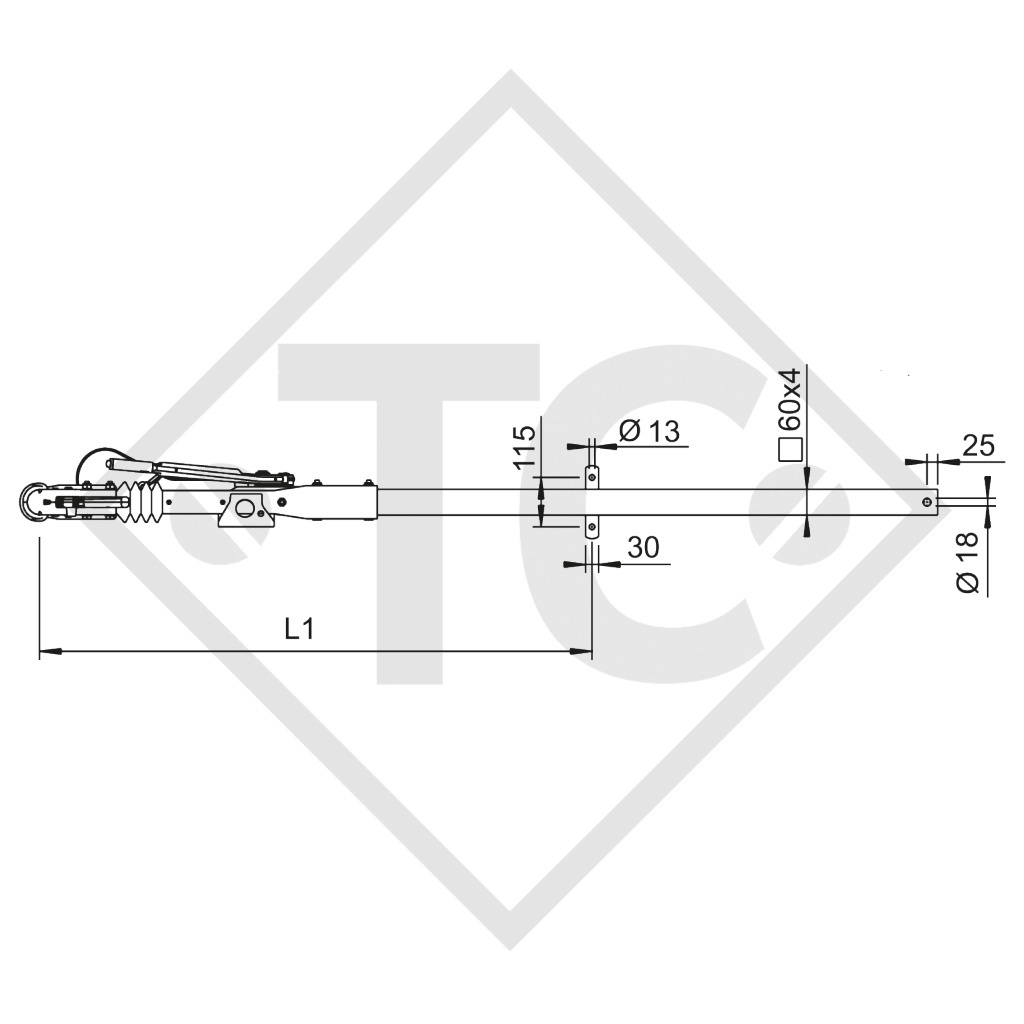

Max. free drawbar lenght at GA 750 kg (L1): 1470 mm
SURFACE TREATMENT
Hot-dip galvanised
