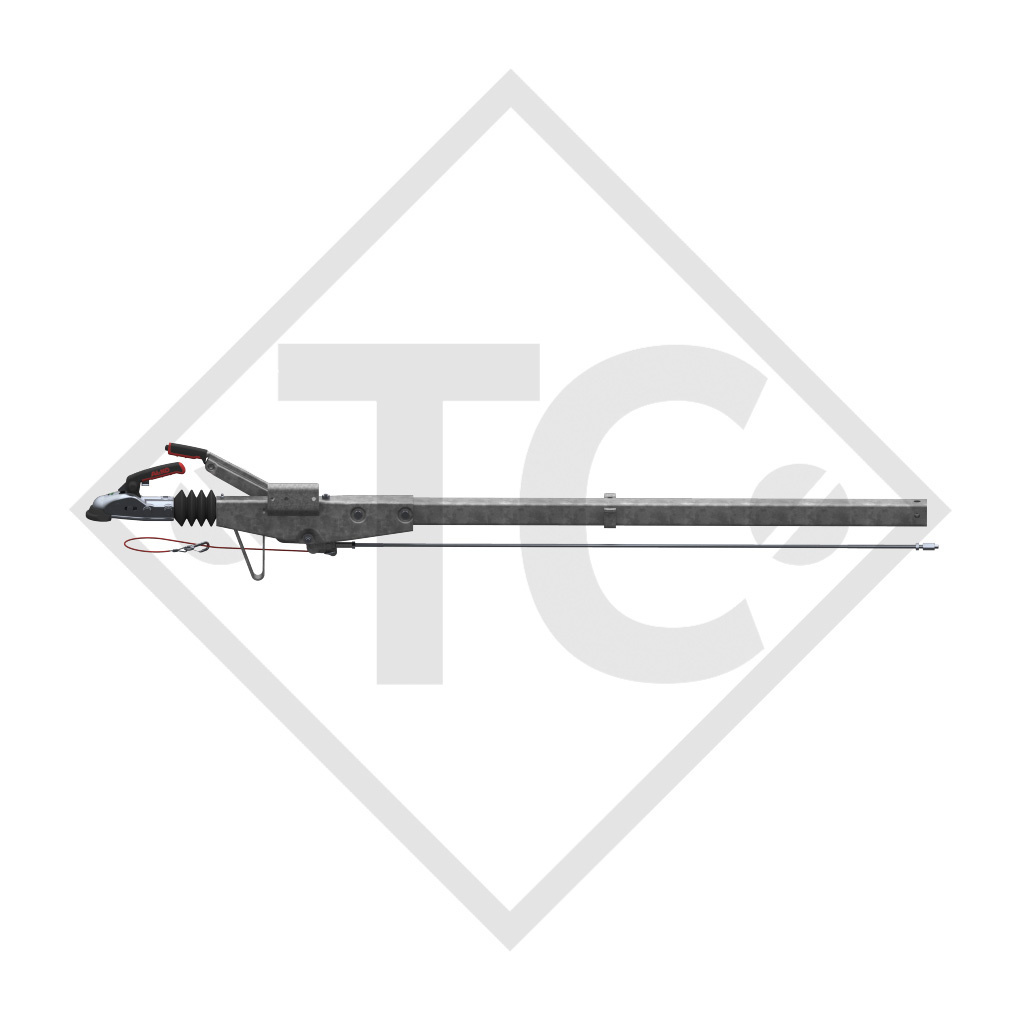

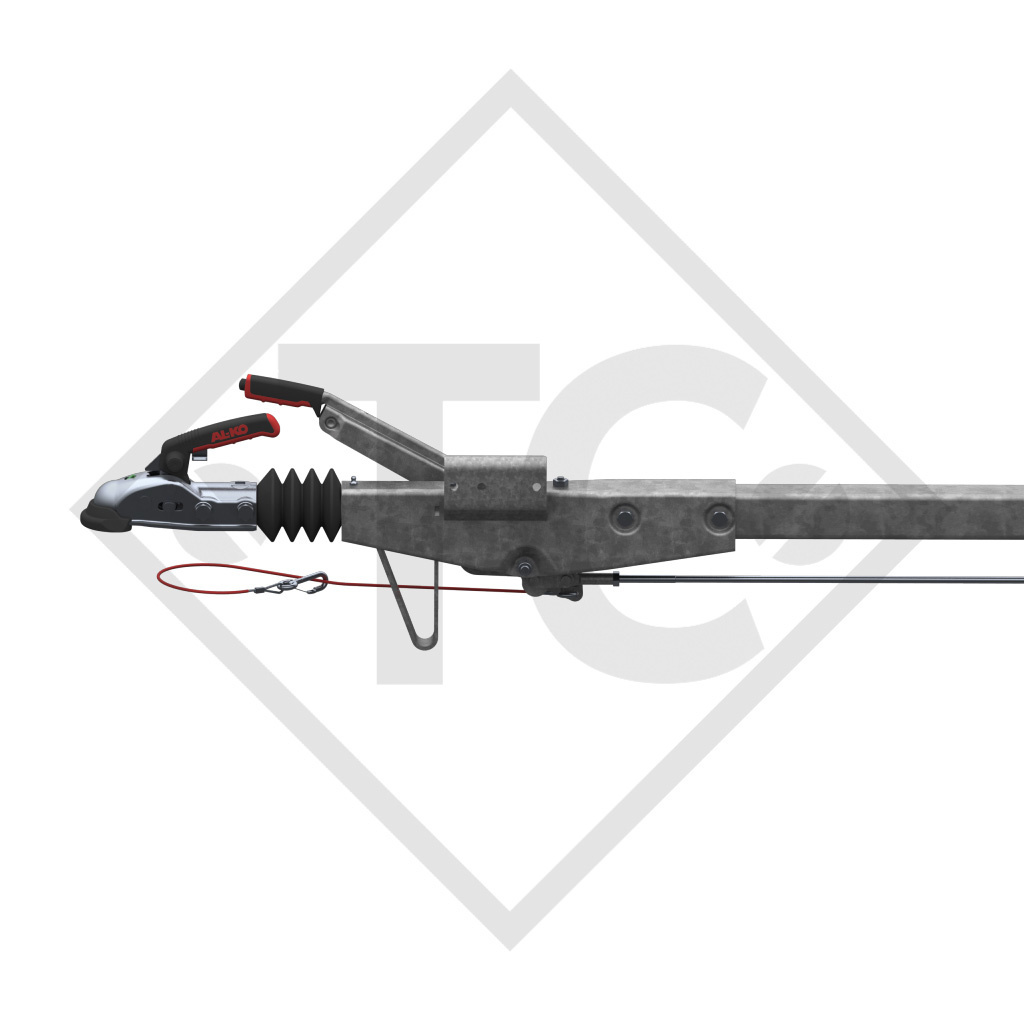

AL-KO Square overrun device type 60 S/2 - R4 vers. B3 with drawbar section straight 450 to 750kg

Part no. 20061706

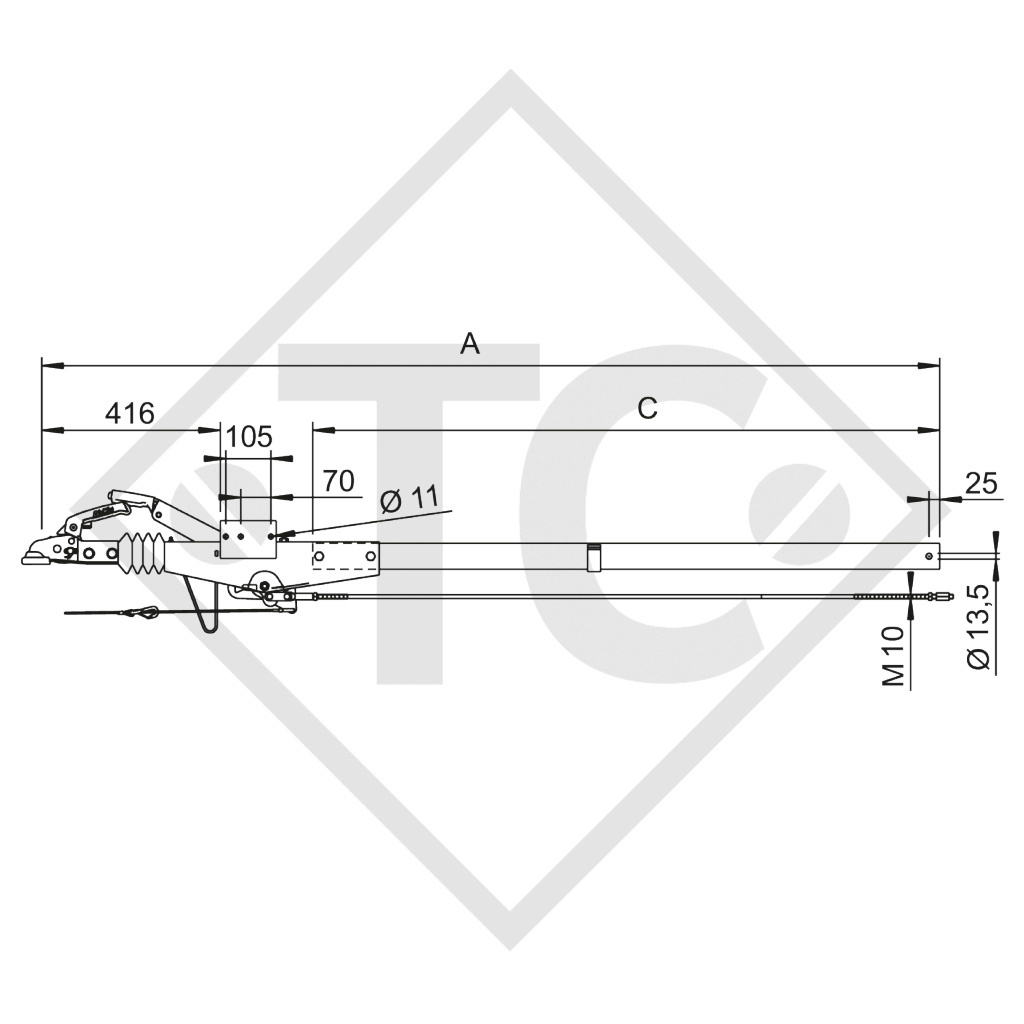

Total length A: 2247mm
Drawbar length C: 1620mm
Drawbar section: 60x60x4mm

INSTALLATION MANUAL
SPARE PART LIST 811171

TECHNOLOGY
Type 60 S/2 - R 4 vers. B 3
with coupling head AK 161 for wheel brake 1636G / 1637 / 2051 (90/27)
GA 450 to 750 kg
Perm. nose load 75 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-0126-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0234
Drawbar: E1 55R-01 0388

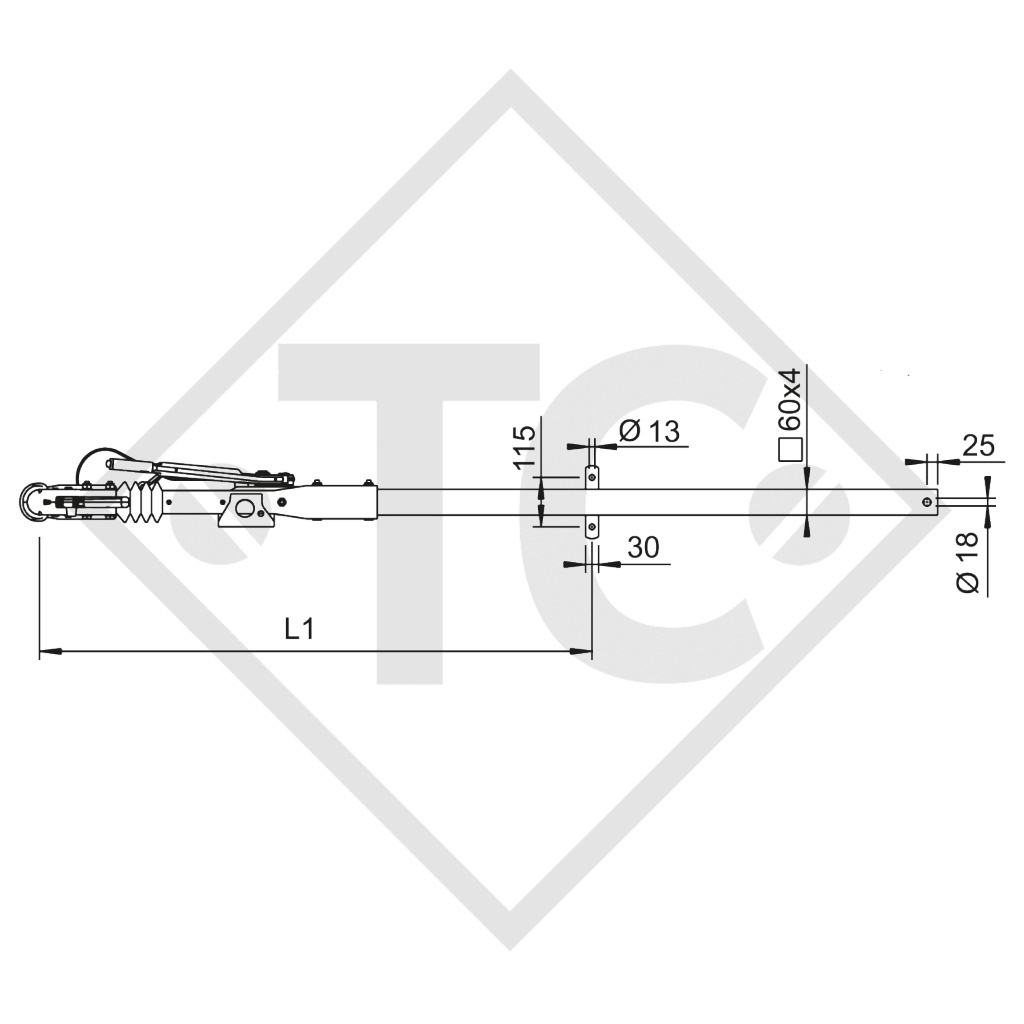

Max. free drawbar lenght at GA 750 kg (L1): 1470 mm

SURFACE TREATMENT
Hot-dip galvanised
