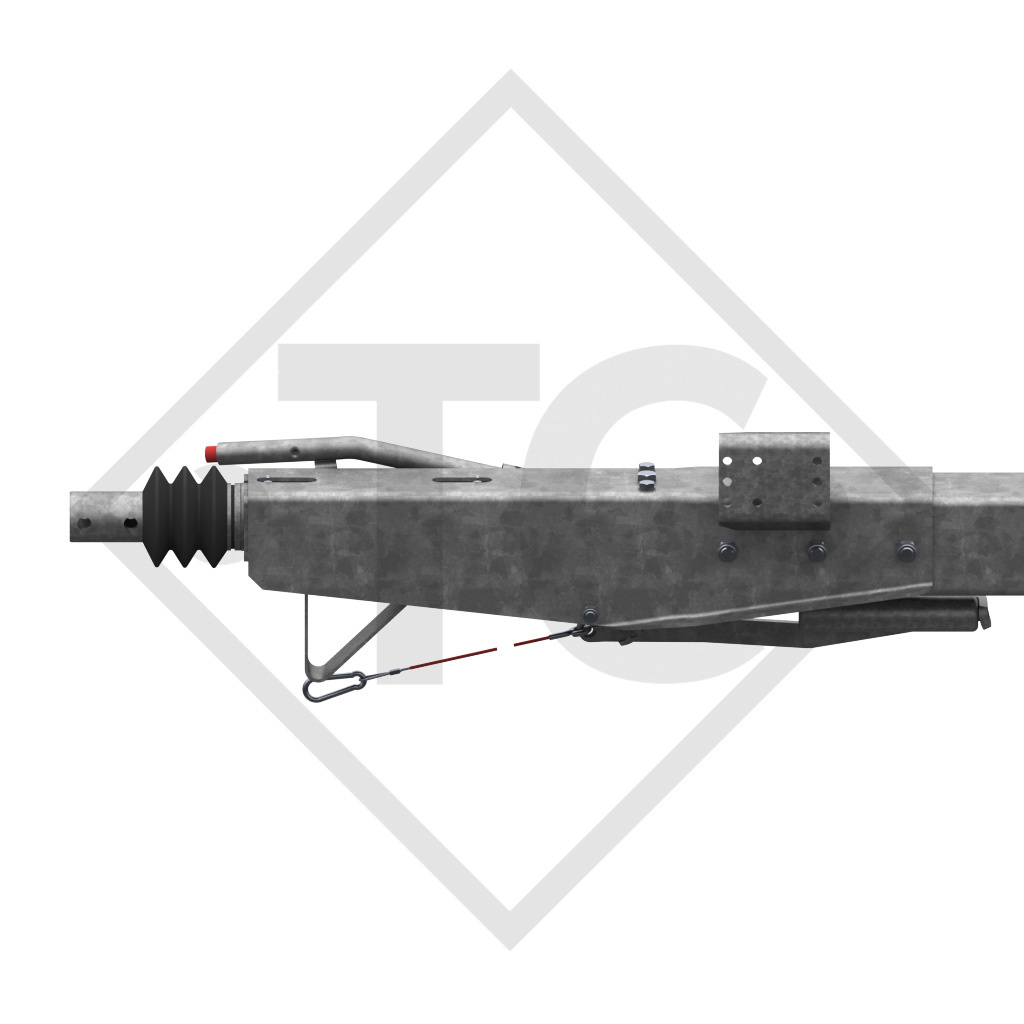

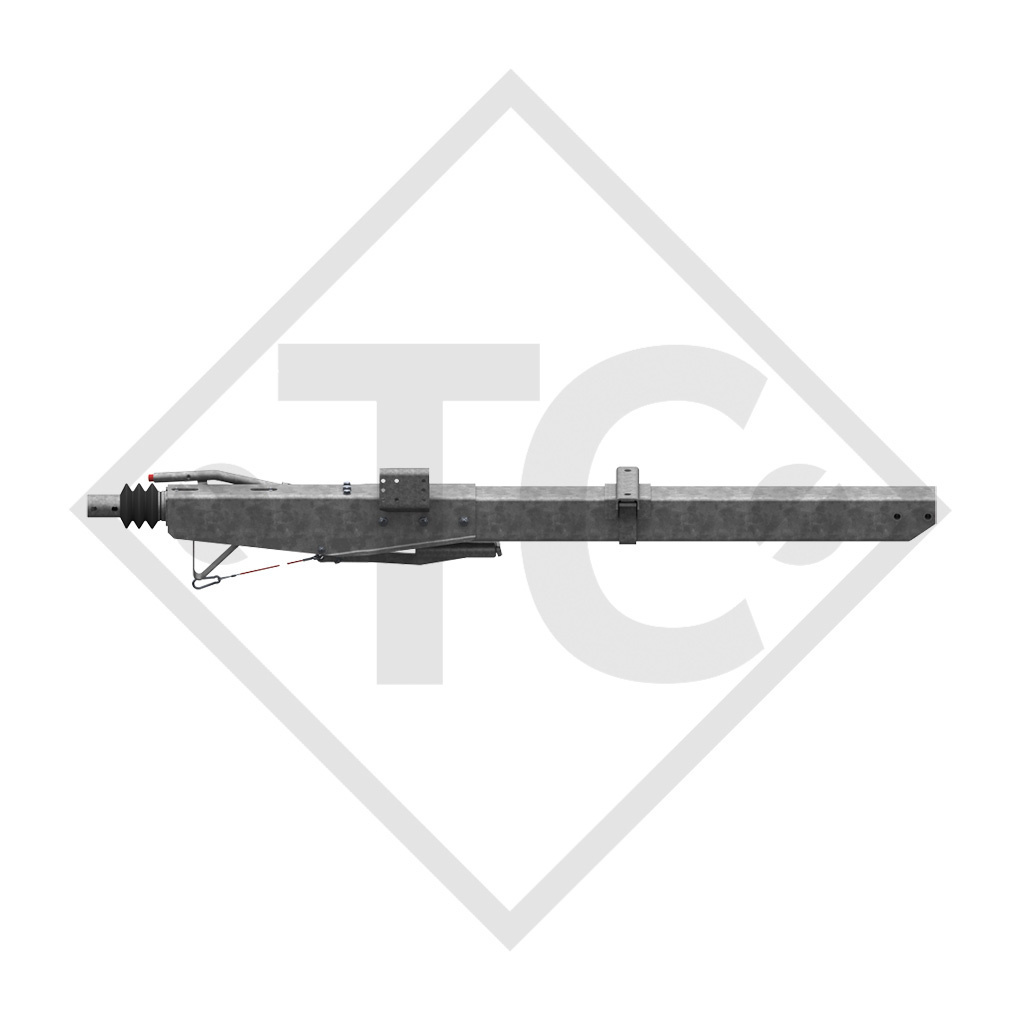

Home / Square overrun device type 2,8 VB/1-C - R35 vers. B with drawbar section straight 2500 to 3500kg
total length A 2660mm, drawbar length C 1940mm, drawbar section 120x120x5mm, perm. nose load 150kg, without hitch component, for wheel brake 2051. Read more...
Part no. 20036456
Total length A: 2660mm
Drawbar length C: 1940mm
Drawbar section: 120x120x5mm

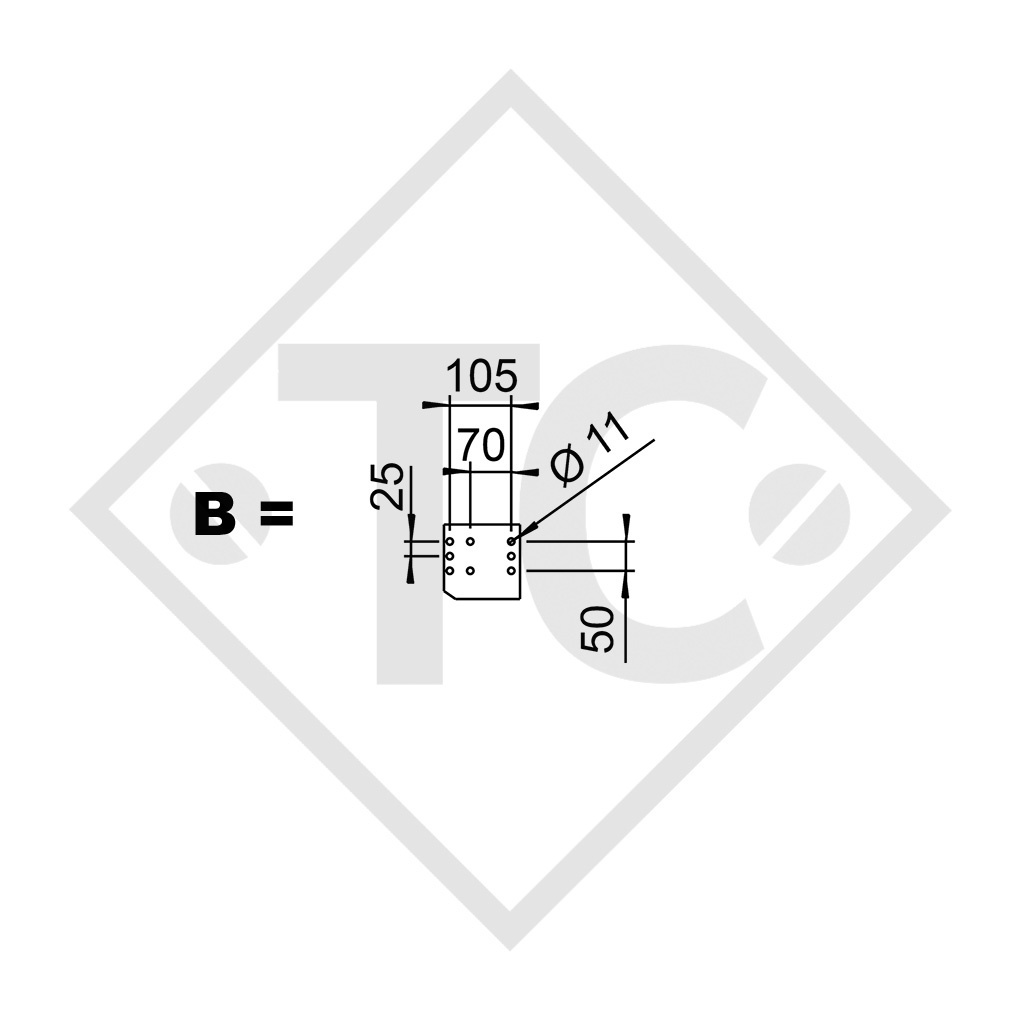

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811666
TECHNOLOGY
Type 2,8 VB/1-C - R35 vers. B
without hitch component for wheel brake 2051 (90/32)
GA 2500 to 3500 kg
Perm. nose load 150 kg
Changeover relay lever: No
ECE test report no.:
Overrun device: 361-0045-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0378
Drawbar: E1 55R-01 0762

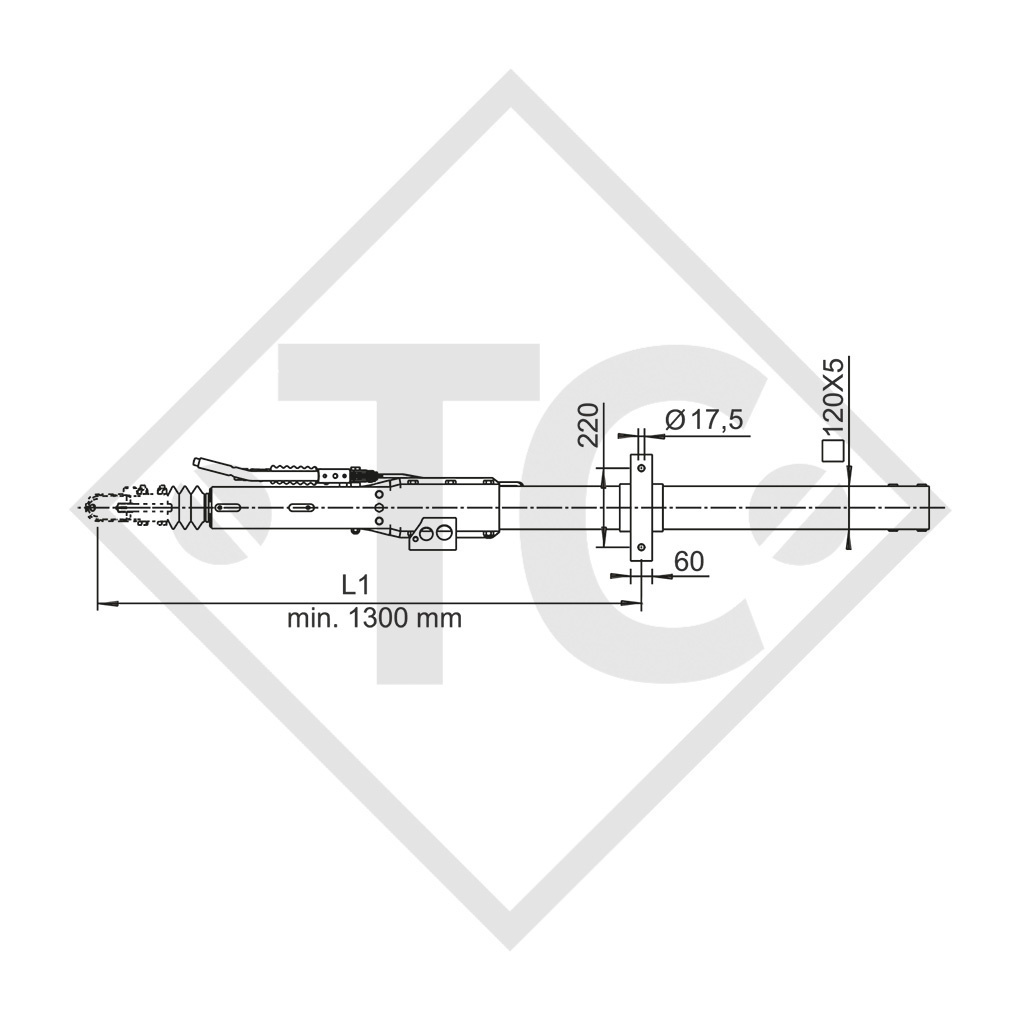

Max. free drawbar lenght at GA 3500 kg (L1): 1820 mm
SURFACE TREATMENT
Hot-dip galvanised
